U-Shaped Harpoon Terminal Manufacturer

U-Shaped Harpoon Terminals are professionally used for creating quick, secure, and reliable electrical connections in a variety of applications. These terminals are specifically designed to provide a simple and efficient method for connecting wires without the need for additional tools or components, making them ideal for applications that require frequent installation or reconfiguration.

The unique U-shaped design of these terminals allows for easy insertion and retention of the wire, ensuring a stable connection without damaging the insulation. The harpoon mechanism provides a strong mechanical grip on the conductor, ensuring low electrical resistance and high reliability. These terminals are engineered to handle a range of wire sizes and types, making them versatile for various electrical systems.

U-Shaped Harpoon Terminals are currently an innovative solution for creating efficient electrical connections. They simplify the installation process by allowing for quick wire insertion and secure connection, enhance system reliability through their robust design, and provide a safe and efficient way to manage electrical circuits. Their compact and durable design makes them suitable for a wide range of industrial, commercial, and residential applications where quick and reliable connections are essential.

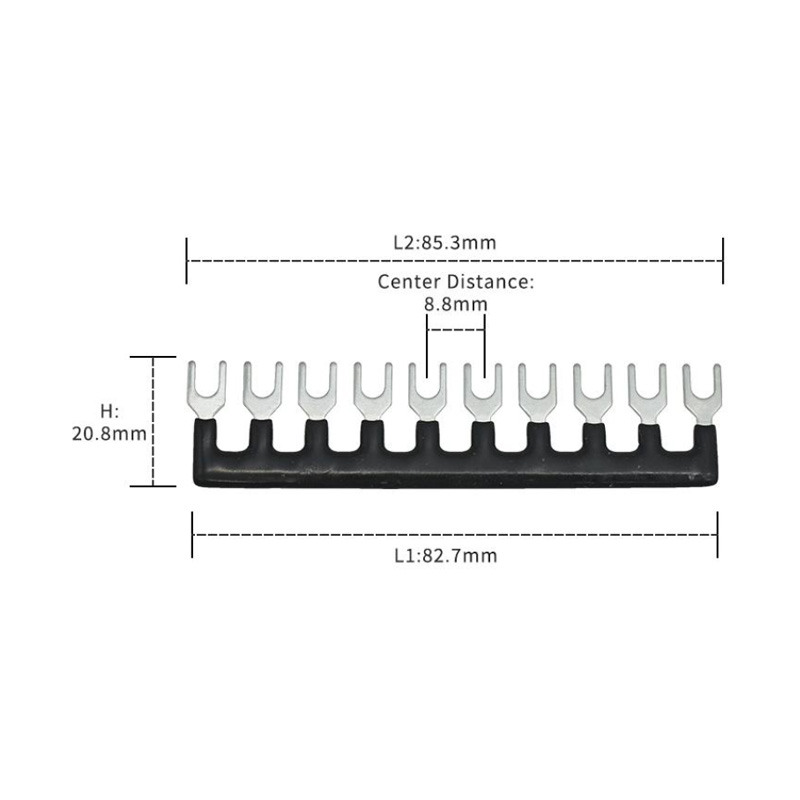

TB-1510 U-Shaped Harpoon Terminal
TB-2510 U-Shaped Harpoon Terminal
TB-1510 U-Shaped Harpoon Terminal
TB-2510 U-Shaped Harpoon Terminal

TB-1510 U-Shaped Harpoon Terminal

MODEL H
mm		 CENTER DISTANCE
mm		 INTERFACE SIZE
mm		 DISTANCE:A
mm		 DISTANCE:B
mm		 L1
mm		 L2
mm
TB-1502 20.8 8.8 6.2 3.65 2.6 12.1 15.0
TB-1503 21.1 23.9
TB-1504 29.9 32.7
TB-1505 38.9 41.8
TB-1506 47.3 50.2
TB-1510 82.7 85.3
TB-1512 100 102.9
Contact Us Downloads

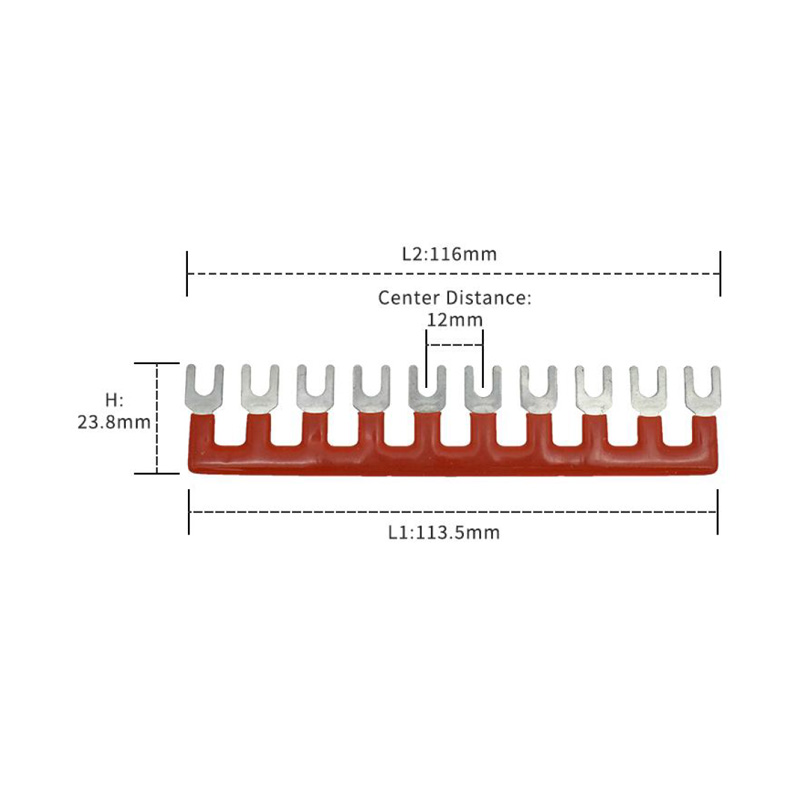

TB-2510 U-Shaped Harpoon Terminal
TB-2510 U-Shaped Harpoon Terminal
TB-2510 U-Shaped Harpoon Terminal
TB-2510 U-Shaped Harpoon Terminal

TB-2510 U-Shaped Harpoon Terminal

MODEL H
mm		 CENTER DISTANCE
mm		 INTERFACE SIZE
mm		 DISTANCE:A
mm		 DISTANCE:B
mm		 L1
mm		 L2
mm
TB-2503 23.8 12 7.98 4.06 4 29.0 32.3
TB-2504 41.0 44.3
TB-2505 54.2 56.7
TB-2506 65.6 68.2
TB-2510 113.5 116.0
TB-2512 138 140.6
Contact Us Downloads
Search
Categories
About Us
Zhejiang Haidu Electric Co., Ltd.
Zhejiang Haidu Electric Co., Ltd. is China U-Shaped Harpoon Terminal Manufacturer and Sale OEM/OEM U-Shaped Harpoon Terminal Factory. It is close to National Highway 104 and has very convenient transportation. The company has advanced production equipment and complete testing equipment. It is a high-tech enterprise integrating manufacturing, research and development and trade. The company specializes in the production of electrical energy metering junction boxes, meter box split terminals, high current wiring terminals, multi-purpose terminals, switch terminals, T-connection terminals, insulation puncture clamps and various wiring equipment.
Certificate Of Honor
  • 1
  • 2
  • 3
  • 5
  • 6
  • 7
  • 8
  • 9
News
Industry Knowledge Extension

From industrial control systems to medical devices, terminal blocks play a crucial role in ensuring the reliability and safety of electrical connections. In recent years, advancements in technology have led to the development of innovative terminal block designs, materials, and features.

What Materials Are Commonly Used To Manufacture U-Shaped Harpoon Terminals?

U-shaped harpoon terminals are a type of electrical connector designed to provide a secure and reliable connection for wires. These terminals are made from a variety of materials, including:

  • Copper: Copper is a popular choice for U-shaped harpoon terminals due to its electrical conductivity and durability.
  • Brass: Brass is another common material used to manufacture U-shaped harpoon terminals, offering a good balance between electrical conductivity and mechanical strength.
  • Tin-Plated Copper: Tin-plated copper is a popular choice for U-shaped harpoon terminals, offering electrical conductivity and corrosion resistance.
  • Stainless Steel: Stainless steel is sometimes used to manufacture U-shaped harpoon terminals, offering mechanical strength and corrosion resistance.

The choice of material depends on the specific application and requirements of the terminal block. For example, copper or tin-plated copper may be used for applications that require high electrical conductivity, while brass or stainless steel may be used for applications that require high mechanical strength.

How are PCB Terminal Strip Jumper Blocks Different from Other Types of Terminal Blocks?

PCB terminal strip jumper blocks are a type of terminal block designed specifically for use on printed circuit boards (PCBs). These terminal blocks are designed to provide a secure and reliable connection for wires, while also allowing for easy jumpering or bridging of connections.

Some key features of PCB terminal strip jumper blocks include:

  • Compact Design: PCB terminal strip jumper blocks are designed to be compact and space-saving, making them ideal for use on PCBs where space is limited.
  • Easy Jumpering: These terminal blocks feature a unique design that allows for easy jumpering or bridging of connections, making it simple to connect multiple wires or circuits.
  • Secure Connection: PCB terminal strip jumper blocks provide a secure and reliable connection for wires, ensuring that connections are maintained even in harsh environments.
  • High-Voltage Rating: These terminal blocks often have a high voltage rating, making them suitable for use in a wide range of applications.

PCB terminal strip jumper blocks are different from other types of terminal blocks in several ways. For example, they are designed specifically for use on PCBs, and feature a unique design that allows for easy jumpering or bridging of connections.

What is a Fork-Type Terminal Block?

A fork-type terminal block is a type of electrical connector designed to provide a secure and reliable connection for wires. These terminal blocks feature a fork-like design, with two prongs that cradle the wire and provide a secure connection.

Some key features of fork-type terminal blocks include:

  • Secure Connection: Fork-type terminal blocks provide a secure and reliable connection for wires, ensuring that connections are maintained even in harsh environments.
  • Easy Installation: These terminal blocks are easy to install, and feature a simple design that makes it easy to connect and disconnect wires.
  • Compact Design: Fork-type terminal blocks are designed to be compact and space-saving, making them ideal for use in applications where space is limited.
  • High-Voltage Rating: These terminal blocks often have a high voltage rating, making them suitable for use in a wide range of applications.

Fork-type terminal blocks are commonly used in applications where a secure and reliable connection is required, such as in industrial control systems, power supplies, and communication systems.
