Monopole Rail Type Combined Terminal Block Manufacturer

Monopole Rail Type Combined Terminal Blocks are professionally used for managing electrical connections in single-pole applications, particularly in systems that require individual control and isolation of each circuit. These terminal blocks are specifically designed for easy installation and integration into rail-mounted electrical panels and distribution boards, making them ideal for applications that demand a compact, organized, and reliable solution for power distribution and control.

These rail type combined terminal blocks feature a modular design that allows for secure and stable connections of individual conductors, without the need for excessive wiring or additional conductors. The rail mounting design ensures easy installation, scalability, and compatibility with standard DIN rail systems, making them suitable for a wide range of residential, commercial, and industrial applications.

Monopole Rail Type Combined Terminal Blocks are currently a novel product offering a convenient and highly reliable solution for managing single-pole electrical connections. They simplify the wiring process, enhance system reliability, and provide a safe and efficient way to manage individual circuits in a single terminal block, all while being easily integrated into rail-mounted systems.

One of a features of Monopole Rail Type Combined Terminal Blocks is their ability to handle high-density wiring. This is particularly beneficial in confined spaces where traditional terminal blocks would be cumbersome or impractical. The design allows for a compact layout that maximizes the number of connections without sacrificing accessibility or safety.

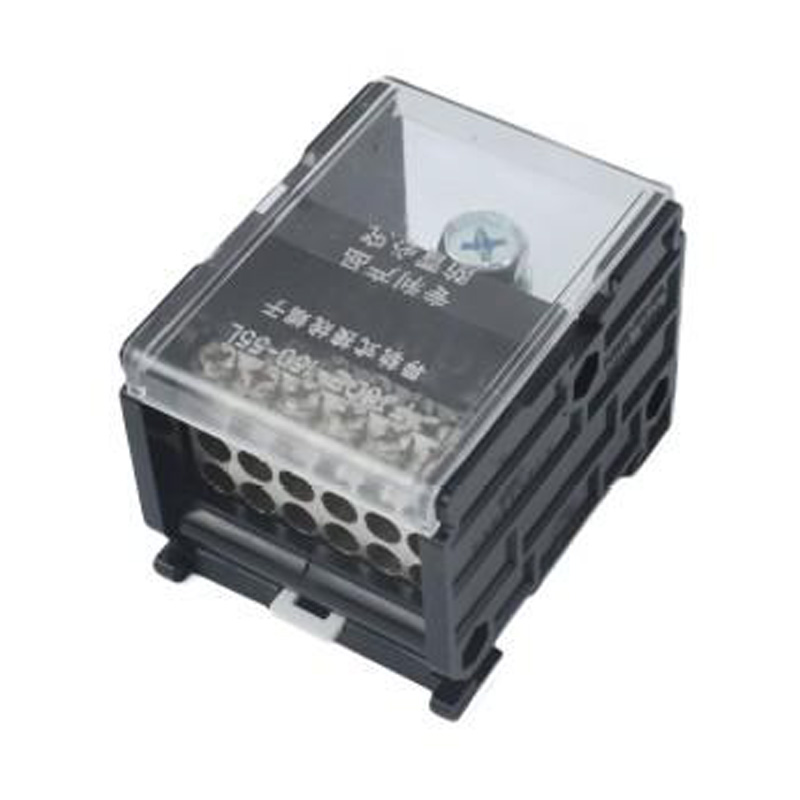

FJ6DI-150-01/16x 16 55L Monopole Rail Combined Terminal

FJ6DI-150-01/24x6 55L Monopole Rail Combined Terminal

FJ6DI-150-01/16x 16 55L Monopole Rail Combined Terminal

FJ6DI-150-01/16x16(55L)
One-inlet, sixteen-outlue
Inlet wire:10-50mm², outlet wire:1.5-16mm²
Order number：152323

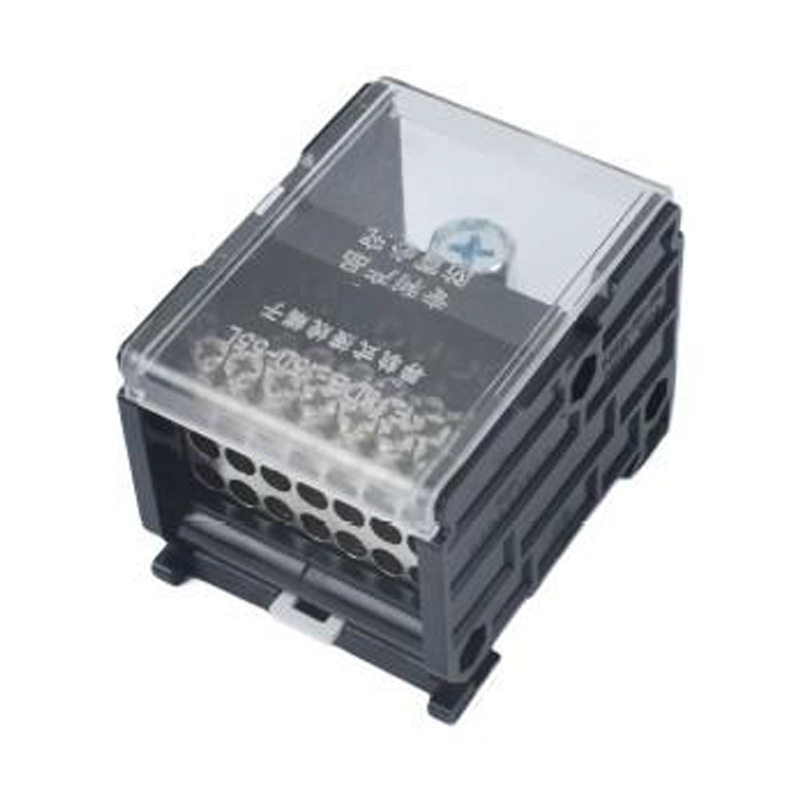

FJ6DI-150-01/18x 16 55L Monopole Rail Combined Terminal

FJ6DI-150-01/18x 16 55L Monopole Rail Combined Terminal

FJ6DI-150-01/18x16(55L)
One-inlet, eighteen-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number：152324

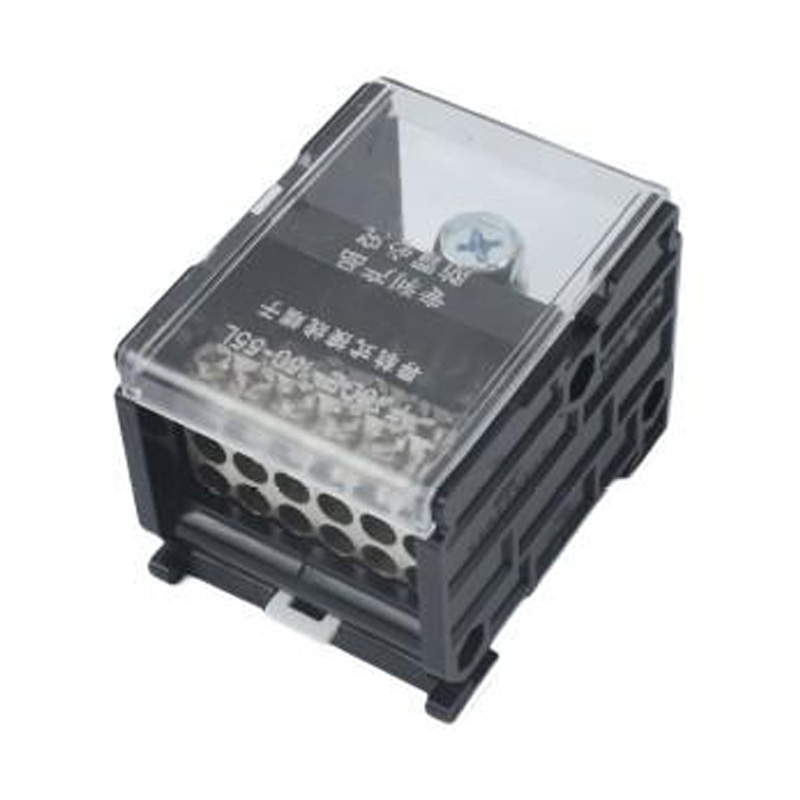

FJ6DI-150-01/21x10 55L Monopole Rail Combined Terminal

FJ6DI-150-01/21x10 55L Monopole Rail Combined Terminal

FJ6DI-150-01/21x10(55L)
One-inlet, twenty-one-outlue
Inlet wire:10-50mm², outlet wire:1.5-10mm²
Order number:152325

FJ6DI-150-01/24x6 55L Monopole Rail Combined Terminal

FJ6DI-150-01/24x6(55L)
One-inlet, twenty-four-outlue
Inlet wire:10-50mm²,outlet wire:10-10mm²
Order number：152326
