Right Connection: How Effective Are Essential Electrical Terminals?

In any electrical project, from a simple DIY repair to a complex industrial control panel, the connection is often the critical point. A poor connection can voltage drop, overheating, and even complete failure. Choosing the right terminal for the job is not just a detail—it's a fundamental part of safety and reliability.

I. Spherical Non-Destructive Crimp Terminal

When you need to connect a wire to a stud or binding post, a standard ring terminal is a common choice. However, tightening the nut can sometimes cause the terminal to rotate, twisting the wire underneath. This can damage the wire strands and create a poor connection. The spherical non-destructive crimp terminal is designed specifically to prevent this issue.

Its key feature is its unique shape. Unlike a flat ring terminal, it has a rounded, dome-like base. When you tighten the nut, this spherical shape allows the terminal to rotate freely without transferring that twisting force to the wire itself. The wire remains stationary, preventing damage to the strands inside the crimp barrel. This "non-destructive" characteristic is crucial for maintaining a reliable, high-quality connection and preserving the integrity of the wire.

These terminals are especially valuable in applications where precise torque is applied or where connections need to be serviced and re-tightened multiple times. They are a simple but effective upgrade that enhances durability and safety, ensuring that the connection point remains as strong as the wire it's attached to.

II. Electric Wire Terminal

The term "electric wire terminal" is a broad category that covers the simple devices used to end a wire, preparing it for a secure connection. Their primary job is to provide a safe and reliable end point for a conductor, whether it's being attached to another wire, a screw terminal, or a component. The common types include spade (fork), ring, and hook terminals, each serving a slightly different purpose.

Spade terminals are popular for their convenience; they can be slid on and off a stud without removing the nut, making them ideal for maintenance and situations where connections might need to be changed. Ring terminals provide the secure connection because they cannot slip off once the nut is tightened, making them good for high-vibration environments. Hook terminals are less common but useful for quick, temporary connections on test equipment or spring-loaded terminals.

Regardless of the style, a proper crimp is what makes the connection work. Using the correct crimping tool for the terminal size is non-negotiable. A good crimp deforms the metal barrel of the terminal around the wire strands in a way that creates a gas-tight connection, preventing oxidation and ensuring low electrical resistance. Skipping this step or using pliers instead of the right tool is a common source of failure.

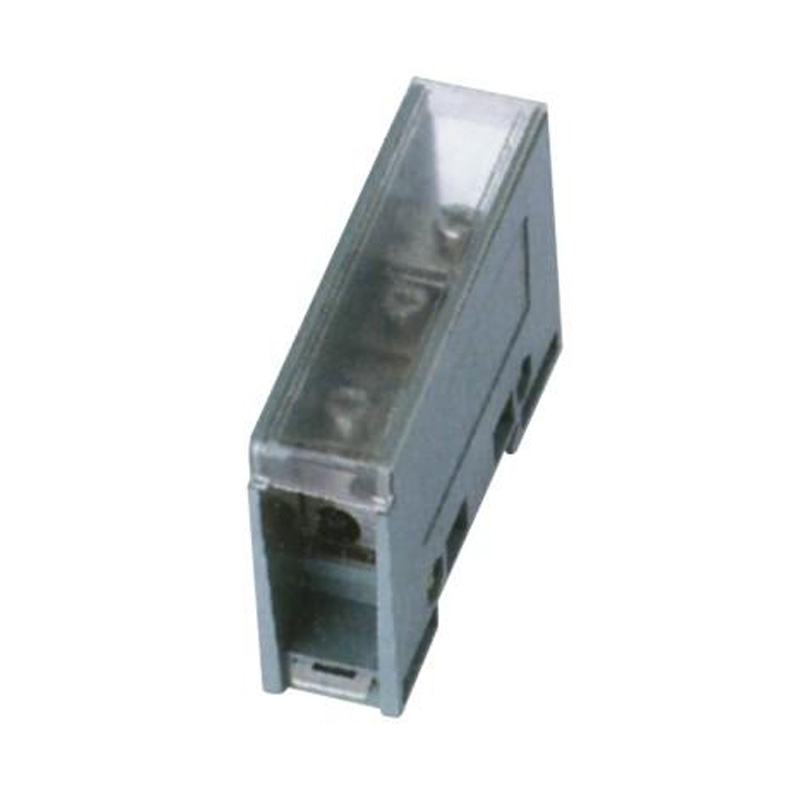

III. High Current Terminal Blocks

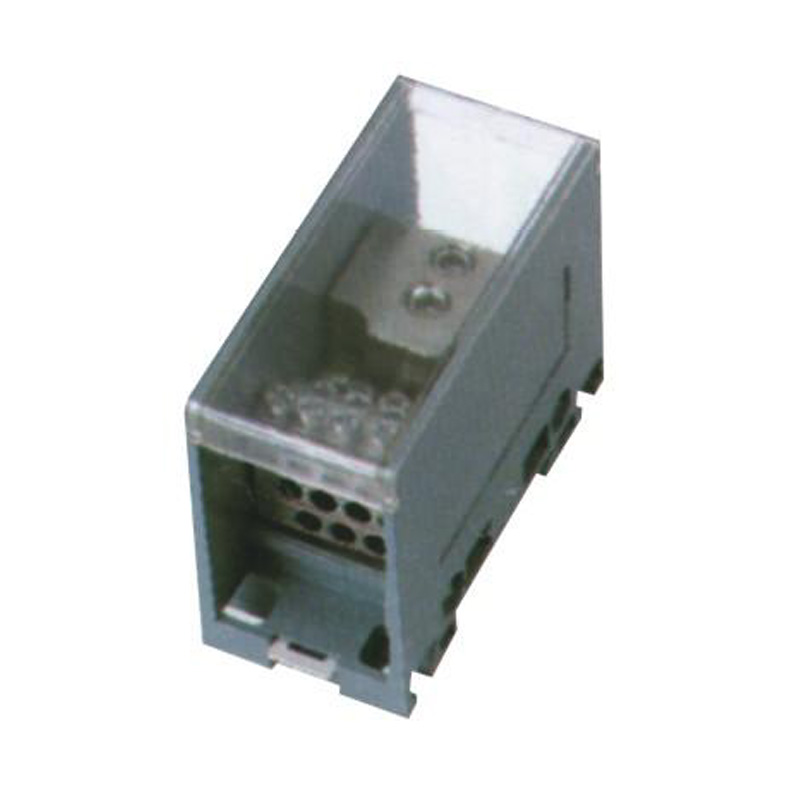

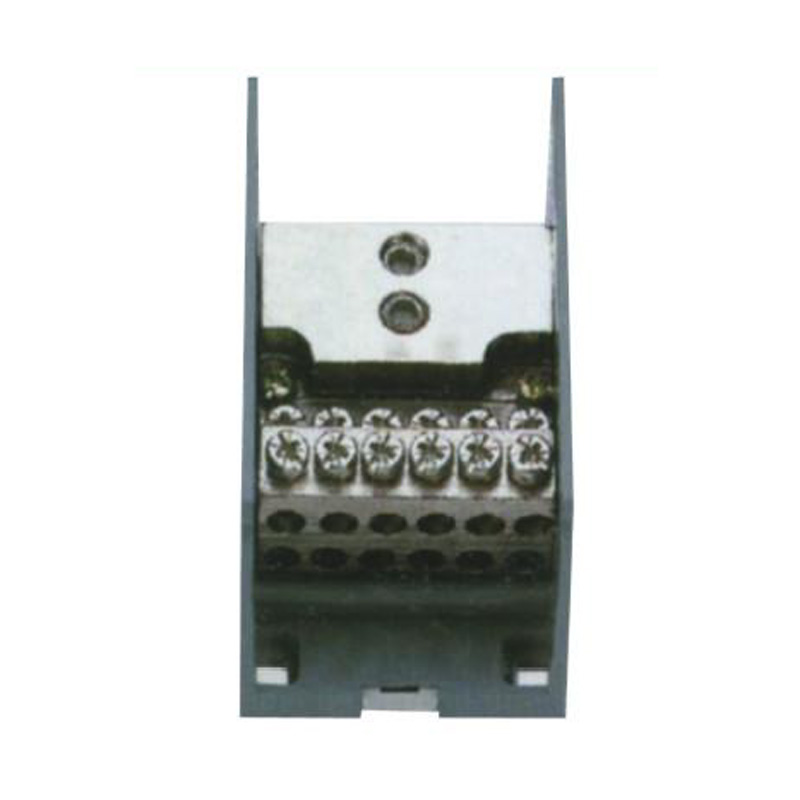

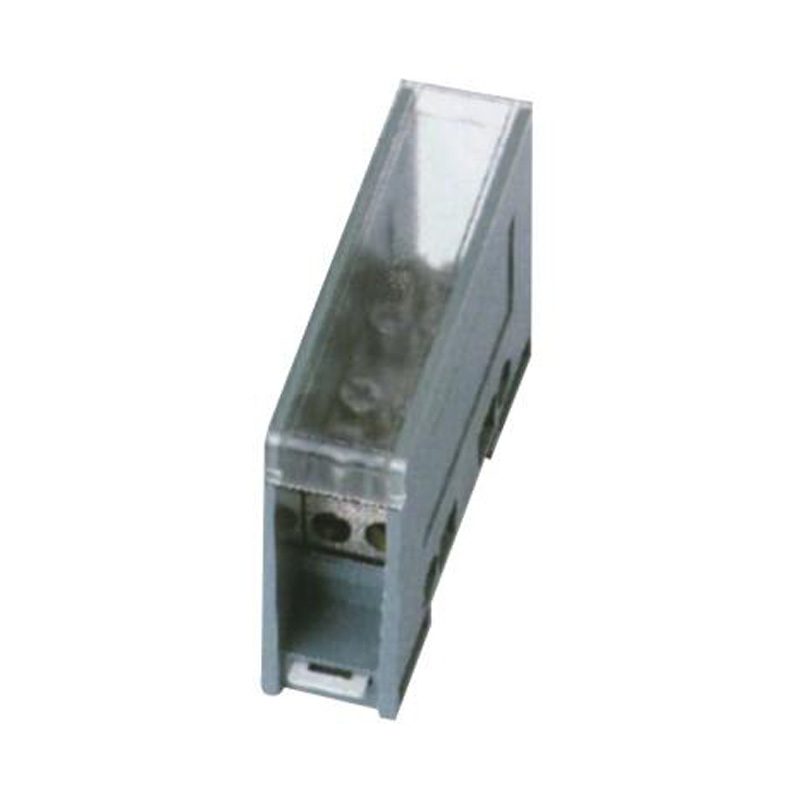

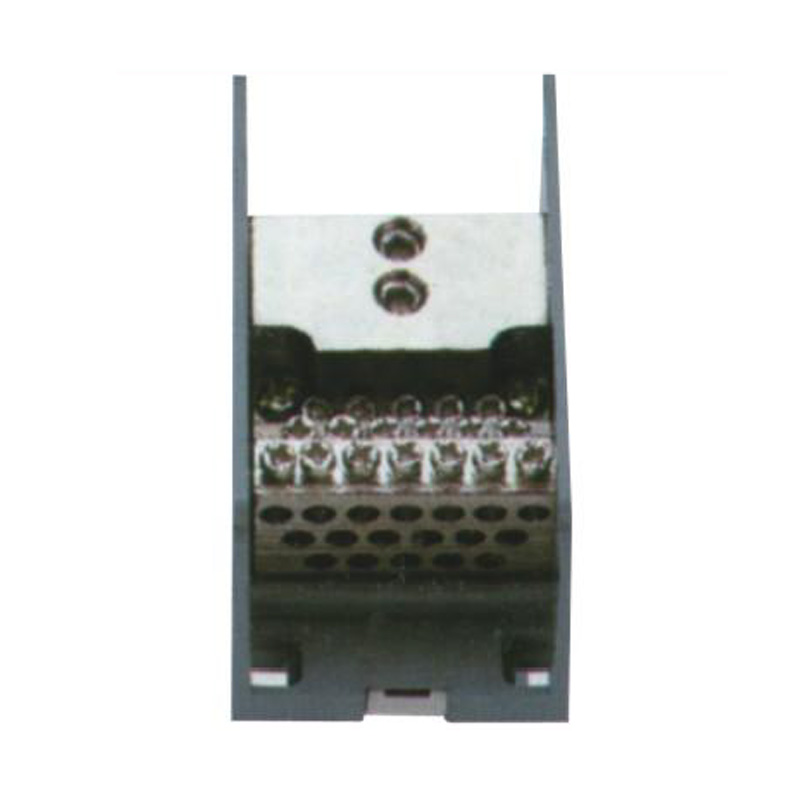

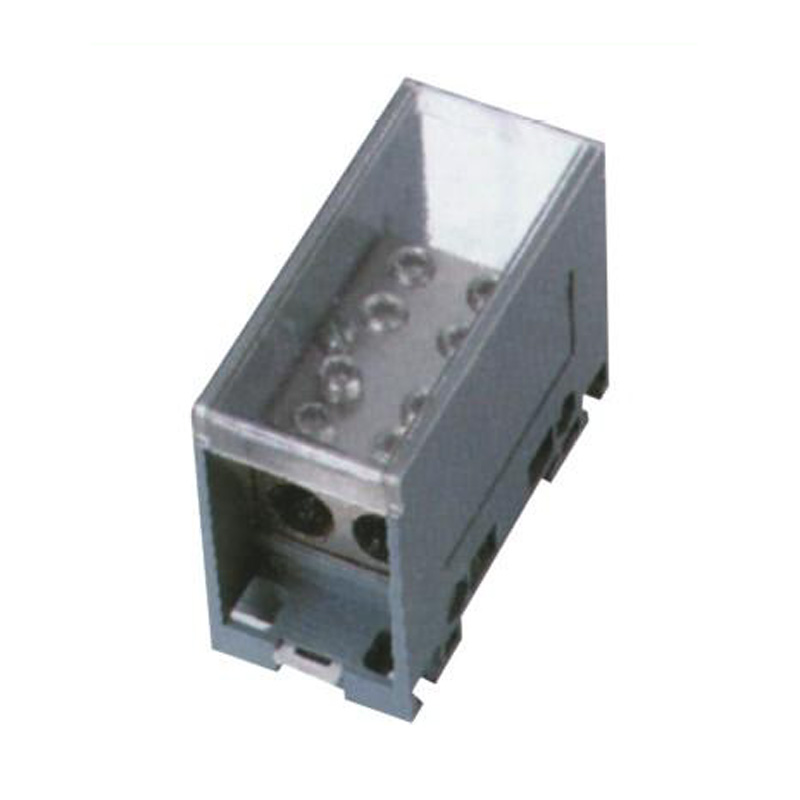

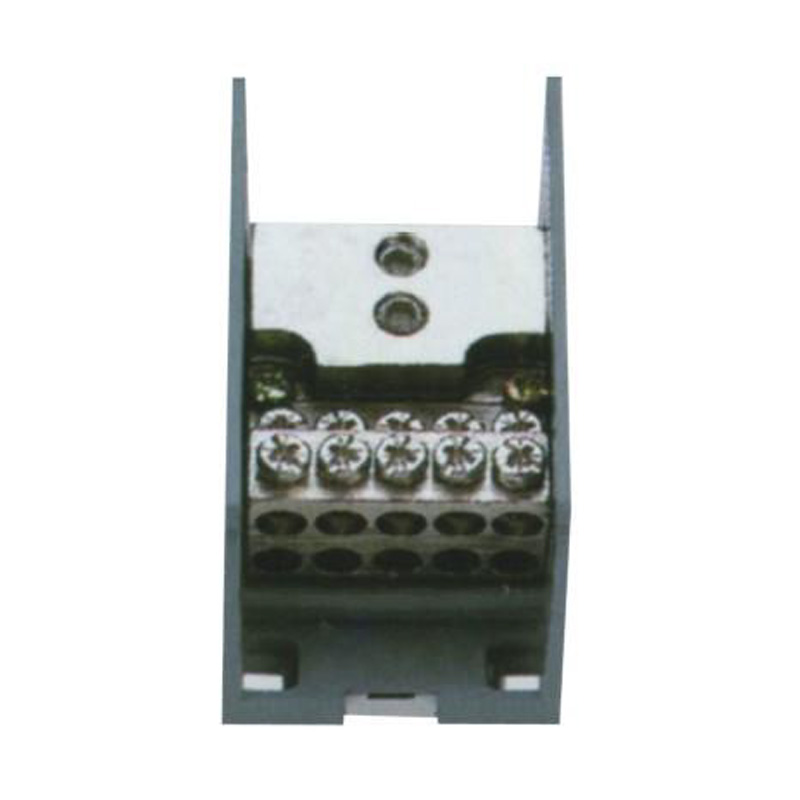

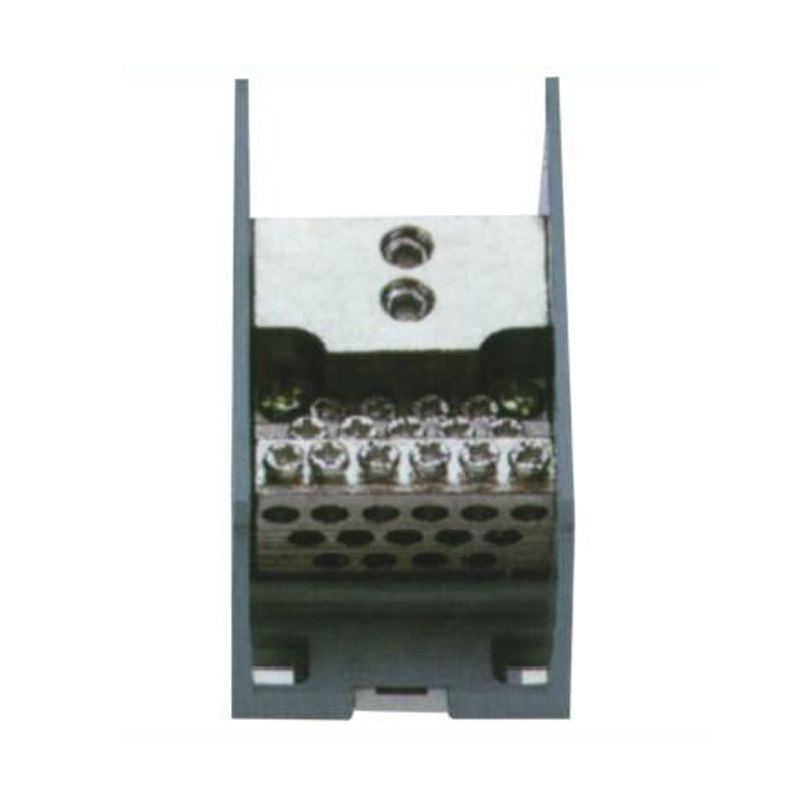

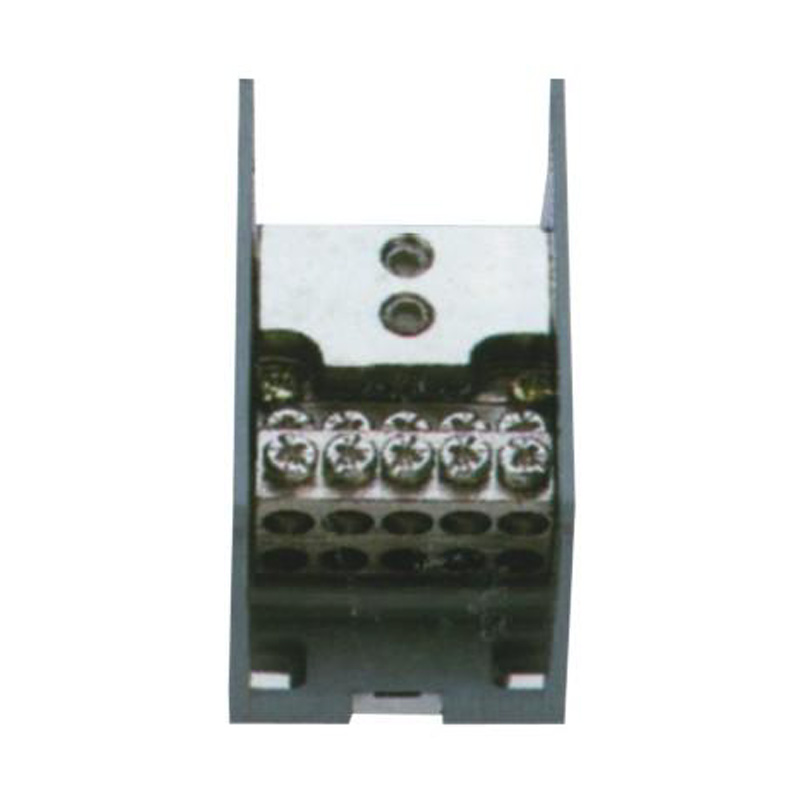

In industrial settings, power distribution, and renewable energy systems, managing high current flow is a constant challenge. Standard terminal blocks can overheat and fail under these demands. High current terminal blocks are engineered from the ground up to handle these heavy loads safely and efficiently.

They are characterized by their robust construction. They are made from high-quality, high-conductivity copper alloys and often feature large, heavy-duty clamping mechanisms. These clamps provide a very large surface area contact with the conductor, which minimizes electrical resistance. Since heat is generated by resistance, a better connection runs cooler. Many are also designed with multiple clamping points or set screws to ensure the wire is held immovably, even in high-vibration applications.

Heat management is another critical feature. Their larger physical size allows them to act as a heat sink, dissipating thermal energy into the surrounding air more effectively. Some advanced designs even incorporate cooling fins to increase this effect. For organizing complex systems, these blocks are modular and can be mounted on sturdy DIN rails, allowing for neat, scalable, and safe power distribution within an enclosure. They are the backbone of any system where moving significant power reliably is the top priority.
