READ MORESpherical Non-Destructive Crimp Terminal
Spherical Non-Destructive Crimp Terminals are professionally used for creating secure and reliable connections in electrical systems, particularly where non-destructive crimping is required to ensure the integrity of the electrical connection. These terminals are specifically designed to provide a robust and durable solution for connecting conductors without causing damage to the wire insulation or compromising the mechanical strength of the connection.
These terminals feature a spherical design that allows for even distribution of pressure during the crimping process, ensuring a secure and stable connection without deforming or damaging the wire. The non-destructive crimping mechanism ensures that the electrical and mechanical properties of the connection are maintained, even under high current loads and varying environmental conditions.
Spherical Non-Destructive Crimp Terminals are currently an innovative solution for creating reliable electrical connections. They simplify the installation process by providing a quick and efficient crimping method, enhance system reliability through their secure and durable design, and ensure the long-term integrity of the electrical connection. Their advanced design makes them suitable for a wide range of industrial, commercial, and residential applications where high-quality connections are essential.

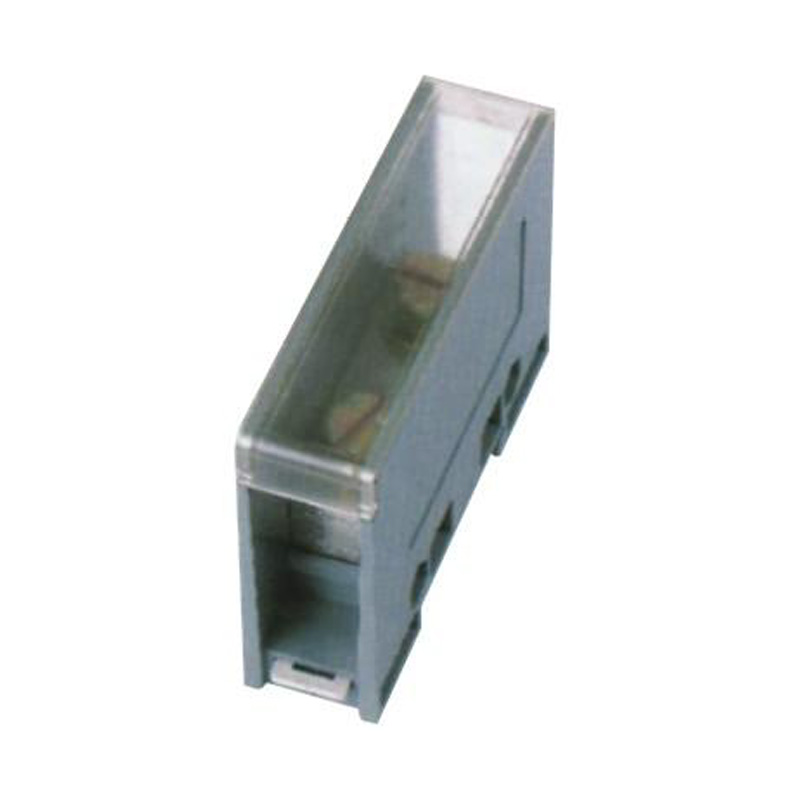

FJ6/JTS2C-25B Terminal Block
Model: FJ6/JTS2C-25B
Stucture: One-inlet,one-outlet
Section: Inlet wire 10-25mm2
Panel connection2
Outline size: 78(W) x 54(H) x 21(T)
Order no.150432

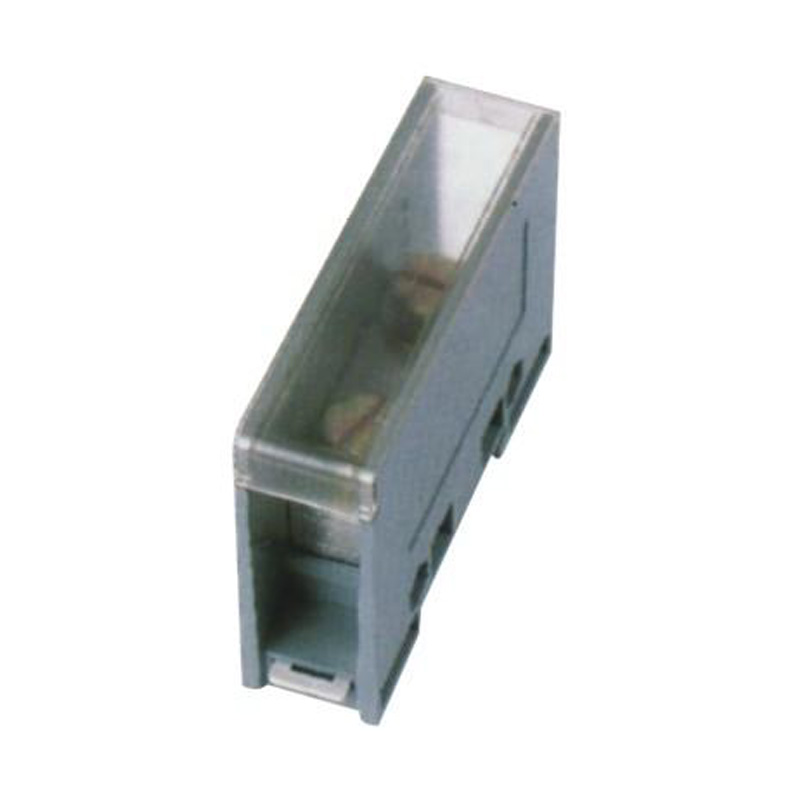

FJ6/JTS2C-35B Terminal Block
Model: FJ6/JTS2C-35B
Stucture: One-inlet,one-outlet
Section: lnlet wire 10-35mm²
Panel connection²
Outline size: 78(W) x 54(H) x 25(T)
Order no.150433

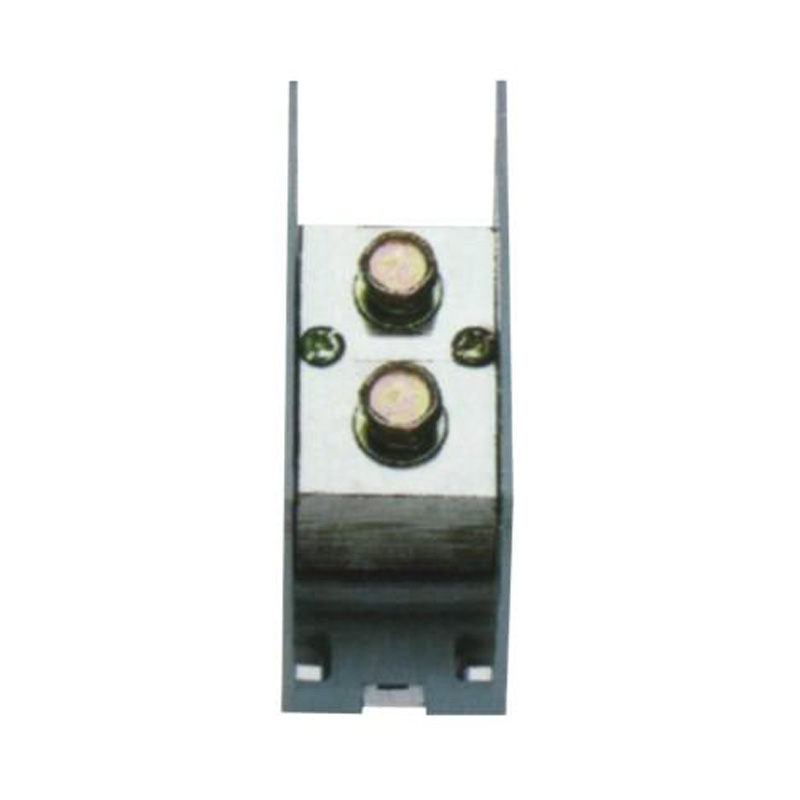

FJ6/JTS2C-50B Terminal Block
Model: FJ6/JTS2C-50B
Stucture: One-inlet,one-outlet
Section: Inlet wire 25-50mm2
Panel connection
Outline size: 78(W) x 54(H) x 28(T)
Order no.150434

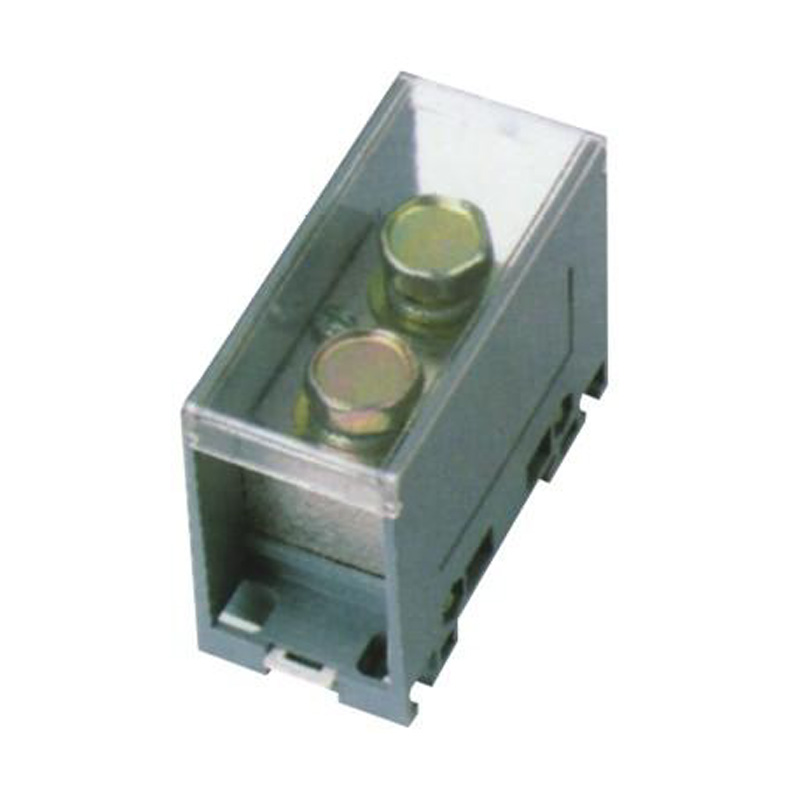

FJ6/JTS2C-120B Terminal Block
Model: FJ6/JTS2C-120B
Stucture: One-inlet,one-outlet
Section: Inlet wire 25-120mm2
Panel connection
Outline size: 78(W) x 61(H) x 36(T)
Order no.150435

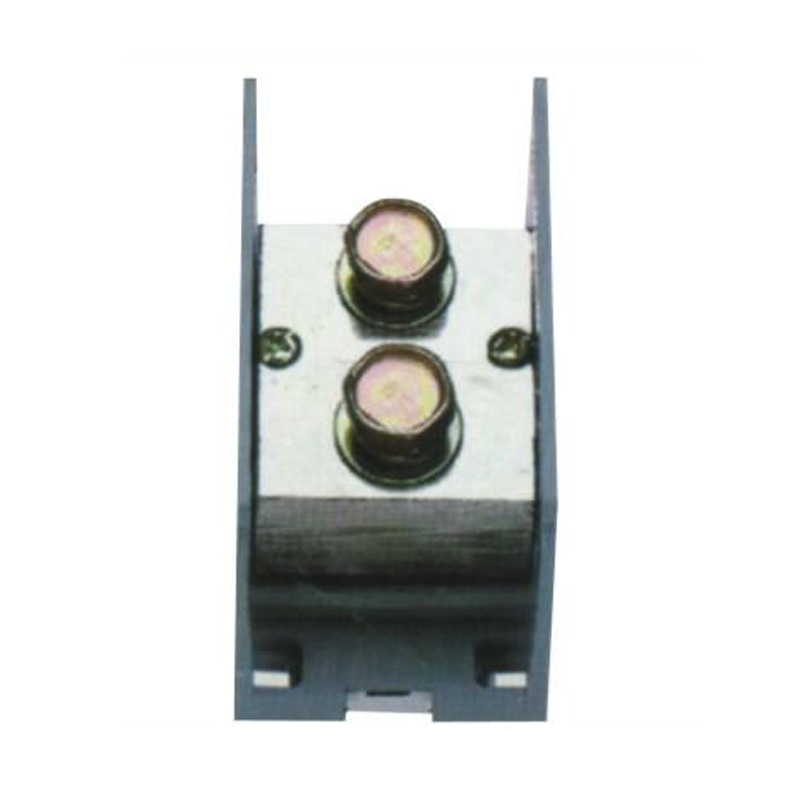

FJ6/JTS2C-150B Terminal Block
Model: FJ6/JTS2C-150B
Stucture: One-inlet,one-outlet
Section: Inlet wire 50-150mm2
Panel connection
Outline size: 78(W) x 61(H) x 45(T)
Order no.150436

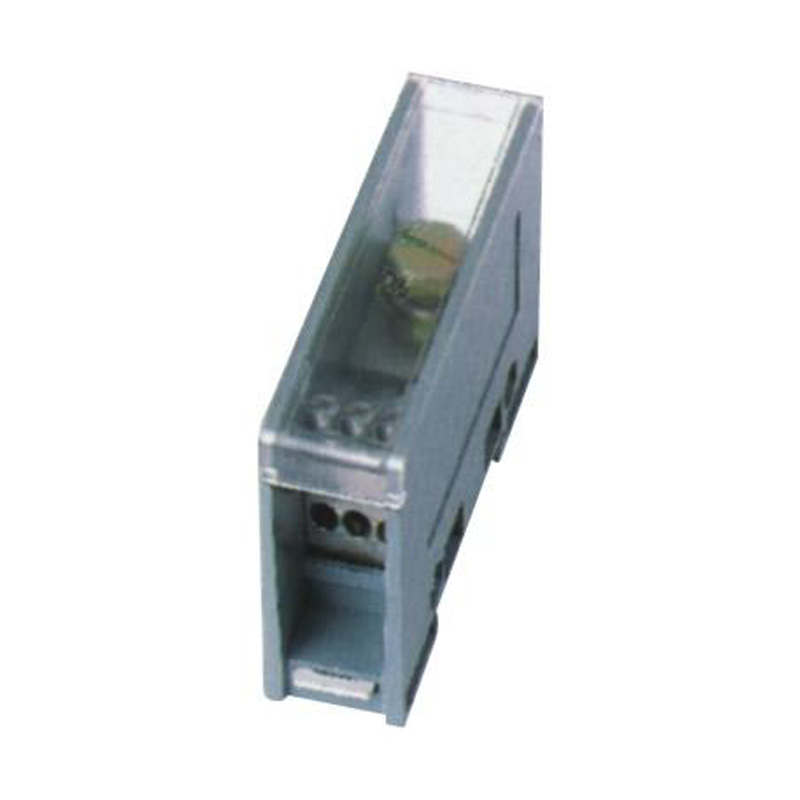

FJ6/JTS2C-35B/2x10 Terminal Block
Model: FJ6/JTS2C-35B/2x10
Stucture: One-inlet,two-outlet
Section: Inlet wire 10-35mm²
Outlet wire 2.5-10mm²
Outline size: 78(W) x 54(H) x 21(T)
Order no.150437
FJ6/JTS2C-35B/2x25 Terminal Block
Model: FJ6/JTS2C-35B/2x25
Stucture: One-inlet,two-outlet
Section: Inlet wire 10-35mm²
Outlet wire 6-25mm²
Outline size: 78(W) x 54(H) x 21(T)
Order no.150438
FJ6/JTS2C-35B/2x35 Terminal Block
Model: FJ6/JTS2C-35B/2x35
Stucture: One-inlet,two-outlet
Section: Inlet wire 10-35mm²
Outlet wire 6-35mm²
Outline size: 78(W) x 54(H) x 25(T)
Order no.150439
FJ6/JTS2C-50B/2x35 Terminal Block
Model: FJ6/JTS2C-50B/2x35
Stucture: One-inlet,two-outlet
Section: Inlet wire 25-50mm2
Outlet wire 16-35mm2
Outline size: 78(W) x 54(H) x 28(T)
Order no.150440

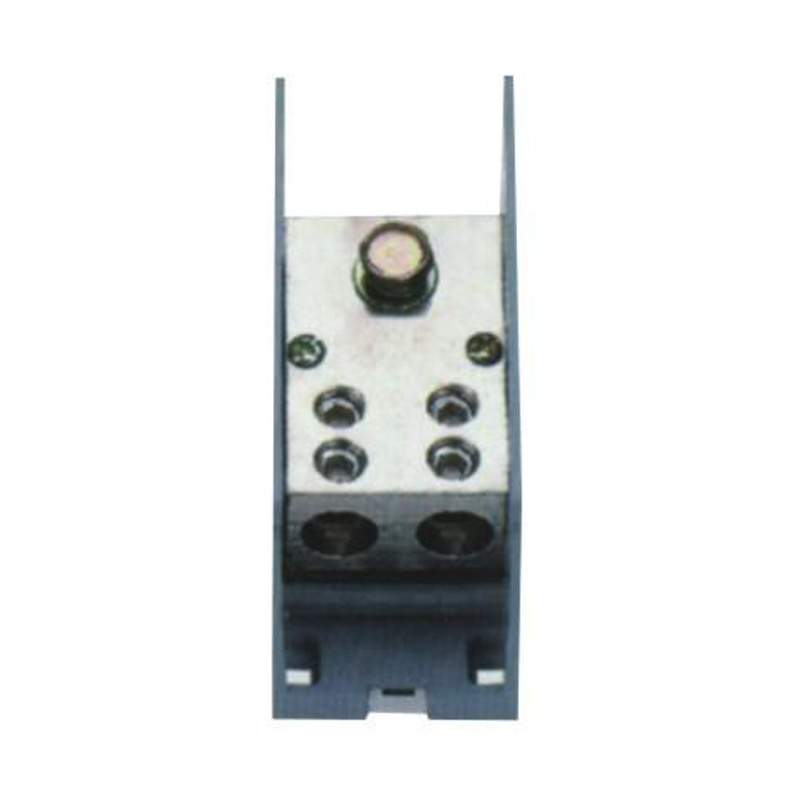

FJ6/JTS2C-120B/2x70 Terminal Block
Model: FJ6/JTS2C-120B/2x70
Stucture: One-inlet,two-outlet
Section: Inlet wire 50-120mm2
Outlet wire 25-70mm2
Outline size: 78(W) x 61(H) x 36(T)
Order no.150441

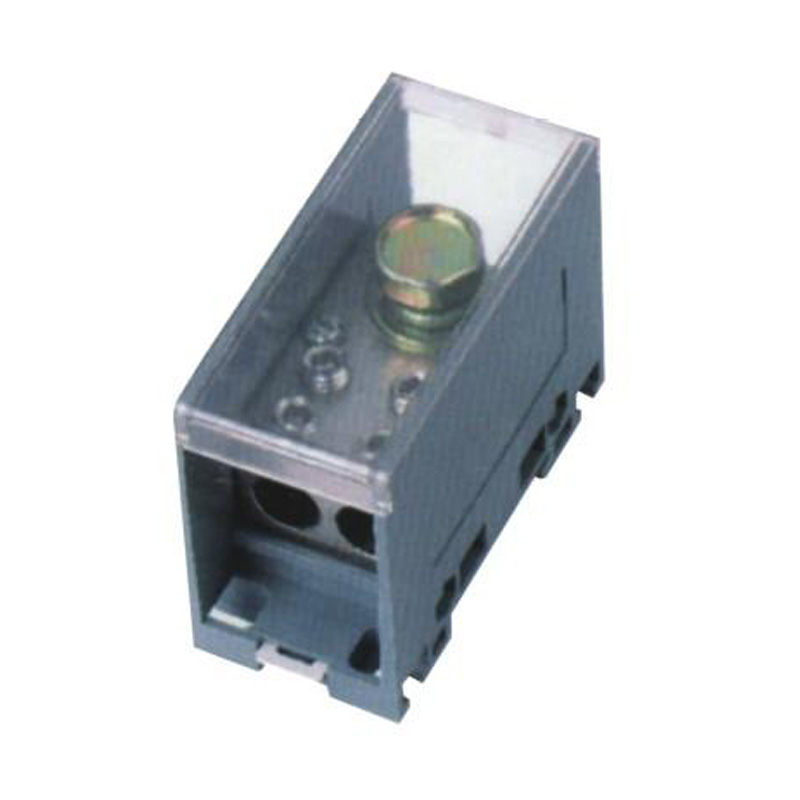

FJ6/JTS2C-150B/2x95 Terminal Block
Model: FJ6/JTS2C-150B/2x95
Stucture: One-inlet,two-outlet
Section: Inlet wire 70-150mm²
Outlet wire 50-95mm²
Outline size: 78(W) x 61(H) x 45(T)
Order no.150442
FJ6/JTS2C-35B/3x6 Terminal Block
Model: FJ6/JTS2C-35B/3x6
Stucture: One-inlet,three-outlet
Section: Inlet wire 10-35mm²
Outlet wire1.5-6mm²
Outline size: 78(W) x 54(H) x 21(T)
Order no.150443
