Dual-Mode Connection Electrical Terminal Manufacturer

The Dual-Mode Connection Electrical Terminals are designed for distribution wires in various types of electronic control distribution equipment, complete sets of devices, multi-circuit meter boxes and combined terminal electrical boxes. The product has a rated insulation voltage of 690V, a rated working voltage of 380V, and a maximum rated working current of 630A. The wire can be connected to the wire inlet end. The cross-section of the wire can be 6 square mm-185 square mm. The output end can be connected to the wire in a different number of connection loops and the wiring method. The product has a novel and unique structure, firm and reliable wiring, and is flexible and convenient to use. It is an ideal alternative product for busbar (busbar), grounding terminal, and neutral terminal in various electrical devices.

The Dual-Mode Connection Electrical Terminals are composed of conductors, insulating seats, and protective covers. The whole is composed of building block-type couplings. They are exquisite in concept, beautiful in appearance, and reliable in structure. The inlet end can either connect the wire directly (simple installation) or out of the 0T end (wire nose) for plate connection. The crimping screw is a high-strength tightening screw, and the bottom is a spherical shape. It does not damage the wire when pressing the wire, and it also has a large enough squeeze pressure on the wire, making the contact more reliable.

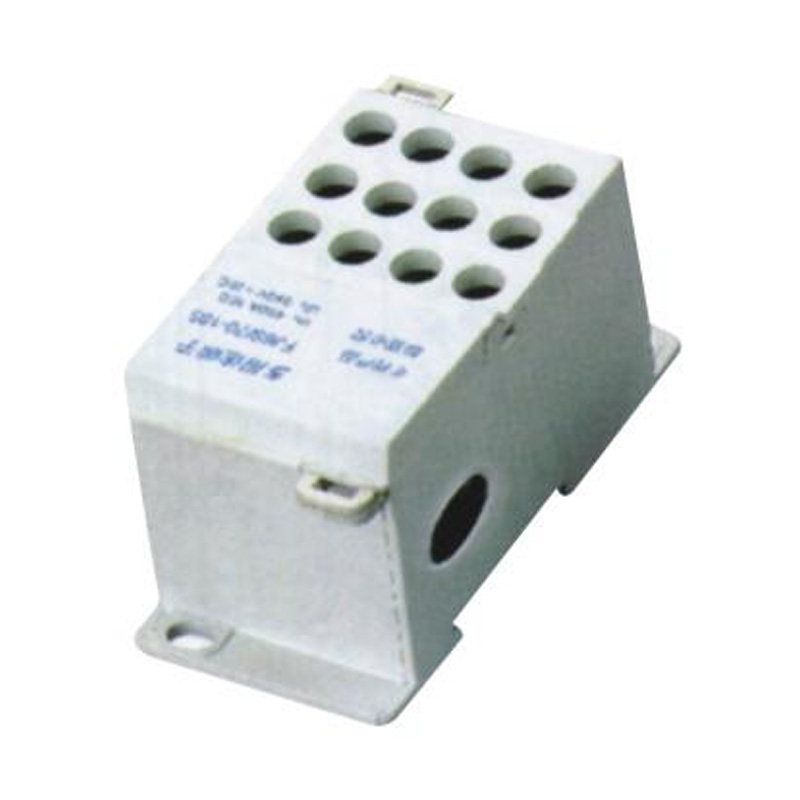

FJ6SF/16-50 Transverse Inlet Elaborate Terminal Block

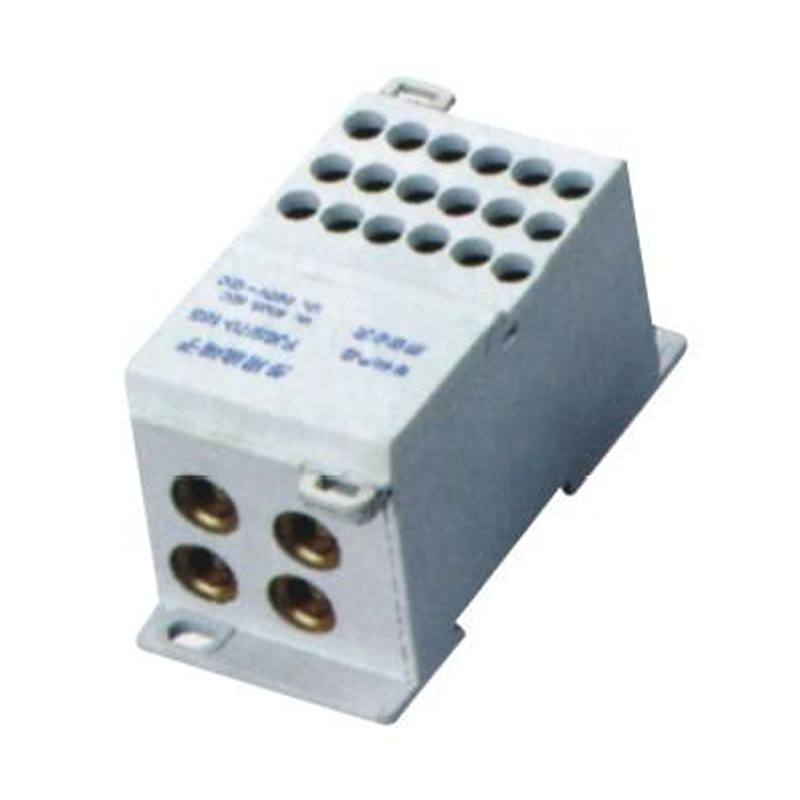

FJ6S-4/6-25/4x25

FJ6S-4/6-25/4x25
Four-inlet 6-25mm²,Four-outlet 6-25mm²
Order number:150730
FJ6S-4/6-25/6x16
Four-inet6-25mm²,six-outlet 6-16mm²
Order number:150731
FJ6S-4/6-25/9x10
Four-inlet6-25mm²,Nine-outlet 2.5-10mm²
Order number:150732
FJ6SF-4/6-25/12x6
Four-inlet 6-25mm², Twelve-outlet 1.5-6mm²
Order numbetr:150733

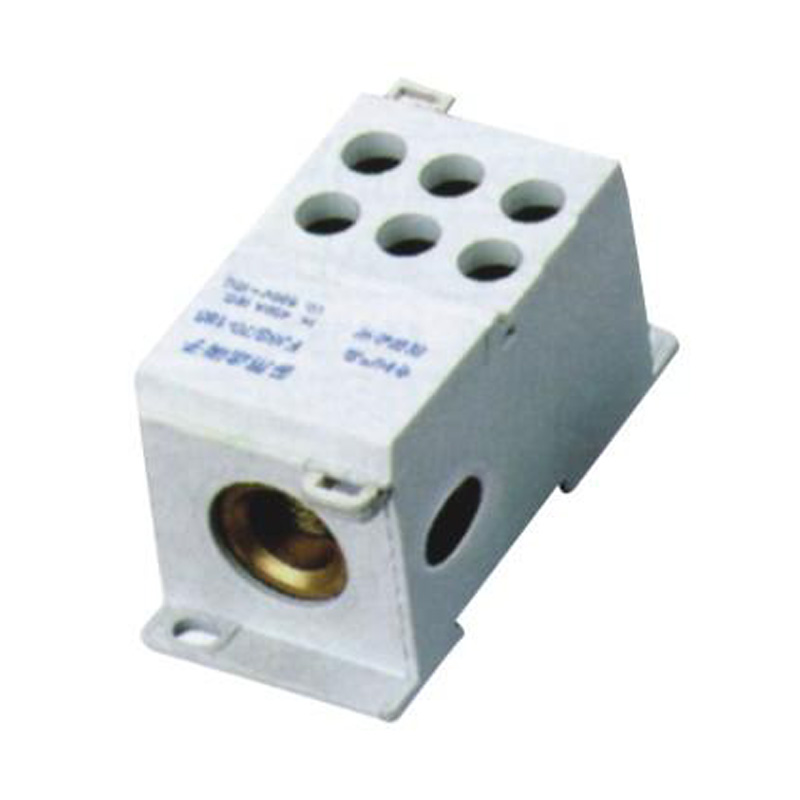

FJ6S-4/6-35/4x35

FJ6S-4/6-35/4x35
Four-inlet 6-50mm²,Four-outlet 6-35mm²
Order number:150734
FJ6S-4/6-35/6x25
Four-inet6-250mm²,Six-outlet 6-25mm²
Order number:150735
FJ6S-4/6-25/8x25
Four-inlet 16-50mm²,Eighr-outlet 6-25mm²
Order number:150736
FJ6S-4/6-35/10x6
Four-inlet 16-50mm², Ten-outlet 6-16mm²
Order number:150737

FJ6S-4/6-35/12x16
Four-inlet 16-50mm²,Twelve-outlet 6-16mm²
Order number:150738
FJ6S-4/6-55/15x16
Four-inet16-50mm²,Fifteen-outlet 6-16mm²
Order number:150739
FJ6S-4/6-35/18x10
Four-inlet6-35mm²,Eighteen-outlet 2.5-10mm²
Order number:150740
FJ6S-4/6-35/21x6
Four-inlet 6-35mm², Twenty-one-outlet 1.5-6mm²
Order number:150741

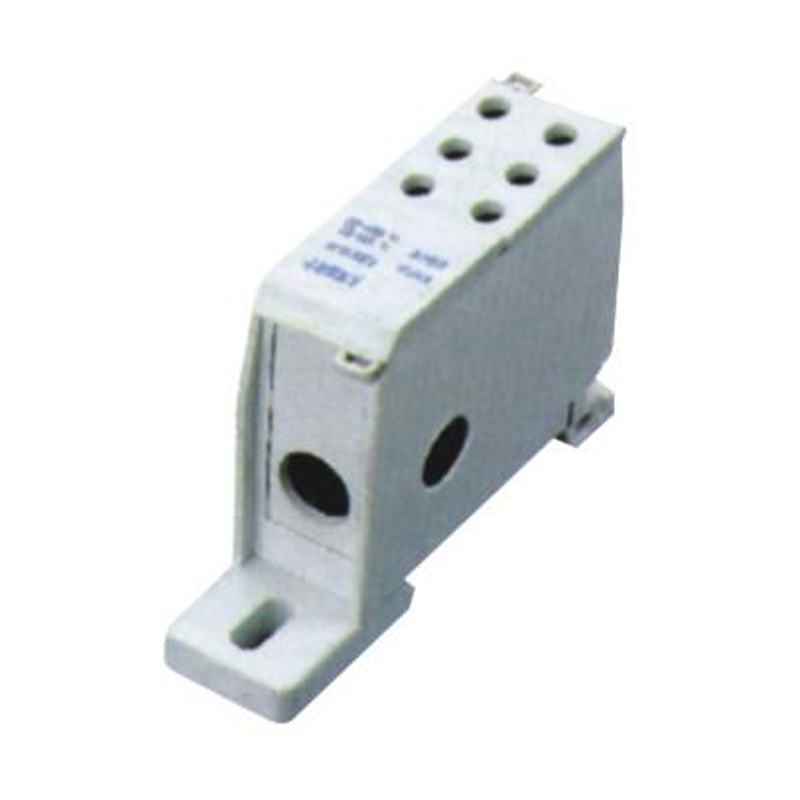

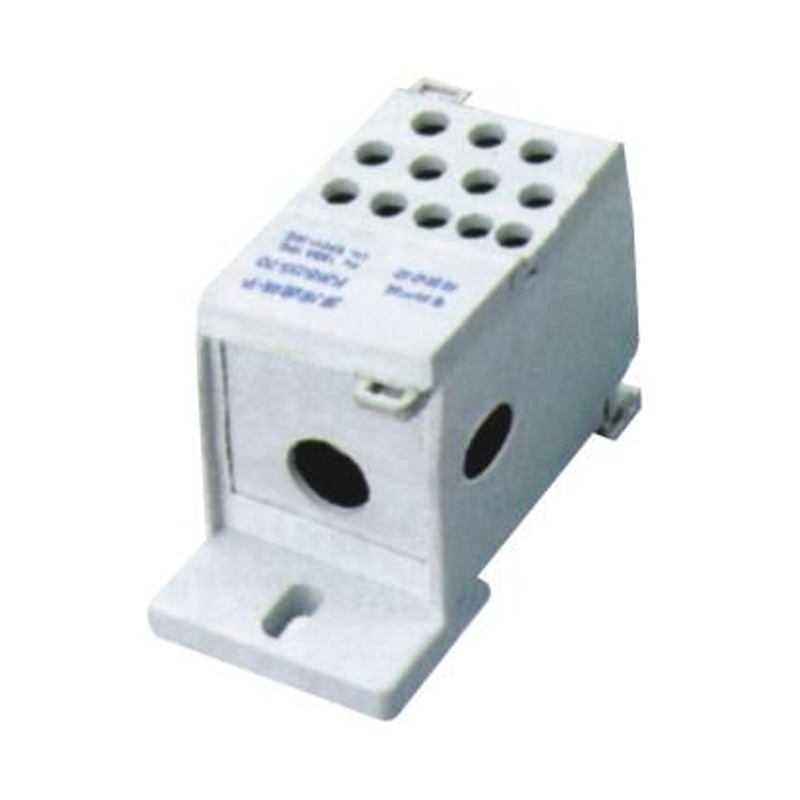

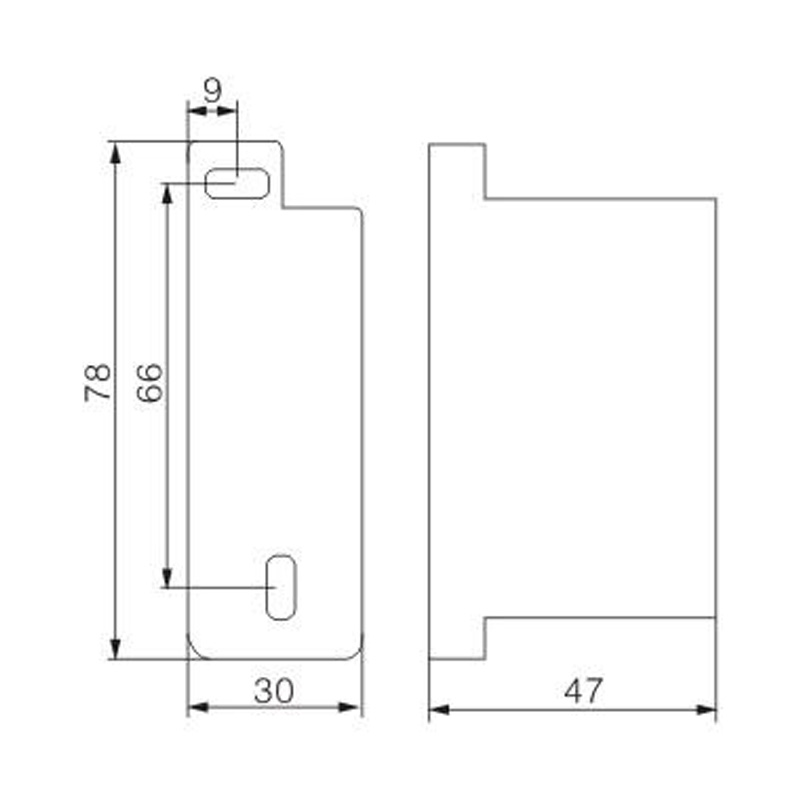

FJ6S/10-35 Transverse Inlet Elaborate Terminal Block

FJ6S/10-35 Transverse Inlet Elaborate Terminal Block

FJ6S/10-35 Transverse inlet
Inlet wire:10-35mm²
Order number:150742

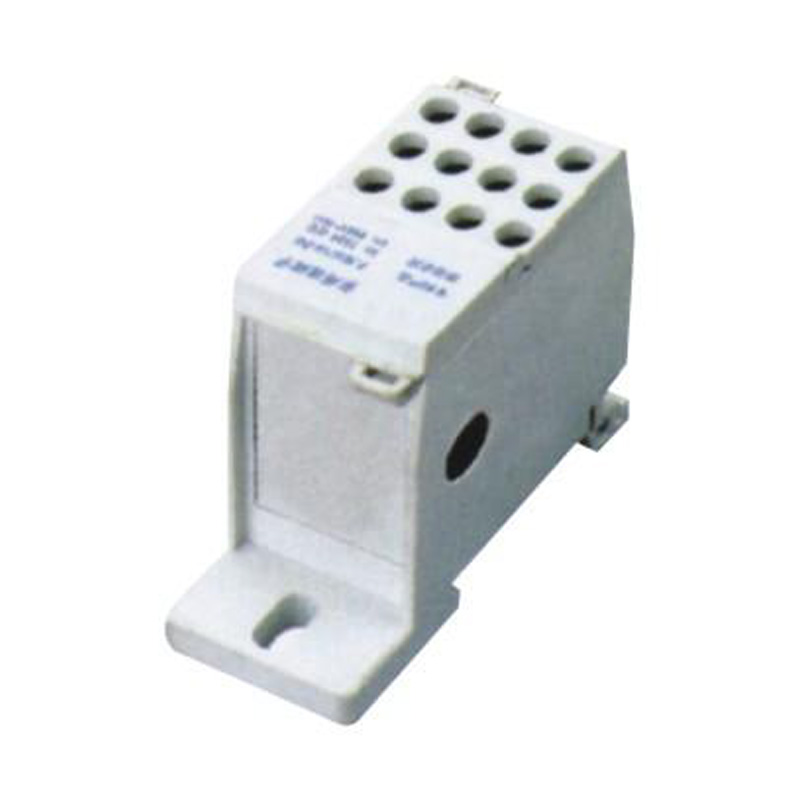

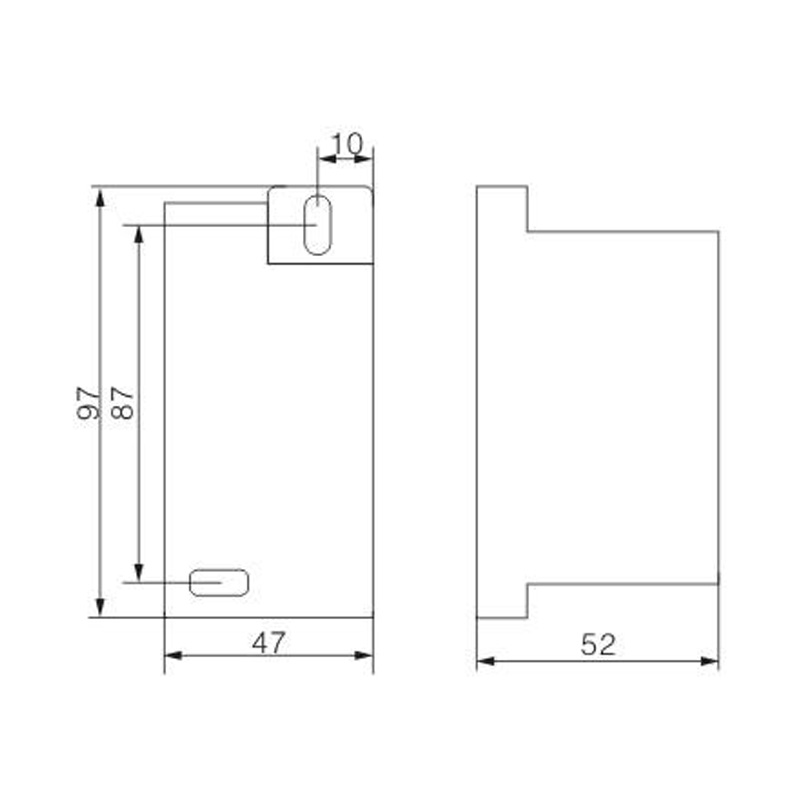

FJ6S/16-50 Transverse Inlet Elaborate Terminal Block

FJ6S/16-50 Transverse Inlet Elaborate Terminal Block

FJ6S/16-50 Transverse inlet
Inlet wire:10-50mm²
Order number：150743

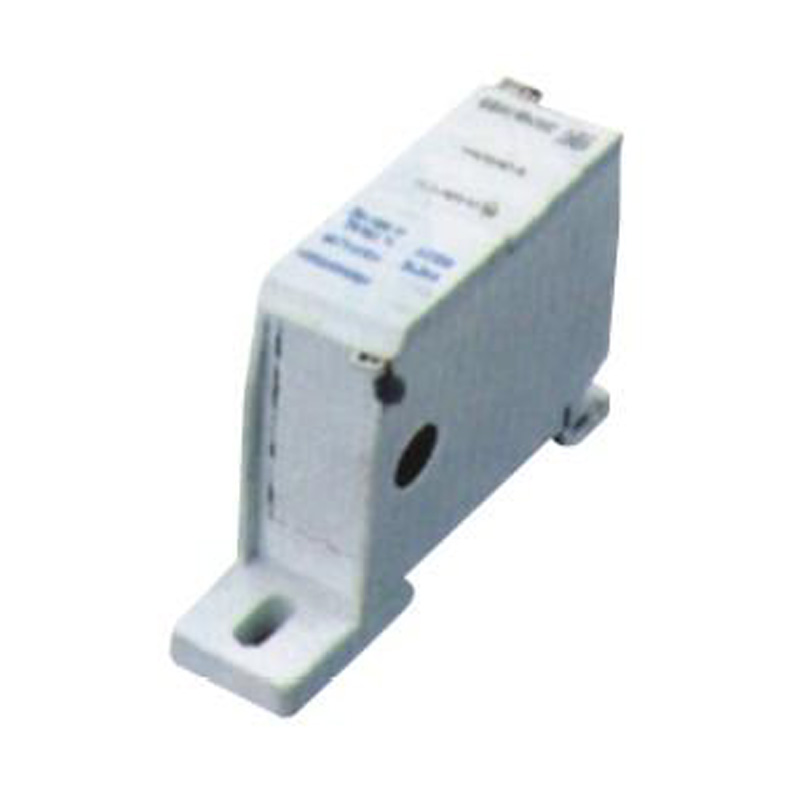

FJ6S/25-70 Transverse Inlet Elaborate Terminal Block

FJ6S/25-70 Transverse Inlet Elaborate Terminal Block

FJ6S/25-70 Transverse inlet
Inlet wire:25-70mm²
Order number：150744

FJ6S/70-185 Transverse Inlet Elaborate Terminal Block

FJ6S/70-185 Transverse Inlet Elaborate Terminal Block

FJ6S/70-185 Transverse inlet
Inlet wire:70-185mm²
Order number:150745

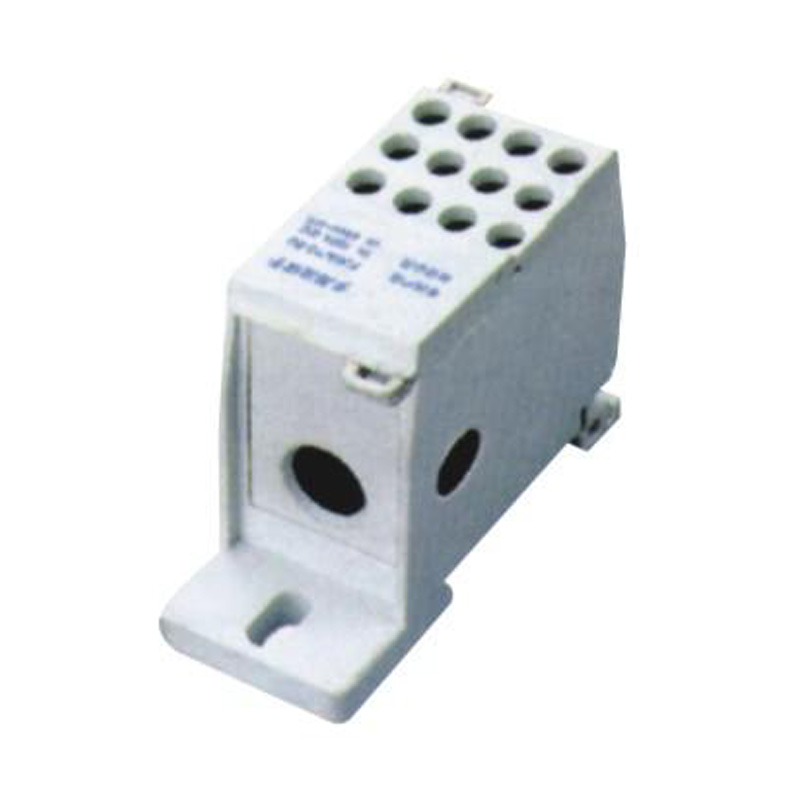

FJ6S/10-35 Cross Inlet Elaborate Terminal Block

FJ6S/10-35 Cross Inlet Elaborate Terminal Block

FJ6S/10-35 Cross inlet
Inlte wire: 10-35mm²
Order number:150746

FJ6S/16-50 Cross Inlet Elaborate Terminal Block

FJ6S/16-50 Cross Inlet Elaborate Terminal Block

FJ6S/16-50 Cross inlet
Inlte wire: 16-50mm²
Order number:150747

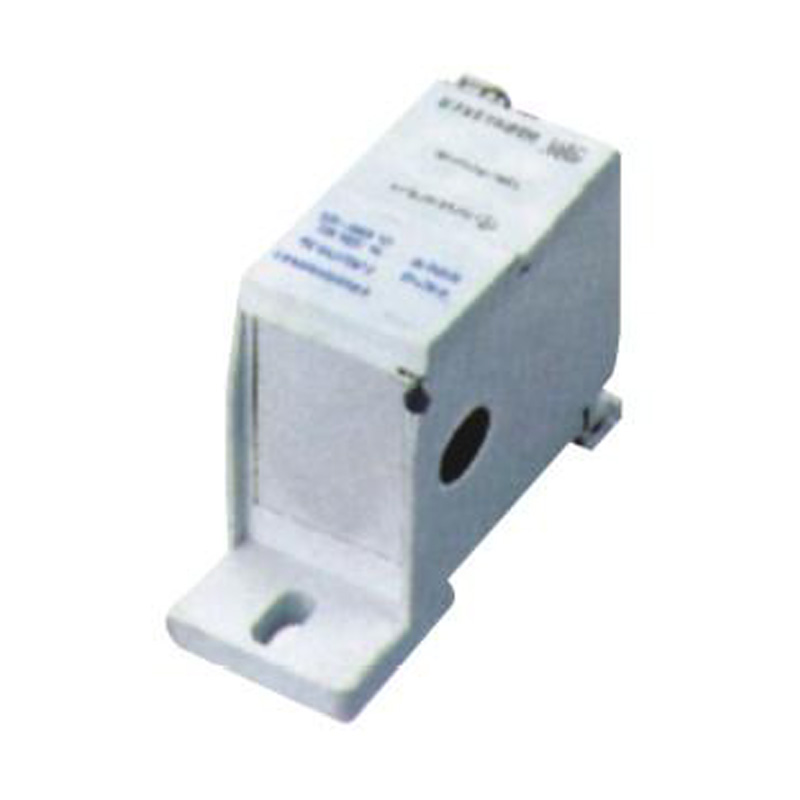

FJ6S/25-70 Cross Inlet Elaborate Terminal Block

FJ6S/25-70 Cross Inlet Elaborate Terminal Block

FJ6S/25-70 Cross inlet
Inlte wire:25-70mm²
Order number:150748

FJ6S/70-185 Cross Inlet Elaborate Terminal Block

FJ6S/70-185 Cross Inlet Elaborate Terminal Block

FJ6S/70-185 Cross inlet
Inlte wire:70-185mm²
Order number:150749

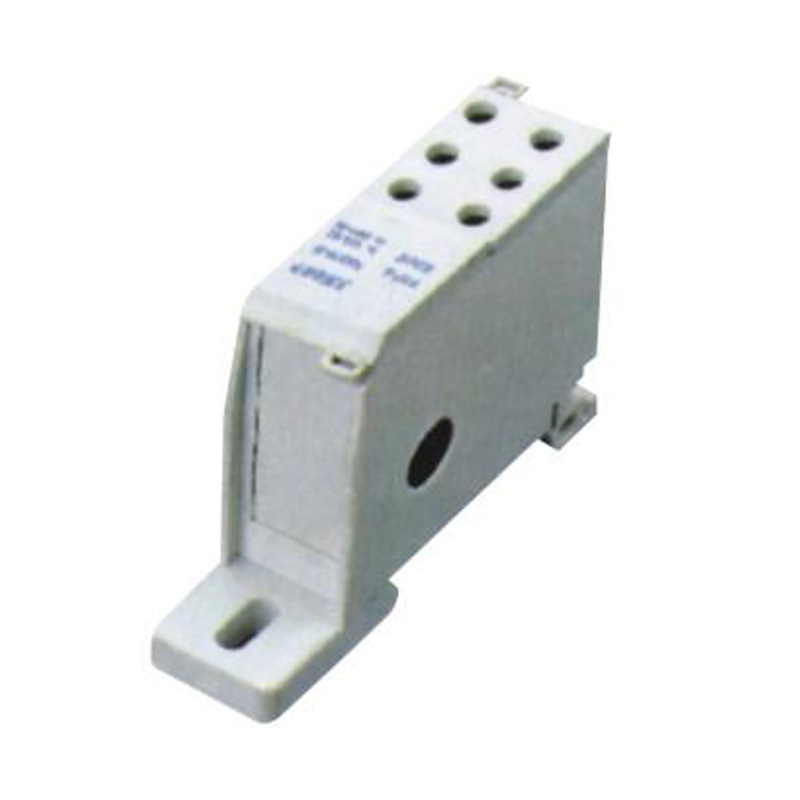

FJ6SF/10-35 Transverse Inlet Elaborate Terminal Block

FJ6SF/10-35 Transverse Inlet Elaborate Terminal Block

FJ6SF/10-35 Transverse inlet
Inlte wire: 10-35mm²
Order number:150750

FJ6SF/16-50 Transverse Inlet Elaborate Terminal Block

FJ6SF/16-50 Transverse inlet
Inlte wire: 10-50mm²
Order number:150751
