Dual-Mode Connection Electrical Terminal Manufacturer

The Dual-Mode Connection Electrical Terminals are designed for distribution wires in various types of electronic control distribution equipment, complete sets of devices, multi-circuit meter boxes and combined terminal electrical boxes. The product has a rated insulation voltage of 690V, a rated working voltage of 380V, and a maximum rated working current of 630A. The wire can be connected to the wire inlet end. The cross-section of the wire can be 6 square mm-185 square mm. The output end can be connected to the wire in a different number of connection loops and the wiring method. The product has a novel and unique structure, firm and reliable wiring, and is flexible and convenient to use. It is an ideal alternative product for busbar (busbar), grounding terminal, and neutral terminal in various electrical devices.

The Dual-Mode Connection Electrical Terminals are composed of conductors, insulating seats, and protective covers. The whole is composed of building block-type couplings. They are exquisite in concept, beautiful in appearance, and reliable in structure. The inlet end can either connect the wire directly (simple installation) or out of the 0T end (wire nose) for plate connection. The crimping screw is a high-strength tightening screw, and the bottom is a spherical shape. It does not damage the wire when pressing the wire, and it also has a large enough squeeze pressure on the wire, making the contact more reliable.

FJ6S-2/50-120/8x25 Elaborate Terminal Block

FJ6S-2/50-120/8x25 Elaborate Terminal Block

FJ6S-2/50-120/8x25

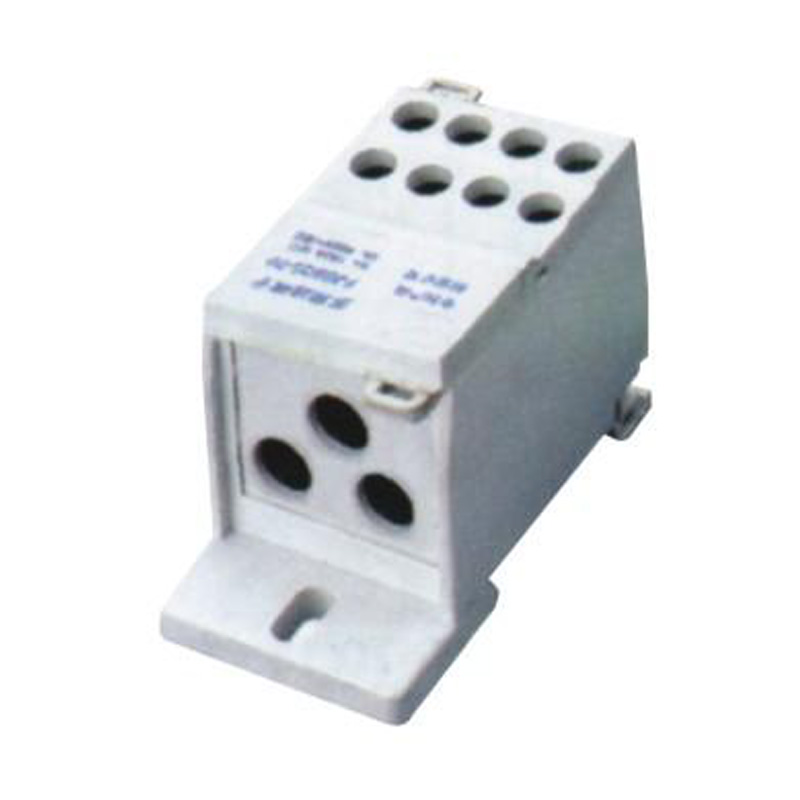

Two-inlet,eight-outlet
Inlet wire:50-120mm², outlet wire:6-25mm²
Order number：150686

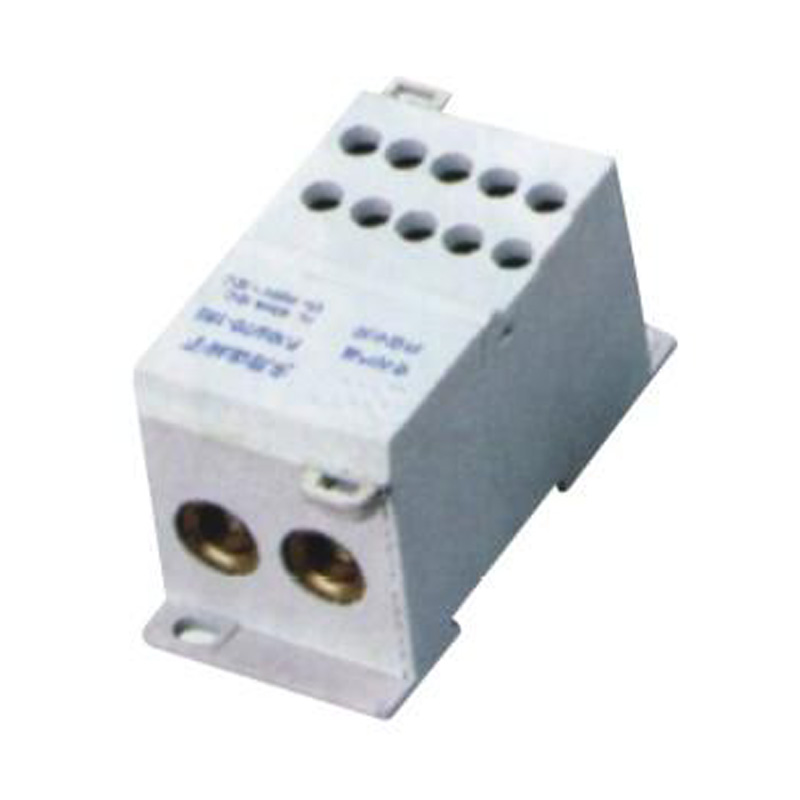

FJ6S-2/50-120/10x16 Elaborate Terminal Block

FJ6S-2/50-120/10x16 Elaborate Terminal Block

FJ6S-2/50-120/10x16
Two-inlet,ten-outlet
Inlet wire:50-120mm², outlet wire:6-16mm²
Order number：150687

FJ6S-2/50-120/12x 16 Elaborate Terminal Block

FJ6S-2/50-120/12x 16 Elaborate Terminal Block

FJ6S-2/50-120/12x16
Two-inlet,twelve-outlet
Inlet wire:50-120mm²,outlet wire:6-16mm²
Order number：150688

FJ6S-2/50-120/15x16 Elaborate Terminal Block

FJ6S-2/50-120/15x16 Elaborate Terminal Block

FJ6S-2/50-120/15x16

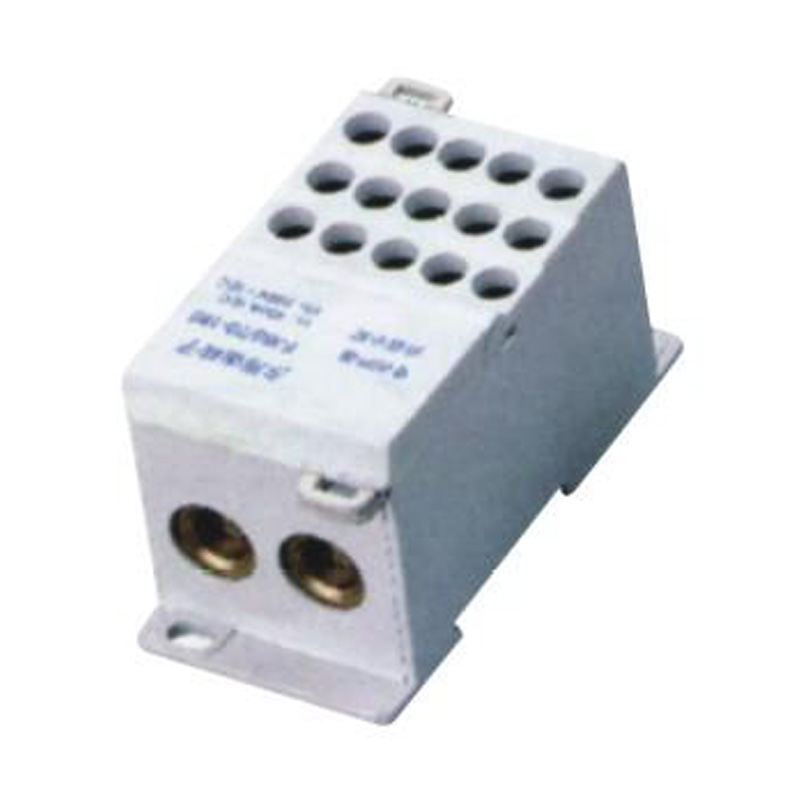

Two-inlet,fifteen-outlet
Inlet wire:50-120mm², outlet wire:6-16mm²
Order number：150689

FJ6S-2/50-120/18x10 Elaborate Terminal Block

FJ6S-2/50-120/18x10 Elaborate Terminal Block

FJ6S-2/50-120/18x10

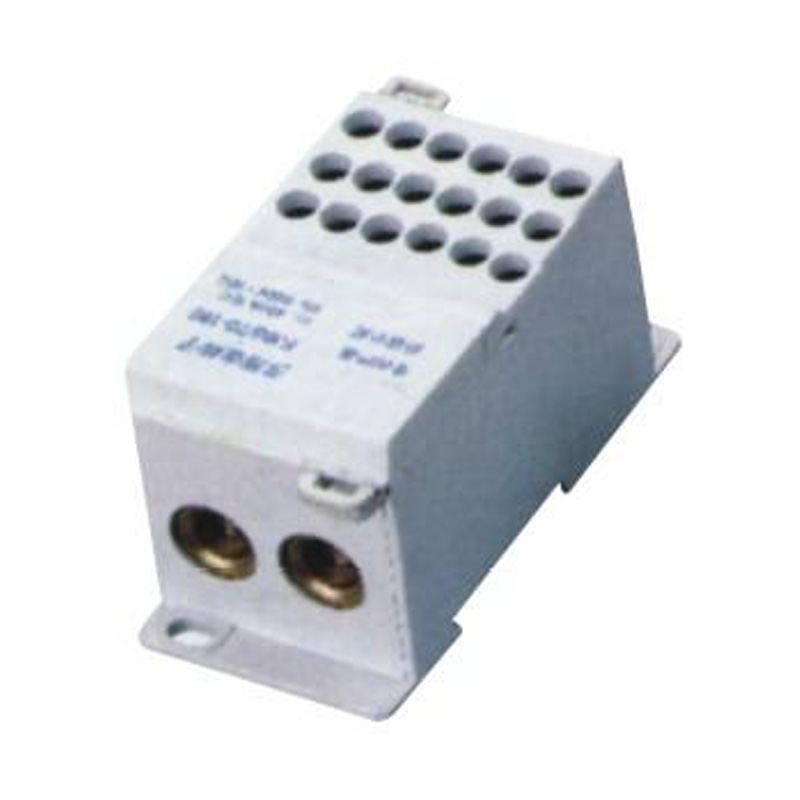

Two-inlet,eighteen-outlet
Inlet wire:50-120mm², outlet wire:2.5-10mm²
Order number：150690

FJ6S-2/50-120/21x6 Elaborate Terminal Block

FJ6S-2/50-120/21x6 Elaborate Terminal Block

FJ6S-2/50-120/21 x6
Two-inlet,twenty-one-outlet
Inlet wire:50-120mm²,outlet wire:1.5-6mm²
Order number：150691

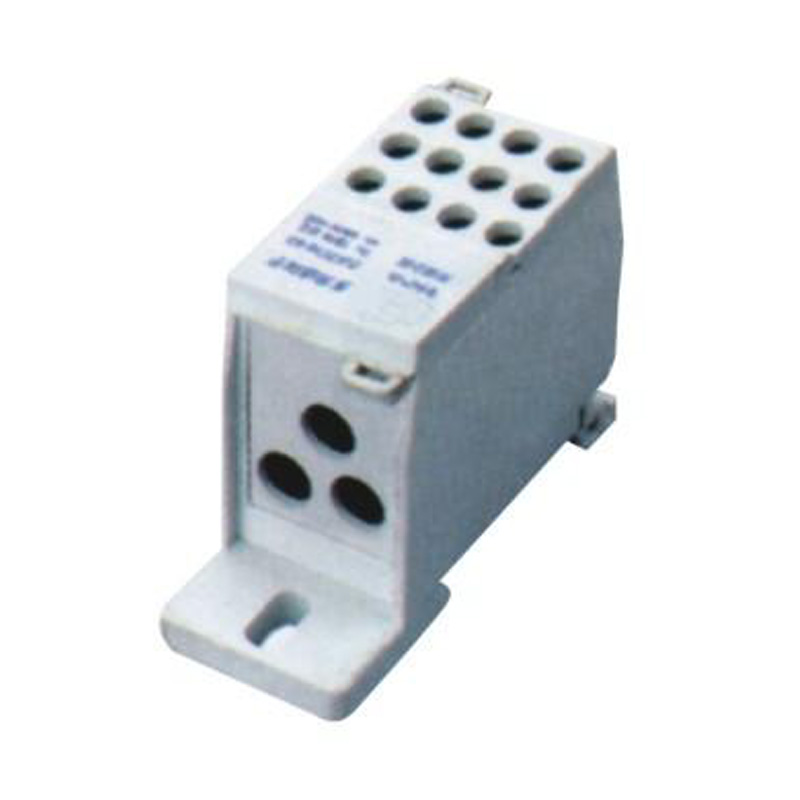

FJ6S-3/2.5-10/3x10/FJ6S-4/2.5-10/4x10/FJ6S-3/2.5-10/FJ6S-3/2.5-10/9x66x6/

FJ6S-3/2.5-10/3x10/FJ6S-4/2.5-10/4x10/FJ6S-3/2.5-10/FJ6S-3/2.5-10/9x66x6/

FJ6S-3/2.5-10/3x10
Three-inlet 2.5-10mm²,Three-outlet2.5-10mm²
Order number:150692
FJ6S-4/2.5-10/4x10
Three-inet2.5-10mm²,Four-outlet 2.5-10mm²
Ordernumber:150693
FJ6S-3/2.5-10/6x6
Three-inlet 2.5-10mm²,Six-outlet 1.5-6mm²
Order number:150694
FJ6S-3/2.5-10/9x6
Three-inlet2.5-10mm²,Nine-outlet1.5-6mm²
Order number:150695

FJ6S-3/6-35/3x35

FJ6S-3/6-35/3x35
Three-inlet 6-35mm²,Three-outlet 6-35mm²
Order number:150696
FJ6S-3/6-35/4x25
Three-inet6-35mm²,Four-outlet 6-25mm²
Order number:150697
FJ6S-3/6-35/6x25
Three-inlet 6-35mmv,Six-outlet 6-25mm²
Order number:150698
FJ6S-3/6-35/8x16
Three-inlet6-35mm²,Eight-outlet6-16mm²
Order number:150699
FJ6S-3/6-35/10x16
Three-inlet 6-35mm², Ten-outlet 6-16mm²
Order number:150700

FJ6S-3/6-35/12x6
Three-inlet 6-35mm²,Twelve-outlet 1.5-6mm²
Order number:150701
FJ6S-3/6-35/13x6
Three-inet6-35mm², Thirteen-outlet 1.5-6mm²
Order number:150702
FJ6S-3/6-35/14x6
Three-inlet 6-35mm²,Four-outlet 1.5-6mm²
Order number :150703
FJ6S-3/6-35/15x6
Three-inlet 6-35mm²,Fifteen-outlet 1.5-6mm²
Order number:150704

FJ6S-3/6-25/3x25

FJ6S-3/6-25/3x25
Three-inlet6-25mm²,Three-outlet 6-25mm²
Order number:150705
FJ6S-3/6-25/4x25
Three-inet6-25mm²,Four-outlet 6-25mm²
Order number:150706
FJ6S-3/6-25/6x16
Three-inlet 6-25mm², Six-outlet 6-16mm²
Order number:150707
FJ6S-3/6-25/9x10
Three-inlet 6-25mm²,Nine-outlet 2.5-10mm²
Order number:150708
FJ6S-3/6-25/12x6
Three-inlet6-25mm²,Twelve-outletine-outlet1.5-6mm²
Order number:150709

FJ6S-3/16-50/3x50

FJ6S-3/16-50/3x50
Three-inlet 16-50mm²,Three-outlet 16-50mm²
Order number:150710
FJ6S-3/16-50/4x35
Three-inet16-50mm²,Four-outlet 6-35mm²
Order number:150711
FJ6S-3/16-50/6x25
Three-inlet 16-50mm², Six-outlet 6-25mm²
Order number:150712
FJ6S-3/16-50/8x25
Three-inlet 16-50mm², Eight-outlet 6-25mm²
Order number:150713
FJ6S-3/16-50/10x 16
Three-inlet 16-50mm²,Ten-outlet 6-16mm²
Order number:150714

FJ6S-3/16-50/12x16
Three-inlet16-50mm²,Twelve-outlet 6-16mm²
Order number:150715
FJ6S-3/16-50/15x16
Three-inet16-50mm²,Ffiteen-outlet 6-16mm²
Ordernumber:150716
FJ6S-3/16-50/18x10
Three-inlet 16-50mm², Eifhteen-outlet 2.5-10mm²
Order number:150717
FJ6S-3/16-50/21x6
Three-inlet 16-50mm², Twety-one-outlet 1.5-6mm²
Order number:150718

FJ6S-4/2.5-10/4x10

FJ6S-4/2.5-10/4x10
Four-inlet2.5-10mm²,Four-outlet2.5-10mm²
Ordernumber:150719
FJ6S-4/2.5-10/6x6
Four-inet2.5-10mm²,six-outlet 1.5-6mm²
Order number:150720
FJ6S-4/2.5-10/9x6
Four-inlet 2.5-10mm²,Nine-outlet 1.5-6mm²
Order number:150721

FJ6S-4/6-25/4x25

FJ6S-4/6-25/4x25
Four-inlet 6-25mm²,Four-outlet 6-25mm²
Order number:150722
FJ6S-4/6-25/6x25
Four-inet6-25mm²,Six-outlet 6-25mm²
Order number:150723
FJ6S-4/6-25/8x16
Four-inlet 6-50mm²,Eighr-outlet 6-16mm²
Order number:150724
FJ6S-4/6-25/10x6
Four-inlet6-25mm²,Ten-outlet 1.5-6mm²
Order number:150725

FJ6S-4/6-25/12x6
Four-inlet 6-25mm²,Twelve-outlet 1.5-6mm²
Order number:150726
FJ6S-4/6-25/13x6
Four-inet6-25mm², Thirteen-outlet 1.5-6mm²
Order number:150727
FJ6S-4/6-25/14x6
Four-inlet 6-25mm², Fourteen-outlet 1.5-6mm²
Order number:150728
FJ6S-4/6-25/15x6
Four-inlet 6-25mm²,Fifteen-outlet 1.5-6mm²
Order number:150729

Search

How Do I Wire a Dual-Mode Connection Electrical Terminal for Efficiency?

When it comes to wiring a dual-mode connection electrical terminal, efficiency is key. This involves understanding the terminal's design and ensuring that all connections are made correctly to optimize performance. Here are some straightforward steps to follow:

Understanding Dual-Mode Terminals: Dual-mode terminals can accommodate both wire insertion and screw-down connections. Recognize which type of connection your terminal requires for performance.

Proper Wiring Techniques: For wire insertion, ensure that the wire is stripped correctly and inserted fully into the terminal. For screw-down connections, tighten the screw securely but avoid overtightening, which can damage the terminal or the wire.

Compatibility Checks: Verify that the wires and terminals are compatible in terms of size and material to ensure a secure and efficient connection.

Using the Right Tools: Invest in good quality wire strippers and crimping tools to ensure clean, precise cuts and connections.

Regular Maintenance: Regularly check the terminals for any signs of wear or corrosion, which can affect the efficiency of the connection.

How Do I Insulate My 12-Volt Junction Block for Safety?

Safety is paramount when working with electrical systems, especially when dealing with low-voltage junction blocks. Insulating a 12-volt junction block is a crucial step to prevent electrical hazards. Here's how to do it safely:

Choose the Right Insulation: Select insulation materials that are rated for at least 12 volts and are suitable for the environment in which the junction block will be installed.
Wire Management: Organize the wires neatly before applying insulation. This not only makes the process easier but also reduces the risk of short circuits or damage to the wires.
Apply Heat Shrink Tubing: Heat shrink tubing is a common and effective method of insulation. Slide the tubing over the wires, apply heat to shrink it into place, and ensure it provides a tight seal around the connections.
Use Electrical Tape: For a quick and temporary solution, electrical tape can be used. Wrap the tape around the junction block, ensuring complete coverage and no exposed wires.
Avoid Overlapping Wires: When insulating, make sure no wires overlap, as this can create a short circuit. Keep each wire insulated and separated from others.
Regular Inspections: Insulation can degrade over time, so regular inspections are necessary to ensure the safety and integrity of the junction block.

Disadvantages of Using a Terminal Block with High Current

While terminal blocks are versatile and widely used in electrical systems, using them with high current loads can present several disadvantages. It's important to understand these potential issues to make informed decisions about your electrical setup:

Heat Generation: High current can cause significant heat generation in terminal blocks, which can loverheating. This can damage the terminal block and the connected wires, potentially causing a fire hazard.

Increased Stress on Connections: High current loads place more stress on the connections within the terminal block. This can loosening of connections over time, which can result in intermittent or failed connections.

Potential for Arcing: The higher the current, the greater the potential for arcing within the terminal block. Arcing can cause damage to the terminal block and pose a safety risk.

Reduced Lifespan: Terminal blocks subjected to high current over extended periods may have a reduced lifespan due to the increased wear and tear on the contacts.

Safety Concerns: The higher the current, the greater the risk of electrical shock. This is a significant safety concern, especially in environments where people are in close proximity to the terminal block.

Cost Considerations: High-current terminal blocks often require more robust construction, which can increase the cost. Additionally, the need for additional safety measures, such as heat sinks or cooling systems, can further increase costs.
