READ MOREDual-Mode Connection Electrical Terminal
The Dual-Mode Connection Electrical Terminals are designed for distribution wires in various types of electronic control distribution equipment, complete sets of devices, multi-circuit meter boxes and combined terminal electrical boxes. The product has a rated insulation voltage of 690V, a rated working voltage of 380V, and a maximum rated working current of 630A. The wire can be connected to the wire inlet end. The cross-section of the wire can be 6 square mm-185 square mm. The output end can be connected to the wire in a different number of connection loops and the wiring method. The product has a novel and unique structure, firm and reliable wiring, and is flexible and convenient to use. It is an ideal alternative product for busbar (busbar), grounding terminal, and neutral terminal in various electrical devices.
The Dual-Mode Connection Electrical Terminals are composed of conductors, insulating seats, and protective covers. The whole is composed of building block-type couplings. They are exquisite in concept, beautiful in appearance, and reliable in structure. The inlet end can either connect the wire directly (simple installation) or out of the 0T end (wire nose) for plate connection. The crimping screw is a high-strength tightening screw, and the bottom is a spherical shape. It does not damage the wire when pressing the wire, and it also has a large enough squeeze pressure on the wire, making the contact more reliable.
FJ6S-1/10-35/1x35 Elaborate Terminal Block
FJ6S-1/10-35/1x 35
One-inlet,one-outlet
Inlet wire:16-35mm²,outlet wire:10-35mm²
Order number：150626
FJ6S-1/10-35/2x25 Elaborate Terminal Block
FJ6S-1/10-35/2x25
One-inlet,two-outlet
Inlet wire:16-35mm²,outlet wire:6-25mm²
Order number:150627

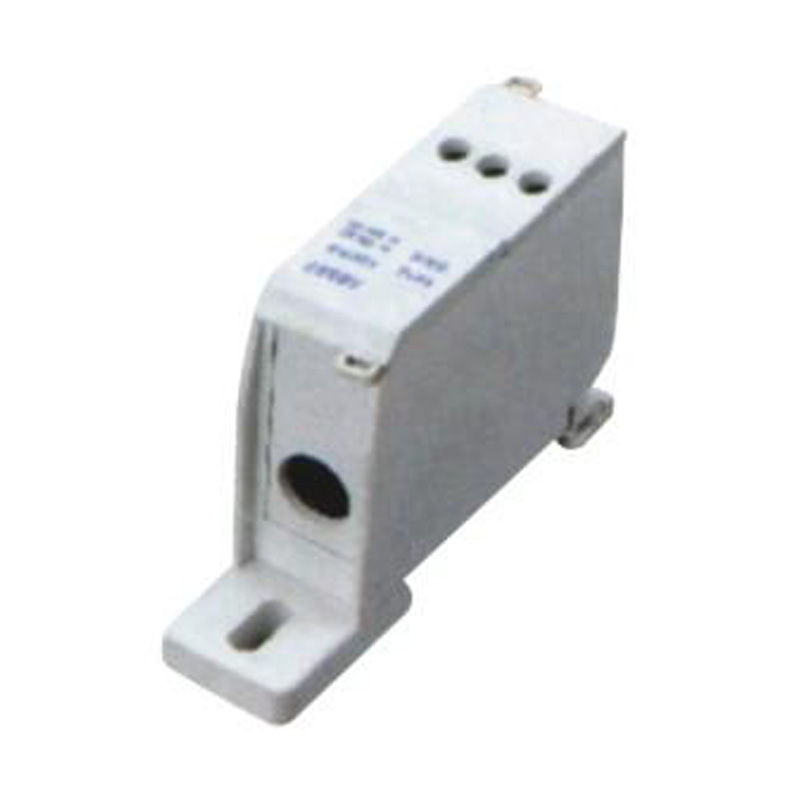

FJ6S-1/10-35/3x10 Elaborate Terminal Block
FJ6S-1/10-35/3x10
One-inlet,three-outlet
Inlet wire:16-35mm², outlet wire:2.5-10mm²
Ordernumber：150628

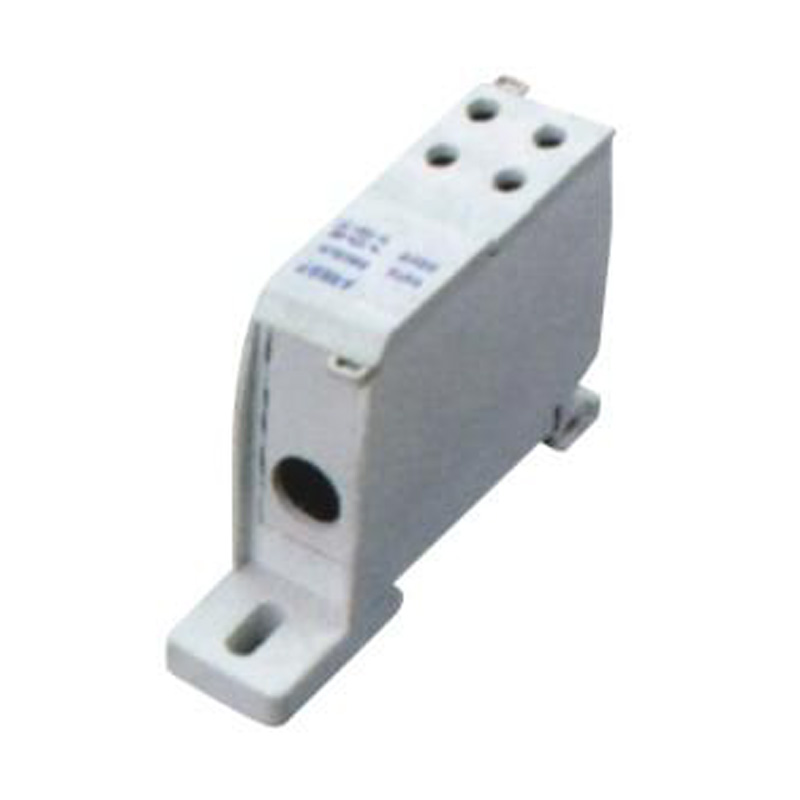

FJ6S-1/10-35/4x10 Elaborate Terminal Block
FJ6S-1/10-35/4x10
One-inlet,four-outlet
Inlet wire:10-35mm², outlet wire:2.5-10mm²
Order number：150629
FJ6S-1/10-35/6x6 Elaborate Terminal Block
FJ6S-1/10-35/6x6
One-inlet,six-outlet
Inlet wire:10-35mm²,outlet wire:1.5-6mm²
Order number：150630

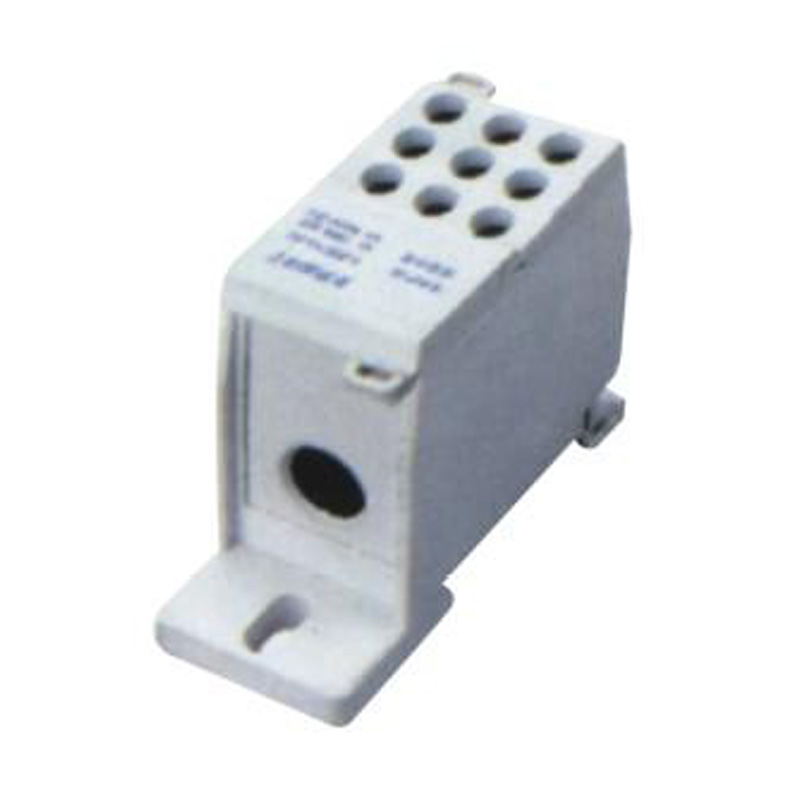

FJ6S-1/10-35/9x6 Elaborate Terminal Block
FJ6S-1/10-35/9x6
One-inlet,nine-outlet
Inlet wire:10-35mm²,outlet wire:1.5-6mm²
Order number：150631

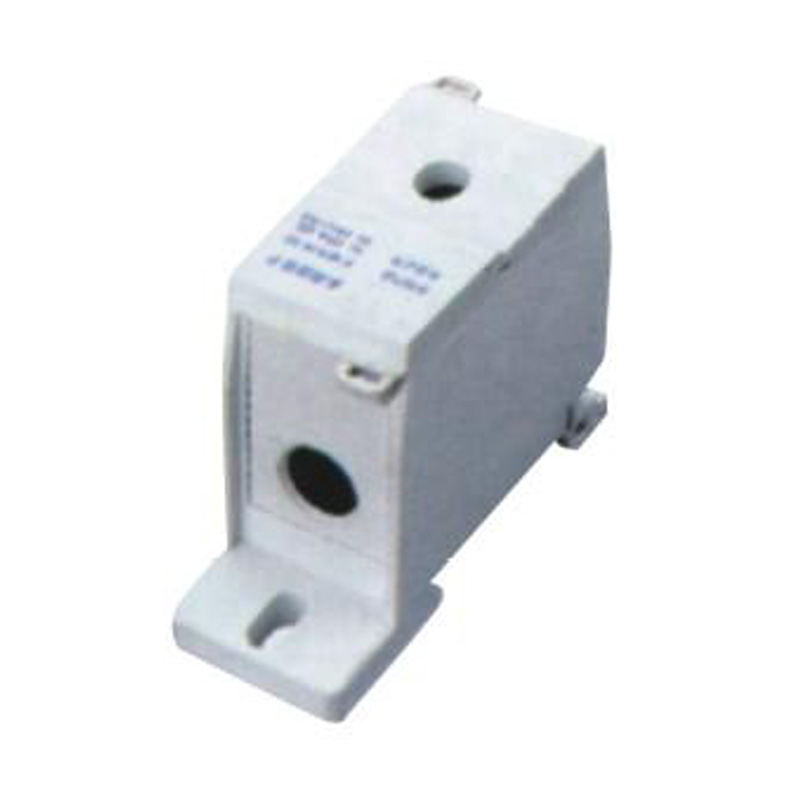

FJ6S-1/16-50/1x50 Elaborate Terminal Block
FJ6S-1/16-50/1x50
One-inlet,one-outlet
Inlet wire:16-50mm²,outlet wire:16-50mm²
Order number：150632

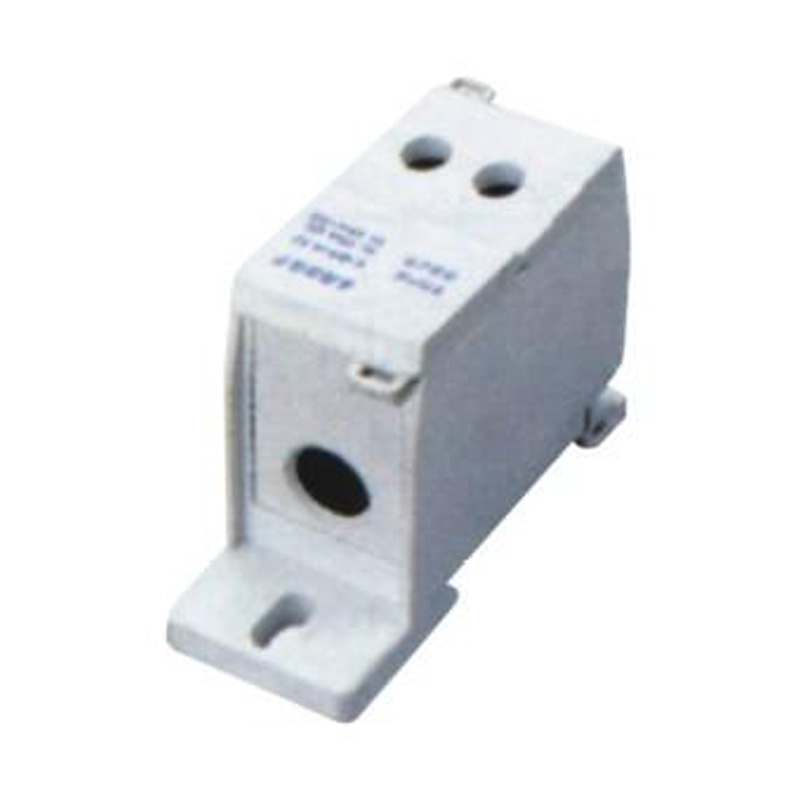

FJ6S-1/16-50/2x35 Elaborate Terminal Block
FJ6S-1/16-50/2x35
One-inlet,two-outlet
Inlet wire:10-50mm²,outlet wire:10-35mm²
Order number：150633

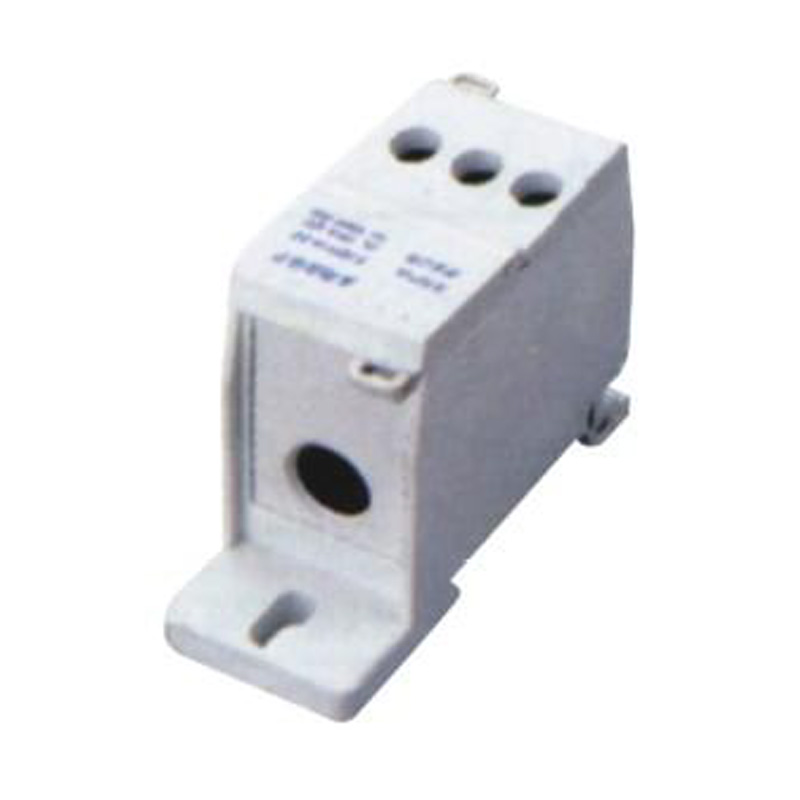

FJ6S-1/16-50/3x25 Elaborate Terminal Block
FJ6S-1/16-50/3x25
One-inlet,three-outlet
Inlet wire:16-50mm², outlet wire:6-25mm²
Order number：150634

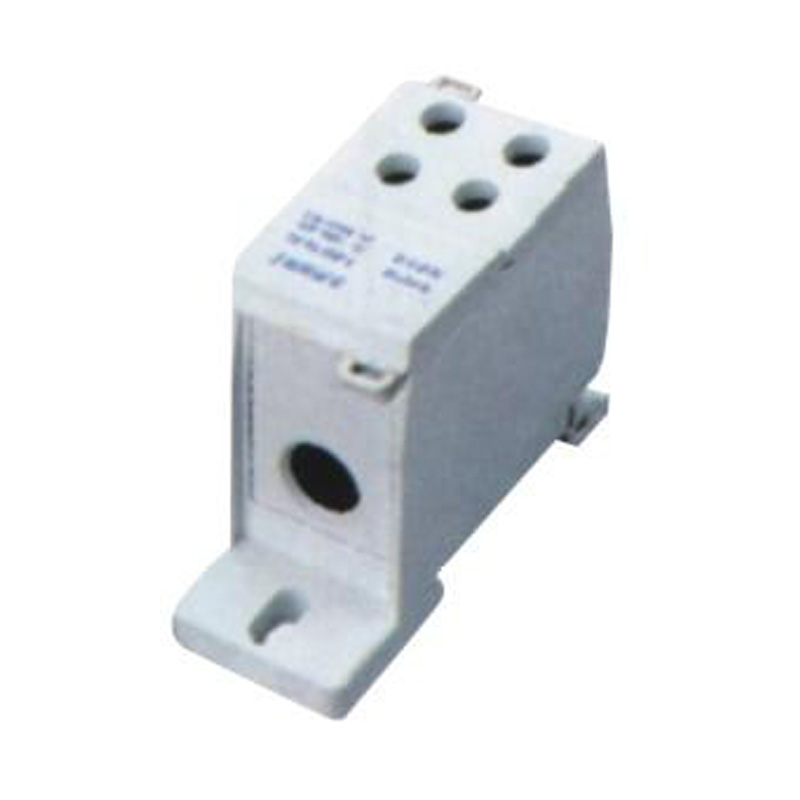

FJ6S-1/16-50/4x25 Elaborate Terminal Block
FJ6S-1/16-50/4 x 25
One-inlet,four-outlet
Inlet wire:16-50mm², outlet wire:6-25mm²
Order number：150635

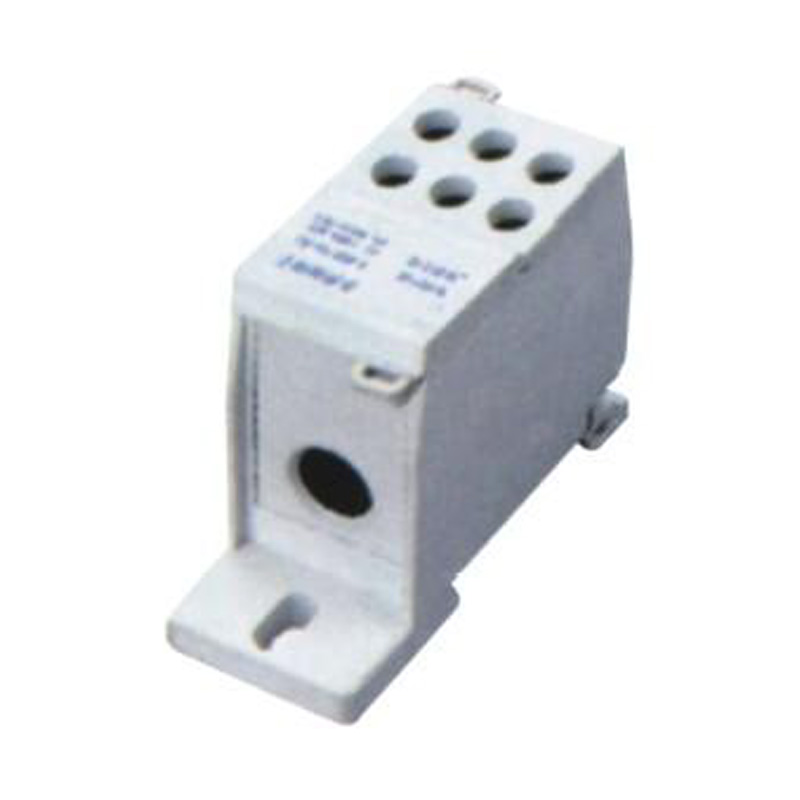

FJ6S-1/16-50/6x16 Elaborate Terminal Block
FJ6S-1/16-50/6x16
One-inlet,six-outlet
Inlet wire:16-50mm²,outlet wire:6-16mm²
Order number：150636
FJ6S-1/16-50/9x10 Elaborate Terminal Block
FJ6S-1/16-50/9x10
One-inlet,nine-outlet
Inlet wire:16-50mm², outlet wire:2.5-10mm²
Ordernumber：150637
