Double Rail Assembly Electrical Terminal Manufacturer

The Double Rail Assembly Electrical Terminals are specially designed for wiring in various types of electronic control distribution equipment, complete sets of devices, multi-circuit meter boxes and combined terminal electrical appliance distribution boxes. The product is rated insulation voltage 690V and the rated working voltage 380V, and the maximum rated working current is 630A. The wire can be connected to the wire section of the inlet end is 6 square mm to 70 square mm. The outlet end can be connected to the wire section 2.2 square mm~25 square mm depending on the number of connection circuits and the wiring method. The product has a novel and unique structure, firm and reliable wiring, and is flexible and convenient to use. It is an ideal alternative product for busbar (busbar), grounding terminal and neutral terminal in various electrical devices.

Double Rail Assembly Electrical Terminals, the inlet terminal adopts direct crimping method of self-lifting screw crimping clamp. A self-locking is formed between the crimp clamp and the screw, and it will not loosen and weak under vibration conditions. Easy to install. The concept is lightweight, beautiful in appearance, and has enough squeeze pressure on the wire, making the contact more reliable.

This series of products provides two types of installation methods: Fixed type directly drilled holes on the bottom plate, and the installation screws are M5; The rail type is installed on the TH-35 guide rail (top cap rail).

1. Space-Saving Design:
The terminal's compact design allows for a single entry point for the main conductor, with multiple outlets branching out to connect various electrical components. This not only conserves space within the electrical panel but also reduces clutter, making the terminal ideal for installations with limited space.

2. Self-Elevating Mechanism:
One of a features of this terminal is its self-elevating mechanism. This innovative design allows the terminal to automatically adjust its height to accommodate different wire gauges without the need for manual adjustment. This feature not only saves time but also ensures a secure connection every time, reducing the risk of loose or faulty connections.

3. Versatility and Compatibility:
The terminal is designed to be compatible with a wide range of wire gauges and types, making it a versatile solution for various electrical applications. Whether you're working with thin or thick wires, the terminal's adaptable design ensures a secure and reliable connection.

4. Enhanced Safety Features:
Safety is a important concern in any electrical installation, and theDouble Rail Assembly Electrical Terminal incorporates several safety features. The terminal's design includes built-in insulation protection to prevent accidental contact with live parts, and its robust construction resists damage from over-tightening or other physical stress.

5. Ease of Installation:
The terminal is designed with the installer in mind. Its intuitive design allows for quick and easy installation, reducing the time spent on wiring tasks. The self-elevating feature eliminates the need for manual adjustments, further simplifying the installation process.

In conclusion, theDouble Rail Assembly Electrical Terminal is a powerful addition to any electrical system. Its blend of functionality, safety, and convenience make it a must-have for professionals and DIY enthusiasts alike. With its focus on innovation and user-friendliness, this terminal sets a new standard in electrical connectivity.

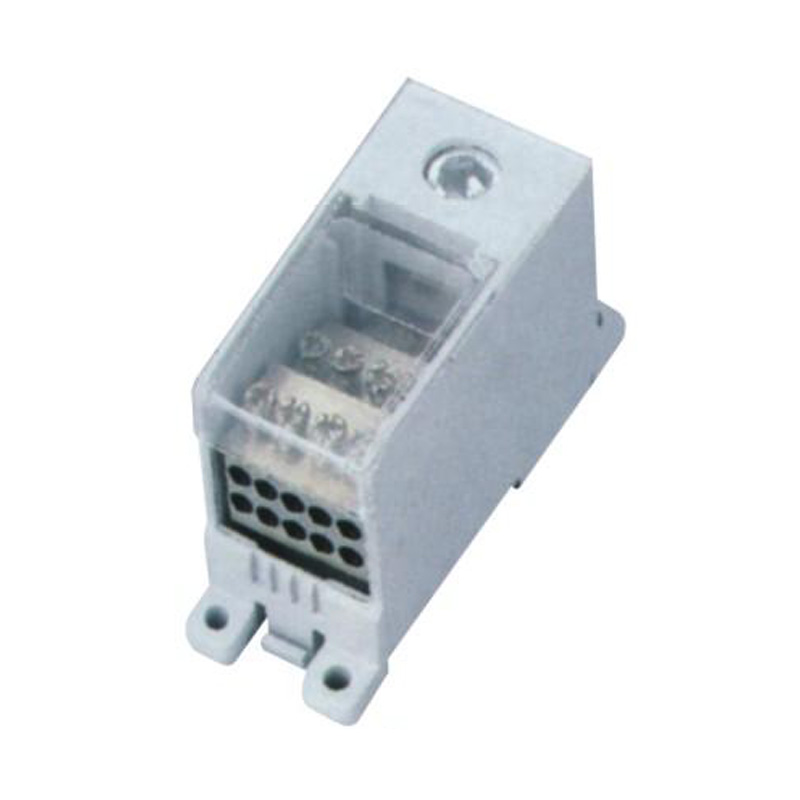

FJ6Q-3/10x16 Self-Elevating Connection Terminal

FJ6Q-4/24x16 Self-Elevating Connection Terminal

FJ6Q-3/10x16 Self-Elevating Connection Terminal

FJ6Q-3/10x16
One-inlet, ten-outlet
Inlet wire:6-50(70)mm²,outlet wire:1.5-16mm²
Order number:151047

FJ6Q-3/12x 16 Self-Elevating Connection Terminal

FJ6Q-3/12x 16 Self-Elevating Connection Terminal

FJ6Q-3/12x16
One-inlet,twelve-outlet
Inlet wire:6-50(70)mm²,outlet wire:1.5-16mm²
Order number:151048

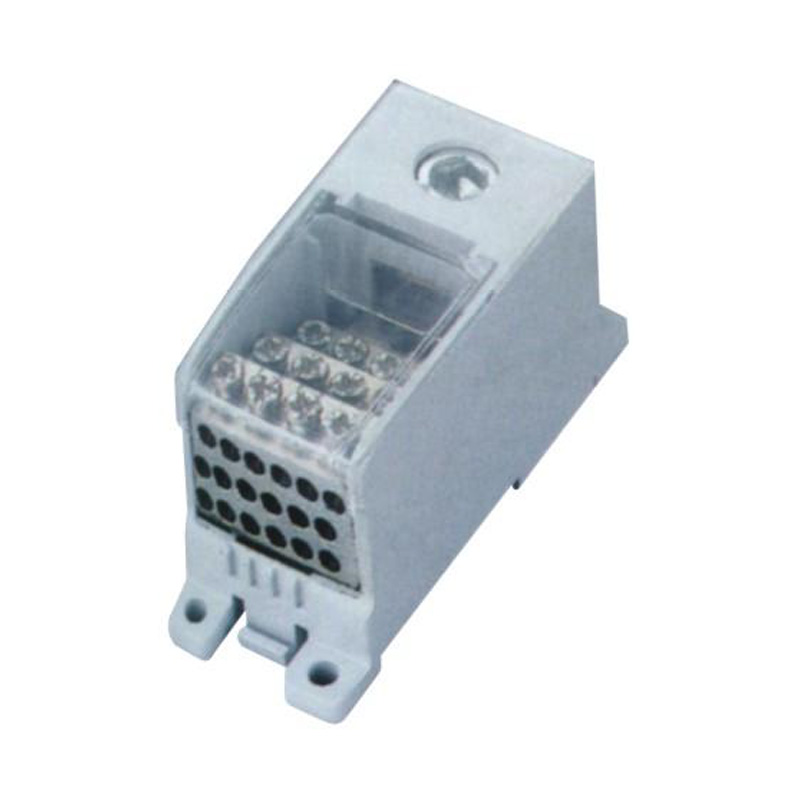

FJ6Q-3/16x 10 Self-Elevating Connection Terminal

FJ6Q-3/16x 10 Self-Elevating Connection Terminal

FJ6Q-3/16x10
One-inlet, sixteen-outlet
Inlet wire:6-50(70)mm²,outlet wire:1.5-10mm²
Order number:151049

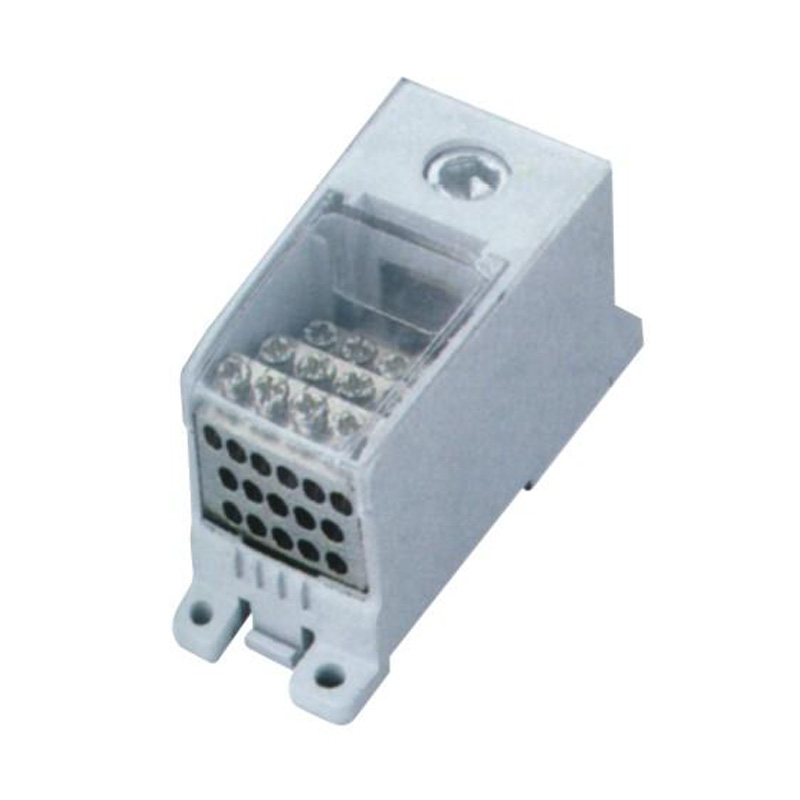

FJ6Q-3/18x10 Self-Elevating Connection Terminal

FJ6Q-3/18x10 Self-Elevating Connection Terminal

FJ6Q-3/18x10
One-inlet, eighteen-outlet
Inlet wire:6-50(70)mm²,outlet wire:1.5-10mm²
Order number:151050

FJ6Q-4/16x16 Self-Elevating Connection Terminal

FJ6Q-4/16x16 Self-Elevating Connection Terminal

FJ6Q-4/16x16
One-inlet, sixteen-outlet
Inlet wire:6-50(70)mm²,outlet wire:1.5-16mm²
Order number:151051

FJ6Q-4/18x16 Self-Elevating Connection Terminal

FJ6Q-4/18x16 Self-Elevating Connection Terminal

FJ6Q-4/18x 16
One-inlet, eighteen-outlet
Inlet wire:6-50(70)mm²,outlet wire:1.5-10mm²
Order number:151052

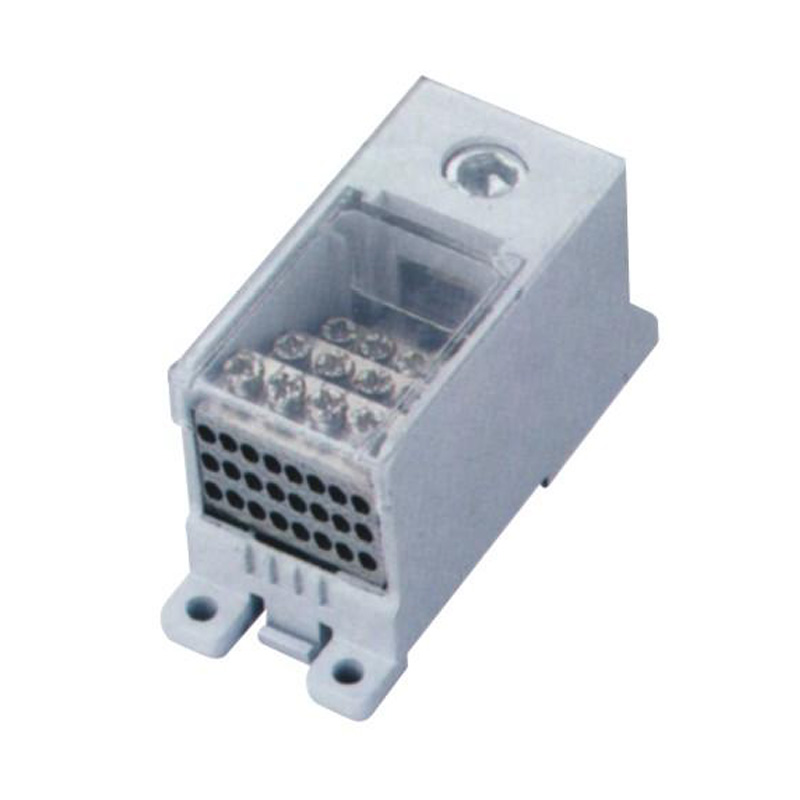

FJ6Q-4/24x16 Self-Elevating Connection Terminal

FJ6Q-4/24x16
One-inlet,twenty-four-outlet
Inlet wire:6-50(70)mm²,outlet wire:1.5-10mm²
Order number:151053

Search

What Are The Characteristics Of Double Rail Assembly Electrical Terminals

Double rail assembly electrical terminals are designed to facilitate the connection of multiple wires in a secure and organized manner. They are particularly useful in applications where a large number of wires need to be connected or terminated. The double rail system allows for the easy addition or removal of wires, making it an adaptable solution for various electrical setups.

The basic operation of a double rail terminal involves two parallel rails that accommodate the wires. Each rail has a series of holes or slots where wires can be inserted and secured with screws or other fastening mechanisms. This design ensures a tight and secure connection, reducing the risk of loose connections or electrical shorts.

Benefits of Copper Rail Wiring Terminal Blocks

Copper is a popular choice for electrical terminals due to its high conductivity and durability. In this section, we will discuss the advantages of using copper rail wiring terminal blocks in electrical systems.

1.High Conductivity: Copper's conductivity means that electrical signals and power transfer are efficient, less energy loss and improved performance.

2.Corrosion Resistance: Copper's resistance to corrosion makes it a long-lasting material for terminal blocks, which is essential for maintaining the integrity of electrical connections over time.

3.Ease of Installation: Copper's malleability allows for easier installation and termination of wires, reducing the time and effort required for electrical setup.

4.Safety: Copper's ability to dissipate heat quickly helps prevent overheating, which is crucial for safety in electrical systems.

What Is a Copper Rail Wiring Terminal Blocks :Comprehensive Guide

Installing copper rail wiring terminal blocks is a straightforward process when broken down into manageable steps. In this two-part guide, we will cover the initial setup and considerations for using these terminal blocks effectively.

Assessing the Requirements: Before installing copper rail wiring terminal blocks, it's important to assess the electrical requirements of the system. This includes the number of wires that need to be connected, the type of wires, and the voltage and current specifications.

Selecting the Right Terminal Block: Based on the assessment, select a terminal block that can accommodate the required number of connections and has the appropriate voltage and current ratings.

Preparation: Ensure that the wires are stripped and prepared for connection. This may involve removing the insulation and preparing the wire ends for insertion into the terminal block.

In the second part of our guide, we will delve into the actual installation process and some tips for maintaining the terminal blocks.

Installation: Insert the prepared wires into the designated slots on the copper rail wiring terminal block. Ensure that each wire is fully inserted and secure. Use the appropriate tools to tighten the screws or fastenings to ensure a solid connection.

Testing: After installation, it's crucial to test the connections to ensure they are secure and functioning correctly. This can be done using a multimeter or other testing equipment to check for continuity and proper voltage and current flow.

Maintenance: Regular maintenance is key to the longevity of copper rail wiring terminal blocks. This includes checking for any signs of corrosion, loose connections, or other potential issues that could affect the performance and safety of the electrical system.

Following a comprehensive guide to installation and maintenance ensures that these terminal blocks are used effectively and safely, contributing to the reliability and efficiency of electrical systems.
