READ MOREDouble Rail Assembly Electrical Terminal
The Double Rail Assembly Electrical Terminals are specially designed for wiring in various types of electronic control distribution equipment, complete sets of devices, multi-circuit meter boxes and combined terminal electrical appliance distribution boxes. The product is rated insulation voltage 690V and the rated working voltage 380V, and the maximum rated working current is 630A. The wire can be connected to the wire section of the inlet end is 6 square mm to 70 square mm. The outlet end can be connected to the wire section 2.2 square mm~25 square mm depending on the number of connection circuits and the wiring method. The product has a novel and unique structure, firm and reliable wiring, and is flexible and convenient to use. It is an ideal alternative product for busbar (busbar), grounding terminal and neutral terminal in various electrical devices.
Double Rail Assembly Electrical Terminals, the inlet terminal adopts direct crimping method of self-lifting screw crimping clamp. A self-locking is formed between the crimp clamp and the screw, and it will not loosen and weak under vibration conditions. Easy to install. The concept is lightweight, beautiful in appearance, and has enough squeeze pressure on the wire, making the contact more reliable.
This series of products provides two types of installation methods: Fixed type directly drilled holes on the bottom plate, and the installation screws are M5; The rail type is installed on the TH-35 guide rail (top cap rail).
1. Space-Saving Design:
The terminal's compact design allows for a single entry point for the main conductor, with multiple outlets branching out to connect various electrical components. This not only conserves space within the electrical panel but also reduces clutter, making the terminal ideal for installations with limited space.
2. Self-Elevating Mechanism:
One of a features of this terminal is its self-elevating mechanism. This innovative design allows the terminal to automatically adjust its height to accommodate different wire gauges without the need for manual adjustment. This feature not only saves time but also ensures a secure connection every time, reducing the risk of loose or faulty connections.
3. Versatility and Compatibility:
The terminal is designed to be compatible with a wide range of wire gauges and types, making it a versatile solution for various electrical applications. Whether you're working with thin or thick wires, the terminal's adaptable design ensures a secure and reliable connection.
4. Enhanced Safety Features:
Safety is a important concern in any electrical installation, and theDouble Rail Assembly Electrical Terminal incorporates several safety features. The terminal's design includes built-in insulation protection to prevent accidental contact with live parts, and its robust construction resists damage from over-tightening or other physical stress.
5. Ease of Installation:
The terminal is designed with the installer in mind. Its intuitive design allows for quick and easy installation, reducing the time spent on wiring tasks. The self-elevating feature eliminates the need for manual adjustments, further simplifying the installation process.
In conclusion, theDouble Rail Assembly Electrical Terminal is a powerful addition to any electrical system. Its blend of functionality, safety, and convenience make it a must-have for professionals and DIY enthusiasts alike. With its focus on innovation and user-friendliness, this terminal sets a new standard in electrical connectivity.

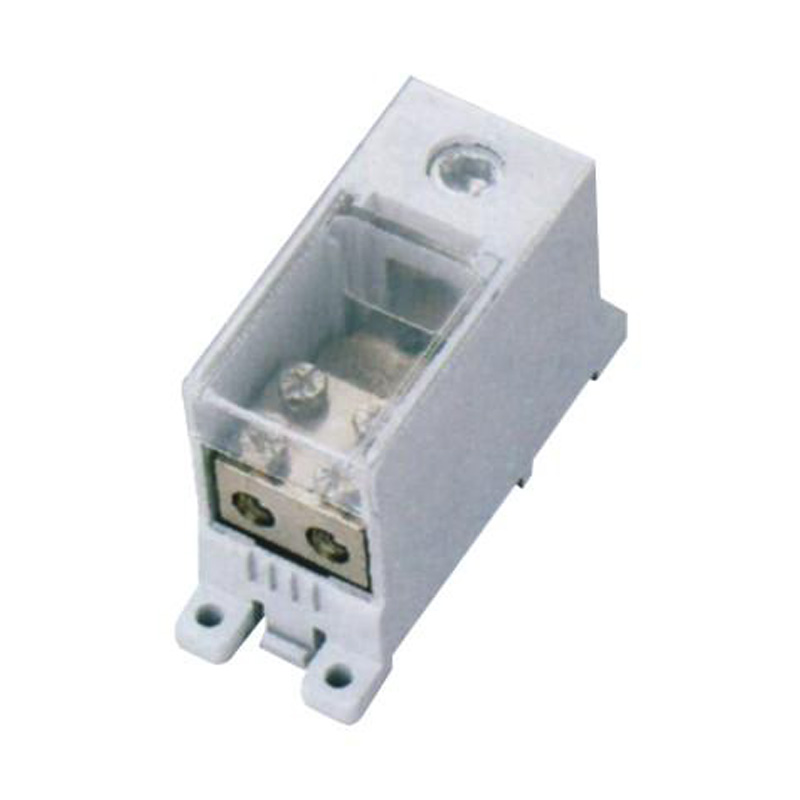

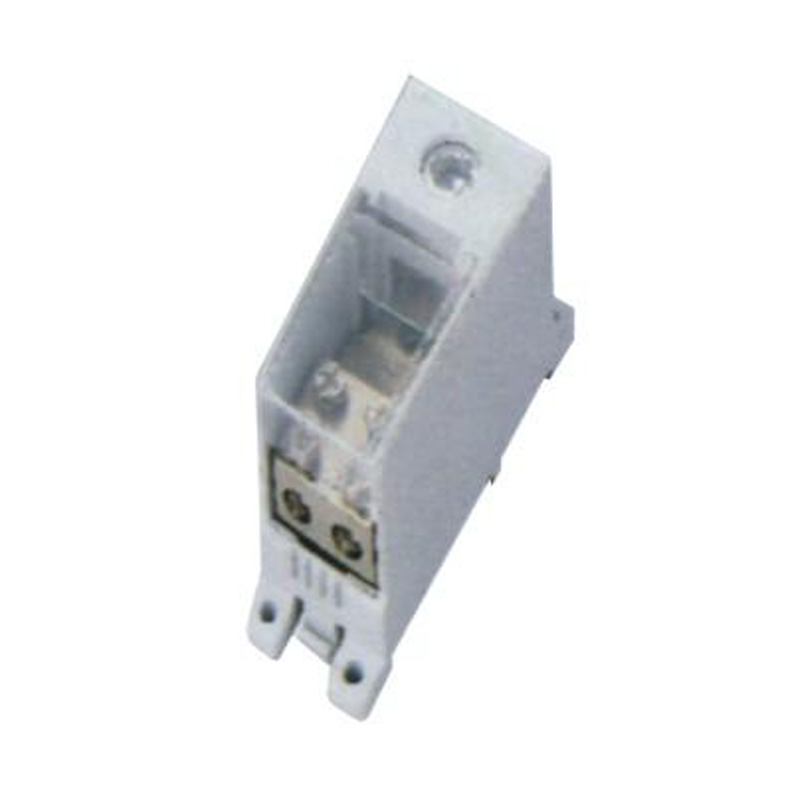

FJ6Q-1/2x10 Self-Elevating Connection Terminal
FJ6Q-1/2x 10
One-inlet, two-outlet
Inlet wire:6-50mm²,outlet wire:1.5-10mm²
Order number:151035

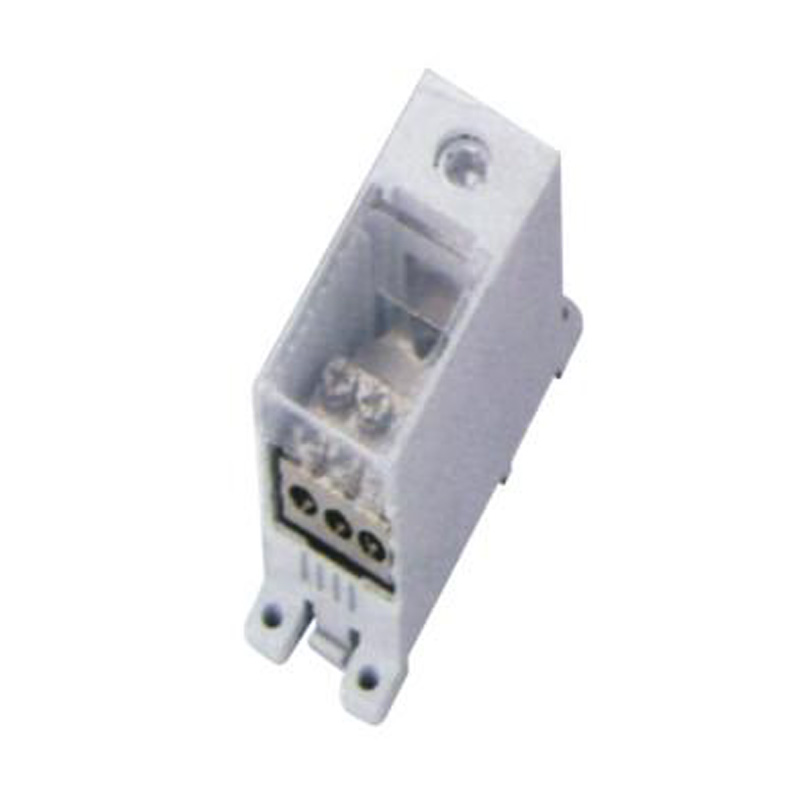

FJ6Q-1/3x10 Self-Elevating Connection Terminal
FJ6Q-1/3x10
One-inlet,three-outlet
Inlet wire:6-50mmv,outlet wire:1.5-10mm²
订货号Order number:151036

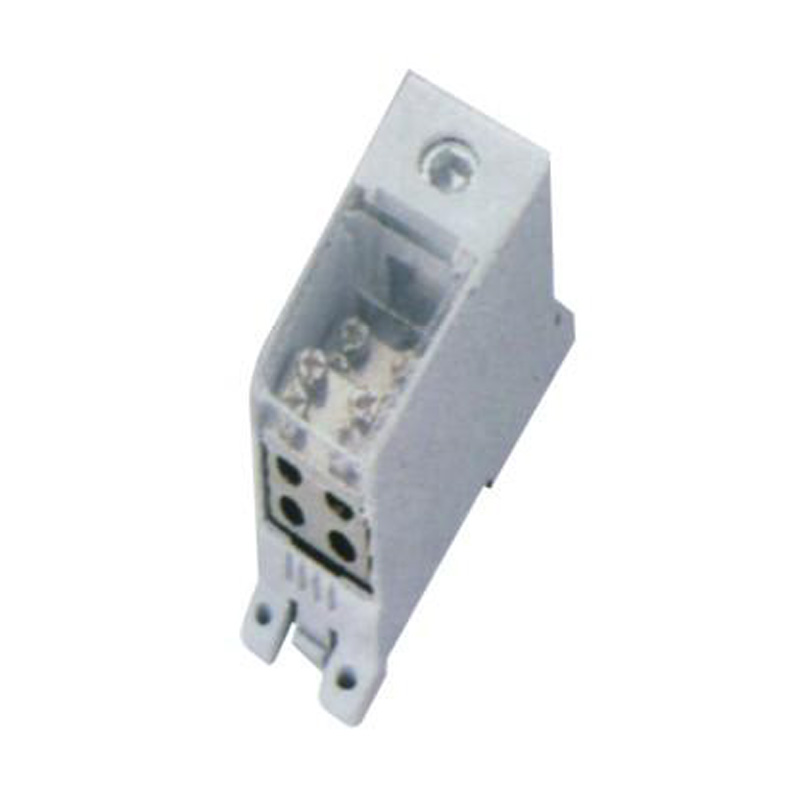

FJ6Q-1/4x10 Self-Elevating Connection Terminal
FJ6Q-1/4x10
One-inlet,four-outlet
Inlet wire:6-50mm²,outlet wire:1.5-10mm²
Order number:151037

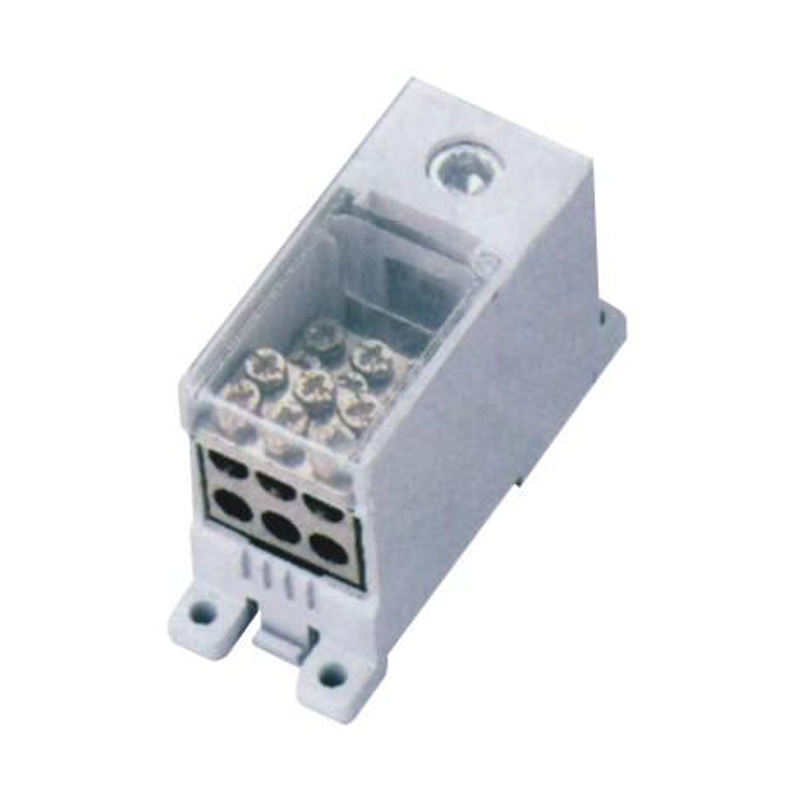

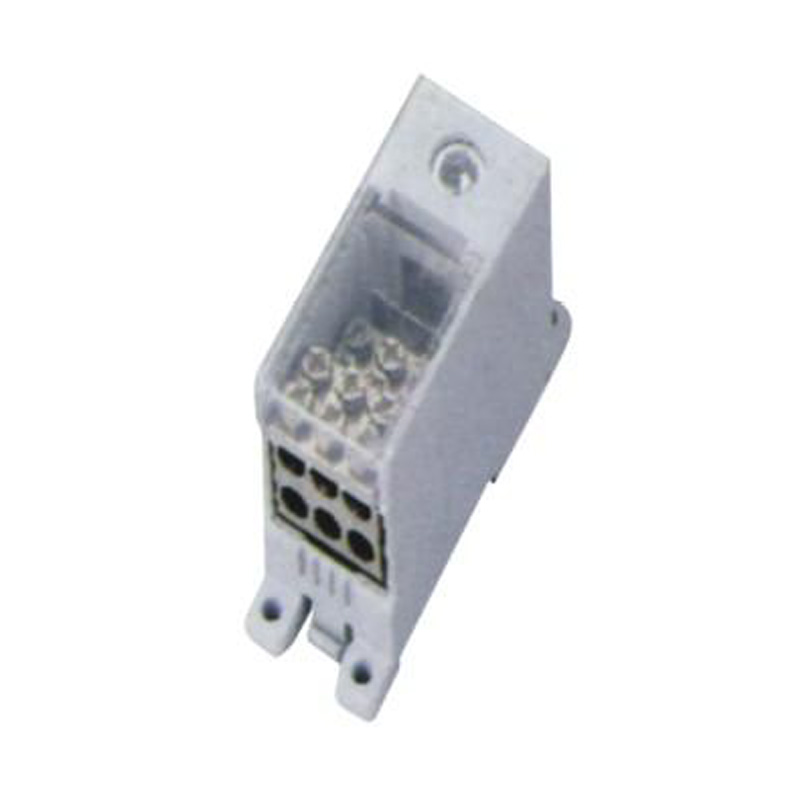

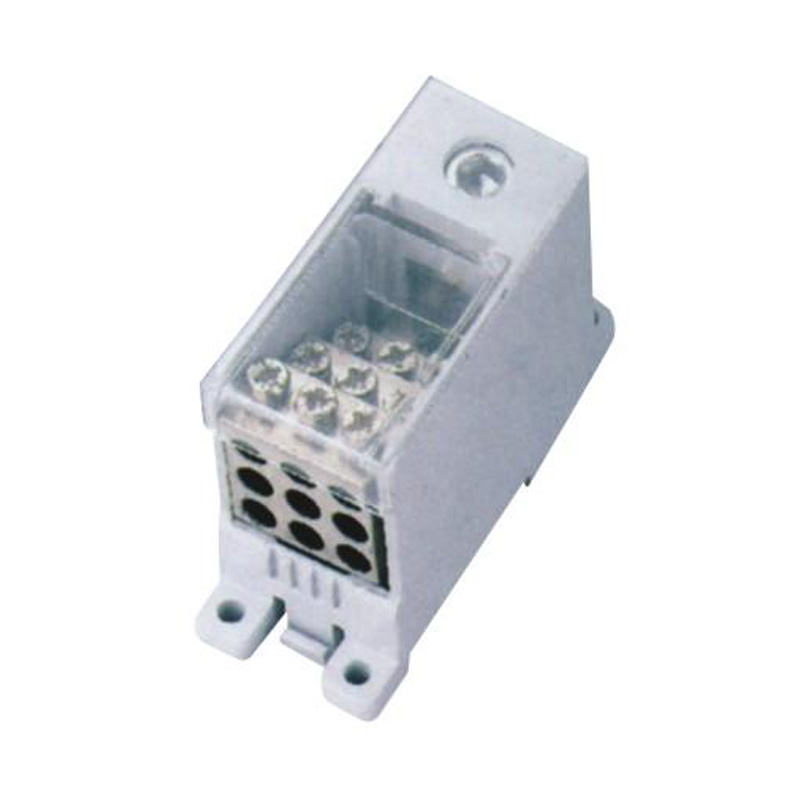

FJ6Q-1/6x10 Self-Elevating Connection Terminal
FJ6Q-1/6x10
One-inlet,six-outlet
Inlet wire:6-50mm²,outlet wire:1.5-10mm²
Order number:151038
FJ6Q-2/2x25 Self-Elevating Connection Terminal
FJ6Q-2/2x25
One-inlet, two-outlet
Inlet wire:6-50(70)mm²,outlet wire:1.5-25mm²
Ordernumber:151039
FJ6Q-2/3x16 Self-Elevating Connection Terminal
FJ6Q-2/3x16
One-inlet, three-outlet
Inlet wire:6-50(70)mm²,outlet wire:1.5-16mm²
Order number:151040
FJ6Q-2/4x16 Self-Elevating Connection Terminal
FJ6Q-2/4x16
One-inlet,four-outlet
Inlet wire:6-50(70)mm²,outlet wire:1.5-16mm²
Order number:151041
FJ6Q-2/6x16 Self-Elevating Connection Terminal
FJ6Q-2/6x16
One-inlet, six-outlet
Inlet wire:6-50(70)mm²,outlet wire:1.5-16mm²
Order number:151042

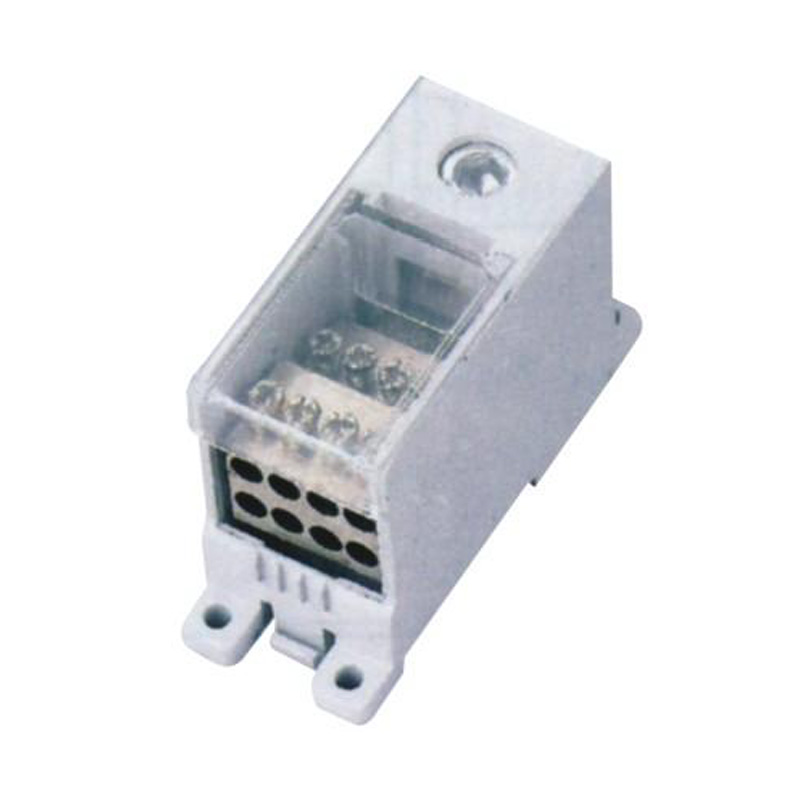

FJ6Q-2/8x10 Self-Elevating Connection Terminal
FJ6Q-2/8x10
One-inlet, eight-outlet
Inlet wire:6-50(70)mm²,outlet wire:1.5-16mm²
Order number:151043
FJ6Q-2/9x16 Self-Elevating Connection Terminal
FJ6Q-2/9x16
One-inlet, nine-outlet
Inlet wire:6-50(70)mm²,outlet wire:1.5-16mm²
Order number:151044
FJ6Q-2/12x10 Self-Elevating Connection Terminal
FJ6Q-2/12x10
One-inlet, ten-outlet
Inlet wire:6-50(70)mmv,outlet wire:1.5-10mm²
Order number:151045

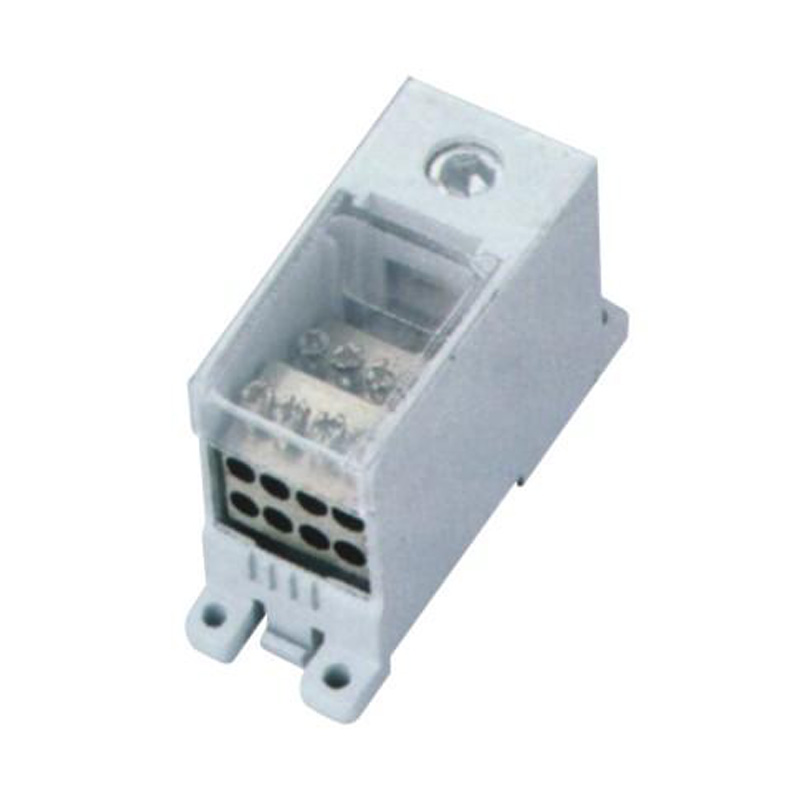

FJ6Q-3/8x 16 Self-Elevating Connection Terminal
FJ6Q-3/8x16
One-inlet, eight-outlet
Inlet wire:6-50(70)mm²,outlet wire:1.5-16mm²
Order number:151046
