An Energy Measuring Terminal Block is an electrical component designed to measure key energy parameters such as voltage, current, ...
READ MOREHeavy-current Terminal Block
Heavy-current Terminal Blocks are engineered to handle high electrical loads easily and reliably. These terminal blocks are designed to support large electrical currents, making them ideal for use in industrial, commercial, and heavy-duty applications where standard terminal blocks would be inadequate. They are the backbone of robust electrical systems that require durable, high-performance connections.
1. High Current Rating:
The primary selling point of heavy-current terminal blocks is their ability to manage large amounts of electrical current. This high current rating allows them to be used in applications such as heavy machinery, power distribution systems, and large-scale manufacturing processes. The increased capacity ensures that the terminal blocks can handle the demands of high-power electrical systems without overheating or failing.
2. Durability and Strength:
Heavy-current terminal blocks are constructed with robust materials such as high-grade plastics or metals that can withstand the stress of continuous high current flow. This durability ensures a long service life, reducing the need for frequent replacements and lower maintenance costs.
3. Safety Features:
Safety is important in electrical systems, especially those dealing with high currents. Heavy-current terminal blocks often come with built-in safety features such as insulation barriers, protective covers, and locking mechanisms. These features prevent accidental contact with live parts and ensure that the connections remain secure, reducing the risk of electrical shorts and fires.
4. Versatility and Compatibility:
One of the key benefits of heavy-current terminal blocks is their versatility. They are designed to accommodate a wide range of wire sizes and types, from thin control wires to thick power cables. This compatibility allows for easy integration into existing systems or the flexibility to adapt to different wiring configurations in new installations.
5. Easy Installation and Maintenance:
Despite their robust construction, heavy-current terminal blocks are designed for easy installation and maintenance. They often feature tool-less connection systems that allow for quick and secure connections without the need for special tools. This ease of use saves time and labor costs during installation and makes maintenance tasks more manageable.
6. Corrosion Resistance:
In industrial environments, terminal blocks may be exposed to harsh chemicals, moisture, and other corrosive elements. Heavy-current terminal blocks are often made from materials that are resistant to corrosion, ensuring that they maintain their integrity and performance over time, even in challenging environments.
7. Compliance with Standards:
To ensure reliability and safety, heavy-current terminal blocks are designed to comply with international standards such as UL, CE, and IEC. These certifications provide assurance that the terminal blocks have been rigorously tested and meet the high standards for electrical safety and performance.
8. Temperature Range:
Heavy-current terminal blocks are designed to operate effectively within a broad temperature range. This feature is crucial for applications where temperature fluctuations are common, ensuring that the terminal blocks can maintain their performance in both hot and cold conditions.
Heavy-current terminal blocks are a critical component in any system that requires the management of high electrical currents. Their high current rating, durability, safety features, versatility, ease of installation, corrosion resistance, compliance with standards, customization options, broad temperature range, and cost-effectiveness make them an essential choice for a wide range of applications. By choosing heavy-current terminal blocks, industries can ensure the reliability and safety of their electrical systems, which is crucial for operational efficiency and risk mitigation.

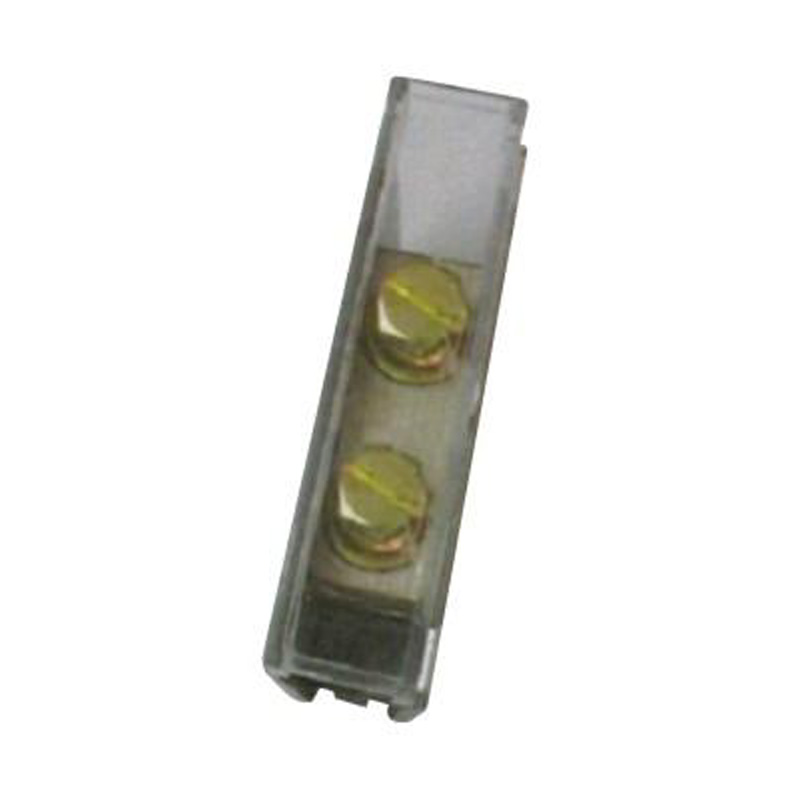

FJ6/JTS2-50B Terminal Block
Model: FJ6/JTS2-50B(M8 outer-hexagonal screw)
Stucture: One-inlet,one-outlet
Section: Inlet wire 16-50mm2(Panel connection)
Outline size: 78(W) x 63(H) x 25(T)
Order no.150276
FJ6/JTS2-120B Terminal Block
Model: FJ6/JTS2-120B(M10 outer-hexagonal screw)
Stucture: One-inlet,one-outlet
Section: Inlet wire 70-120mm2(Panel connection)
Outline size: 78(W) x 63(H) x 36(T)
Order no.150277
FJ6/JTS2-185B Terminal Block
Model: FJ6/JTS2-185B(M12 outer-hexagonal screw)
Stucture: One-inlet,one-outlet
Section: Inlet wire 70-185mm2(Panel connection)
Outline size: 100(W) x 63(H) x 50(T)
Order no.150278
FJ6/JTS2-300B Terminal Block
Model: FJ6/JTS2-300B(M14 outer-hexagonal screw)
Stucture: One-inlet,one-outlet
Section: Inlet wire 185-300mm2(Panel connection)
Outline size: 117(W) x 73(H) x 62(T)
Order no.150279

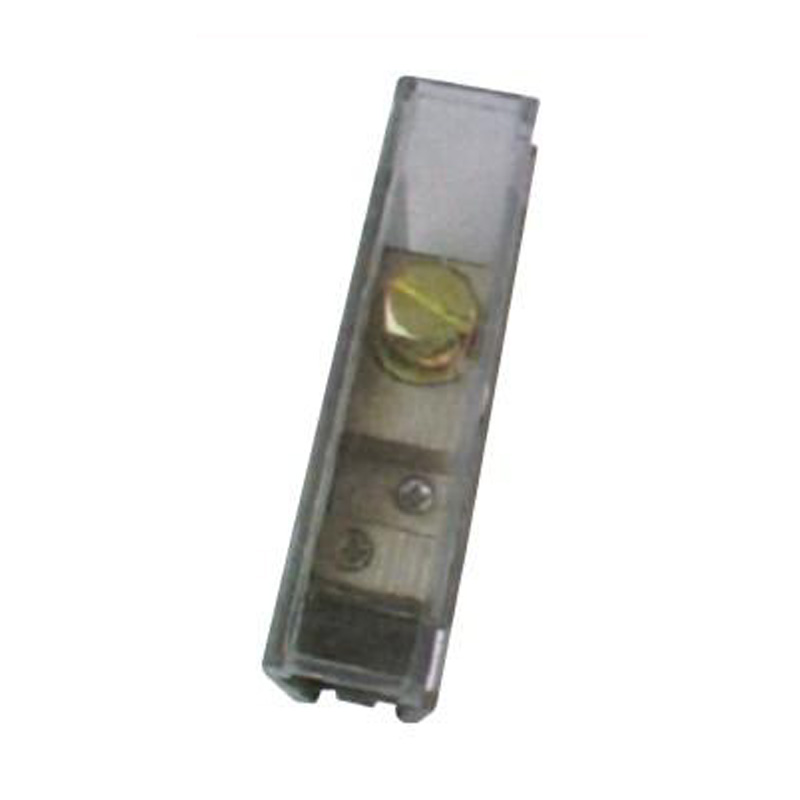

FJ6/JTS2-35B/2x10 Terminal Block
Model: FJ6/JTS2-35B/2x10
Stucture: One-inlet,two-outlet
Section: Inlet wire 10-35mm2
Outlet wire 2.5-10mm2
Outline size: 78(W) x 63(H) x 21(T)
Order no.150280
FJ6/JTS2-35B/2x25 Terminal Block
Model: FJ6/JTS2-35B/2x25
Stucture: One-inlet,two-outlet
Section: Inlet wire 16-35mm²
Outlet wire 6-25mm²
Outline size: 78(W) x 63(H) x 21(T)
Order no.150281
FJ6/JTS2-50B/2x35 Terminal Block
Model: FJ6/JTS2-50B/2x35
Stucture: One-inlet,two-outlet
Section: Inlet wire 25-50mm²
Outlet wire 6-35mm²
Outline size: 78(W) x 63(H) x 25(T)
Order no.150282
FJ6/JTS2-120B/2x70 Terminal Block
Model: FJ6/JTS2-120B/2x70
Stucture: One-inlet,two-outlet
Section: Inlet wire 25-120mm²
Outlet wire 25-70mm²
Outline size: 78(W) x 63(H) x 36(T)
Order no.150283
FJ6/JTS2-185B/2x95 Terminal Block
Model: FJ6/JTS2-185B/2x95
Stucture: One-inlet,two-outlet
Section: Inlet wire 70-185mm²
Outlet wire 35-95mm²
Outline size: 100(W) x 63(H) x 50(T)
Order no.150284
FJ6/JTS2-300B/2x120 Terminal Block
Model: FJ6/JTS2-300B/2x120
Stucture: One-inlet,two-outlet
Section: Inlet wire 150-300mm2
Outlet wire 35-120mm2
Outline size: 117(W) x 73(H) x 62(T)
Order no.150285
FJ6/JTS2-300B/2x240 Terminal Block
Model: FJ6/JTS2-300B/2x240
Stucture: One-inlet,two-outlet
Section: Inlet wire 95-300mm²
Outlet wire 70-240mm²
Outline size: 152(W) x 95(H) x 84(T)
Order no.150286
FJ6/JTS2-35B/2x16 Terminal Block
Model: FJ6/JTS2-35B/3x16
Stucture: One-inlet,three-outlet
Section: Inlet wire 16-35mm²
Outlet wire 4-16mm²
Outline size: 78(W) x 63(H) x 21(T)
Order no.150287
