Energy Meter Accessories Company

Energy Meter Accessories are an essential component in the field of energy management. These accessories are designed to complement and enhance the functionality of energy meters, which are used to measure the consumption of electrical energy. By providing additional features and functionalities, energy meter accessories ensure that energy meters operate at peak performance, thereby improving the accuracy and reliability of energy measurement.

1. Enhanced Accuracy and Precision:
One of the primary selling points of energy meter accessories is their ability to increase the precision of energy measurement. Accessories such as current and voltage transformers can help in accurately transforming high voltages and currents into values that can be measured by the energy meter. This ensures that the energy consumption data is reliable and accurate, which is crucial for billing purposes and energy management strategies.

2. Durability and Longevity:
Energy meter accessories are designed to withstand harsh environmental conditions and the wear and tear of continuous operation. They are made from high-quality materials that resist corrosion, wear, and environmental factors such as temperature fluctuations and humidity. This durability ensures that the accessories maintain their performance over a long period, reducing the need for frequent replacements and less maintenance costs.

3. Compatibility and Versatility:
A significant advantage of energy meter accessories is their compatibility with a wide range of energy meters and systems. This versatility allows for easy integration into existing infrastructure without the need for significant modifications or upgrades. Whether it's a small residential setup or a large industrial complex, energy meter accessories can be adapted to fit various configurations and requirements.

4. Improved Safety Features:
Safety is a important concern in electrical installations, and energy meter accessories are designed with this in mind. They often include features such as surge protection, which guards against voltage spikes that could damage the energy meter or connected equipment. Additionally, the accessories may have built-in mechanisms to prevent electrical faults or short circuits, thus enhancing the overall safety of the system.

5. Data Logging and Analysis Capabilities:
Some advanced energy meter accessories come with data logging capabilities, allowing for the collection and analysis of energy consumption data over time. This feature is particularly valuable for businesses and utilities that need to monitor and analyze their energy usage patterns for cost optimization and efficiency improvements.

6. Compliance with International Standards:
Energy meter accessories are manufactured to comply with international standards such as IEC, ANSI, and others. This ensures that the accessories meet the high quality and safety benchmarks, providing users with confidence in their performance and reliability.

7. Energy Efficiency and Cost Savings:
By ensuring accurate energy measurement, energy meter accessories indirectly contribute to energy efficiency and cost savings. Accurate data allows users to identify areas of high energy consumption and implement measures to reduce waste, thus significant savings over time.

In summary, energy meter accessories offer a range of benefits that enhance the performance of energy meters. From improved accuracy and precision to durability and compatibility, these accessories are vital for ensuring reliable energy measurement and management. As the demand for efficient energy usage and smart grid technologies grows, the role of energy meter accessories becomes increasingly important in supporting these advancements.

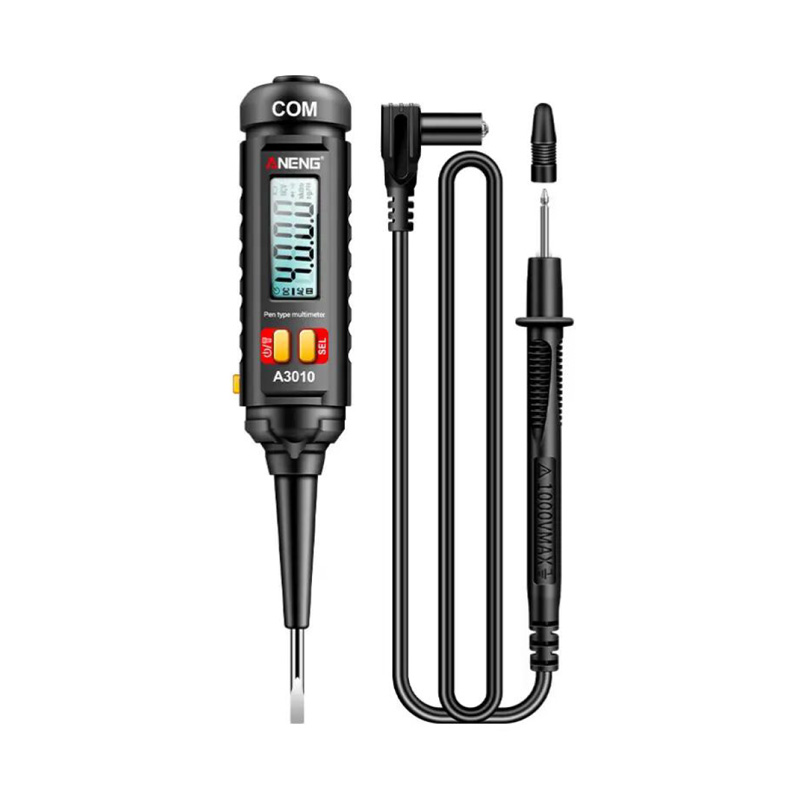

Universal Measuring Pen

Model

AC VOLTAGE

Weight

Material

Universal measuring
pen

0V-600V

38g

ABS+metal

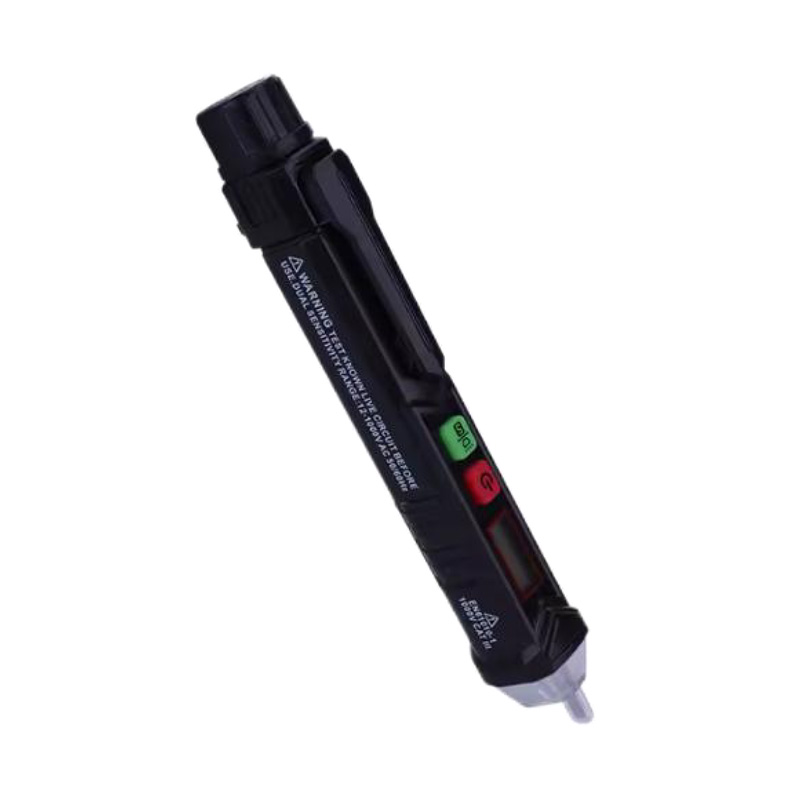

Non-Contact Electric Pen

Model

A.C.
voltage

Frequencys

Security level

Battery
model

Sizes

AC1010+

12V~
1000V AC

50Hz/60Hz

CAT.III
1000V/CAT.IV
600V;CE

2*1.5V
AAA

157mm/26.4m
m/23/mm

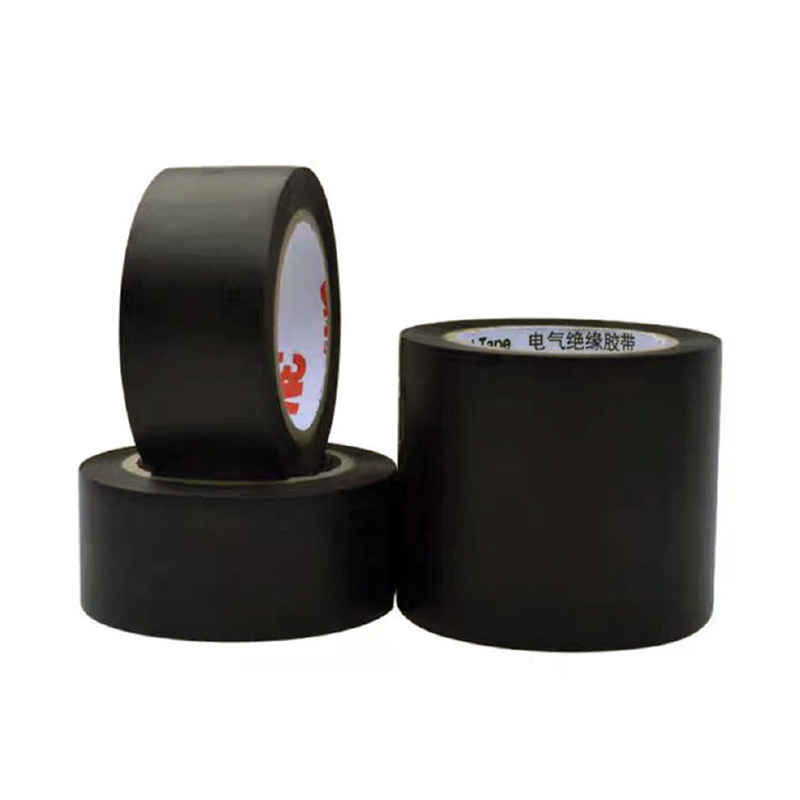

Insulating Tape

Model

L (m)

W (mm)

Material

Insulating tape 1

PVC

Insulating tape 2

PVC

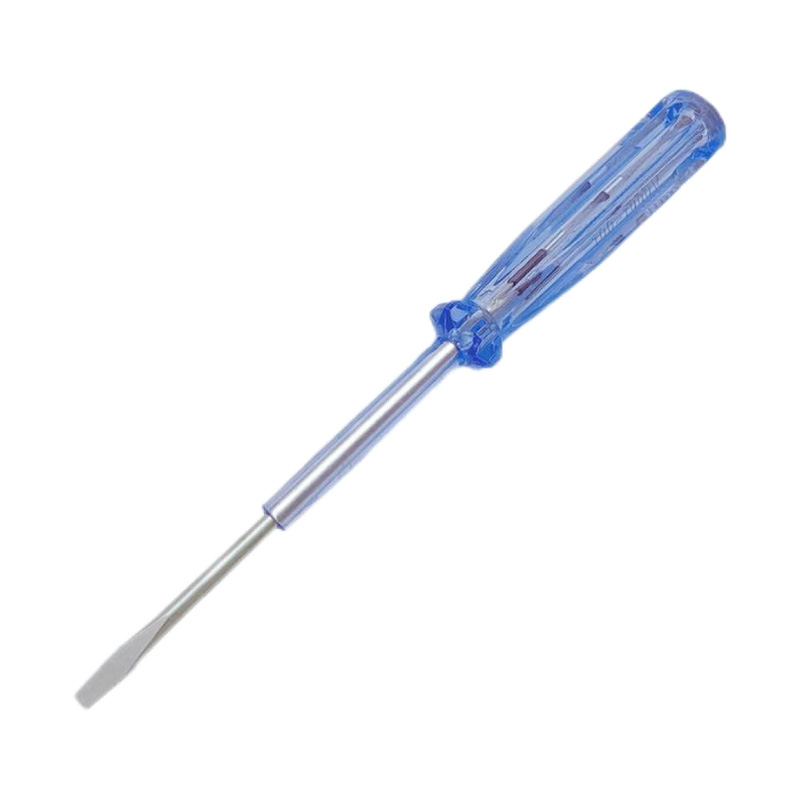

Electroprobe

Model

L
(mm)

Applicable objects

Types of electronic

Electroprobe

180

low voltage

contact

Wire Connertor

Product Name: Wire Connector
Shell Material: PA
Guide Material: High Quality
Impulse Voltage: 4KV
Product Use: Used for connecting parts of electric wires such as motor, electrical control, supply. household appliances, lighting, machinery, etc.

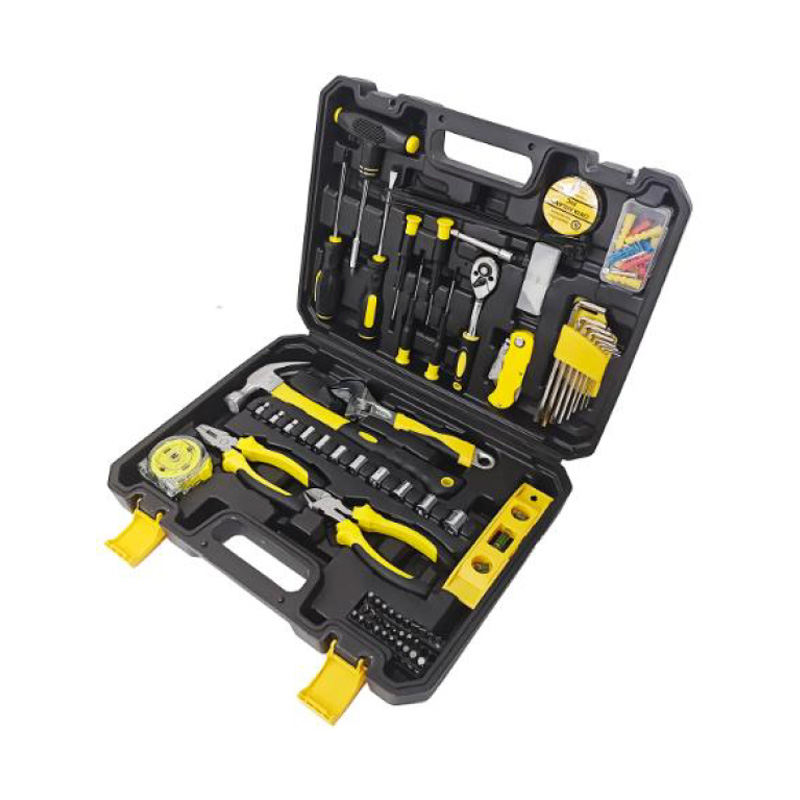

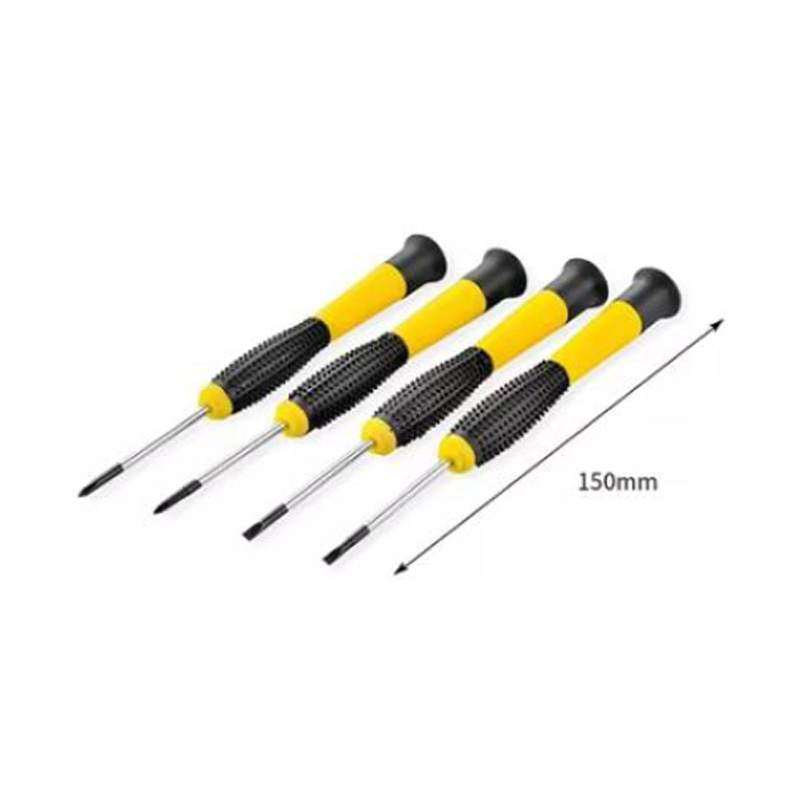

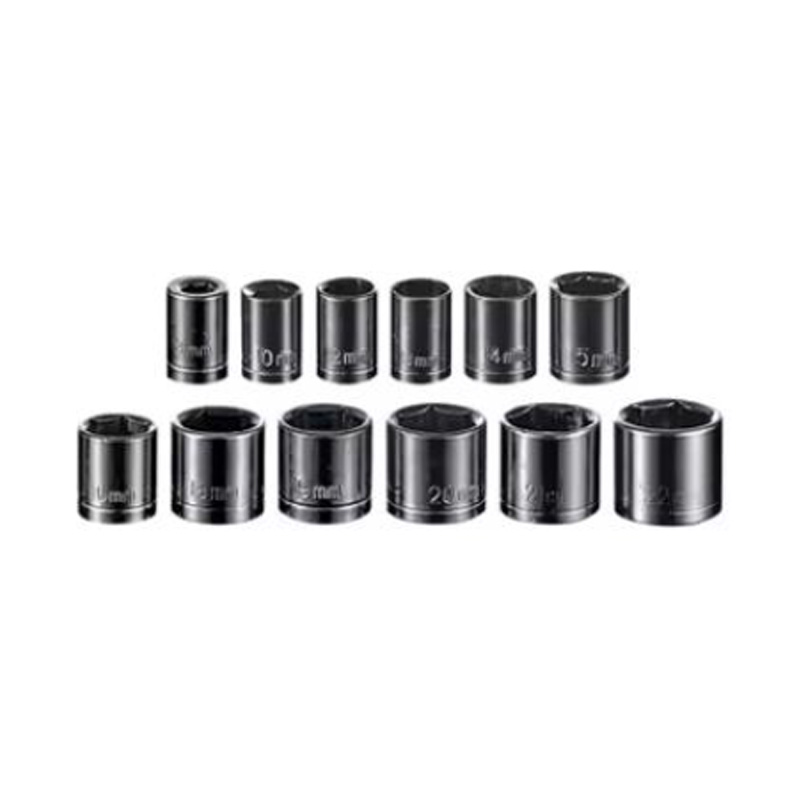

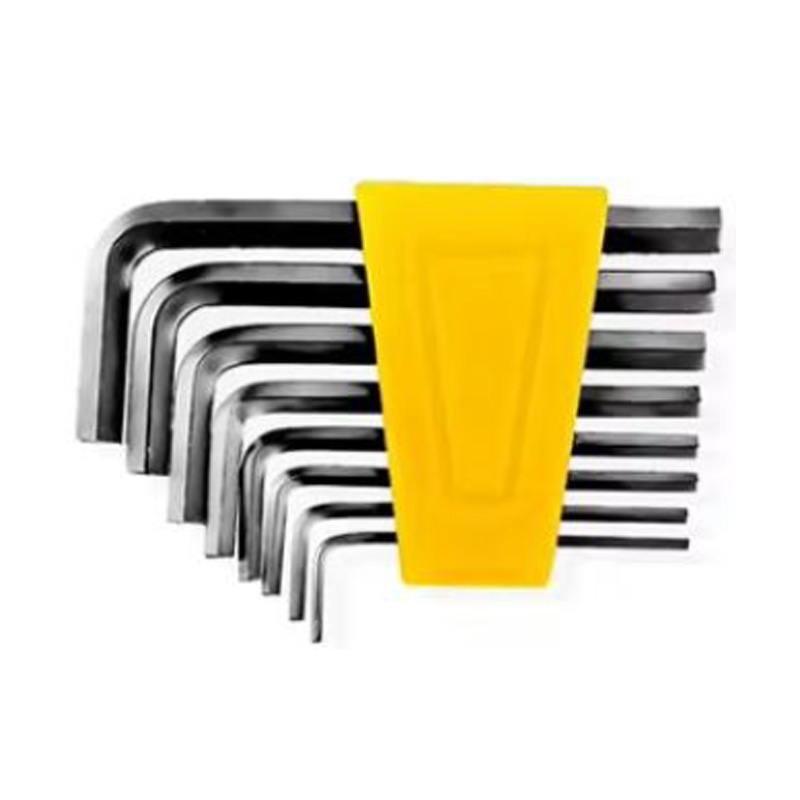

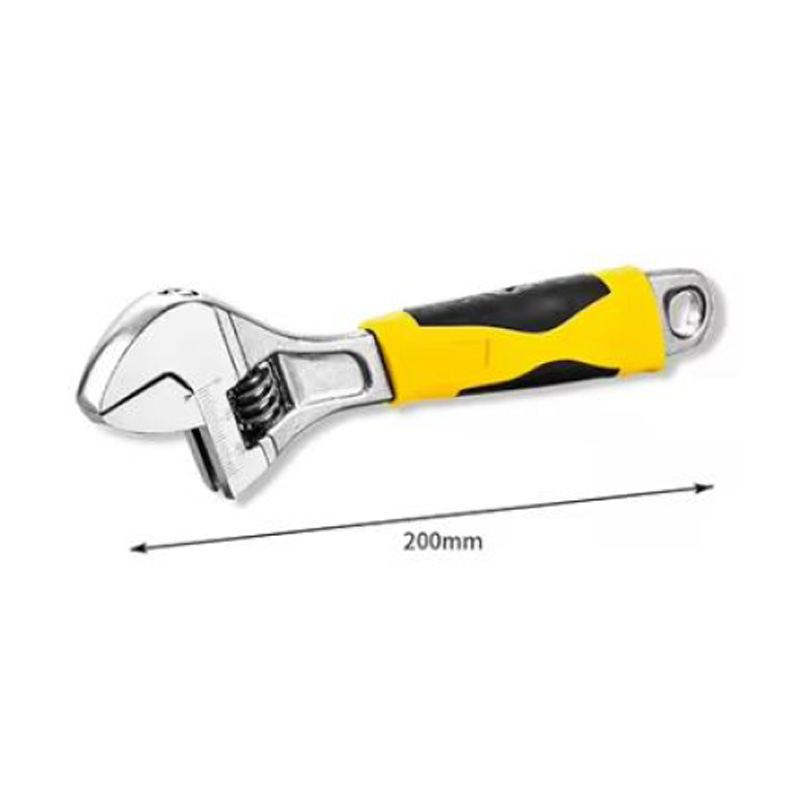

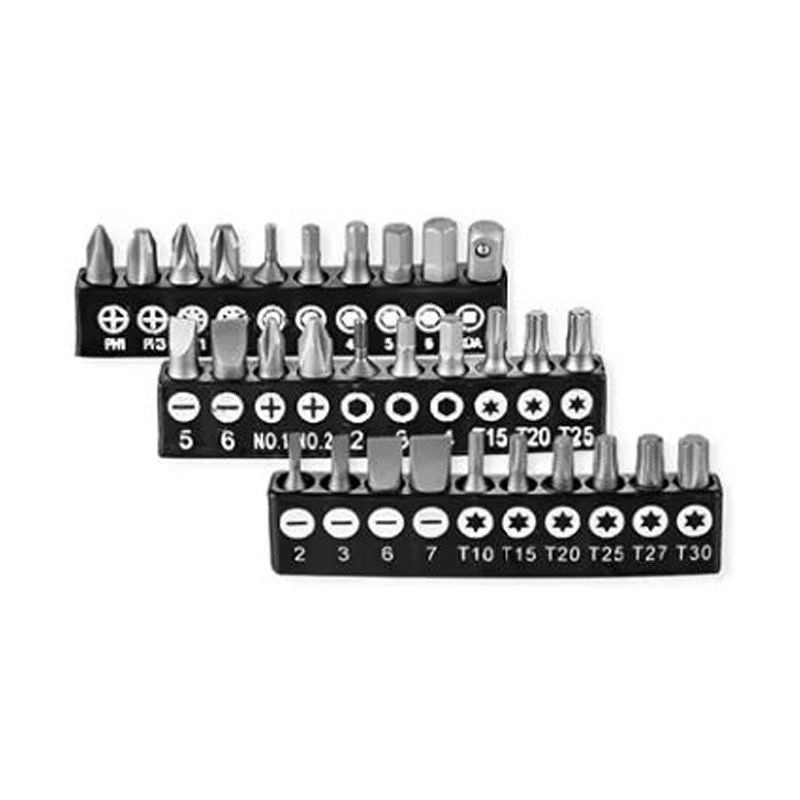

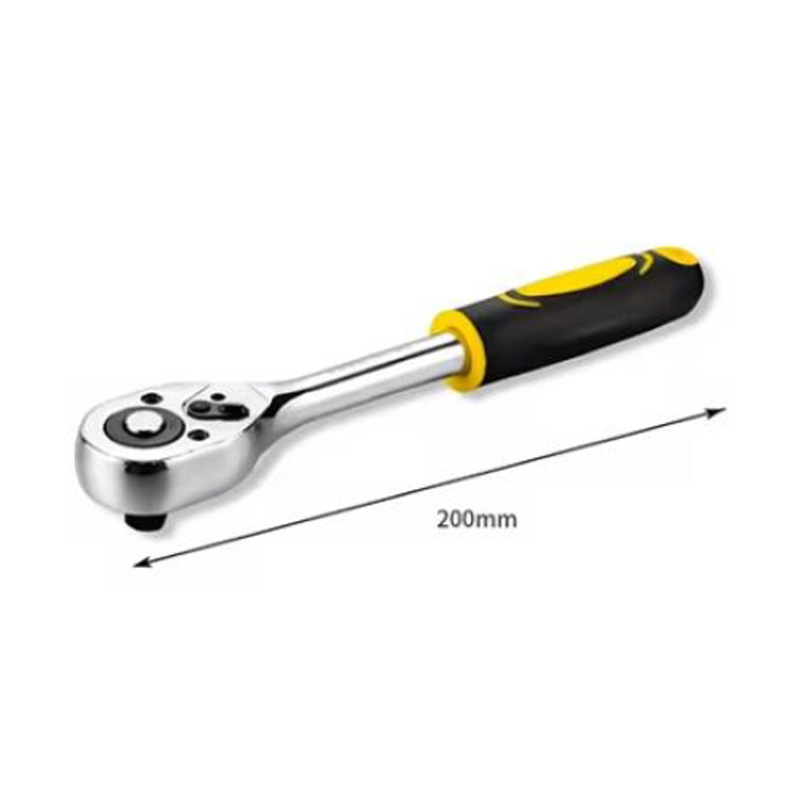

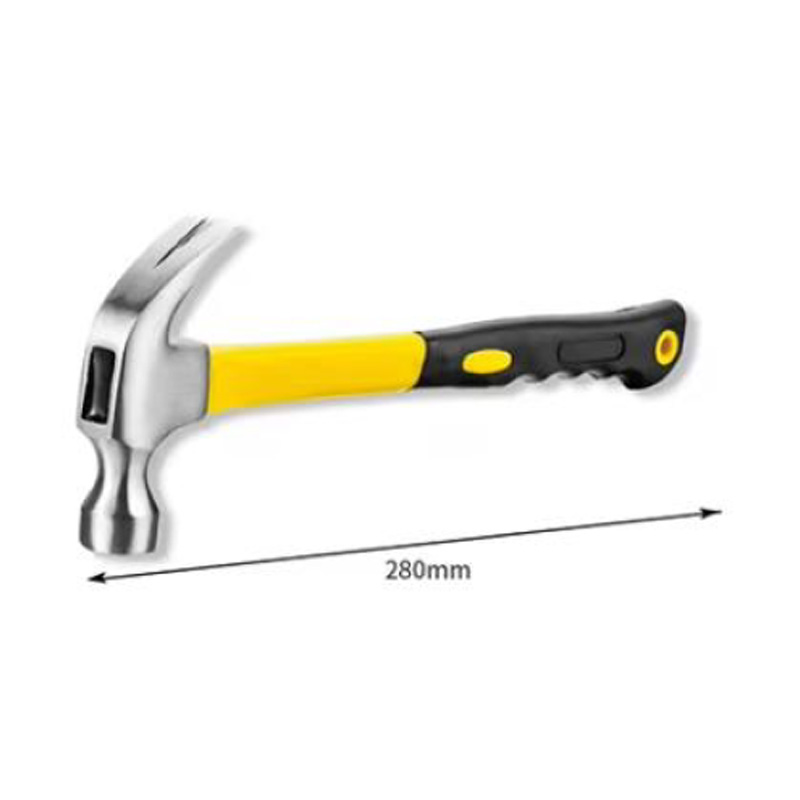

Multi Functional Professional Set

Product Name: Multi Functional Professional Set
Weight: 4.1kg
Size: 400*310*90mm
Texture of Material: PE Engineering Plastics
Usage Scenarios: Home Repair/ Equipment Repair

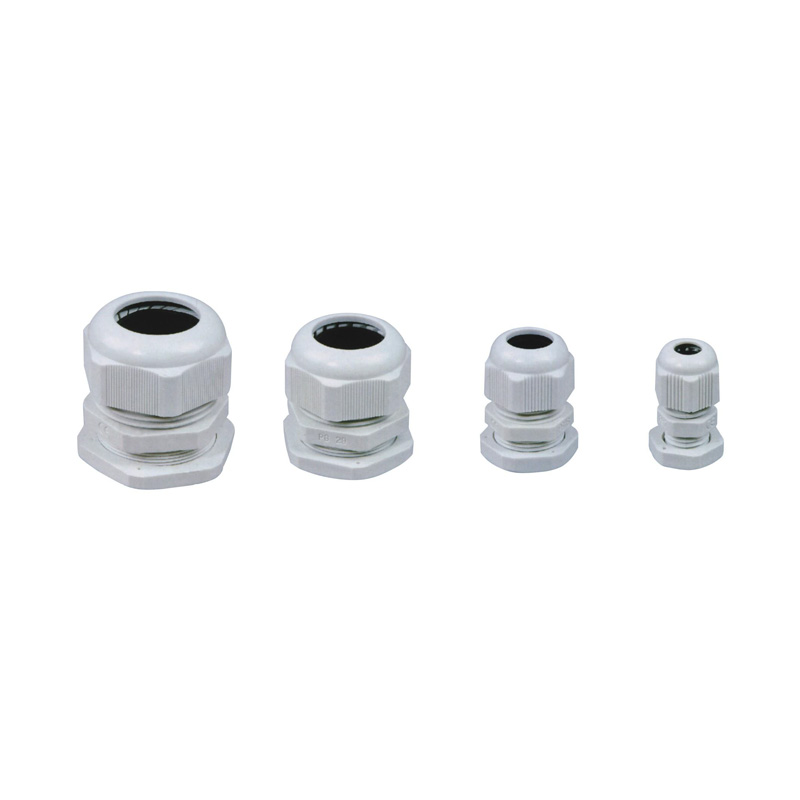

Nylon cable glahds

Producf material: LocationA,C,E and F made of PA, Location D made of chemigum.
Specification of thread: Metric, PG and G
Working temperature: Static:-40°C~+100°C, instantaneously san be +120C; Dynamic:-20C~+80C,instantaneously can br +100°℃;
Color: Black and gray(special colors customizable)
Protection classification: Within the specified clamp range,use O-shaped sealing ring and screw tight the pressing fastener reaching Ip65.
Property: thespecial designs forclamping jawand sealants fitedwith pressing fasrener cansaveboth time and energypromising awide scope forcable
clamping and extremely great strerching resistance.lt is water resistant,dustrwsisant and inactivewithsalts,acids,alkalis,oils and greases as well as general dissolvent,
How to use: waterproof nylon cable glands aue the fittings for cables.The joints can lock the cables tight.The other end of thejont can be either connected
with the housing of equipments or conneceted with electric equipment with inner threaded access hole as per the thread selected.

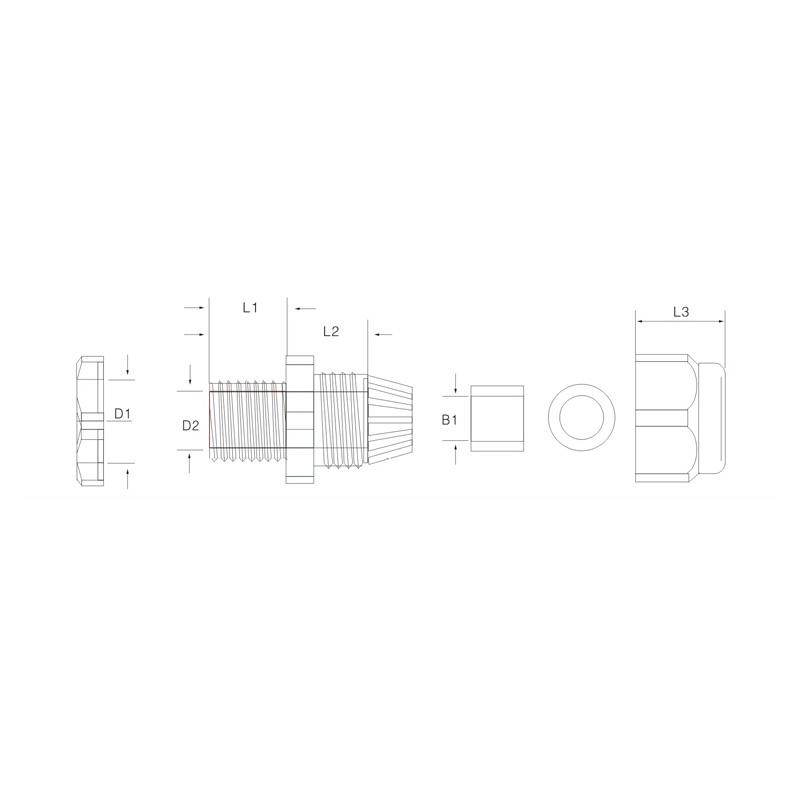

PG Thread

ltem NO.	PG	Cable range (mm)	D1	D2	L1	L2	L3	B1
PG-07	PG7	3.5-6	10.9	8.1	10.4	14.5	10.5	6.4
PG-09	PG9	4-8	15.3	12.2	9.9	15.8	17.2	8.6
PG-11	PG11	5-10	17.9	14.6	10.6	15.5	17.5	10.7
PG-13.5	PG13.5	6-12	20.2	16.2	10.3	17.8	17.9	13.3
PG-16	PG16	10-14	21.3	18.3	11.2	18.5	20.5	14.3
PG-19	PG19	12-15	24.7	20.5	11.4	18.6	21.8	15.5
PG-21	PG21	13-18	26.9	21.8	11.6	18.7	23.1	16.7
PG-24	PG24	15-22	29.8	25.0	12.1	19.3	24.1	19.2
PG-27	PG27	17-23	29.8	25.0	12.1	19.3	24.1	19.2
PG-29	PG29	18-25	35.1	29.8	12.4	22.6	24.8	24.8
PG-36	PG36	22-32	44.7	37.1	12.6	25.1	26.1	30.7
PG-42	PG42	30-38	50.4	43.3	17.3	25.9	30.5	35.6
PG-48	PG48	34-44	56.1	48.2	20.9	28.1	31.5	41.4
PG-63	PG63	42-54	71.0	63.5	27.5	31.5	43.5	55.0

Metric Thread

ltem NO.	METRIC	Cable range (mm)	D1	D2	L1	L2	L3	B1
ltem NO.	METRIC	Cable range (mm)	D1	D2	L1	L2	L3	B1
M12	M12×1.5	3.5-6	12	9	10.4	14.5	14	6.4
M16	M16×1.5	4-8	15.3	12.2	9.9	13	16	8.6
M18	M18×1.5	5-10	17.9	14.6	10.6	15.5	17.5	10.7
M20	M20×1.5	6-12	20.2	16.2	10.3	17.8	17.9	13.3
M22	M22×1.5	10-14	21.3	18.3	11.2	18.5	20.5	14.3
M24	M24×1.5	12-15	24.7	20.5	11.4	18.6	21.8	15.5
M27	M27×1.5	13-18	26.9	21.8	11.6	18.7	23.1	16.7
M30	M30×1.5	15-22	29.8	25.0	12.1	19.3	24.1	19.2
M32	M32×1.5	17-23	29.8	25.0	12.1	19.3	24.1	19.2
M36	M36×1.5	18-25	35.1	29.8	12.4	22.6	24.8	24.8
M46	M46×1.5	22-32	44.7	37.1	12.6	25.1	26.1	30.7
M54	M54×1.5	30-38	50.4	43.3	17.3	25.9	30.5	35.6
M60	M60×1.5	34-44	56.1	48.2	20.9	28.1	31.5	41.4
M70	M70×1.5	42-54	71.0	63.5	27.5	31.5	43.5	55.0
M70	M70×1.5	42-54	71.0	63.5	27.5	31.5	43.5	55.0

G thread

ltem NO.	G thread	Cable range (mm)	D1	D2	L1	L2	L3	B1
ltem NO.	G thread	Cable range (mm)	D1	D2	L1	L2	L3	B1
G1/2"	G1/2"	6-12	20.2	16.2	10.3	17.8	17.9	13.3
G3/4"	G3/4"	13-18	26.9	21.8	11.6	18.7	23.1	16.7
G1"	G1"	15-22	29.8	25.0	12.1	19.3	24.1	19.2
G1/1/4"	G1/1/4"	18-25	35.1	29.8	12.4	22.6	24.8	24.8
G1/1/2"	G1/1/2"	22-32	44.7	37.1	12.6	25.1	26.1	30.7
G2"	G2"	34-44	56.1	48.2	20.9	28.1	31.5	41.4

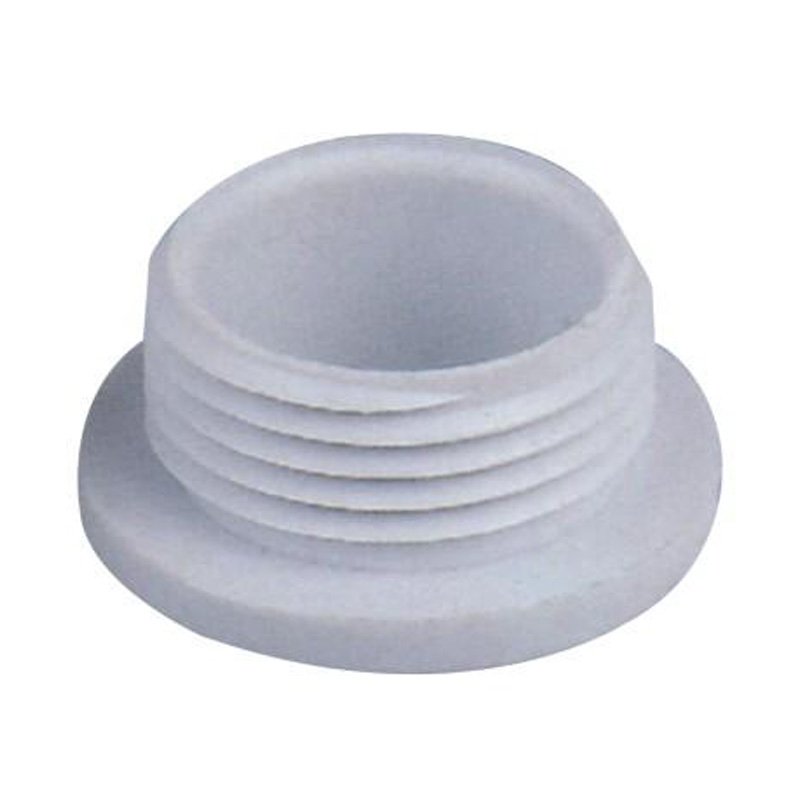

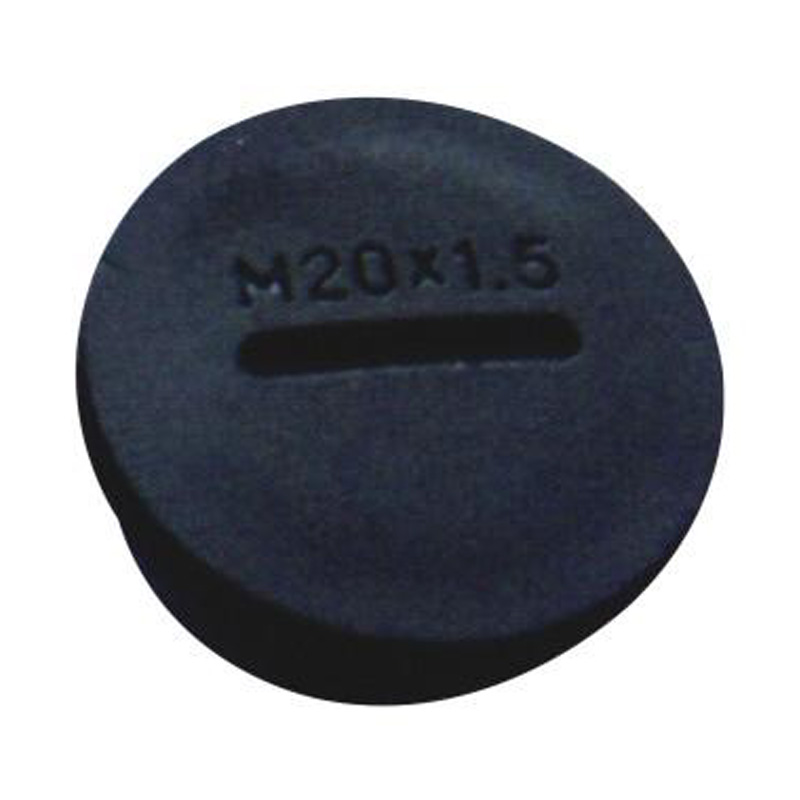

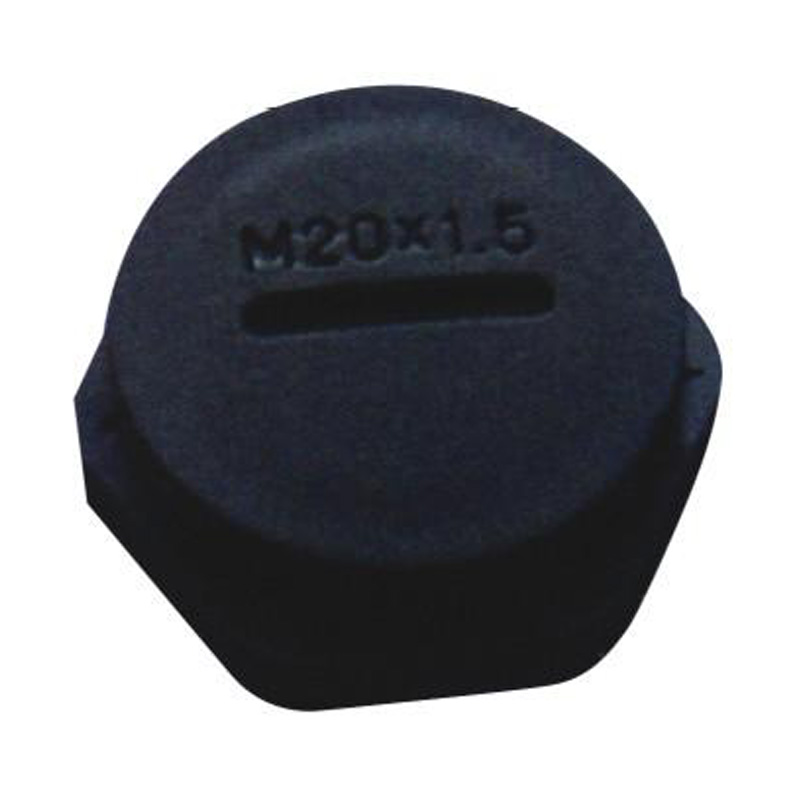

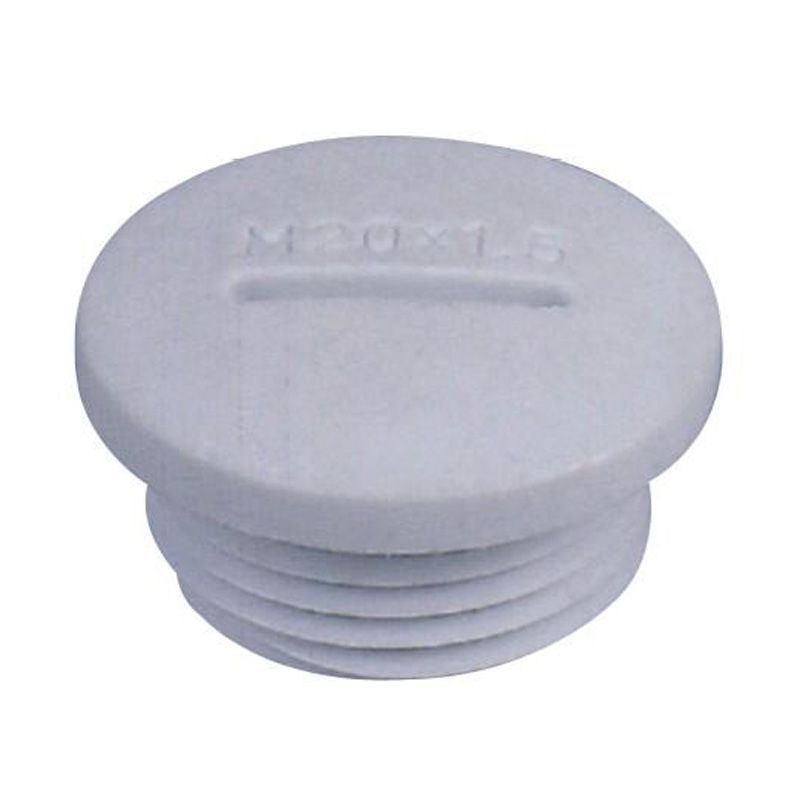

Plastic plug

materials: nylonPA
Protection degree: P54
Ambient temperature:-20℃+80℃
supply color: gray, black
other color can request

PG Thread

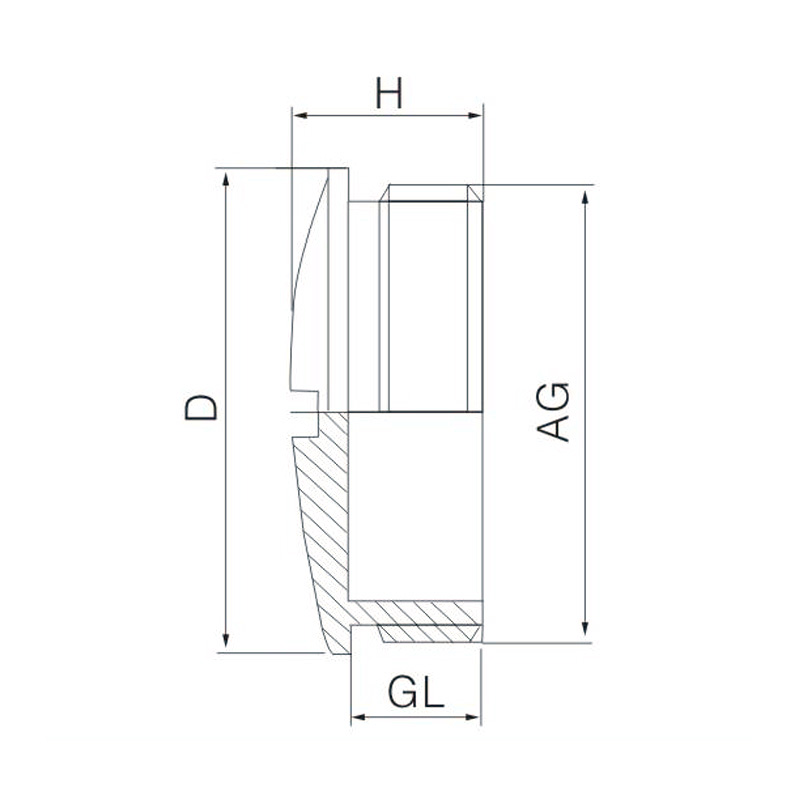

ltem No.	AG (mm)	GL (mm)	H (mm)	D (mm)
PG7	12.5	8.5	12.5	15
PG9	15.2	8.5	13	19
PG11	18.6	9	13	22
PG13.5	20.4	9	13	25
PG16	22.5	10.5	15	27
PG21	28.3	10.5	15.5	33
PG29	37	11.5	16	14
PG36	47	13.5	18	55
PG42	54	13.5	18.5	62
PG48	59.3	14.5	19.5	68

Metric Thread

Item No.	AG (mm)	GL (mm)	H (mm)	D (mm)
M12×1.5	12	8.5	12.5	15
M16×1.5	16	8.5	13	19
M18×1.5	18	9	13	22
M20×1.5	20	9	13	25
M22×1.5	22	105	15	27
M25×1.5	25	10.5	15.5	30
M27×1.5	27	10.5	15.5	33
M32×1.5	32	10.5	16	38
M40×1.5	40	11.5	16	46
M50×1.5	50	13.5	8	56
M63×1.5	63	14	19	68

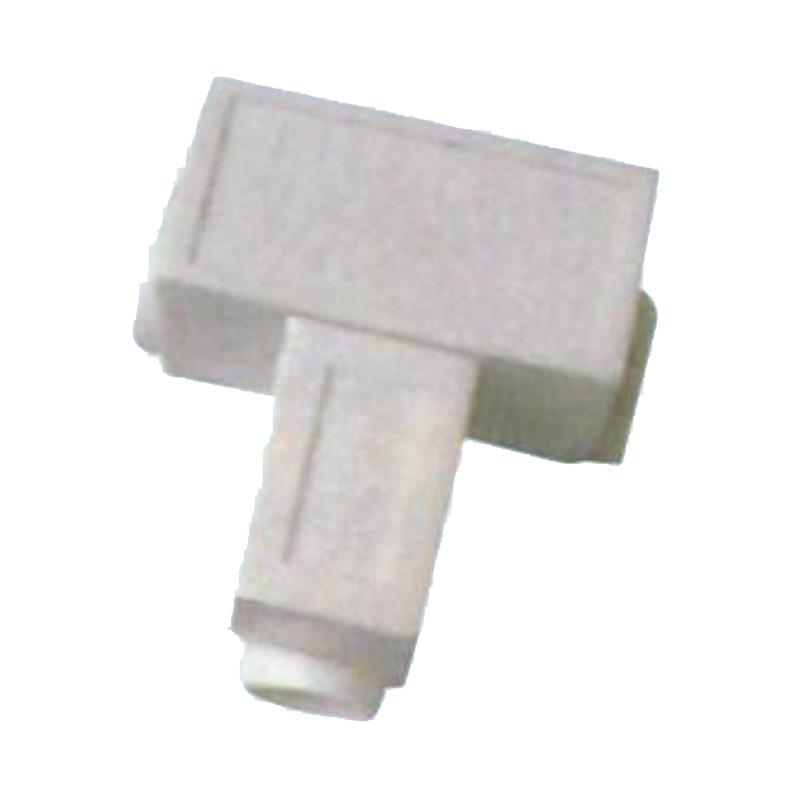

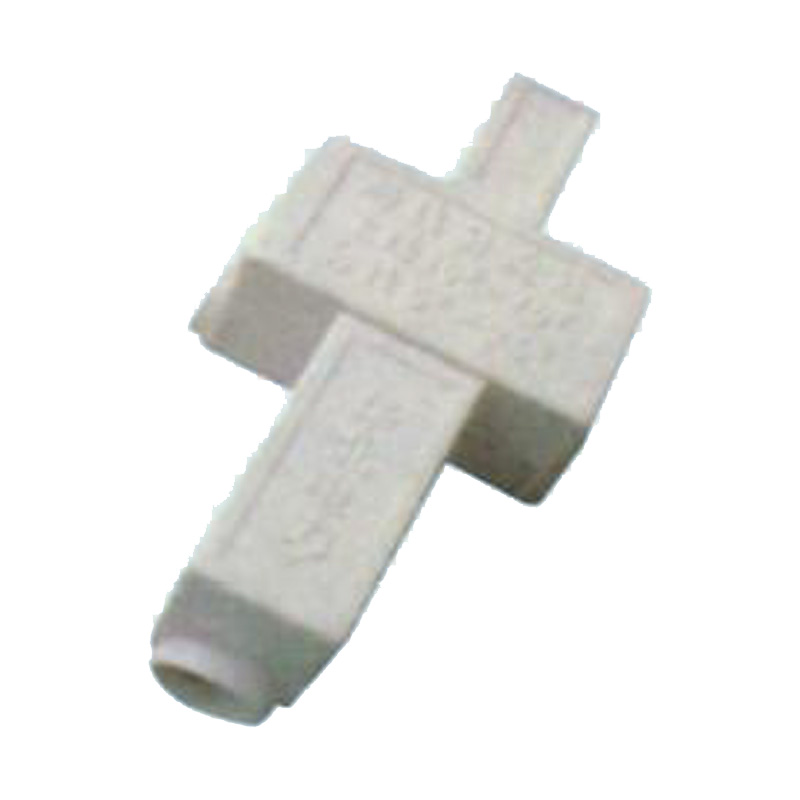

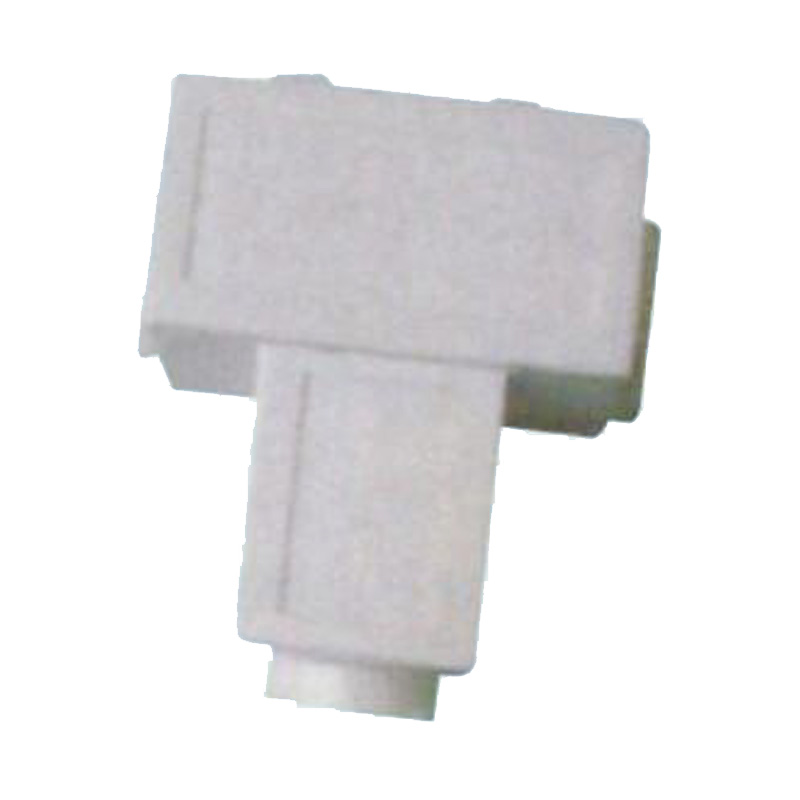

Three-Way T Connector

T-type connector
Three-way
Main line 16²-70²
Outlet 6²-35²
Oeder No.150552

T-type connector
Three-way
Main line 50²-120²
Outlet 35²-70²
Oeder No.150553

T-type connector
Three-way
Main line 120²-240²
Outlet 50²-95²
Oeder No.150554

Four-Way T Connector

T-type connector
Four-way
Main line 16²-70²
Outlet 6²-35²
Oeder No.150555

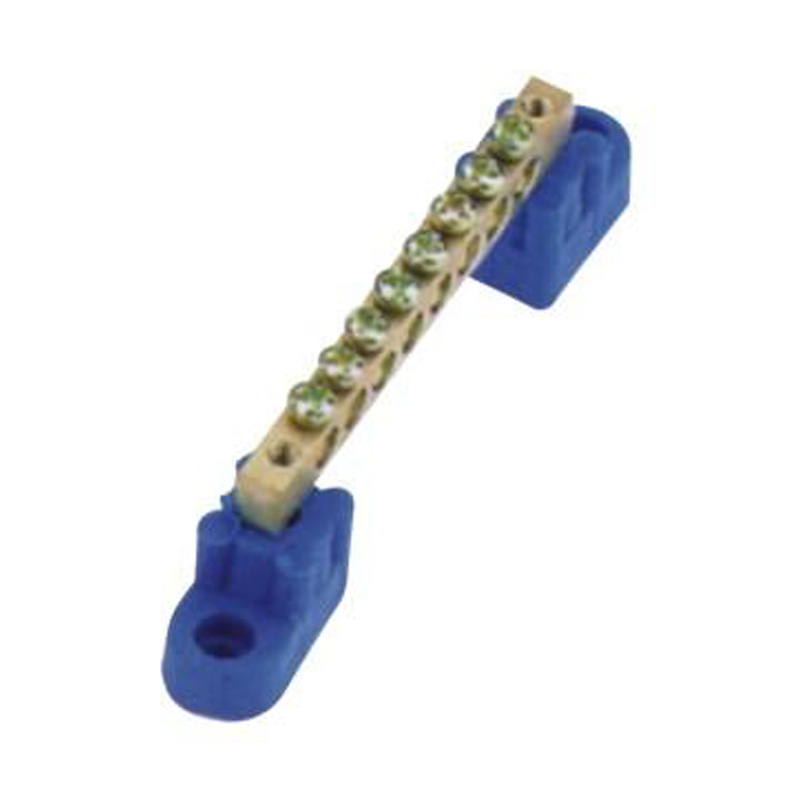

8-Hole Copper Bar

Model:8-hole
Outline size: Overall length 107 Copper length 77
Height 30 Hole 5.3
Mounting size: 95
Screw M4x8
Copper bar: 6x 9
Order no.:150556

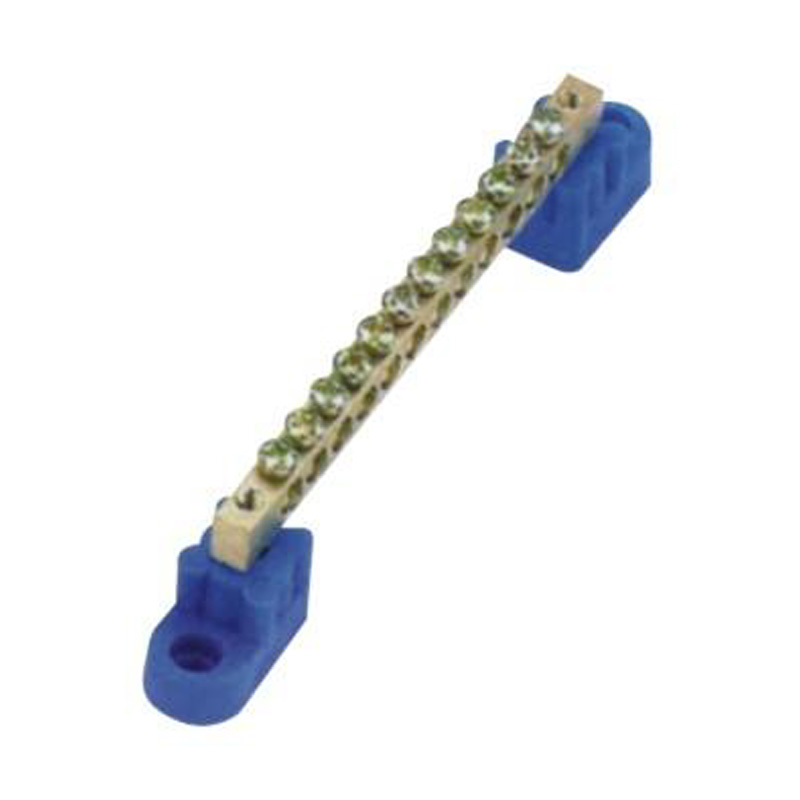

12-Hole Copper Bar

Model:12-hole
Outline size: Overall length 130 Copper length 100
Height 30 Hole 5.3
Mounting size: 118
Screw M4 x8
Copper bar:6x 9
Order no.:150557

Search

What Are The Functions Of Energy Meter Accessories?

Energy meter accessories serve several critical functions that contribute to the overall performance and safety of energy measurement systems.

1. Electrical Connection and Safety: Accessories like cable lugs and wire connectors ensure a secure connection between the energy meter and the electrical circuit. They prevent loose connections that can electrical fires or inaccurate readings.
2. Enhanced Accuracy: Properly functioning accessories help maintain the accuracy of energy meter readings by energy loss and ensuring stable current flow.
3. Durability and Longevity: High-quality accessories are designed to withstand the rigors of electrical stress, environmental conditions, and mechanical wear, prolonging the life of the energy meter.
4. Ease of Maintenance: Accessories that are easy to install and remove facilitate regular maintenance and inspection, which is crucial for the upkeep of energy meters.
5. Compliance with Standards: Energy meter accessories are often designed to comply with international safety and performance standards, ensuring that they meet the requirements of regulatory bodies.

What Are The Types Of Cable Lugs?

Cable lugs are connectors used to join cables and wires to termination points. They come in various types, each designed for specific applications and conditions.

1. Solder Lugs: These lugs require soldering to create a secure connection. They are suitable for applications where a permanent and highly reliable connection is needed.
2. Insulation Displacement Lugs (IDL): These lugs are designed to pierce and displace the insulation of a wire, creating a secure connection without the need for stripping the wire. They are popular for their ease of use and time-saving properties.
3. Crimp Lugs: Crimp lugs are connected to wires using a crimping tool that compresses the lug around the wire, ensuring a tight and secure connection. They are widely used in various electrical installations due to their versatility.
4. Split Bolt Lugs: These lugs are opened and closed around a cable or wire using a bolt. They are easy to install and are commonly used in situations where the connection may need to be frequently disconnected.
5. Compression Lugs: Similar to crimp lugs, compression lugs are used with a compression tool to secure the connection. They are known for their high conductivity and resistance to corrosion.
6. Push-On Lugs: These lugs are simply pushed onto the wire, making them quick and easy to install. However, they may not provide the same level of security and reliability as other types of lugs.

How to Choose the Right Wire Connector

Selecting the appropriate wire connector is a critical decision that affects the performance and safety of an electrical system. Here are some factors to consider when choosing a wire connector:

1. Material and Construction: The material of the connector (copper, aluminum, or a combination) and its construction (solid or stranded wire) should be considered based on the application's requirements.
2. Wire Gauge: The size of the wire (gauge) must match the connector's specifications to ensure a proper fit and avoid overheating or electrical failure.
3. Environment: The environment in which the connector will be used is crucial. Outdoor applications may require connectors with UV resistance and weatherproofing, while indoor applications may prioritize ease of installation.
4. Load Capacity: The connector must be able to handle the electrical load it will be subjected to without overheating or failing.
5. Safety Standards: Ensure that the connector complies with safety standards such as UL, CSA, or IEEE, which are designed to protect against electrical hazards.
6. Ease of Installation: Consider the ease of installation, especially in tight spaces or where frequent disconnections are required.
7. Cost-Effectiveness: While cost should not be the only factor, it is essential to find a balance between quality and affordability.
