Energy Meter Accessories Company

Energy Meter Accessories are an essential component in the field of energy management. These accessories are designed to complement and enhance the functionality of energy meters, which are used to measure the consumption of electrical energy. By providing additional features and functionalities, energy meter accessories ensure that energy meters operate at peak performance, thereby improving the accuracy and reliability of energy measurement.

1. Enhanced Accuracy and Precision:
One of the primary selling points of energy meter accessories is their ability to increase the precision of energy measurement. Accessories such as current and voltage transformers can help in accurately transforming high voltages and currents into values that can be measured by the energy meter. This ensures that the energy consumption data is reliable and accurate, which is crucial for billing purposes and energy management strategies.

2. Durability and Longevity:
Energy meter accessories are designed to withstand harsh environmental conditions and the wear and tear of continuous operation. They are made from high-quality materials that resist corrosion, wear, and environmental factors such as temperature fluctuations and humidity. This durability ensures that the accessories maintain their performance over a long period, reducing the need for frequent replacements and less maintenance costs.

3. Compatibility and Versatility:
A significant advantage of energy meter accessories is their compatibility with a wide range of energy meters and systems. This versatility allows for easy integration into existing infrastructure without the need for significant modifications or upgrades. Whether it's a small residential setup or a large industrial complex, energy meter accessories can be adapted to fit various configurations and requirements.

4. Improved Safety Features:
Safety is a important concern in electrical installations, and energy meter accessories are designed with this in mind. They often include features such as surge protection, which guards against voltage spikes that could damage the energy meter or connected equipment. Additionally, the accessories may have built-in mechanisms to prevent electrical faults or short circuits, thus enhancing the overall safety of the system.

5. Data Logging and Analysis Capabilities:
Some advanced energy meter accessories come with data logging capabilities, allowing for the collection and analysis of energy consumption data over time. This feature is particularly valuable for businesses and utilities that need to monitor and analyze their energy usage patterns for cost optimization and efficiency improvements.

6. Compliance with International Standards:
Energy meter accessories are manufactured to comply with international standards such as IEC, ANSI, and others. This ensures that the accessories meet the high quality and safety benchmarks, providing users with confidence in their performance and reliability.

7. Energy Efficiency and Cost Savings:
By ensuring accurate energy measurement, energy meter accessories indirectly contribute to energy efficiency and cost savings. Accurate data allows users to identify areas of high energy consumption and implement measures to reduce waste, thus significant savings over time.

In summary, energy meter accessories offer a range of benefits that enhance the performance of energy meters. From improved accuracy and precision to durability and compatibility, these accessories are vital for ensuring reliable energy measurement and management. As the demand for efficient energy usage and smart grid technologies grows, the role of energy meter accessories becomes increasingly important in supporting these advancements.

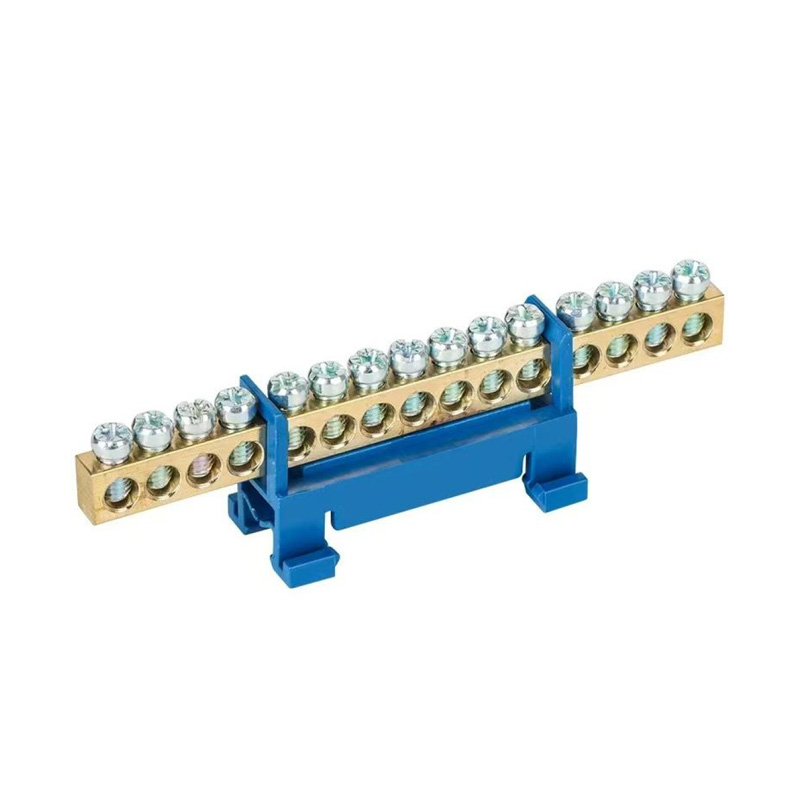

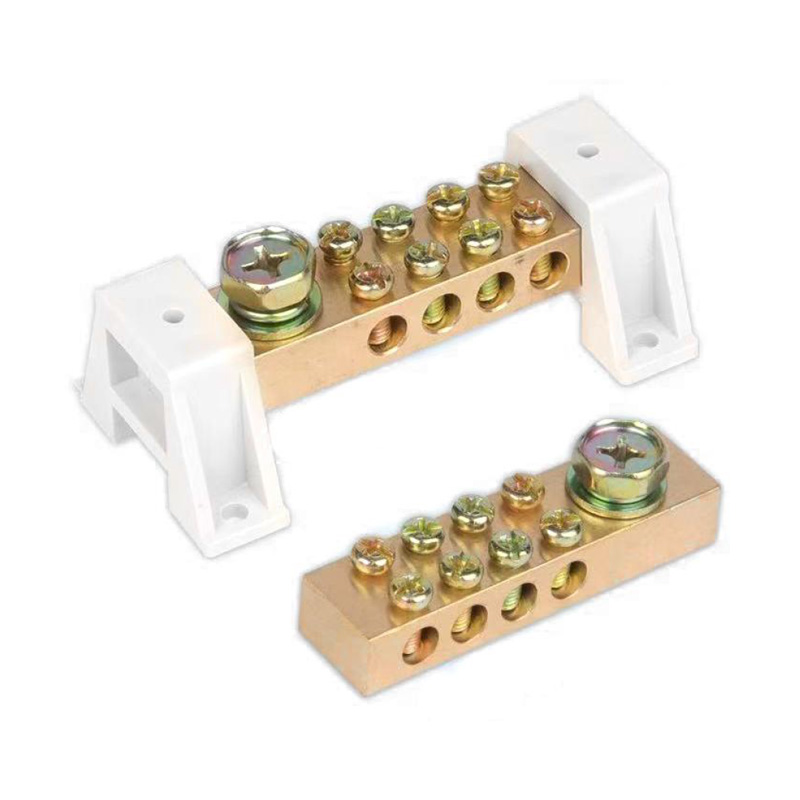

Zero Grounding Bar Wire

Item Hole	Length (mm)	Breadth (mm)	High
4	180	32.5	53
6	180	32.5	53
9	180	32.5	53
12	180	32.5	53
16	180	32.5	53

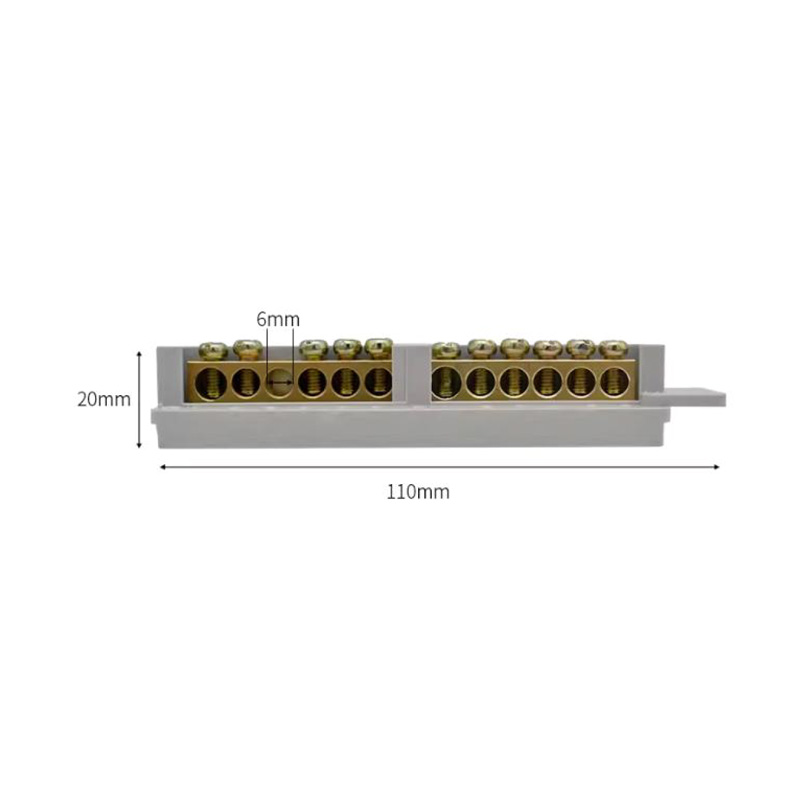

Zero Line Row

Product Name: Zero line row
Produt Model: 6+6
Product Material: PA
Conductor Material: Copper
Wiring Space: 12 holes
Screw Specification: M5

Product Name: Zero line row
Produt Model: 9+9
Product Material: PA
Conductor Material: Copper
Wiring Space: 18 holes
Screw Specification: M5

Cable Bolt Lug Screw ConnectorTerminal Barre

Cable Bolt Lug Screw ConnectorTerminal Barre

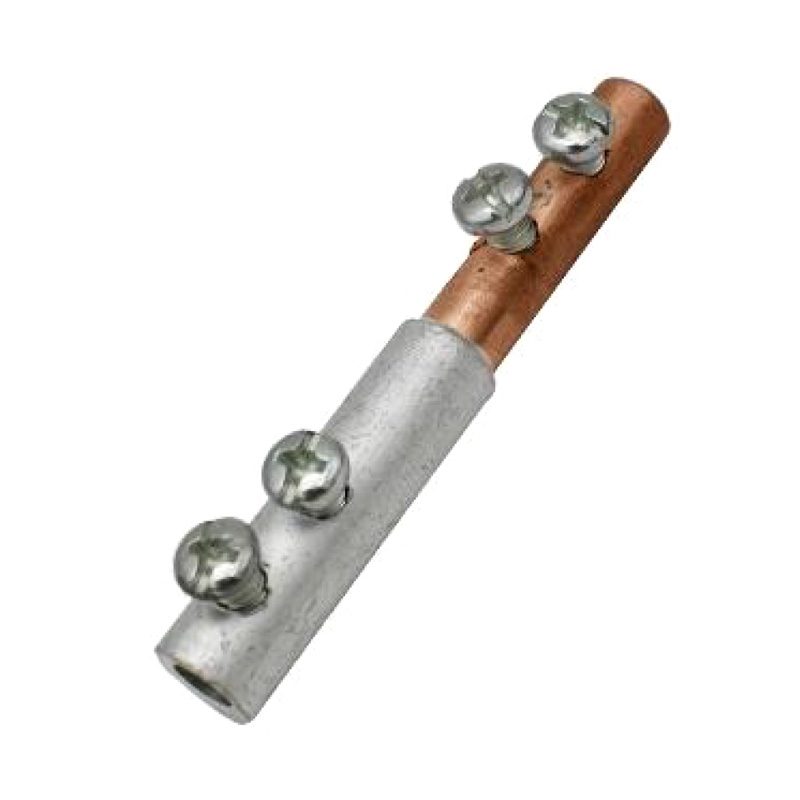

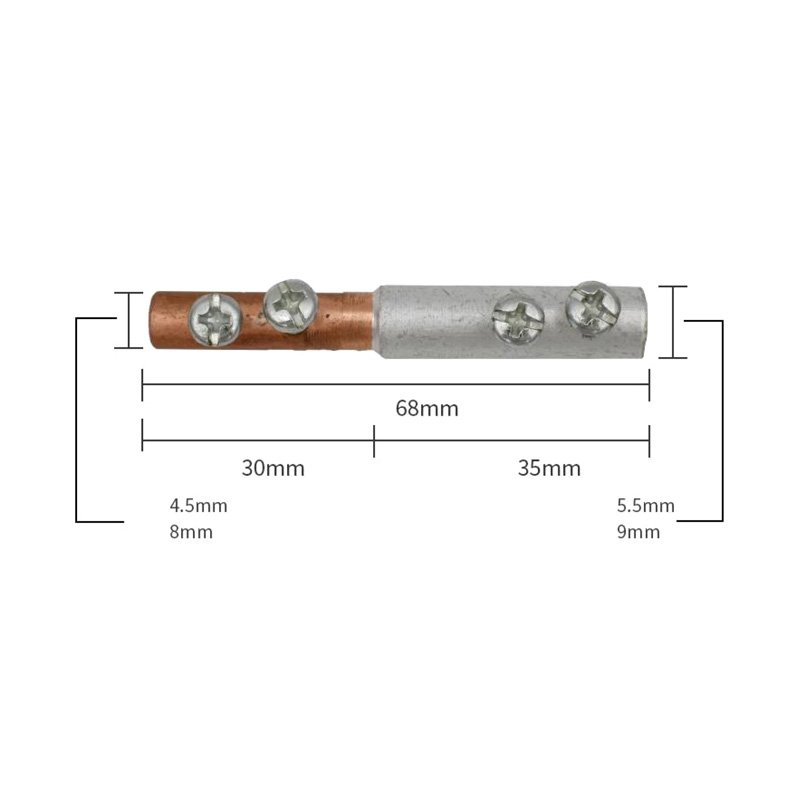

Product Name: Cable Bolt Lug Screw Connector Terminal Barrel
Produt Number: TRL-10-161
Product Material: Copper and Aluminum
Copper Wire Range: 0.5~10mm
Aluminum Wire Range: 1~16mm
Applicable products: Copper Aluminum Wire Connection

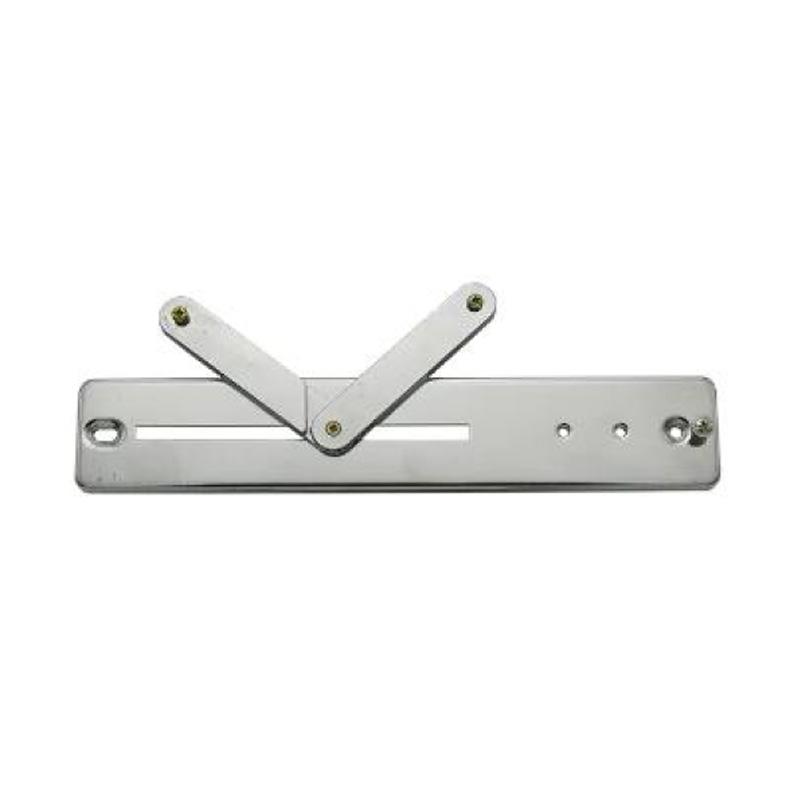

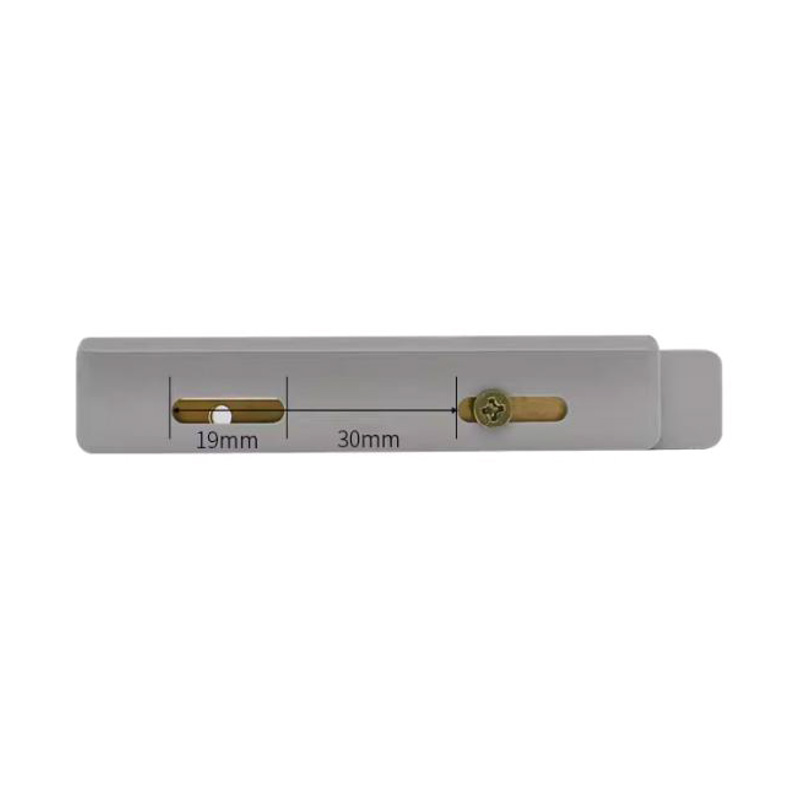

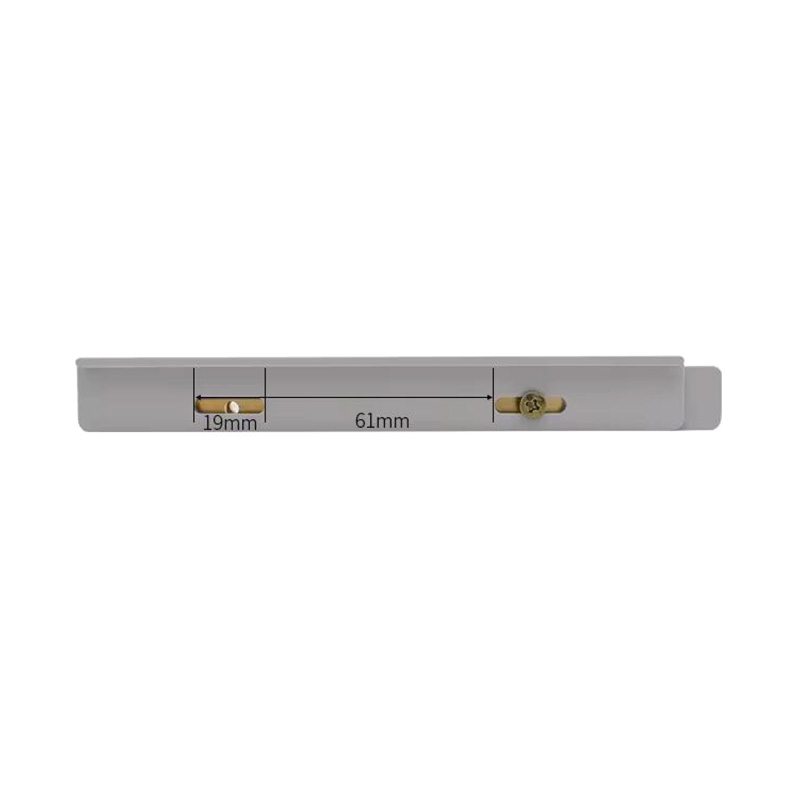

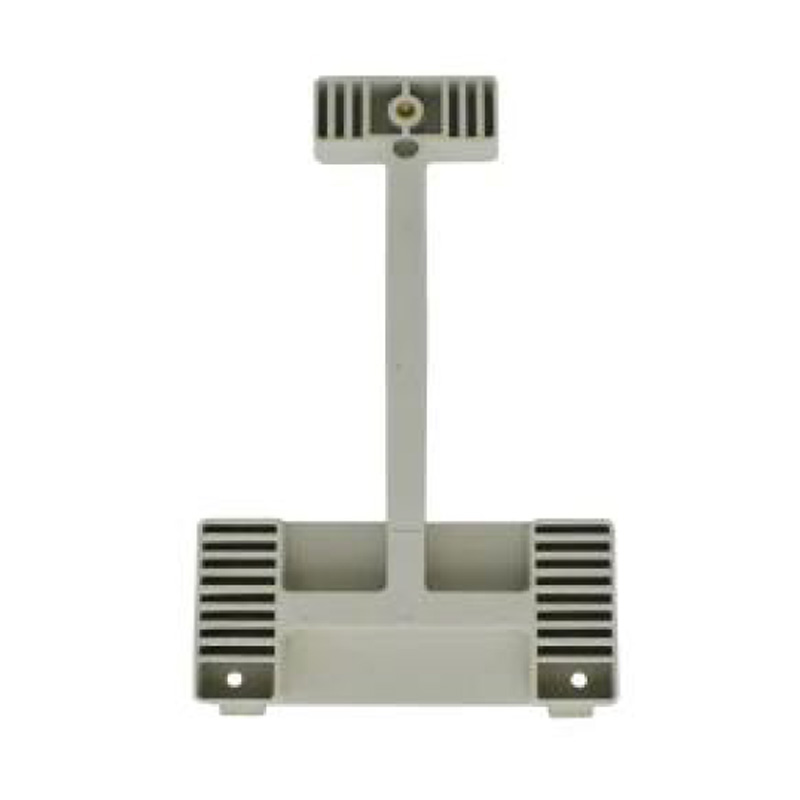

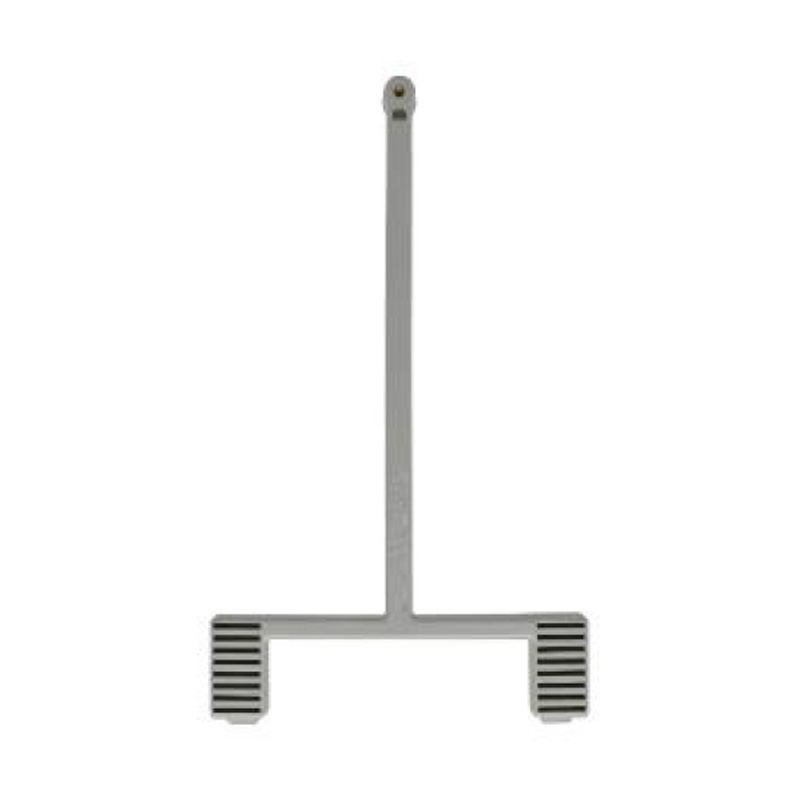

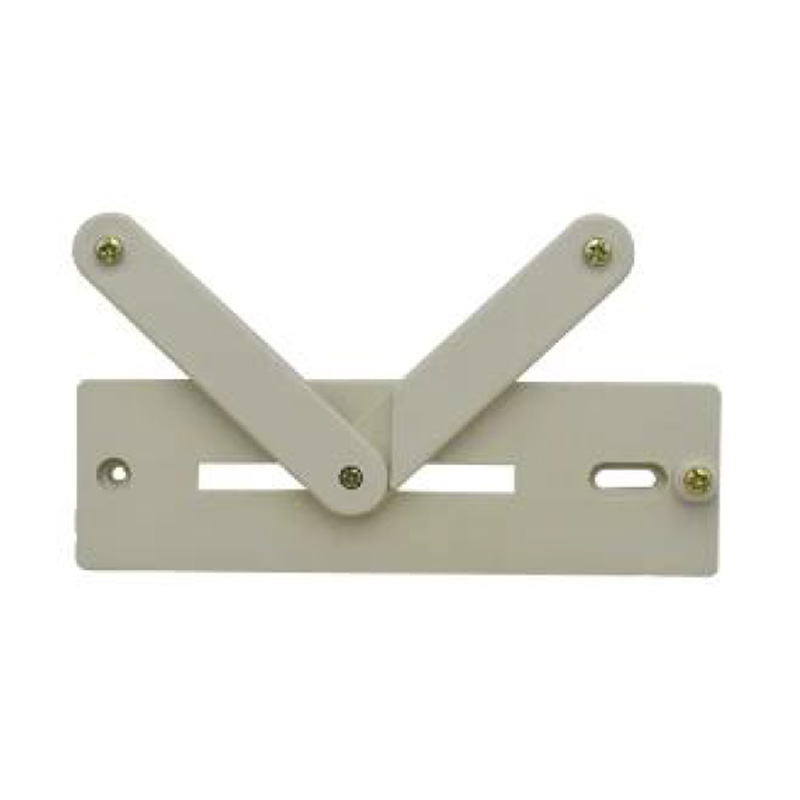

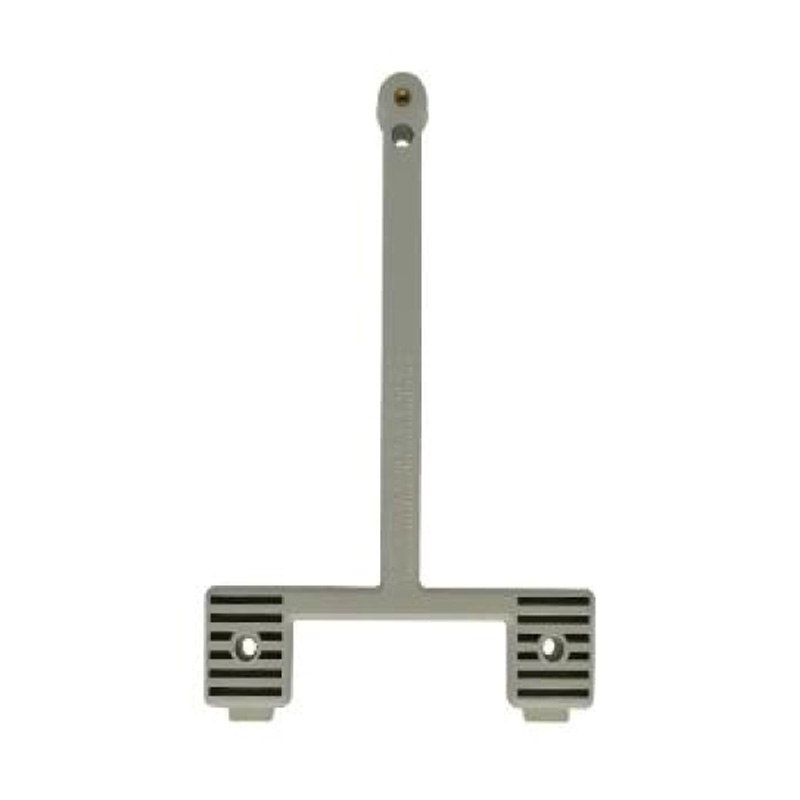

Meter Bracket

Model

Material

Size
(mm)

diameter of hole
(mm)

Single phase meter
160

ABS

160*39

138

Single phase meter
200

ABS

200*48

180

Three-phase meter
270

ABS

270*50

240

Three-phase meter
270(aluminum)

Aluminum

270*50

240

Single phase
(Type-T)

ABS

175*120

Three-phase meter
(Type-T)

ABS

275*175

150

Single phase
(I-beam)

ABS

195*115

Three-phase meter
(I-beam)

ABS

280*170

150

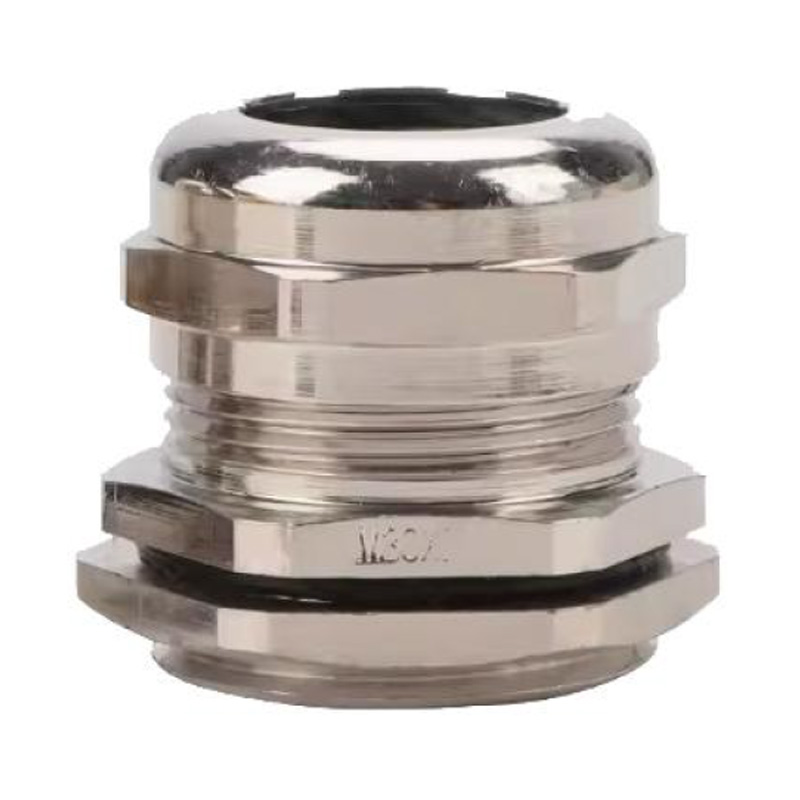

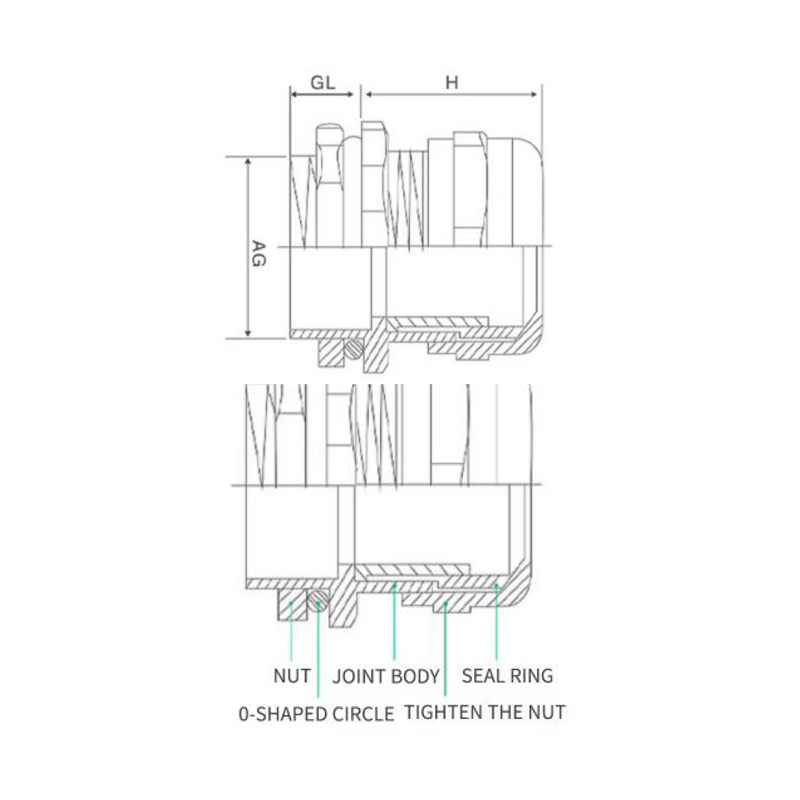

Cable Glands

Metric sytem(AG)	German System(AG)	American System(AG)	Control (AG)	Applicable Cables(MM)	Wrench Diameter(S)	Thread Length (MM) (GL)
M8x1(1.25)				2-5.5	12	6
M10x1(1.5)				3-6.5	14	7
M12x1.5	PG7			3-6.5	14	7
		NPT1/4	G 1/4	3-6	14	8
M12x1.5				4-8	14	8
M14x1.5				4-8	14	8
M16x1.5	PG9			4-8	17/18	8
		NPT3/8	G 3/8	4-8	20/18	9
M18x1.5	PG11			5-10	20	8
M20x1.5	PG13.5			6-12	22	8
		NPT1/2	G 1/2	6-12	24/22	11
M22x1.5	PG16			10-14	24	8
M24x1.5				10-14	27/24	9
M24x1.5	PG19			12-16	27	9
M25x1.5				12-16	27	9
M25x1.5				13-18	27/30	9
M27x1.5(2)				13-18	30	9
M28x1.5(2)	PG21			13-18	30	9
		NPT3/4	G 3/4	13-18	30	11
M30x1.5(2)				13-18	32/30	9
M30x1.5(2)				15-22	35	9
M32x1.5(2)	PG25			15-22	35	10
M33x1.5(2)				15-22	35	10
M36x1.5(2)				18.25	40	10
M37x1.5(2)	PG29			18-25	40	10
		NPT1	G1	18-25	40	12
M40x1.5(2)				18-25	45/40	11
M40x1.5(2)				22-30	45	11
M42x1.5(2)				22-30	45	11
M47x1.5(2)	PG36			25-33	50	11
M48x1.5(2)				25-33	50	11
		NPT11/4	G 11/4	25-33	50	15
M50x1.5(2)				32-38	55/57	12
M54x1.5(2)	PG42			32-38	57	12
		NPT11/2	G 11/2	32-38	57	15
M60x1.5(2)	PG48			37-44	64	13
		NPT2	G 2	37-44	64	15
M63x1.5(2)				37-44	68	13
M64x1.5(2)				37-44	68	13
M70x1.5(2)				42-52	75/78	15
M72x1.5(2)	PG63			42-52	76	15
		NPT2 1/2	G2 1/2	42-52	75/78	15
M80x1.5(2)				55-62	88	16
M88x1.5(2)		NPT3	G 3	65-70	94	16
M100x1.5(2)				75-85	115	16

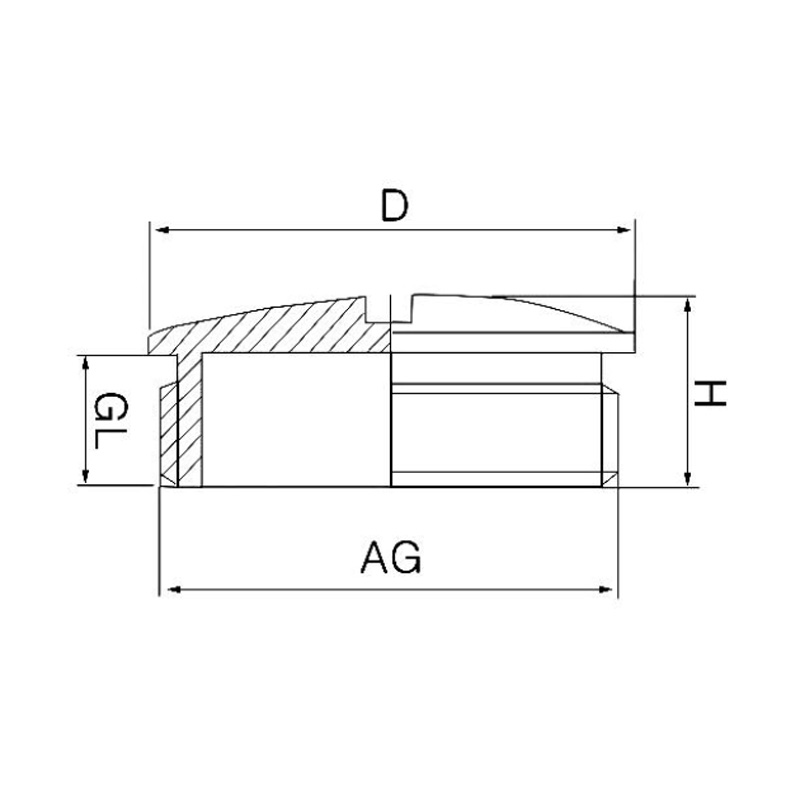

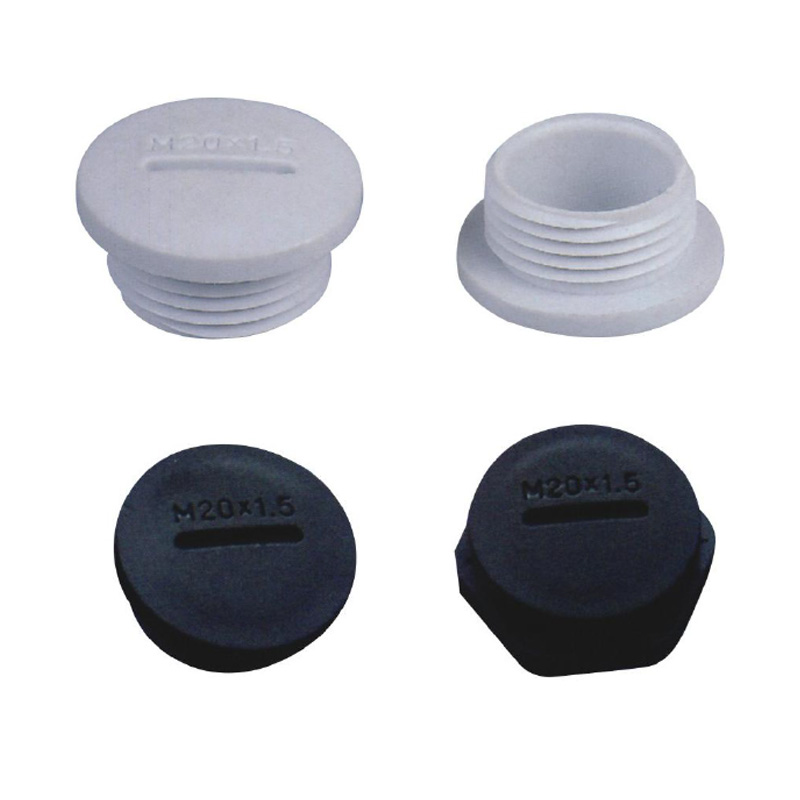

Plastic Plug

Material: Nylon PA
Protection Degree: P54
Ambient Temperature:-20°C+80°C
Supply Color: gray, black, other color can request

PG Thread

Model	AG (mm)	GL (mm)	H (mm)	D (mm)



PG7	12.5	8.5	12.5	15

PG9	15.2	8.5	13	19

PG11	18.6	9	13	22
PG13.5	20.4	9	13	22

PG16	22.5	10.5	15	27

PG21	28.3	10.5	15.5	33

PG29	37	11.5	16	14

PG36	47	13.5	18	55

PG42	54	13.5	18.5	62
PG48	59.3	14.5	19.5	68

Metric Thread

Model	AG (mm)	GL (mm)	H (mm)	D (mm)

M12x1.5	12	8.5	12.5	15

M16x1.5	16	8.5	13	19

M18x1.5	18	9	13	22

M20x1.5	20	9	13	25
M22x1.5	22	10.5	15	27

M25x1.5	25	10.5	15.5	30

M27x1.5	27	10.5	15.5	33

M32x1.5	32	10.5	16	38

M40x1.5	40	11.5	16	46
M50x1.5	50	13.5	8	56

M63x1.5	63	14	19	68

Sleeve Crimping Pliers

Model

L
(mm)

Crimping capacity
( m㎡)

Crimping effect

AWG

HSC8/6-4A

175

0.25~6.0

Regular
quadrilateral

24-8AWG

HSC8/6-6A

173

0.25~6.0

Regular hexagon

24-10AWG

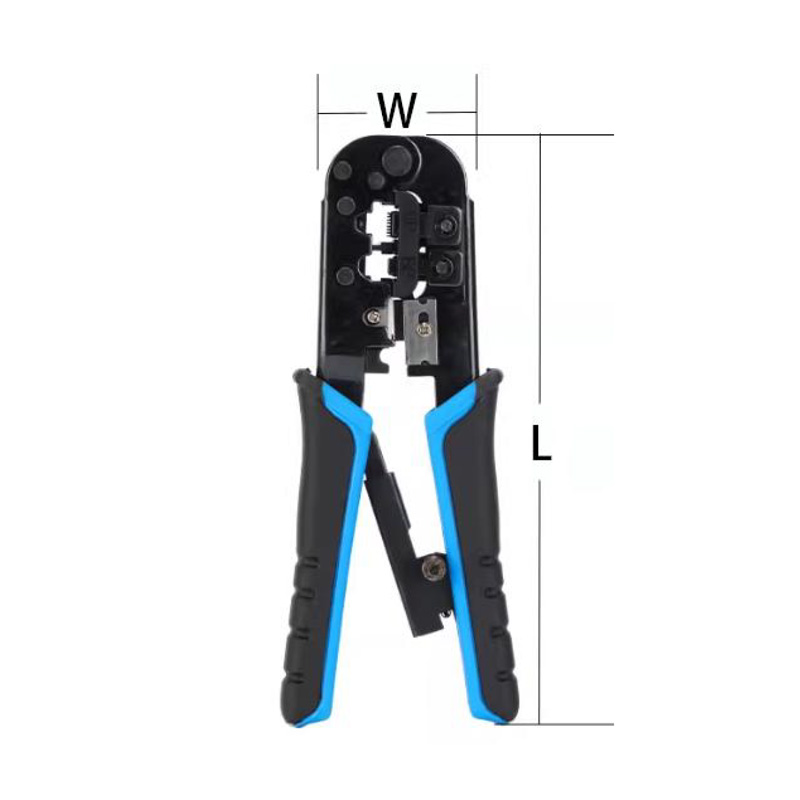

Model

L
(mm)

W
(mm)

Clamp head
material

Crimp port

NW168

188

48.3

Q235(A3)
Carbon structural
steel

8P/6P

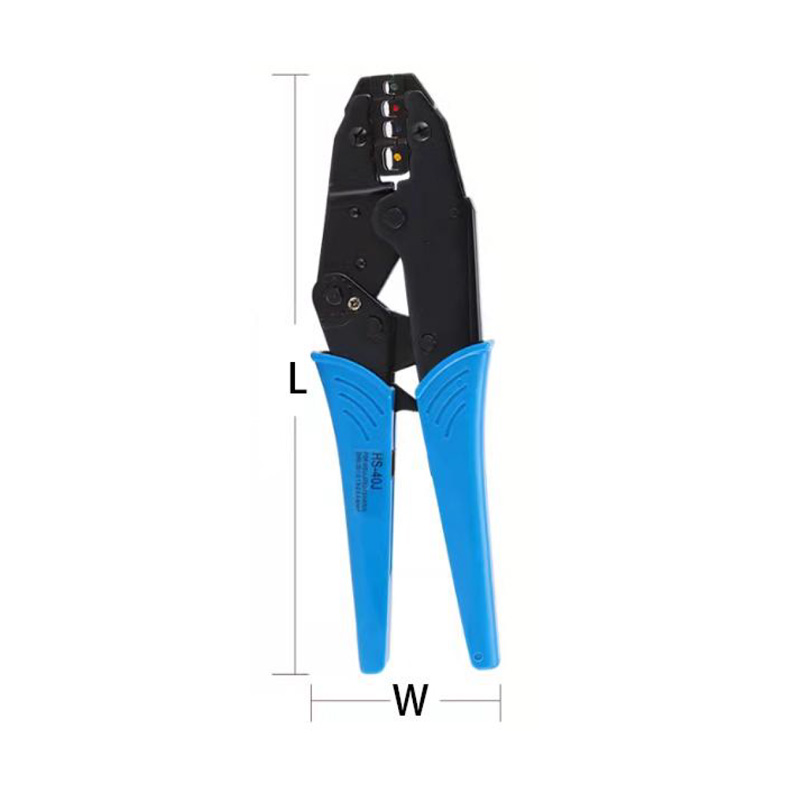

Insulated Terminal Crimping Pliers

Model

L
(mm)

W
(mm)

Crimping range
(m㎡）

Applicable Ports

HS-40J

233

0.25~6

Pre-Insulated Ports

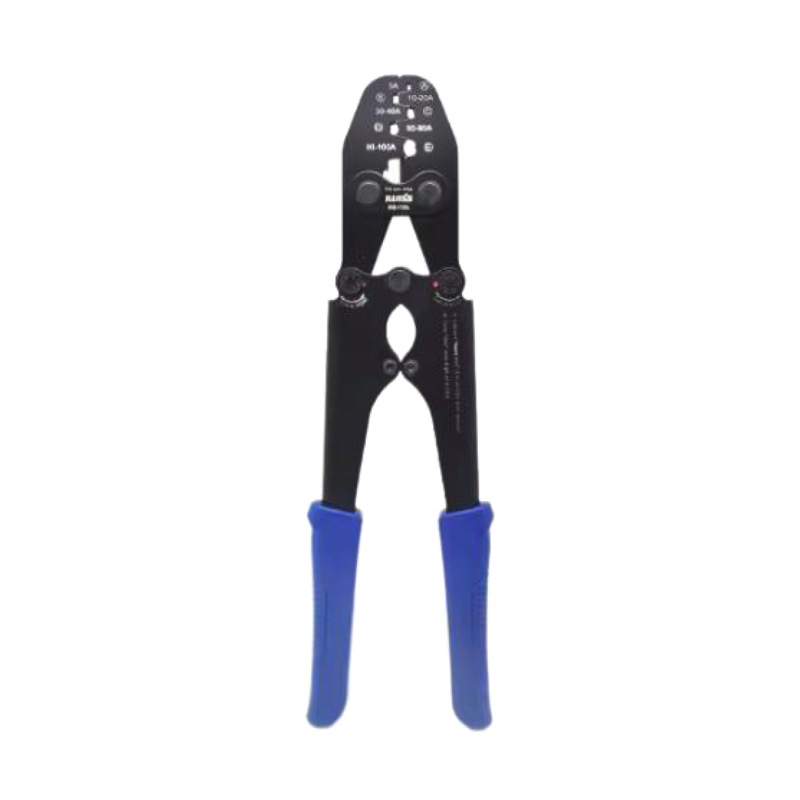

OT Special Crimping Pliers

Model	L (mm)	Jaw thickness (mm)	Crimping range	Applicable ports
IWS-5100A	381	9.1	2.5-25mm²	5A-100A
IWS-8200A	185	10-28	16-35mm²	60A-200A

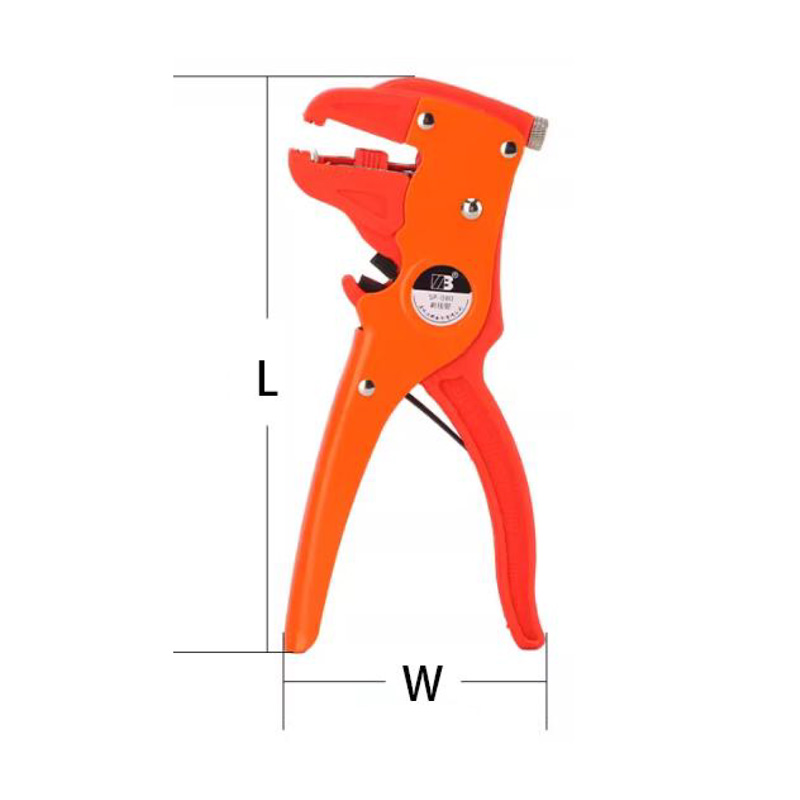

Multi-Purpose Duck Bill Stripping Pliers

Multi-Purpose Duck Bill Stripping Pliers

Model

L
(mm)

W
(mm)

Stripping range
(m㎡)

Cutting range

Single
stranded wire

173

0.5-3.3
(Core cross-section)

0.08-2.0m㎡

0.8-2.0
(Core Diameter)

multi stranded
wire

0.5-5.5
(Core cross-section)

0.09-3.5m㎡

0.8-2.6
(Core Diameter)

row of wires

0.5-3.5

8mm(max)

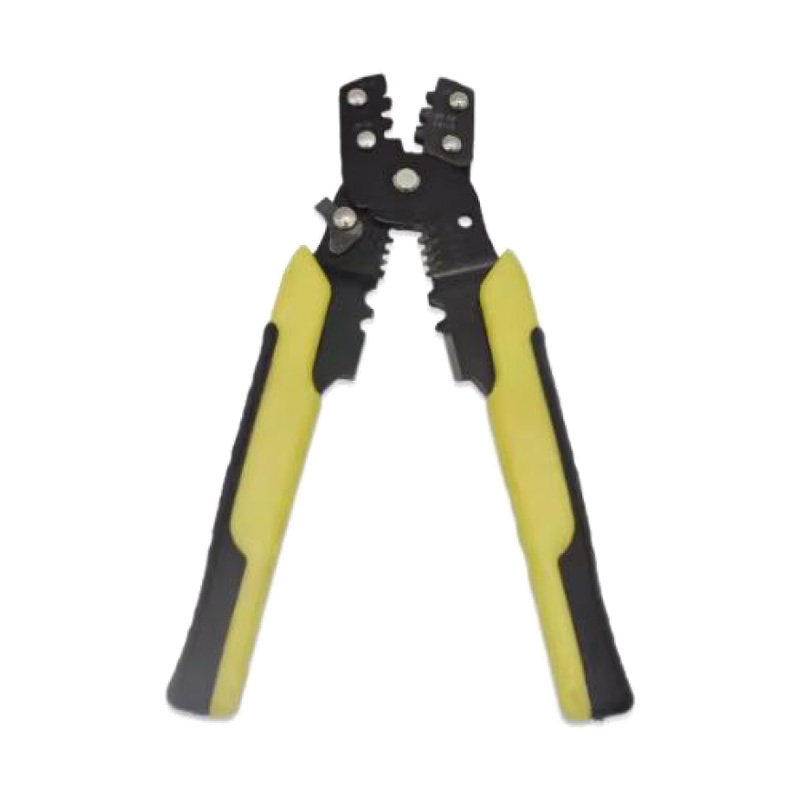

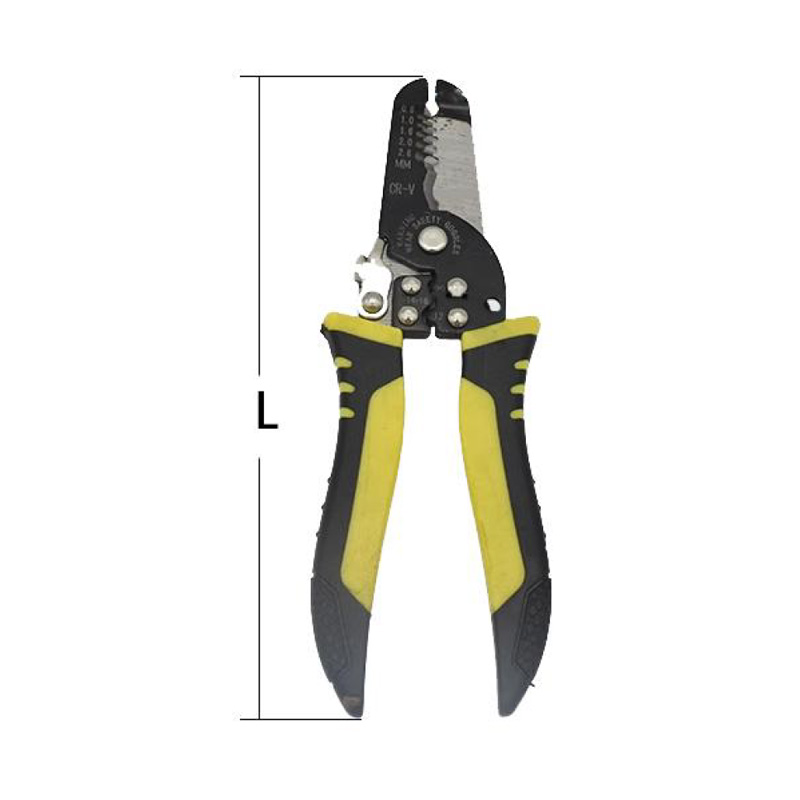

Multi-Function Pliers

Model

L
(mm)

Crimping range

Stripping range

7-in-1 Wire Stripping
Pliers

175

12-20

0.8/1.0/1.6/2.0/2.6m㎡

Crimping and
stripping pliers

185

10-28

1.0/1.3/1.6/2.0m㎡

Search

What Are The Functions Of Energy Meter Accessories?

Energy meter accessories serve several critical functions that contribute to the overall performance and safety of energy measurement systems.

1. Electrical Connection and Safety: Accessories like cable lugs and wire connectors ensure a secure connection between the energy meter and the electrical circuit. They prevent loose connections that can electrical fires or inaccurate readings.
2. Enhanced Accuracy: Properly functioning accessories help maintain the accuracy of energy meter readings by energy loss and ensuring stable current flow.
3. Durability and Longevity: High-quality accessories are designed to withstand the rigors of electrical stress, environmental conditions, and mechanical wear, prolonging the life of the energy meter.
4. Ease of Maintenance: Accessories that are easy to install and remove facilitate regular maintenance and inspection, which is crucial for the upkeep of energy meters.
5. Compliance with Standards: Energy meter accessories are often designed to comply with international safety and performance standards, ensuring that they meet the requirements of regulatory bodies.

What Are The Types Of Cable Lugs?

Cable lugs are connectors used to join cables and wires to termination points. They come in various types, each designed for specific applications and conditions.

1. Solder Lugs: These lugs require soldering to create a secure connection. They are suitable for applications where a permanent and highly reliable connection is needed.
2. Insulation Displacement Lugs (IDL): These lugs are designed to pierce and displace the insulation of a wire, creating a secure connection without the need for stripping the wire. They are popular for their ease of use and time-saving properties.
3. Crimp Lugs: Crimp lugs are connected to wires using a crimping tool that compresses the lug around the wire, ensuring a tight and secure connection. They are widely used in various electrical installations due to their versatility.
4. Split Bolt Lugs: These lugs are opened and closed around a cable or wire using a bolt. They are easy to install and are commonly used in situations where the connection may need to be frequently disconnected.
5. Compression Lugs: Similar to crimp lugs, compression lugs are used with a compression tool to secure the connection. They are known for their high conductivity and resistance to corrosion.
6. Push-On Lugs: These lugs are simply pushed onto the wire, making them quick and easy to install. However, they may not provide the same level of security and reliability as other types of lugs.

How to Choose the Right Wire Connector

Selecting the appropriate wire connector is a critical decision that affects the performance and safety of an electrical system. Here are some factors to consider when choosing a wire connector:

1. Material and Construction: The material of the connector (copper, aluminum, or a combination) and its construction (solid or stranded wire) should be considered based on the application's requirements.
2. Wire Gauge: The size of the wire (gauge) must match the connector's specifications to ensure a proper fit and avoid overheating or electrical failure.
3. Environment: The environment in which the connector will be used is crucial. Outdoor applications may require connectors with UV resistance and weatherproofing, while indoor applications may prioritize ease of installation.
4. Load Capacity: The connector must be able to handle the electrical load it will be subjected to without overheating or failing.
5. Safety Standards: Ensure that the connector complies with safety standards such as UL, CSA, or IEEE, which are designed to protect against electrical hazards.
6. Ease of Installation: Consider the ease of installation, especially in tight spaces or where frequent disconnections are required.
7. Cost-Effectiveness: While cost should not be the only factor, it is essential to find a balance between quality and affordability.
