Terminal Block for One-Inlet Multi-Outlet Metering Box Manufacturer

Home / Product / Energy Measuring Terminal Block / Terminal Block for One-Inlet Multi-Outlet Metering Box

Terminal Block for One-Inlet Multi-Outlet Metering Box Manufacturer

Terminal Blocks for One-Inlet Multi-Outlet Metering Boxes are professionally used for electrical metering systems, distribution boards, and similar applications that require a single power inlet to be distributed across multiple outlets. They are specifically designed for wiring in metering boxes and electrical distribution equipment where multiple circuits need to be efficiently managed. The insulation voltage is 690V, and the rated voltage is 380V. These terminal blocks feature a compact design that allows for a secure and stable connection between the single inlet and multiple outlets, without the need for excessive wiring or additional conductors. It is currently a novel product offering a convenient and highly reliable solution for multi-circuit connections in metering boxes and distribution boards.

One of a features of Terminal Block for One-Inlet Multi-Outlet Metering Box is its versatility. It is designed to accommodate a single inlet with multiple outlets, making it good for homes with complex wiring systems that require the distribution of power from a central point to various outlets. This adaptability allows for efficient power management, reducing the need for multiple terminal blocks and simplifying the overall wiring setup.

FJ6/JHD-4/F One-Inlet Twenty-Two-Outlet Terminal Block
FJ6/JHD-4/E One-Inlet Twenty-Five-Outlet Terminal Block
FJ6/JHD-4/E One-Inlet Twenty-Five-Outlet Terminal Block
FJ6/JHD-4/F One-Inlet Twenty-Two-Outlet Terminal Block
FJ6/JHD-4/E One-Inlet Twenty-Five-Outlet Terminal Block
FJ6/JHD-4/E One-Inlet Twenty-Five-Outlet Terminal Block

FJ6/JHD-4/F One-Inlet Twenty-Two-Outlet Terminal Block

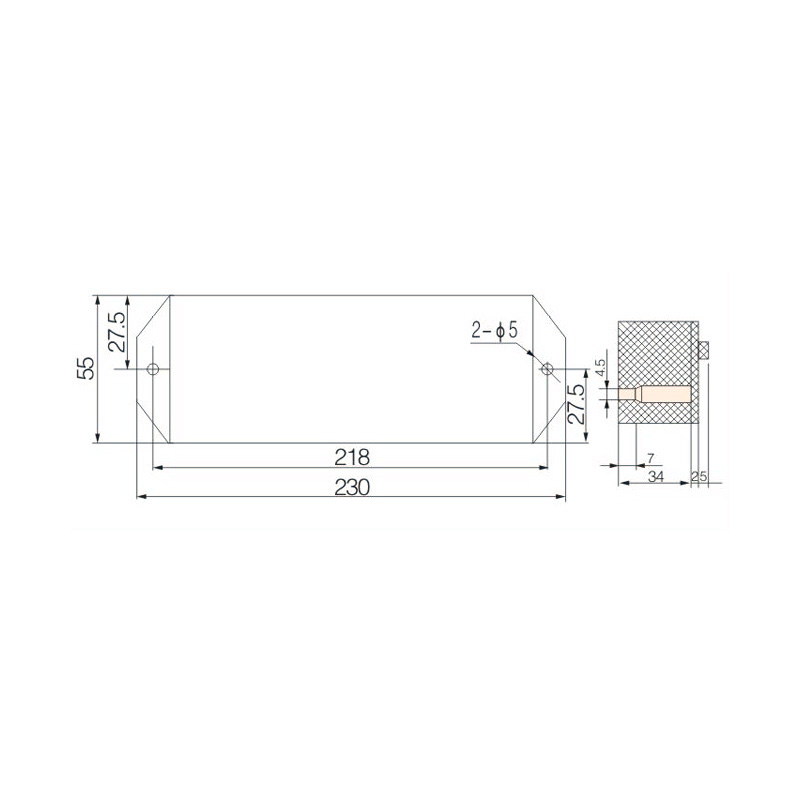

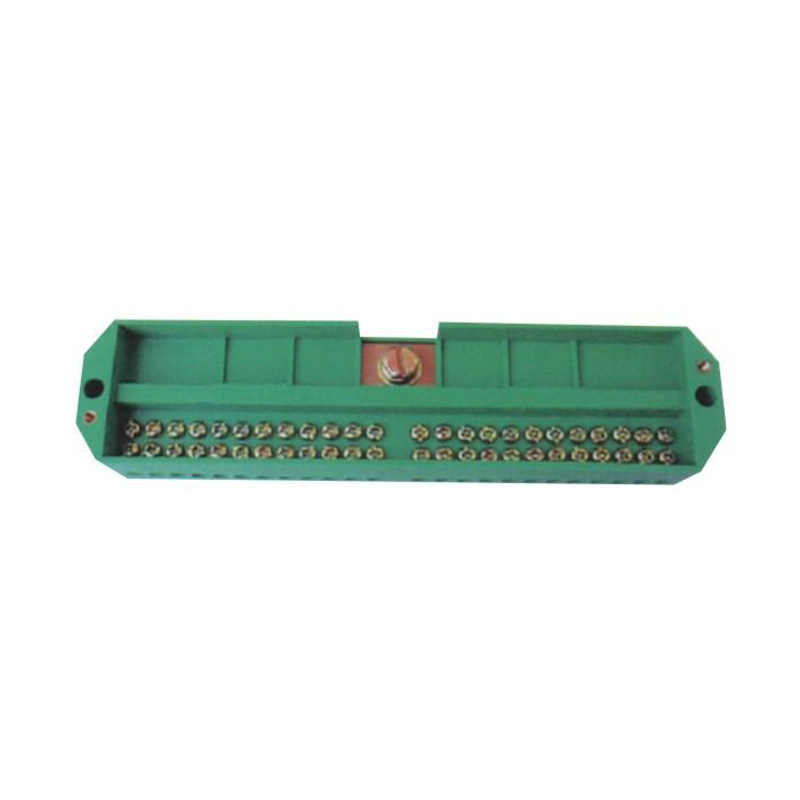

Model：FJ6/JHD-4/F
Product name: One-inlet twenty-two-outlet terminal block
Order number: OrderNo.150198

Contact Us
FJ6/JHD-4/E One-Inlet Twenty-Four-Outlet Terminal Block
FJ6/JHD-4/E One-Inlet Twenty-Five-Outlet Terminal Block
FJ6/JHD-4/E One-Inlet Twenty-Five-Outlet Terminal Block
FJ6/JHD-4/E One-Inlet Twenty-Four-Outlet Terminal Block
FJ6/JHD-4/E One-Inlet Twenty-Five-Outlet Terminal Block
FJ6/JHD-4/E One-Inlet Twenty-Five-Outlet Terminal Block

FJ6/JHD-4/E One-Inlet Twenty-Four-Outlet Terminal Block

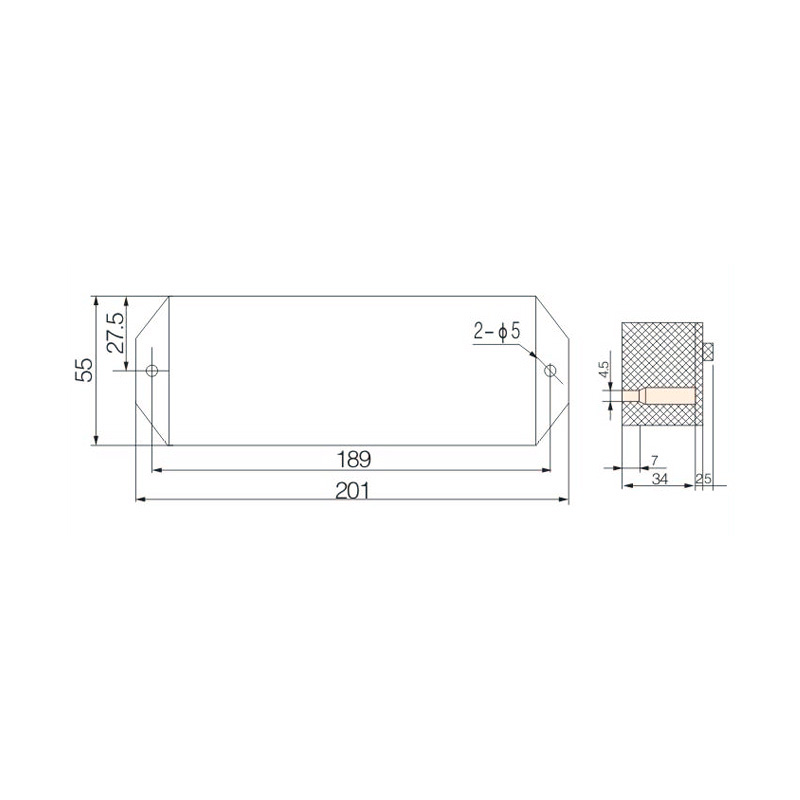

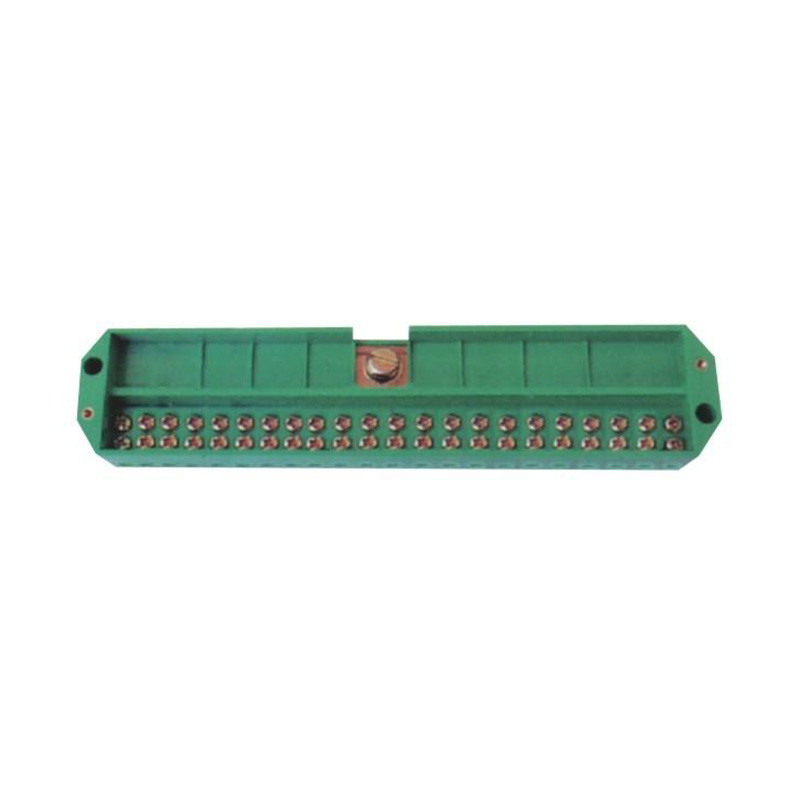

Model：FJ6/JHD-4/E
Product name: One-inlet twenty-four-outlet terminal block
Order number: OrderNo.150199

Contact Us
FJ6/JHD-4/E One-Inlet Twenty-Five-Outlet Terminal Block
FJ6/JHD-4/E One-Inlet Twenty-Five-Outlet Terminal Block
FJ6/JHD-4/E One-Inlet Twenty-Five-Outlet Terminal Block
FJ6/JHD-4/E One-Inlet Twenty-Five-Outlet Terminal Block
FJ6/JHD-4/E One-Inlet Twenty-Five-Outlet Terminal Block
FJ6/JHD-4/E One-Inlet Twenty-Five-Outlet Terminal Block

FJ6/JHD-4/E One-Inlet Twenty-Five-Outlet Terminal Block

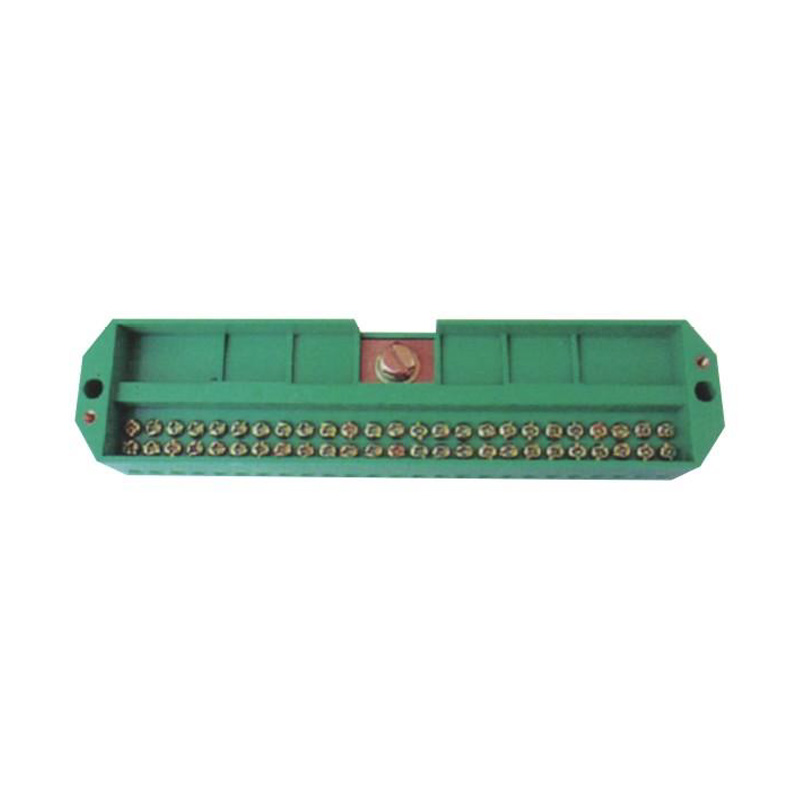

Model：FJ6/JHD-4/E
Product name: One-inlet twenty-five-outlet terminal block
Order number: OrderNo.150200

Contact Us
Search
Categories
About Us
Zhejiang Haidu Electric Co., Ltd.
Zhejiang Haidu Electric Co., Ltd. is China Terminal Block for One-Inlet Multi-Outlet Metering Box Manufacturer and Sale Terminal Block for One-Inlet Multi-Outlet Metering Box Factory. It is close to National Highway 104 and has very convenient transportation. The company has advanced production equipment and complete testing equipment. It is a high-tech enterprise integrating manufacturing, research and development and trade. The company specializes in the production of electrical energy metering junction boxes, meter box split terminals, high current wiring terminals, multi-purpose terminals, switch terminals, T-connection terminals, insulation puncture clamps and various wiring equipment.
Certificate Of Honor
  • 1
  • 2
  • 3
  • 4
  • 5
News
Industry Knowledge Extension

What's Special About the Terminal Block for One-Inlet Multi-Outlet Metering Box?

The terminal block for a one-inlet multi-outlet metering box is designed to distribute power from a single incoming conductor to several outgoing circuits. Its design addresses both functionality and efficiency in power management.

Efficient Distribution

The significant feature is its ability to split one input into multiple outputs. This allows energy to be distributed across different metering devices or circuits from a single source. It is especially valuable in systems that require multiple meters within one enclosure.

Space-Saving Design

By consolidating multiple outputs into one block, the design helps reduce wiring clutter inside the metering box. This makes the layout more organized and allows for easier maintenance when inspections are needed.

Secure and Stable Connections

The block provides firm clamping for conductors, reducing the likelihood of loose wiring that can cause interruptions. Its construction is generally suited for repeated use without compromising performance.

Do You Know About 1-Inlet 12-Outlet Terminal Strip Blocks?

The 1-inlet 12-outlet terminal strip block is another type of distribution block often used in energy management systems. Its design emphasizes high adaptability and organized distribution.

Single Input, Multiple Outputs

With one inlet and twelve outlets, the block allows a single energy source to be shared across twelve circuits. This makes it a convenient choice for large metering panels or applications requiring numerous parallel connections.

Neat Panel Layout

Instead of running multiple wires directly from the source, the block provides a centralized point of distribution. This greatly improves panel appearance, reduces wiring confusion, and makes troubleshooting more efficient.

Adaptability Across Applications

The 1-inlet 12-outlet block is suitable for residential, commercial, and industrial installations. It can be used wherever several meters or sub-circuits need to draw power from a single main line, offering flexibility in both small-scale and large-scale systems.

Ease of Maintenance

Grouping circuits into one strip block makes it easier for technicians to identify and isolate connections. This efficiency reduces downtime during inspections or repairs.

What Are Some Common Issues With Terminal Blocks and Strips?

Despite their advantages, terminal blocks and strips may encounter issues if not installed or maintained properly. Understanding these problems helps ensure better performance.

Loose Connections

One of the frequent issues is loose wiring caused by improper tightening or vibrations in the system. Loose connections can overheating, power loss, or inaccurate readings in metering systems. Regular inspection and proper torque application reduce this risk.

Overheating and Load Stress

When a terminal block is used beyond its rated capacity, the contacts may overheat. This not only damages insulation but also compromises the integrity of the conductors. Correct sizing and load distribution are essential to prevent such problems.

Insulation Wear

Over time, insulation materials may degrade due to heat, moisture, or chemical exposure. Weak insulation can cause current leakage or short circuits. Choosing high-quality materials and ensuring proper environmental protection helps extend service life.

Mechanical Damage

Repeated tightening and loosening, mishandling during installation, or excessive force can cause cracks or wear in the terminal housing. Careful handling and adherence to manufacturer guidelines help prevent mechanical issues.

By addressing these common problems proactively, terminal blocks and strips can continue to deliver reliable service over many years.
