READ MOREStandard Wiring Energy Measuring Terminal Block Manufacturer
The Standard Wiring Energy Measuring Terminal Blocks are the latest developed products based on the original FJ6DFY1, 2 and FJ6PJ1 and 2 types of power metering joint junction boxes. Good conditions have been created to cooperate with the power department to adopt standard wiring and safety testing.
This product is a new generation of junction boxes in the standard junction box of the electrical energy metering device. It is also suitable for secondary circuits with a rated voltage of 660V and a rated current of 20A. It is used to safely replace it with on-site inspection of electrical energy meters, electrical instruments, relay protection and other electrical equipment under load. It ensures personal operation safety and provides guarantees for improving on-site work efficiency.
All products are made of polymer polycarbonate materials. Therefore, it has many high-quality characteristics such as flame retardancy, high temperature resistance, non-absorbing, moisture resistance, good insulation performance, impact resistance, non-fragmentation, and anti-aging. Reasonable structure, bright color and beautiful appearance. The voltage and current of each phase have phase sequence color marks, which not only facilitates joint wiring, but also avoids measurement errors caused by phase sequence errors. With sealing screws, it can prevent power theft.
Use a transparent cover plate to observe the working state inside the junction box; it is both straight pipe and safe and reliable; some bottom plates and shells are all made of transparent materials, which are both easy to install and can also see through all conductive parts in the box, achieving the purpose of convenient inspection and safe use of electricity.
Test holes are specially set up in each circuit in the box, which is very convenient to insert the test pen, greatly facilitating safety inspection and testing.

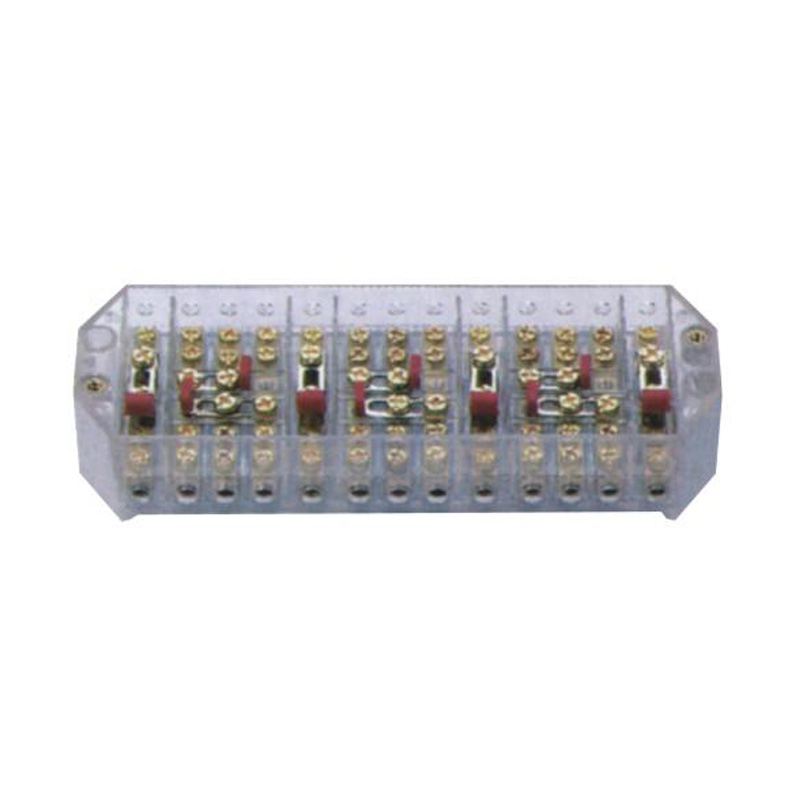

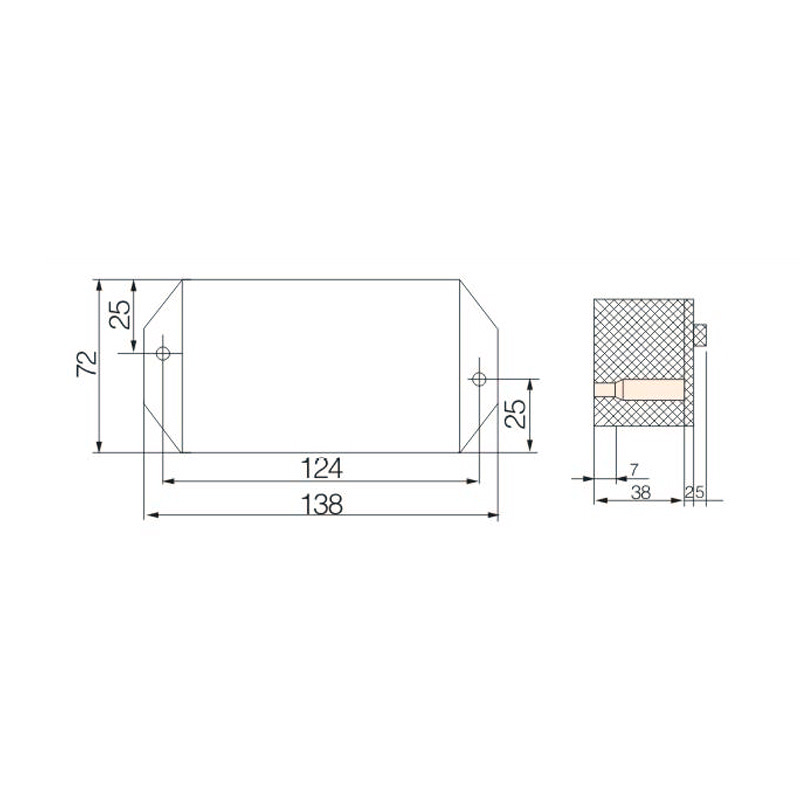

FJ6/DFY2L Energy Measuring Terminal Block
Model：FJ6/DFY2L
Product name: Three-phase three-wire energy measuring terminal block
Order number: OrderNo.150041

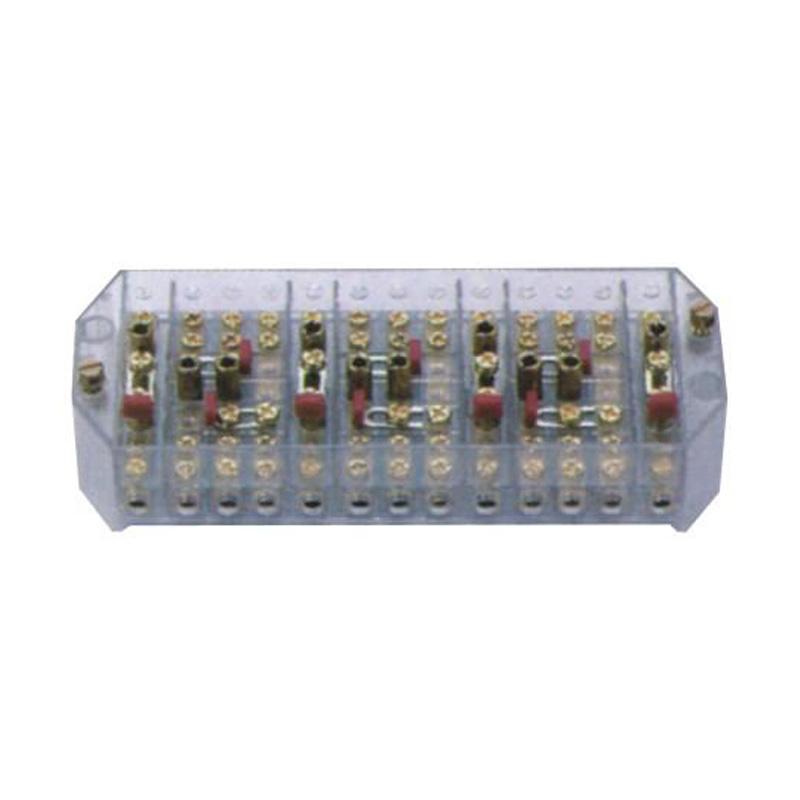

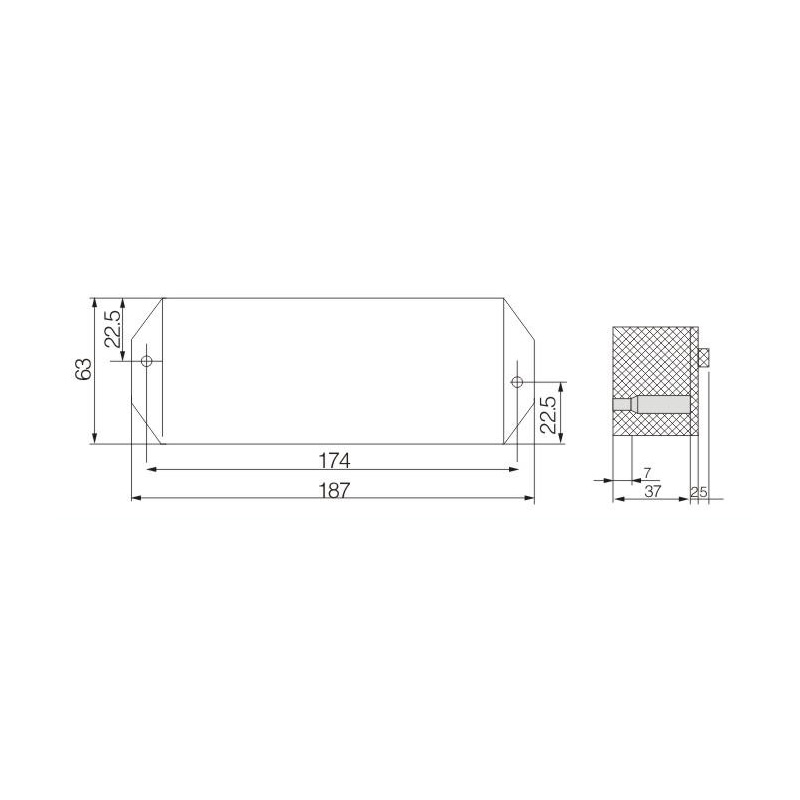

FJ6/DFY1L Energy Measuring Terminal Block
Model：FJ6/DFY1L
Product name: Three-phase four-wire energy measuring terminal block
Order number: OrderNo.150042

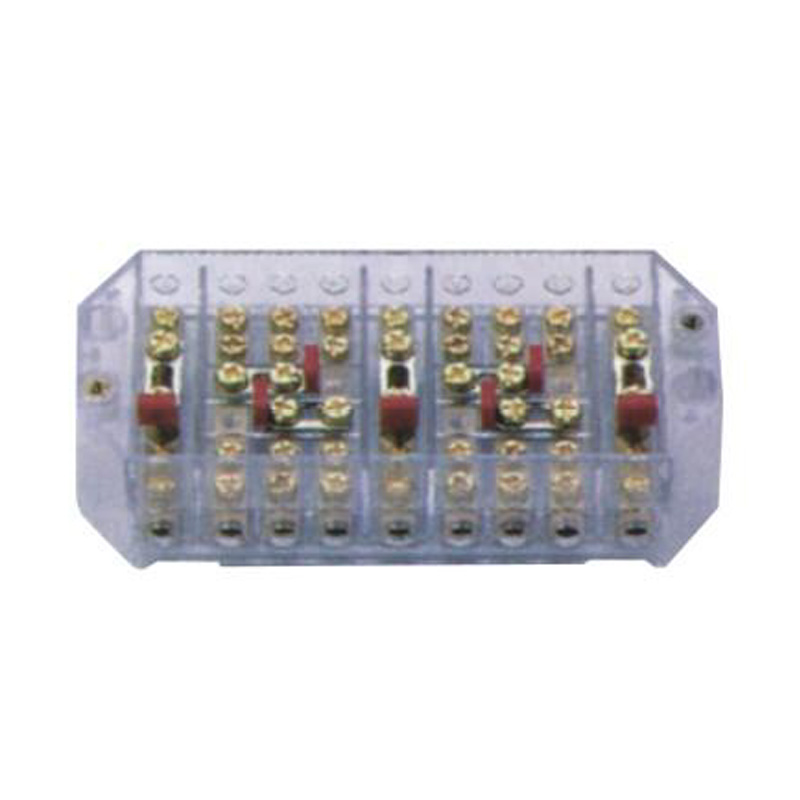

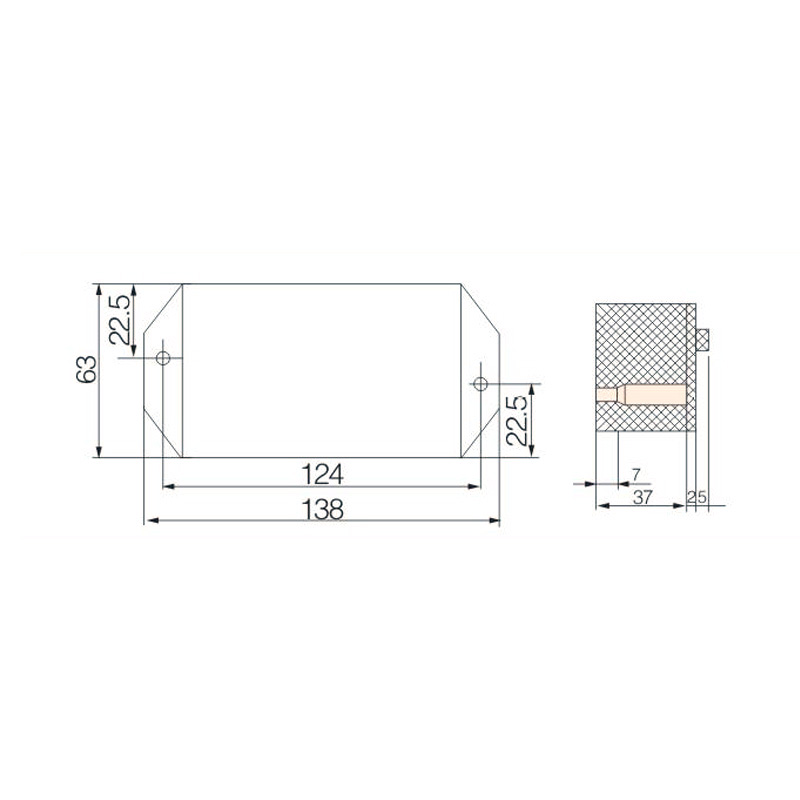

FJ6/HD330L Energy Measuring Terminal Block
Model：FJ6/HD330L
Product name: Three-phase three-wire energy measuring terminal block
Order number: OrderNo.150043

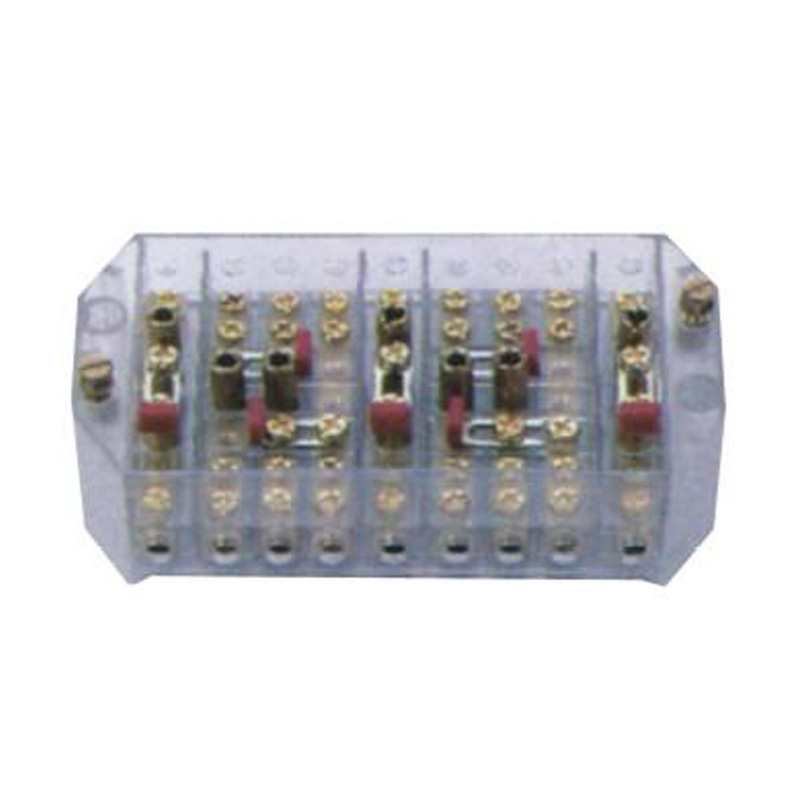

FJ6/HD340L Energy Measuring Terminal Block
Model：FJ6/HD340L
Product name: Three-phase four-wire energy measuring terminal block
Order number: OrderNo.150044
