Do You Know About Operation Of The Self-Elevating Metering Box Terminal Block?

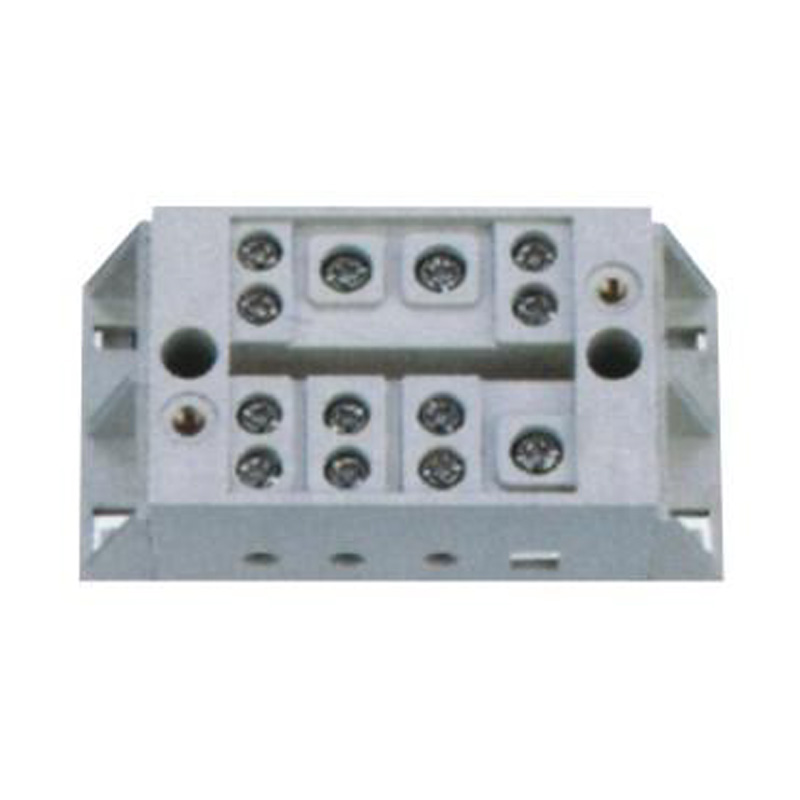

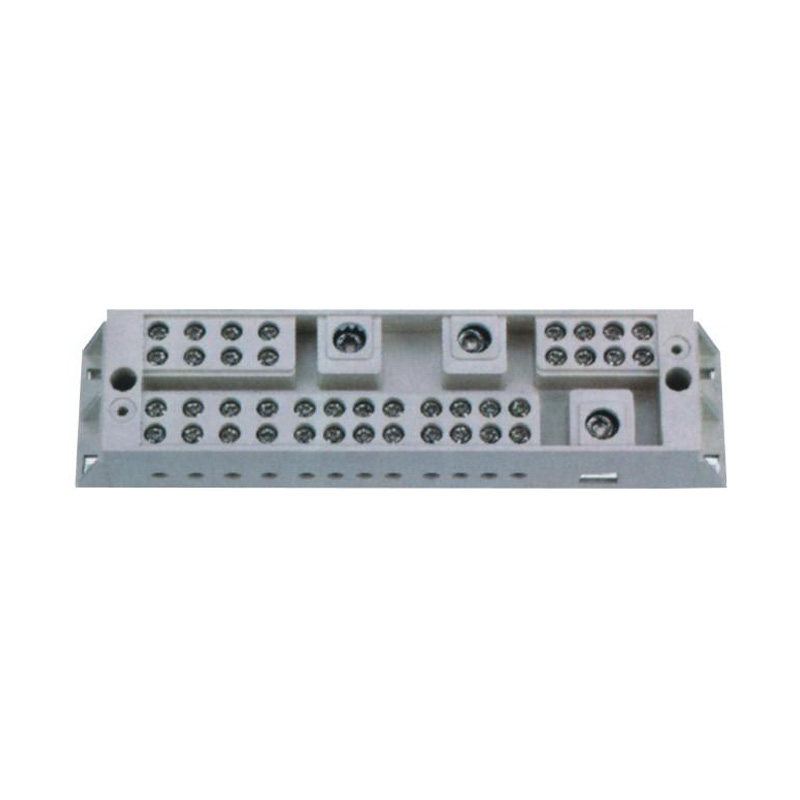

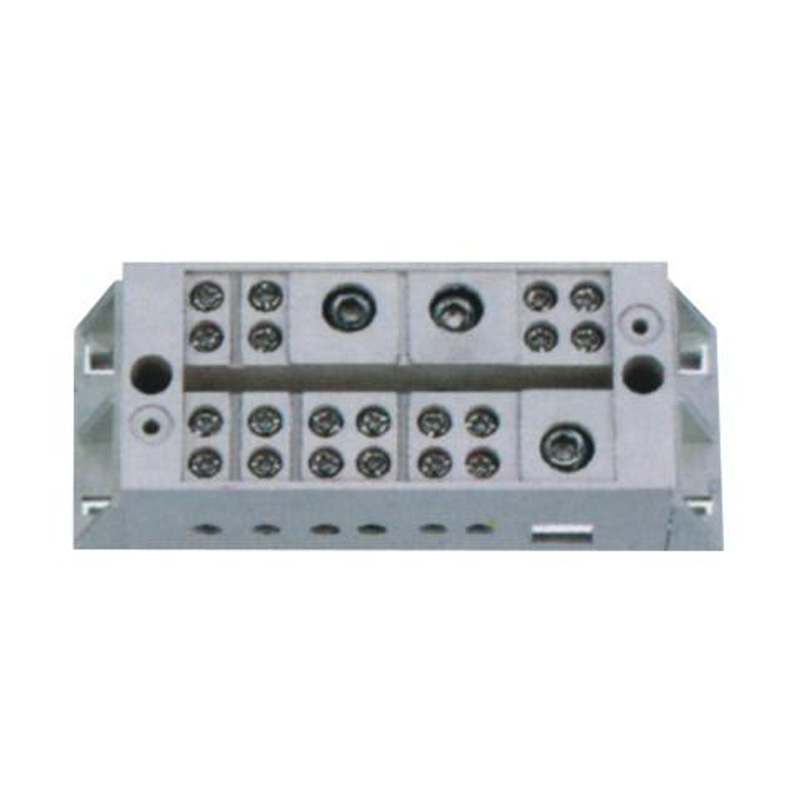

The self-elevating metering box terminal block is a component used in electrical systems to provide secure, efficient, and organized connections. Its design is particularly suited for energy metering applications, where precision, safety, and durability are all important factors. Unlike standard terminal blocks, this type incorporates a self-elevating structure that ensures consistent contact pressure between the conductor and the clamping mechanism. This feature enhances both electrical performance and reliability over time.

Operation of the self-elevating metering box terminal block involves a simple yet effective principle. When a conductor is inserted into the block, the self-elevating mechanism automatically adjusts to apply uniform pressure. This minimizes the risk of loose connections, which can otherwise power loss or increased maintenance requirements. The design reduces the need for constant manual tightening and provides a stable electrical path even under fluctuating loads.

In practical terms, the terminal block contributes to efficient energy measurement by maintaining a consistent flow of current. It is often used in power distribution panels, metering systems, and other equipment where accuracy is critical. By combining ease of use with dependable operation, the self-elevating terminal block helps simplify wiring tasks while ensuring long-term stability.

What Are The Advantages Of Terminal Blocks Connectors?

Terminal blocks and connectors are fundamental components in electrical systems, offering a number of advantages for both installers and operators. Three key benefits include:

Reliable and Secure Connections

Terminal blocks and connectors ensure stable connections that maintain electrical performance over time. They are designed to reduce the likelihood of loose wiring, which is essential for safety and uninterrupted system operation. This reliability makes them suitable for a wide range of applications, from industrial machines to household panels.

Simplified Installation and Maintenance

Another major advantage is their ability to simplify wiring layouts. By grouping multiple connections in an organized manner, terminal blocks reduce clutter and improve accessibility within panels. This makes both installation and troubleshooting faster, as technicians can easily trace circuits or make adjustments. Maintenance activities also become less disruptive since connections are centralized and clearly labeled.

Versatility and Adaptability

Terminal blocks and connectors can handle various conductor sizes and are available in many configurations, making them adaptable to diverse electrical systems. They support different environments, from small-scale residential systems to complex industrial installations. Their adaptability ensures they remain relevant in both traditional and modern energy setups, including systems that require frequent upgrades or modifications.

These advantages highlight why terminal blocks and connectors are widely used across industries. They contribute to organized wiring, long-term safety, and flexible energy management solutions.

How Are Self-Elevating Measuring Terminal Blocks Classified?

Self-elevating measuring terminal blocks can be classified into different categories based on design and application. Understanding these classifications helps users choose the right type for specific systems.

1、By Function

Measuring terminal blocks: These are designed for precise measurement of current and voltage within metering systems. They often include built-in test points that allow safe monitoring without disconnecting circuits.

Connecting terminal blocks: These focus primarily on secure electrical connections but may also include features for easier integration with measuring equipment.

2、By Structure

Spring-loaded types: These use spring mechanisms to maintain consistent contact pressure, ensuring reliable performance even under vibration or load variations.

Screw-type versions: These provide adjustable tightening options and are commonly used in applications that require additional flexibility in installation.

3、By Application Environment

Residential and commercial: Compact versions are used in distribution boxes and panels to maintain energy measurement accuracy in everyday systems.

Industrial: Heavy-duty models are designed for more demanding settings, supporting higher currents and operating reliably in challenging conditions.

By classifying self-elevating measuring terminal blocks in this way, it becomes easier to match the right product with the intended use. Each category is designed to balance performance, safety, and ease of operation according to the specific requirements of the system.
