An Energy Measuring Terminal Block is an electrical component designed to measure key energy parameters such as voltage, current, ...
READ MORECombined Type Energy Measuring Terminal Block
Combined Type Energy Measuring Terminal Blocks are used for connecting wires in AC 50Hz or 60Hz, with a rated voltage of 660V and a rated current of 125A. The combination plate connection structure is a long-standing test in various junction box structures, and the adjacent ones can be combined into loop wiring according to the needs of users. The combined plate crimping wiring is intuitive, convenient, firm and reliable.
The Combined Type Energy Measuring Terminal Blocks are designed to save space while increasing the capacity for connections. By consolidating multiple outlets into a single block, these terminal blocks reduce the clutter and space required on panels and in enclosures, this results in a neater and more organized installation.
These terminal blocks are versatile, accommodating a wide range of wire sizes and types. This adaptability allows them to be used in various applications, from simple home wiring to complex industrial setups. The ability to handle different wire gauges without the need for additional adaptability or adapters makes them a popular choice among electricians and engineers.
The design of these terminal blocks simplifies the installation process. With clear labeling and color-coding, it's easy to identify connections and make necessary adjustments. The terminal blocks also facilitate easier maintenance, as they allow for quick disconnection and reconnection of wires without the need for extensive disassembly.
Constructed from high-quality materials, Combined Type Energy Measuring Terminal Blocks are built to last. They are resistant to corrosion and can withstand harsh environmental conditions, ensuring consistent performance over time. The robust construction also less the risk of electrical shorts and other potential hazards.

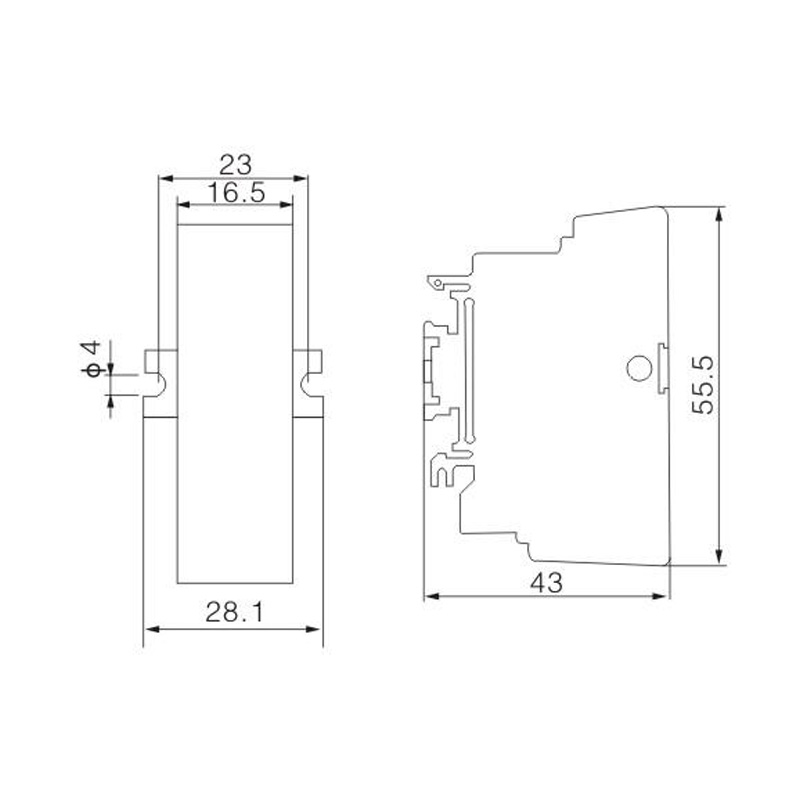

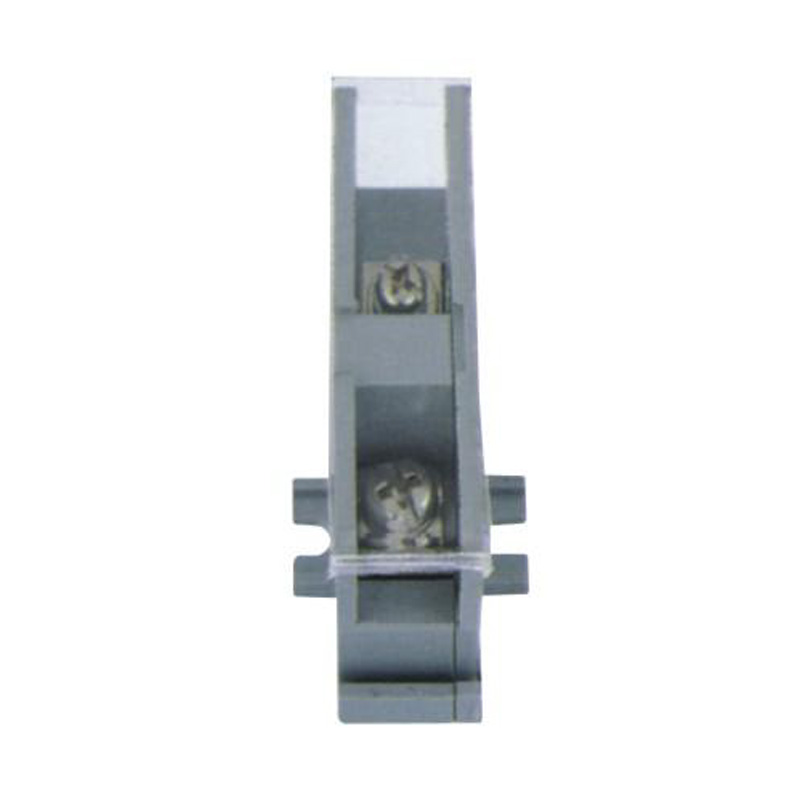

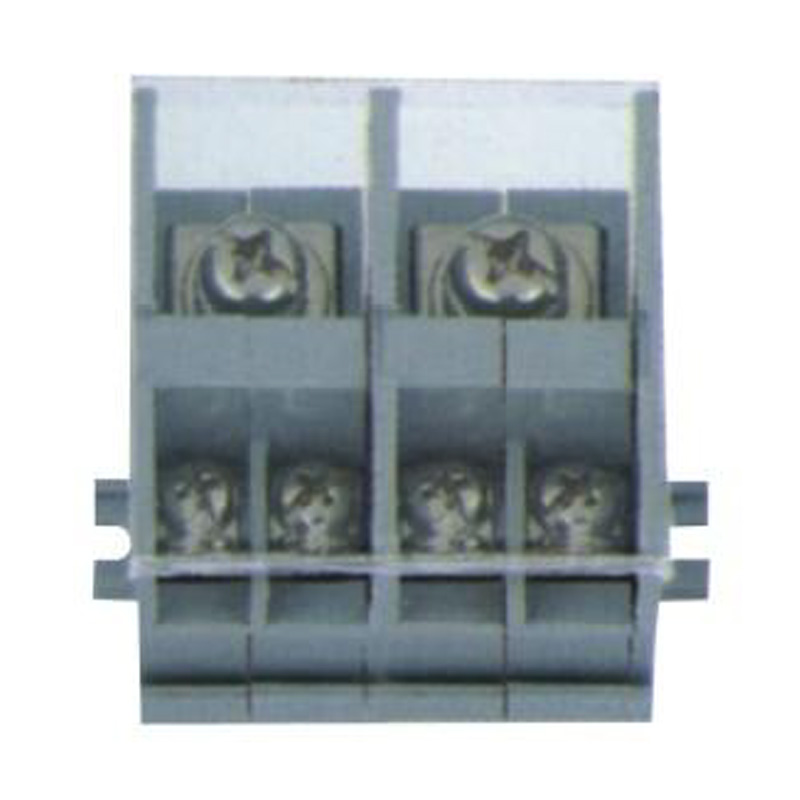

FJ6D-10/10-2/A Combined Terminal Blocks
Model：FJ6D-10/10-2/a
Product name: One-inletone-outlet
Order number: 150589
FJ6D-35/10-2/B Combined Terminal Blocks
Model：FJ6D-35/10-2/B
Product name: One-inlet two-outlet
Order number: 150590

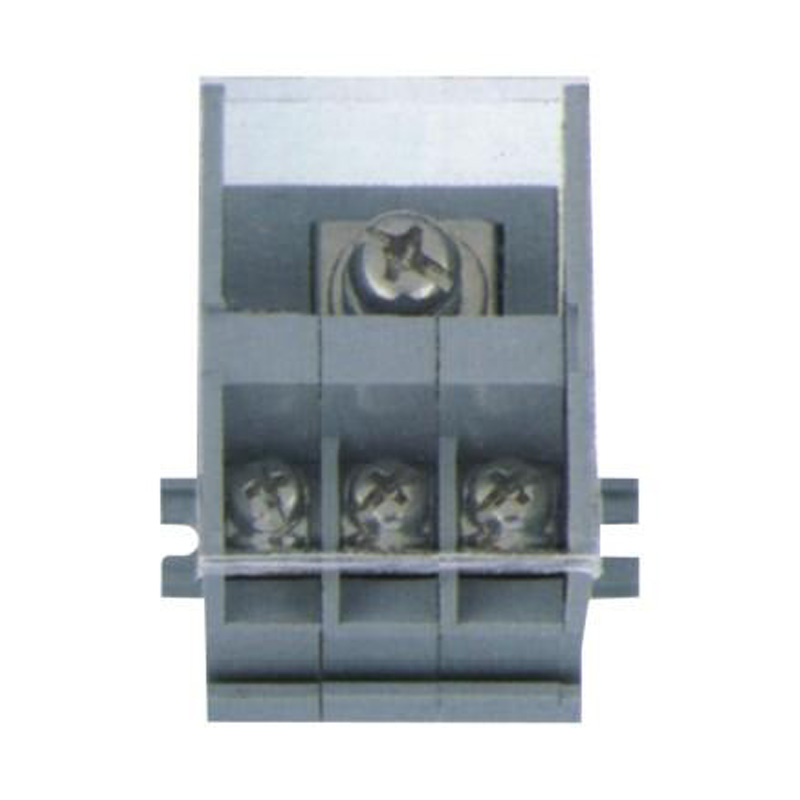

FJ6D-35/10-2/C Combined Terminal Blocks
Model：FJ6D-35/10-2/C
Product name: One-inlet three-outlet
Order number: 150591
FJ6D-35/10-2/D Combined Terminal Blocks
Model：FJ6D-35/10-2/D

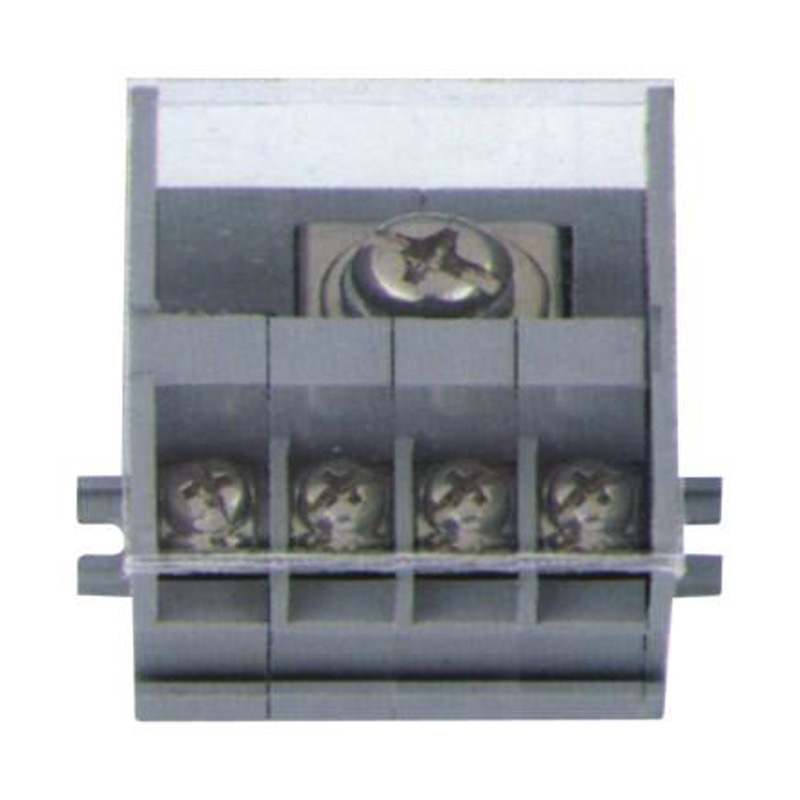

Product name: One-inlet four-outlet
Order number: 150592
FJ6D-35/10-2/E Combined Terminal Blocks
Model：FJ6D-35/10-2/E
Product name: Two-inlet four-outlet
Order number: 150593
FJ6D-35/10-2/F Combined Terminal Blocks
Model：FJ6D-35/10-2/F

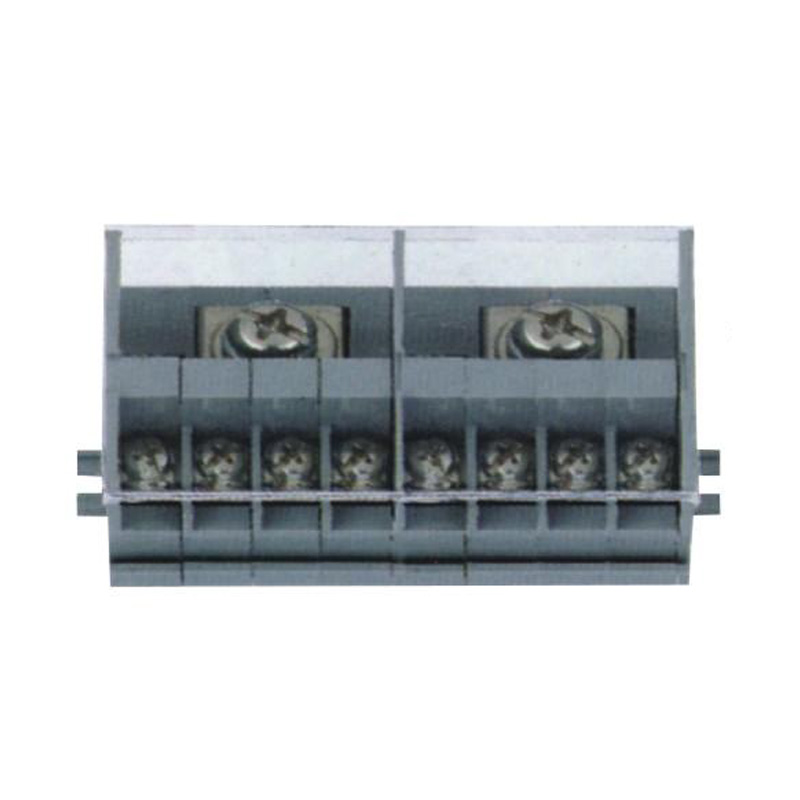

Product name: Two-inlet six-outlet
Order number: 150594
FJ6D-35/10-2/G Combined Terminal Blocks
Model：FJ6D-35/10-2/G
Product name: Two-inlet eight-outlet
Order number: 150595

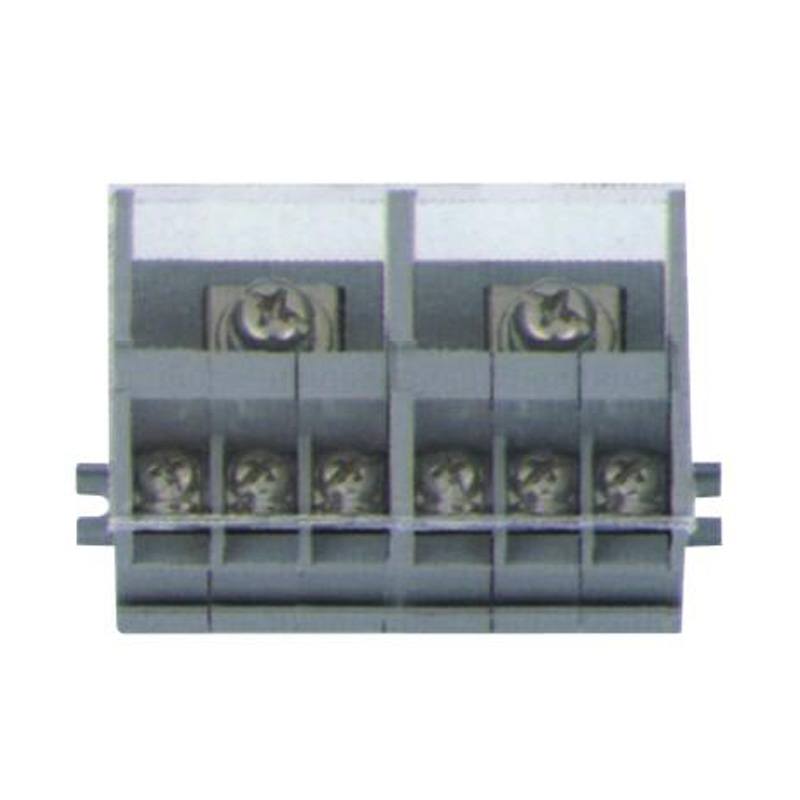

FJ6D-35/10-2/H Combined Terminal Blocks
Model：FJ6D-35/10-2/H
Product name: Two-inlet six-outlet
Order number: 150596

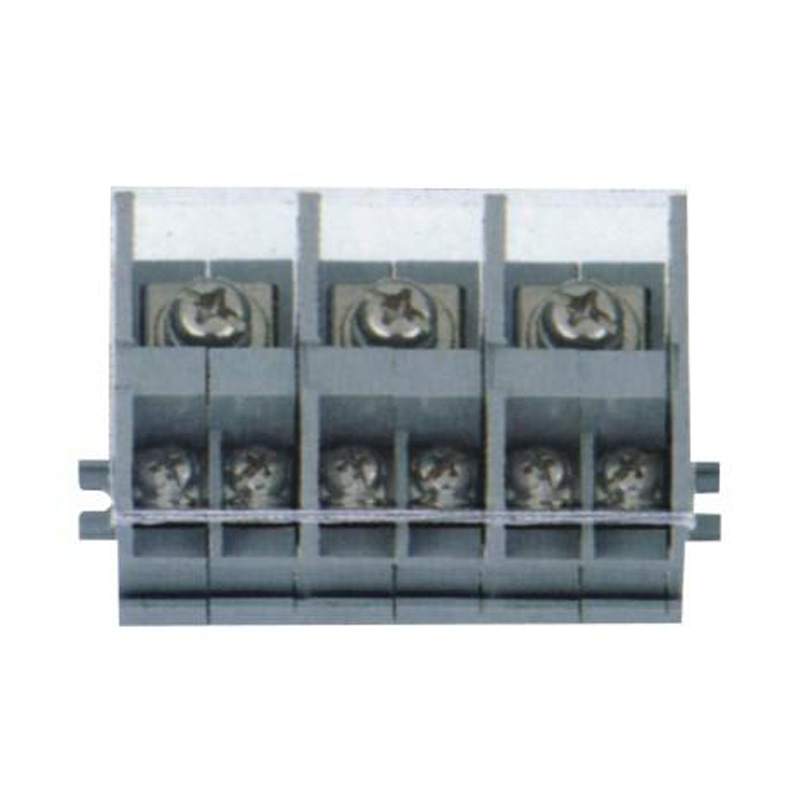

FJ6D-35/10-2/J Combined Terminal Blocks
Model：FJ6D-35/10-2/J

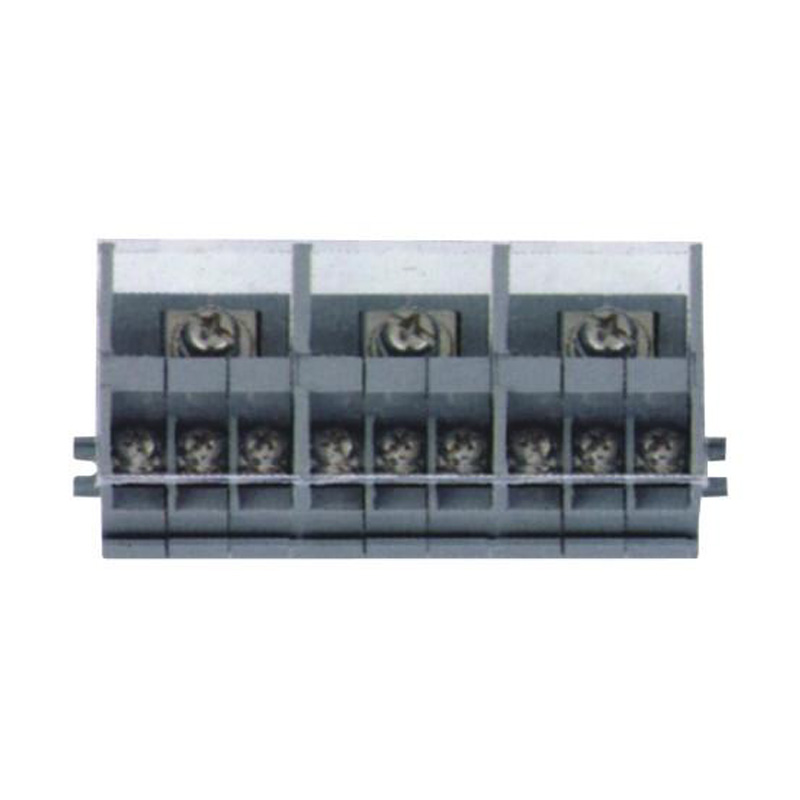

Product name: Three-inlet nine-outlet
Order number: 150597
FJ6D-35/10-2/K Combined Terminal Blocks
Model：FJ6D-35/10-2/K

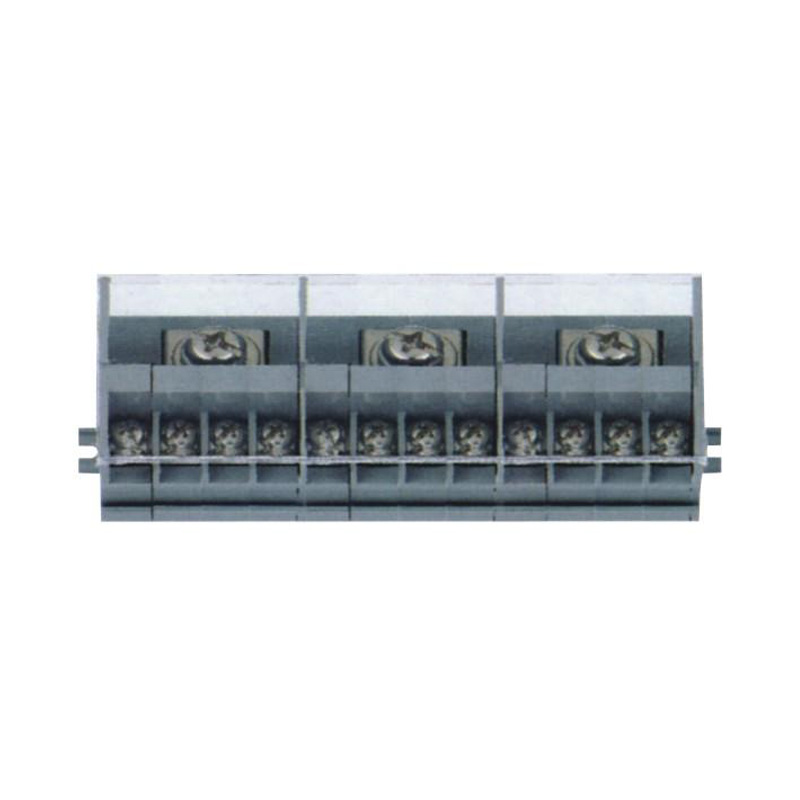

Product name: Three-inlet twelve-outlet
Order number: 150598
FJ6D-35/10-2/L Combined Terminal Blocks
Model：FJ6D-35/10-2/L
Product name: Four-inlet eight-outlet
Order number: 150599
FJ6D-35/10-2/M Combined Terminal Blocks
Model：FJ6D-35/10-2/M

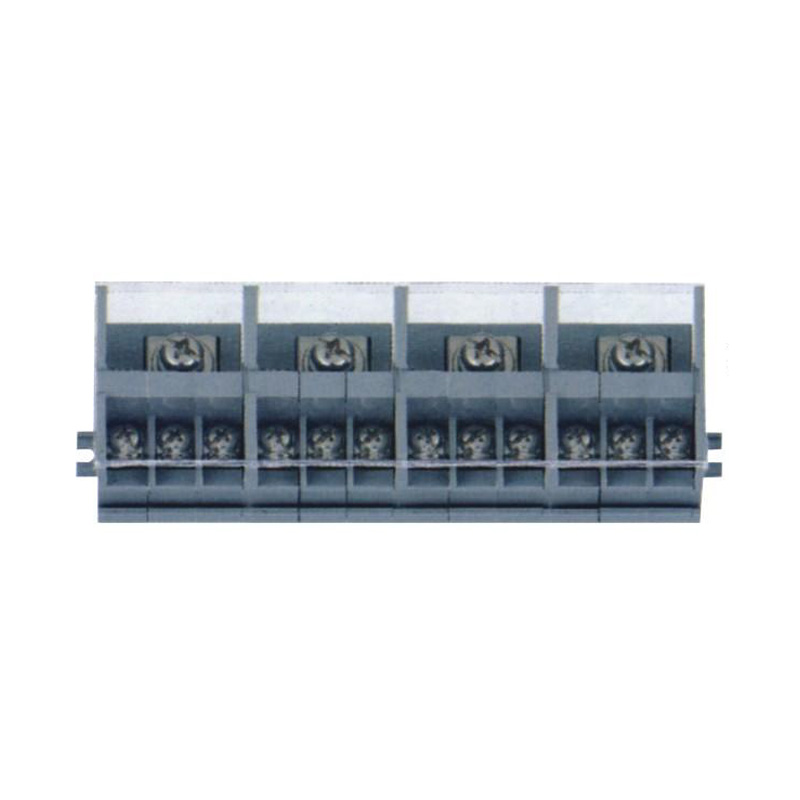

Product name: Four-inlet twelve-outlet
Order number: 150600
