READ MOREThree-Phase Three-Wire Rail Type Combined Terminal
Three-Phase Three-Wire Rail Type Combined Terminal Blocks are professionally used for managing electrical connections in three-phase, three-wire power distribution systems. These terminal blocks are specifically designed for easy installation and integration into rail-mounted electrical panels and distribution boards, making them ideal for applications that require a compact, organized, and reliable solution for power distribution.
These rail type combined terminal blocks feature a modular design that allows for secure and stable connections of phase wires, without the need for excessive wiring or additional conductors. The rail mounting design ensures easy installation, scalability, and compatibility with standard DIN rail systems, making them suitable for a wide range of industrial and commercial applications.
Three-Phase Three-Wire Rail Type Combined Terminal Blocks are currently a novel product offering a convenient and highly reliable solution for managing three-phase power distribution. They simplify the wiring process, enhance system reliability, and provide a safe and efficient way to manage multiple circuits in a single terminal block, all while being easily integrated into rail-mounted systems.
These terminals are designed for high-density wiring, which allows for more connections in a smaller space. This is particularly beneficial in environments where space is a outstanding, such as in control panels or switchboards.
Made from high-quality materials, these terminals are built to withstand the harsh conditions often found in industrial settings. Their robust construction ensures longevity and resistance to corrosion, making them a reliable choice for long-term use.

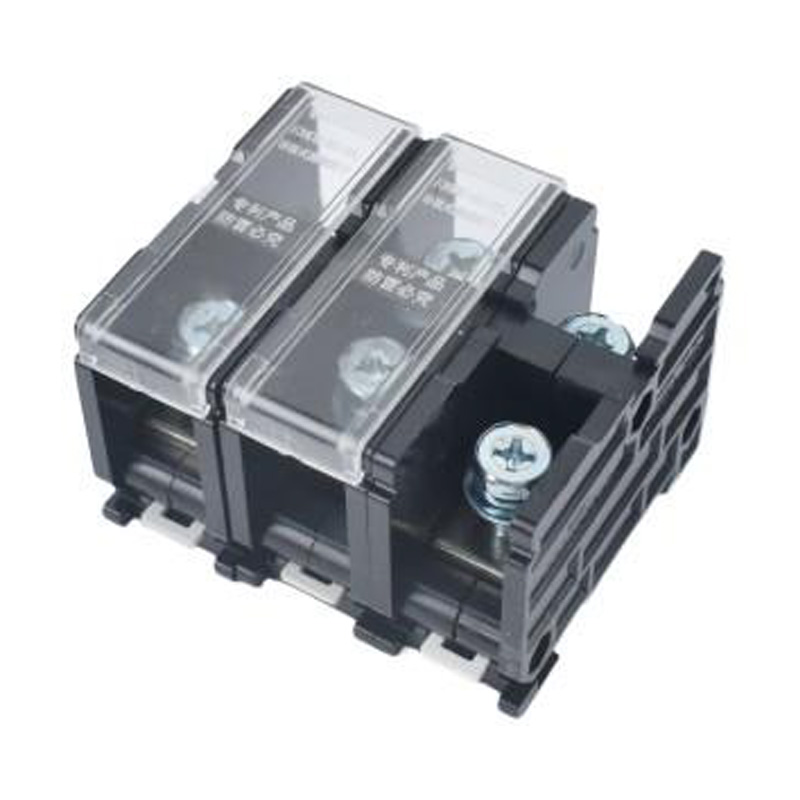

FJ6DI-150-03/1x50 28L Three-Phase Three-Wire Rail Combined Terminal
FJ6DI-150-03/1x50(28L)
One-inlet, one-outlue
Inlet wire:10-50mm²,outlet wire:10-50mm²
Order number：152343
FJ6DI-150-03/2x16 28L Three-Phase Three-Wire Rail Combined Terminal
FJ6DI-150-03/2x16(28L)
One-inlet, two-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number：152344
FJ6DI-150-03/3x 16 28L Three-Phase Three-Wire Rail Combined Terminal
FJ6DI-150-03/3x16(28L)
One-inlet, three-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Ordernumber：152345
FJ6DI-150-03/4x 16 28L Three-Phase Three-Wire Rail Combined Terminal
FJ6DI-150-03/4x16(28L)
One-inlet, four-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number：152346
FJ6DI-150-03/6x10 28L Three-Phase Three-Wire Rail Combined Terminal
FJ6DI-150-03/6x10(28L)
One-inlet, six-outlue
Inlet wire:10-50mm², outlet wire:1.5-16mm²
Order number：152347
FJ6DI-150-03/2x16 24L Three-Phase Three-Wire Rail Combined Terminal
FJ6DI-150-03/2x16(24L)
One-inlet, two-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number：152348
FJ6DI-150-03/3x 16 24L Three-Phase Three-Wire Rail Combined Terminal
FJ6DI-150-03/3x16(24L)
One-inlet, three-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number：152349
FJ6DI-150-03/4x16 24L Three-Phase Three-Wire Rail Combined Terminal
FJ6DI-150-03/4x16(24L)
One-inlet, four-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number：152350
FJ6DI-150-03/6x16 32L Three-Phase Three-Wire Rail Combined Terminal
FJ6DI-150-03/6x16(32L)
One-inlet, six-outlue
Inletwire:10-50mm²,outletwire:1.5-16mm²
Order number：152351
FJ6DI-150-03/8x10 32L Three-Phase Three-Wire Rail Combined Terminal
FJ6DI-150-03/8x10(32L)
One-inlet, eight-outlue
Inlet wire:10-50mm², outlet wire:1.5-10mm²
Order number：152352
FJ6DI-150-03/9x16 32L Three-Phase Three-Wire Rail Combined Terminal
FJ6DI-150-03/9x16(32L)
One-inlet, nine-outlue
Inlet wire:10-50mm², outlet wire:1.5-16mm²
Ordernumber：152353
FJ6DI-150-03/12x10 32L Three-Phase Three-Wire Rail Combined Terminal
FJ6DI-150-03/12x10(32L)
One-inlet, twelve-outlue
Inlet wire:10-50mm²,outlet wire:1.5-10mm²
Order number：152354
