READ MOREThree Phases Four Wires Rail Type Combined Terminal
Three Phases Four Wires Rail Type Combined Terminal Blocks are professionally used for managing electrical connections in three-phase, four-wire power distribution systems, specifically designed for easy installation and integration into rail-mounted electrical panels and distribution boards. These terminal blocks are ideal for applications requiring a compact, organized, and reliable solution for combining and distributing power across multiple circuits.
These rail type combined terminal blocks feature a modular design that allows for secure and stable connections of both phase and neutral wires, without the need for excessive wiring or additional conductors. The rail mounting design ensures easy installation and scalability, making them suitable for a wide range of industrial and commercial applications.
Three Phases Four Wires Rail Type Combined Terminal Blocks are currently a novel product offering a convenient and highly reliable solution for managing three-phase power distribution. They simplify the wiring process, enhance system reliability, and provide a safe and efficient way to manage multiple circuits in a single terminal block, all while being easily integrated into rail-mounted systems.
The FJ6DI-150-04 is built to handle high currents, making it ideal for large-scale industrial applications where power demands are substantial. Its robust design ensures that it can withstand the rigors of continuous heavy use without compromising on performance.
In environments where space is at a outstanding, the compact design of the FJ6DI-150-04 is a significant advantage. It saves space on the DIN rail, allowing for more components to be installed in a smaller area without sacrificing functionality.
The terminal's compatibility with standard DIN rail systems means it can be easily integrated into existing electrical setups. This compatibility reduces the need for extensive modifications, saving time and resources during installation.

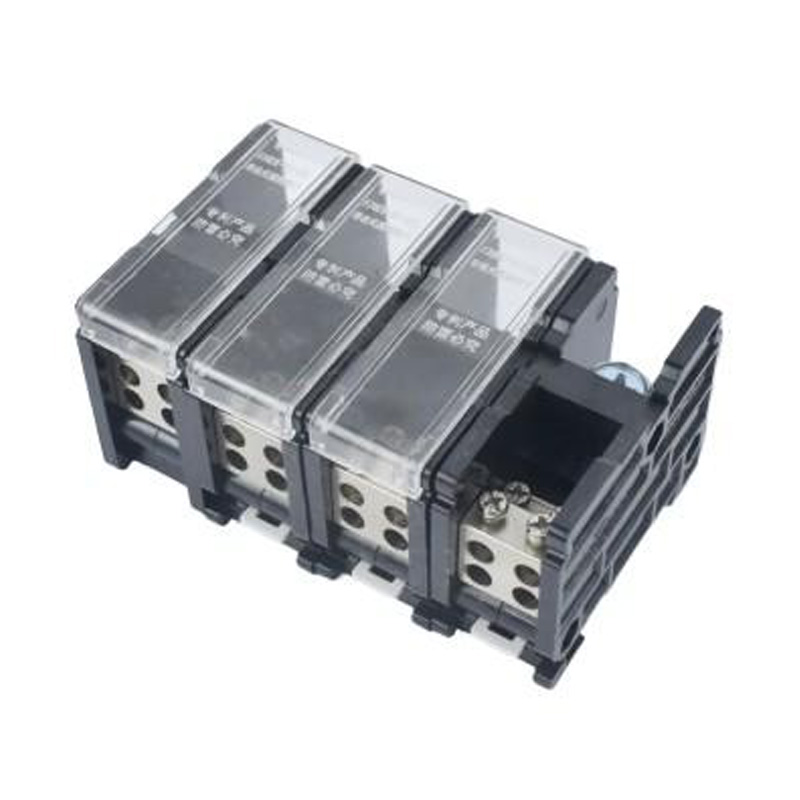

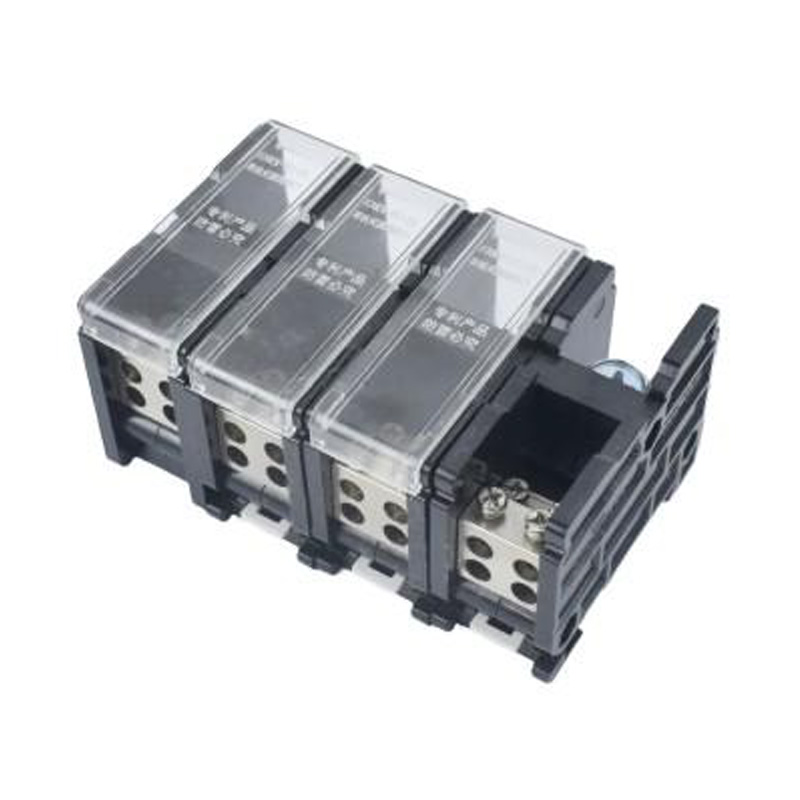

FJ6DI-150-04/1x50 28L Three Phases and Four Wires Rail Combined Terminal
FJ6DI-150-04/1x50(28L)
One-inlet, one-outlue
Inlet wire:10-50mm²,outlet wire:10-50mm²
Order number: 152359
FJ6DI-150-04/2x16 28L Three Phases and Four Wires Rail Combined Terminal
FJ6DI-150-04/2x 16(28L)
One-inlet, two-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number：152360
FJ6DI-150-04/3x16 28L Three Phases and Four Wires Rail Combined Terminal
FJ6DI-150-04/3x16(28L)
One-inlet, three-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number: 152361
FJ6DI-150-04/4x16 28L Three Phases and Four Wires Rail Combined Terminal
FJ6DI-150-04/4x16(28L)
One-inlet, four-outlue
Inlet wire:10-50mm², outlet wire:1.5-16mm²
Order number：152362
FJ6DI-150-04/6x10 28L Three Phases and Four Wires Rail Combined Terminal
FJ6DI-150-04/6x10(28L)
One-inlet, six-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number：152363
FJ6DI-150-04/2x16 24L Three Phases and Four Wires Rail Combined Terminal
FJ6DI-150-04/2x16(24L)
One-inlet, two-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number：152364
FJ6DI-150-04/3x16 24L Three Phases and Four Wires Rail Combined Terminal
FJ6DI-150-04/3x16(24L)
One-inlet, three-outlue
Inlet wire:10-50mm², outlet wire:1.5-16mm²
Order number：152365
FJ6DI-150-04/4x16 24L Three Phases and Four Wires Rail Combined Terminal
FJ6DI-150-04/4x16(24L)
One-inlet,four-outlue
Inlet wire:10-50mm², outlet wire:1.5-16mm²
Order number：152366
FJ6DI-150-04/6x16 32L Three Phases and Four Wires Rail Combined Terminal
FJ6DI-150-04/6x16(32L)
One-inlet, six-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number：152367
FJ6DI-150-04/8x10 32L Three Phases and Four Wires Rail Combined Terminal
FJ6DI-150-04/8x10(32L)
One-inlet, eight-outlue
Inlet wire:10-50mm²,outlet wire:1.5-10mm²
Order number：152368
FJ6DI-150-04/9x16 32L Three Phases and Four Wires Rail Combined Terminal
FJ6DI-150-04/9x16(32L)
One-inlet, nine-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number：152369
FJ6DI-150-04/12x10 32L Three Phases and Four Wires Rail Combined Terminal
FJ6DI-150-04/12x10(32L)
One-inlet,twelve-outlue
Inlet wire:10-50mm²,outlet wire:1.5-10mm²
Order number：152370
