Three Phases Four Wires Combined Combined Terminal Manufacturer

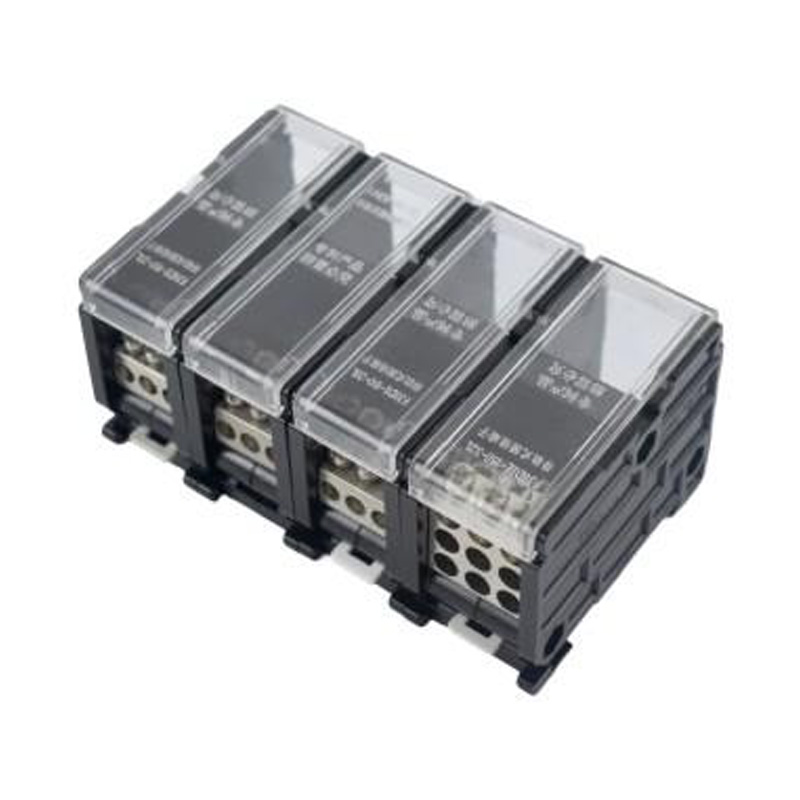

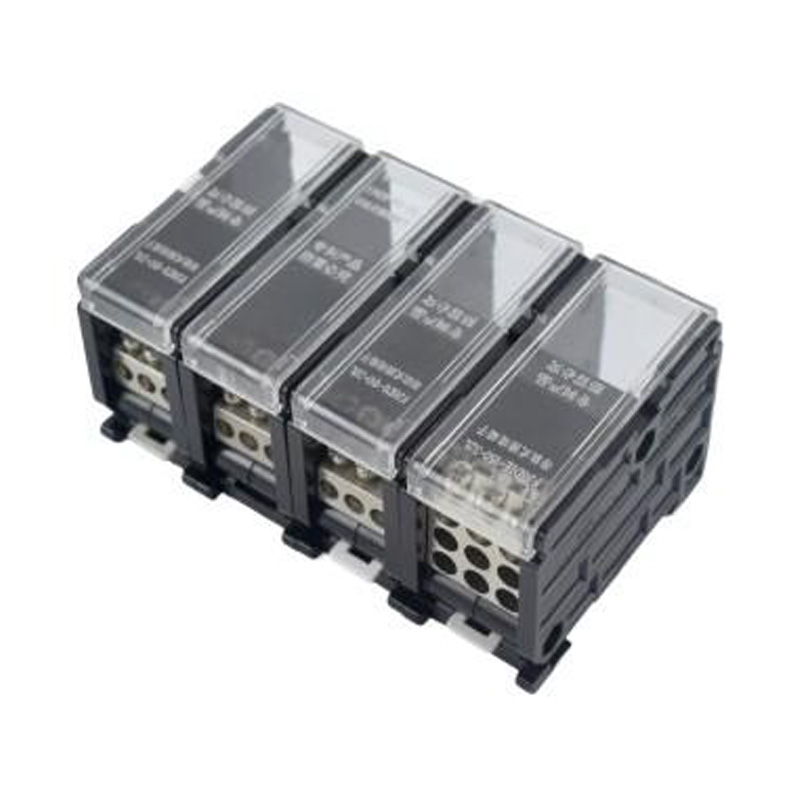

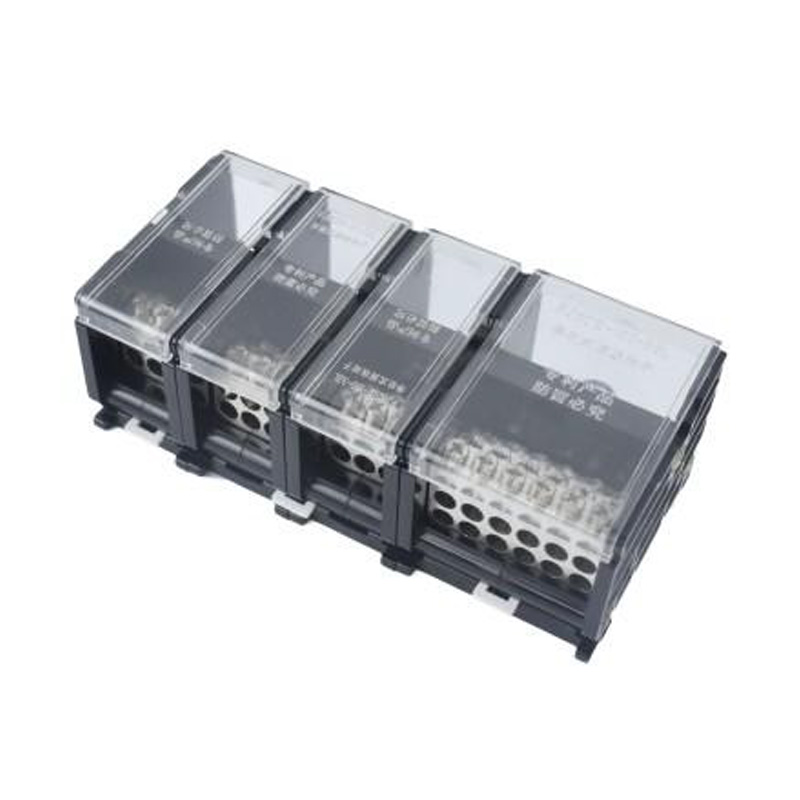

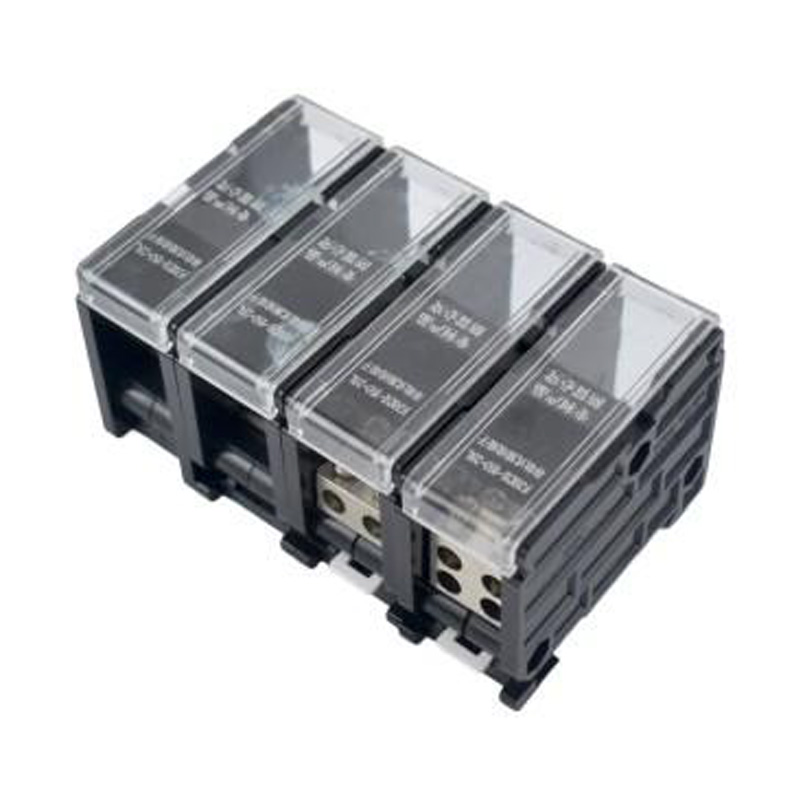

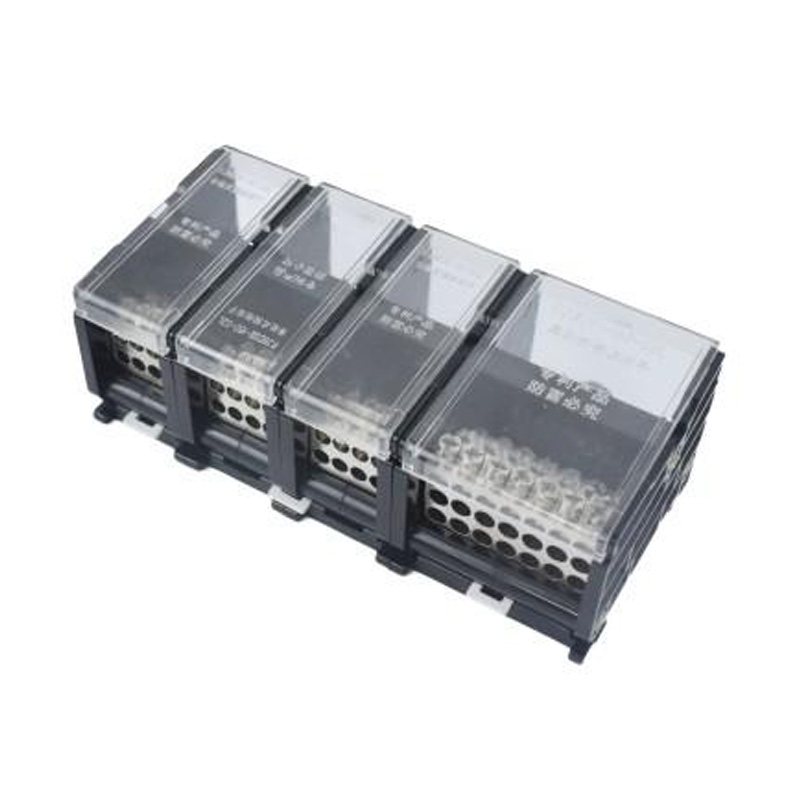

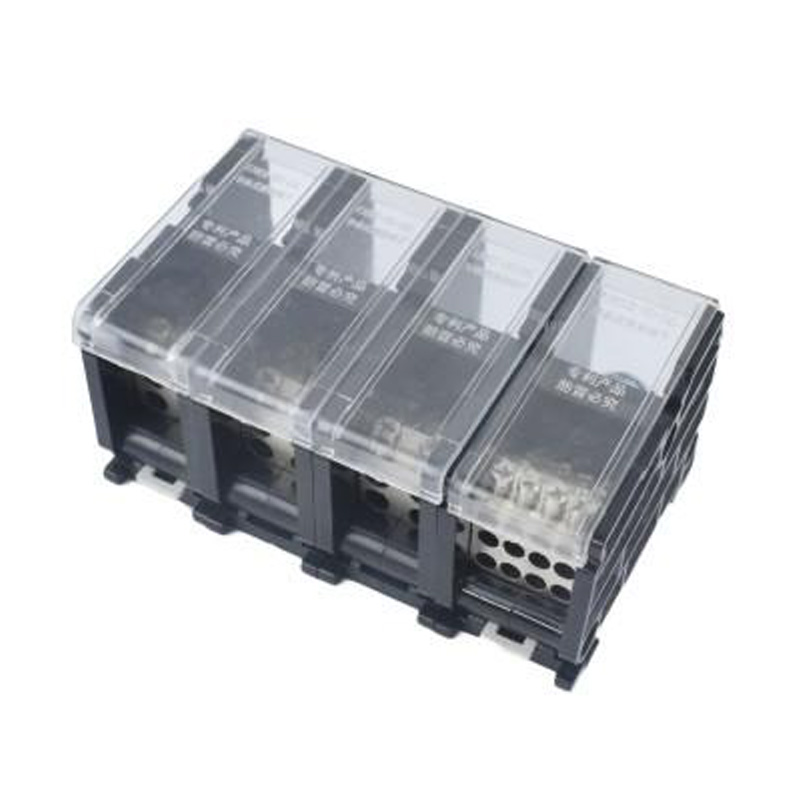

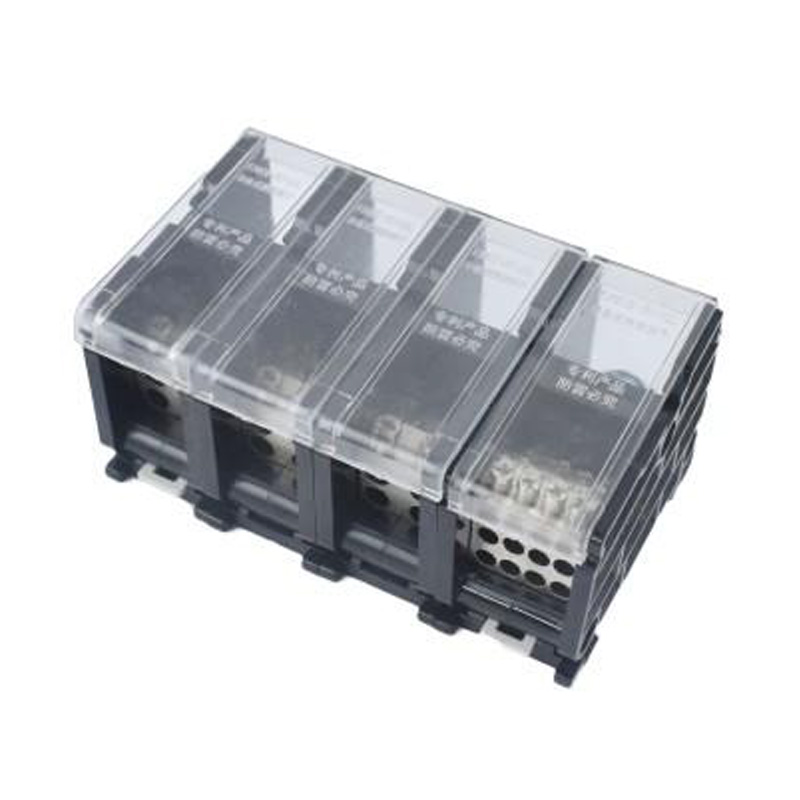

What Are The Characteristics Of The Three-Phase Four-Wire Combined Terminal?

A three-phase four-wire combined terminal supports efficient connections in systems where both three-phase and single-phase loads are supplied. Its structure combines clarity, durability, and flexibility.

Balanced Power Distribution

Three-phase conductors and one neutral are grouped into a single terminal unit.

This ensures both balanced three-phase supply and the ability to serve single-phase loads.

It is widely applied in commercial and industrial networks where diverse equipment operates together.

Compact and Organized Wiring

The combined format reduces the number of separate terminals needed.

Connections for phases and neutral are located in one place, creating a cleaner layout.

This organization simplifies both installation and routine inspection.

Material Reliability

Conductive parts are typically made from copper or alloys, with protective coatings such as tin or nickel.

The insulating housing is constructed from heat-resistant and durable polymers.

Together, these materials provide secure clamping and consistent electrical contact.

Practical Applications

Distribution boards: Manage both three-phase power and neutral connections in a compact form.

Motor control centers: Simplify wiring for large machinery by combining multiple connection types.

Building systems: Enable integration of lighting, HVAC, and other mixed-load circuits.

The three-phase four-wire combined terminal brings organization, efficiency, and reliability to panels, ensuring smooth electrical performance.

What Are The Advantages Of Current Terminal Strip Connector?

A current terminal strip connector is a practical component used to join multiple electrical conductors in an organized and reliable manner. Its design is straightforward yet effective, making it an essential element in control panels, power distribution boards, and automation systems.

One key feature of the terminal strip connector is its linear arrangement. Conductors are connected side by side, which keeps wiring neat and makes circuits easier to trace. This layout reduces the risk of errors during installation or maintenance and ensures that panels remain orderly even in complex systems.

Secure fastening is another advantage. Wires are typically clamped in place using screws or spring mechanisms, creating firm contact points that minimize resistance and improve the stability of current flow. This prevents loose connections, which could otherwise reduce system efficiency.

In terms of materials, the conductive parts are usually made from copper or brass, often plated with tin or nickel for extra durability. The housing is commonly made from insulating plastics designed to withstand both heat and mechanical stress.

Because of these qualities, current terminal strip connectors are widely used in both industrial and commercial applications, offering a dependable solution for safe and efficient electrical wiring.

Simple Installation

Wires are inserted into each terminal and secured by screws or clamping mechanisms.

This method ensures a firm grip that prevents accidental loosening.

Reliable fastening minimizes contact resistance, improving overall performance.

Linear Layout

• The terminals are arranged side by side in a strip format.
• This provides clear separation between conductors while keeping connections orderly.
• Organized alignment helps technicians quickly trace and manage circuits.

Durable Construction

• Conductive elements, often copper or brass, ensure strong electrical conductivity.
• Protective plating, such as tin or nickel, resists oxidation and supports long service life.
• Insulating materials like thermoplastics shield conductors and withstand elevated temperatures.

Versatility Across Systems

• Available in various sizes and current ratings to suit different wire gauges.
• Useful in industrial machinery for managing motor and control circuits.
• Effective in commercial distribution boards where multiple connections must remain orderly.

The current terminal strip connector provides safe, organized, and adaptable wiring solutions across a wide range of applications.

Both the three-phase four-wire combined terminal and the current terminal strip connector are practical tools for maintaining efficient, organized, and reliable electrical systems. The focuses on managing balanced loads with the inclusion of a neutral conductor, while the second emphasizes clear, adaptable connections in strip form. Together, they illustrate how thoughtful component design supports the performance and longevity of modern electrical networks.
