Single Phase Rail Type Combined Terminal Manufacturer

Single Phase Rail Type Combined Terminal Blocks are professionally used for managing electrical connections in single-phase power distribution systems. These terminal blocks are specifically designed for easy installation and integration into rail-mounted electrical panels and distribution boards, making them ideal for applications that require a compact, organized, and reliable solution for power distribution.

These rail type combined terminal blocks feature a modular design that allows for secure and stable connections of single-phase wires, without the need for excessive wiring or additional conductors. The rail mounting design ensures easy installation, scalability, and compatibility with standard DIN rail systems, making them suitable for a wide range of residential, commercial, and industrial applications.

Single Phase Rail Type Combined Terminal Blocks are currently a novel product offering a convenient and highly reliable solution for managing single-phase power distribution. They simplify the wiring process, enhance system reliability, and provide a safe and efficient way to manage multiple circuits in a single terminal block, all while being easily integrated into rail-mounted systems.

Single Phase Rail Type Combined Terminals are designed to accommodate a wide range of wire sizes and types, ensuring compatibility with various electrical systems. Their adaptability allows for easy integration into existing setups or new installations without the need for specialized adapter or modifications.

FJ6DI-150-02/16x 16 55L Single Phase Rail Combined Terminal

FJ6DI-150-02/24x6 55L Single Phase Rail Combined Terminal

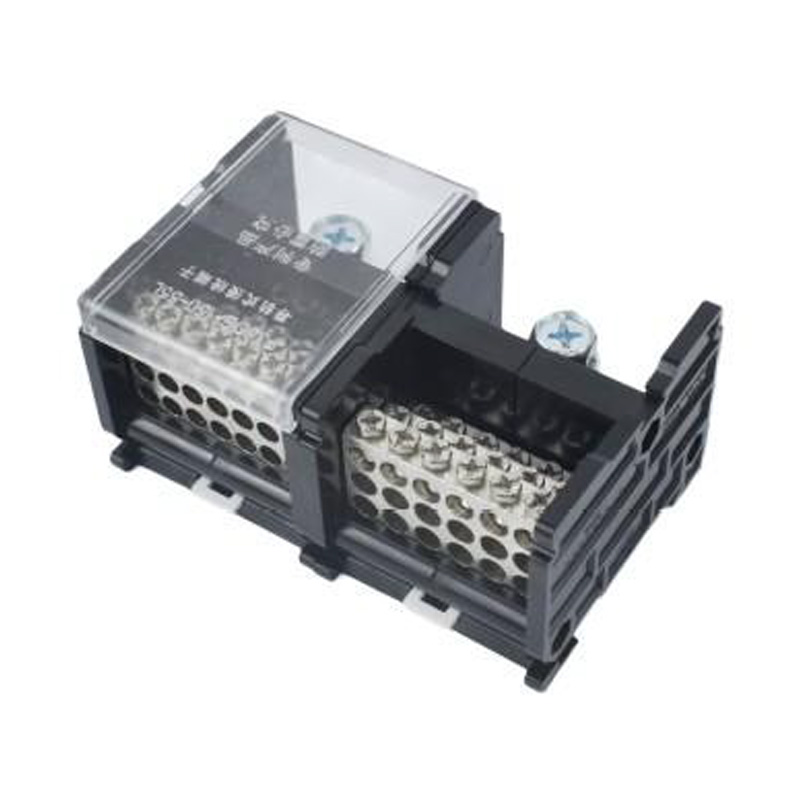

FJ6DI-150-02/16x 16 55L Single Phase Rail Combined Terminal

FJ6DI-150-02/16x16(55L)
One-inlet, sixteen-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number：152339

FJ6DI-150-02/18x16 55L Single Phase Rail Combined Terminal

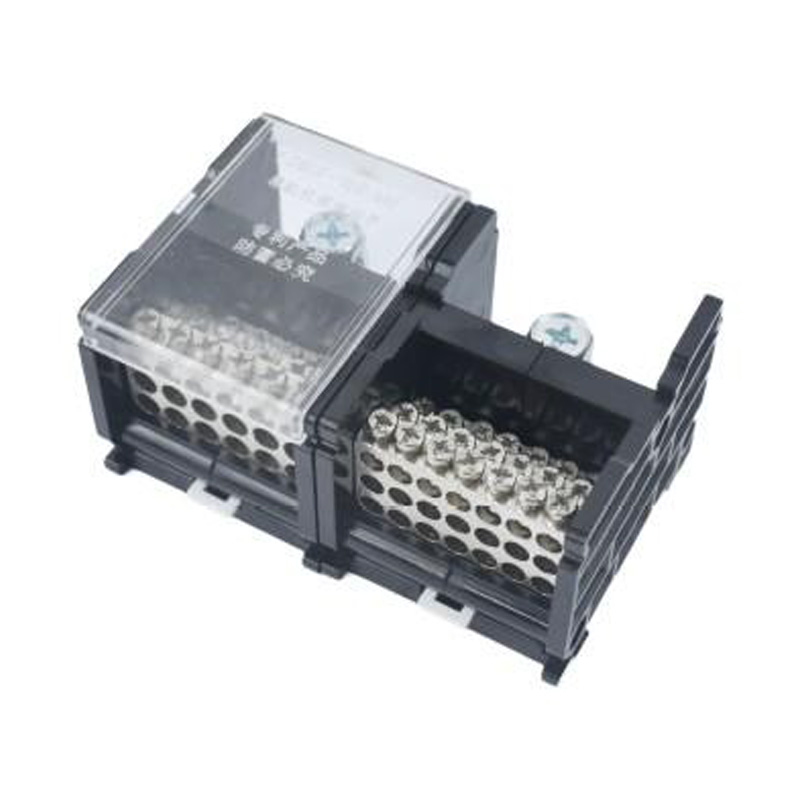

FJ6DI-150-02/18x16 55L Single Phase Rail Combined Terminal

FJ6DI-150-02/18x16(55L)
One-inlet, eighteen-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number: 152340

FJ6DI-150-02/21x10 55L Single Phase Rail Combined Terminal

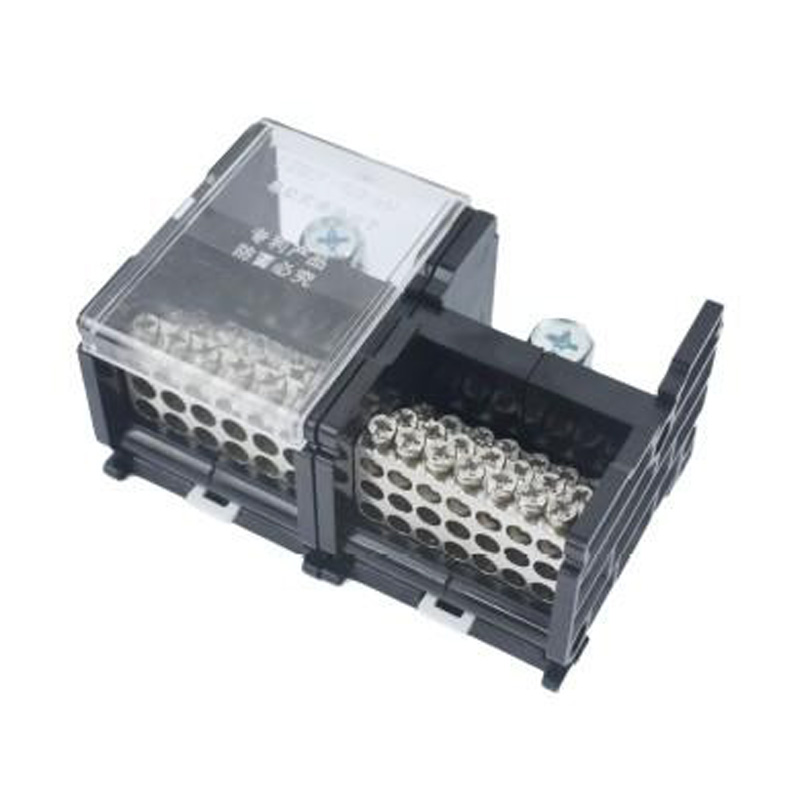

FJ6DI-150-02/21x10 55L Single Phase Rail Combined Terminal

FJ6DI-150-02/21x10(55L)
One-inlet, twenty-outlue
Inlet wire:10-50mm², outlet wire:1.5-10mm²
Order number：152341

FJ6DI-150-02/24x6 55L Single Phase Rail Combined Terminal

FJ6DI-150-02/24x6(55L)
One-inlet, twenty-four-outlue
Inlet wire:10-50mm²,outlet wire:1.5-6mm²
Order number：152342

Search

Categories

About Us

Zhejiang Haidu Electric Co., Ltd.

Zhejiang Haidu Electric Co., Ltd. is China Single Phase Rail Type Combined Terminal Manufacturer and Sale Single Phase Rail Type Combined Terminal Factory. It is close to National Highway 104 and has very convenient transportation. The company has advanced production equipment and complete testing equipment. It is a high-tech enterprise integrating manufacturing, research and development and trade. The company specializes in the production of electrical energy metering junction boxes, meter box split terminals, high current wiring terminals, multi-purpose terminals, switch terminals, T-connection terminals, insulation puncture clamps and various wiring equipment.

Certificate Of Honor

News

Energy Measuring Terminal Block: A Vital Component in Modern Energy Management
13 Jun, 2025
An Energy Measuring Terminal Block is an electrical component designed to measure key energy parameters such as voltage, current, ...
READ MORE
Switch Terminal Block: A Key Component for Electrical Connectivity and Control
05 Jun, 2025
In the world of industrial automation and electrical engineering, the importance of reliable and efficient electrical connections ...
READ MORE
Heavy-Current Terminal Block: The Backbone of High-Power Electrical Systems
30 May, 2025
In industries where power distribution and high-current electrical systems are essential, the Heavy-Current Terminal Block plays a...
READ MORE
DIN Rail Terminal Block: A Standard for Reliable Electrical Connections
20 May, 2025
In modern electrical installations, efficient and organized wiring is crucial for both performance and safety. One of the widely ...
READ MORE

Industry Knowledge Extension

Are Single-Phase Rail Type Combined Terminals Compatible With Different Wire Gauges?

Single-phase rail type combined terminals are designed to accommodate a range of wire gauges, making them versatile and convenient for various applications. These terminals typically feature a screw connection method, which allows for secure and reliable connections.

The compatibility of single-phase rail type combined terminals with different wire gauges depends on the specific terminal block design and manufacturer. Some common wire gauges that these terminals can accommodate include:

· Small wire gauges: 0.5mm² to 2.5mm² (AWG 20-14)

· Medium wire gauges: 4mm² to 10mm² (AWG 12-8)

· Large wire gauges: 16mm² to 35mm² (AWG 6-2)

It's essential to check the manufacturer's specifications and documentation to ensure that the terminal block is compatible with the wire gauge used in your application.

Benefits of Single-Phase Rail Type Combined Terminals

Single-phase rail type combined terminals offer several benefits, including:

· Convenience: These terminals allow for easy connection and disconnection of wires, making them ideal for applications where frequent maintenance or repairs are required.

· Space-saving: The compact design of these terminals makes them suitable for applications where space is limited.

· Reliability: The screw connection method ensures a secure and reliable connection, reducing the risk of electrical faults or failures.

What Are Some Common Troubleshooting Tips For High Current Branching Terminal Blocks?

High current branching terminal blocks are designed to handle high currents and provide a reliable connection for multiple wires. However, like any electrical component, they can be prone to issues or faults. Here are some common troubleshooting tips for high current branching terminal blocks:

1. Check for loose connections: Ensure that all wires are securely connected to the terminal block, and that the screws are tightened properly.

2. Verify wire gauge compatibility: Check that the wire gauge used is compatible with the terminal block's specifications.

3. Inspect for signs of overheating: Look for signs of overheating, such as discoloration, melting, or burning of the terminal block or surrounding components.

4. Check for corrosion: Inspect the terminal block and wires for signs of corrosion, which can cause electrical faults or failures.

5. Verify proper installation: Ensure that the terminal block is installed correctly, following the manufacturer's instructions and guidelines.

Additional Tips

· Use the correct tools: Use the recommended tools and equipment when working with high current branching terminal blocks to avoid damage or injury.

· Follow safety guidelines: Always follow safety guidelines and precautions when working with electrical components, including high current branching terminal blocks.

· Consult the manufacturer's documentation: Refer to the manufacturer's documentation and specifications for specific troubleshooting tips and guidelines.

By following these troubleshooting tips and ensuring compatibility with different wire gauges, you can ensure reliable and efficient power distribution in your application.

Single-phase rail type combined terminals offer versatility and convenience in electrical connections, accommodating a range of wire gauges. High current branching terminal blocks, on the other hand, require careful troubleshooting to ensure reliable operation. By understanding the compatibility and troubleshooting tips for these terminal blocks, you can design and maintain efficient and reliable electrical systems. Whether you're working on an industrial control panel or a commercial building's electrical system, terminal blocks play a critical role in ensuring the safety and efficiency of electrical connections.
