READ MORESingle Phase Rail Type Combined Terminal
Single Phase Rail Type Combined Terminal Blocks are professionally used for managing electrical connections in single-phase power distribution systems. These terminal blocks are specifically designed for easy installation and integration into rail-mounted electrical panels and distribution boards, making them ideal for applications that require a compact, organized, and reliable solution for power distribution.
These rail type combined terminal blocks feature a modular design that allows for secure and stable connections of single-phase wires, without the need for excessive wiring or additional conductors. The rail mounting design ensures easy installation, scalability, and compatibility with standard DIN rail systems, making them suitable for a wide range of residential, commercial, and industrial applications.
Single Phase Rail Type Combined Terminal Blocks are currently a novel product offering a convenient and highly reliable solution for managing single-phase power distribution. They simplify the wiring process, enhance system reliability, and provide a safe and efficient way to manage multiple circuits in a single terminal block, all while being easily integrated into rail-mounted systems.
Single Phase Rail Type Combined Terminals are designed to accommodate a wide range of wire sizes and types, ensuring compatibility with various electrical systems. Their adaptability allows for easy integration into existing setups or new installations without the need for specialized adapter or modifications.

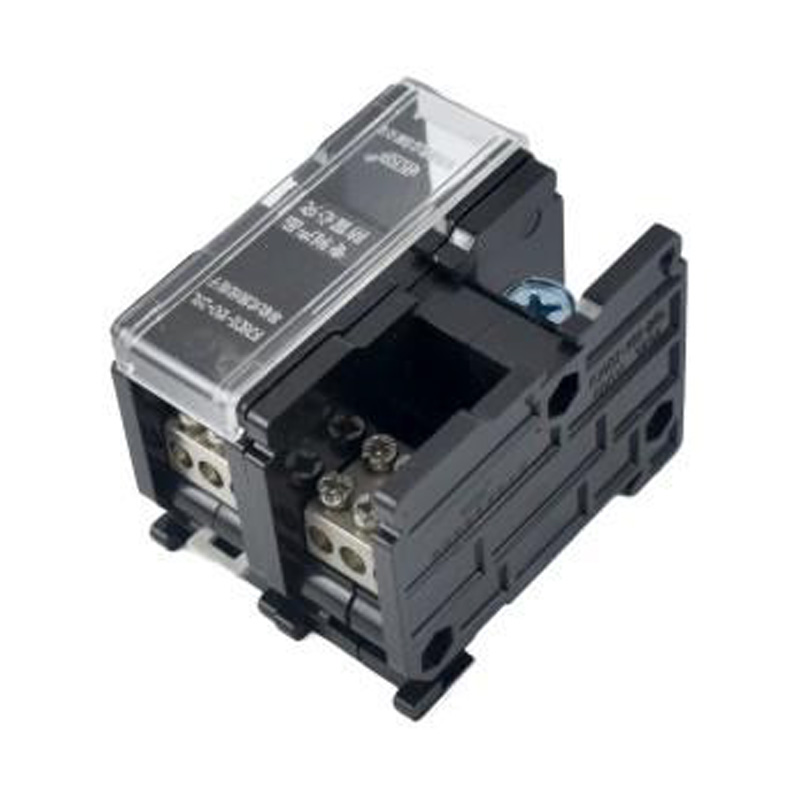

FJ6DI-150-02/1x50 28L Single Phase Rail Combined Terminal
FJ6DI-150-02/1x50(28L)
One-inlet, one-outlue
Inlet wire:10-50mm²,outlet wire:10-50mm²
Order number：152327
FJ6DI-150-02/2x 16 28L Single Phase Rail Combined Terminal
FJ6DI-150-02/2x16(28L)
One-inlet, two-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number：152328
FJ6DI-150-02/3x 16 28L Single Phase Rail Combined Terminal
FJ6DI-150-02/3x16(28L)
One-inlet, three-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number：152329
FJ6DI-150-02/4x 16 28L Single Phase Rail Combined Terminal
FJ6DI-150-02/6x10(28L)
One-inlet, six-outlue
Inlet wire:10-50mm²,outlet wire:1.5-10mm²
Order number：152331
FJ6DI-150-02/6x10 28L Single Phase Rail Combined Terminal
FJ6DI-150-02/6x10(28L)
One-inlet,six-outlue
Inlet wire:10-50mm²,outlet wire:1.5-10mm²
Order number:152331
FJ6DI-150-02/2x16 24L Single Phase Rail Combined Terminal
FJ6DI-150-02/2x16(24L)
One-inlet, two-outlue
Inlet wire:10-50mm², outlet wire:1.5-16mm²
Order number；152332
FJ6DI-150-02/3x16 24L Single Phase Rail Combined Terminal
FJ6DI-150-02/3x16(24L)
One-inlet, three-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number：152333
FJ6DI-150-02/4x16 24L Single Phase Rail Combined Terminal
FJ6DI-150-02/4x16(24L)
One-inlet,four-outlue
Inlet wire:10-50mm2,outlet wire:1.5-16mm2
Order number:152334
FJ6DI-150-02/6x10 32L Single Phase Rail Combined Terminal
FJ6DI-150-02/6 x10(32L)
One-inlet,six-outlue
Inlet wire:10-50mm²,outlet wire:1.5-10mm²
Order number：152335
FJ6DI-150-02/8x10 32L Single Phase Rail Combined Terminal
FJ6DI-150-02/8x10(32L)
One-inlet, eight-outlue
Inlet wire:10-50mm²,outlet wire:1.5-10mm²
Order number：152336
FJ6DI-150-02/9x16 32L Single Phase Rail Combined Terminal
FJ6DI-150-02/9x16(32L)
One-inlet, nine-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number: 152337
FJ6DI-150-02/12x10 32L Single Phase Rail Combined Terminal
FJ6DI-150-02/12x10(32L)
One-inlet, twelve-outlue
Inlet wire:10-50mm²,outlet wire:1.5-10mm²
Order number：152338
