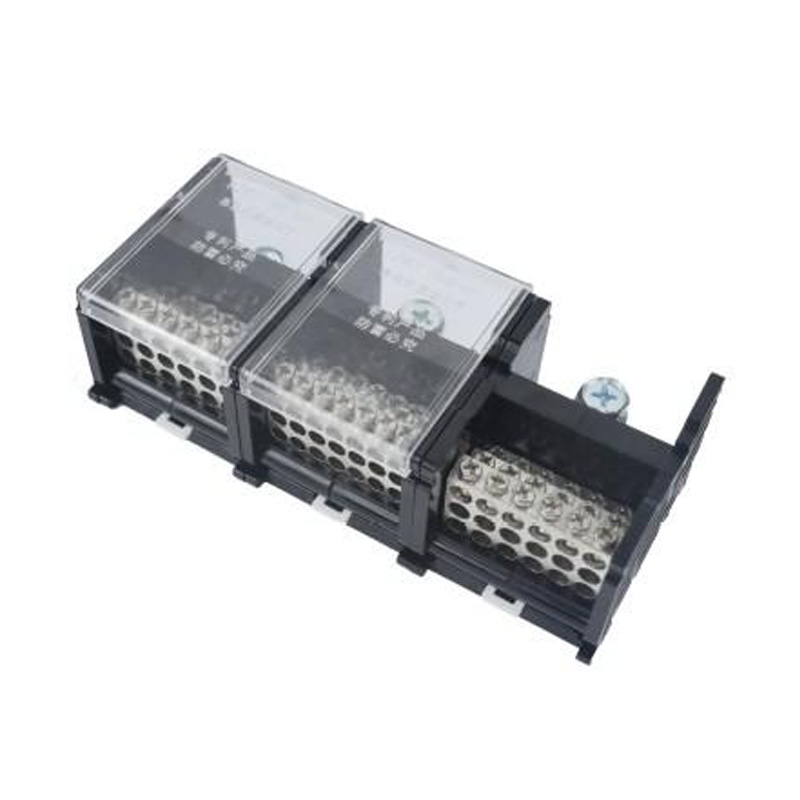

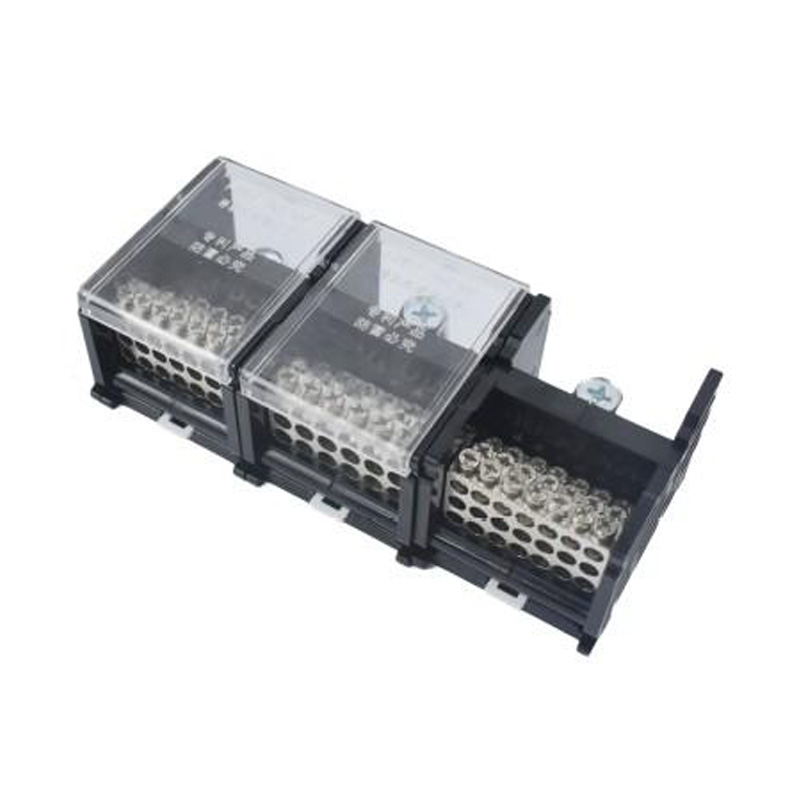

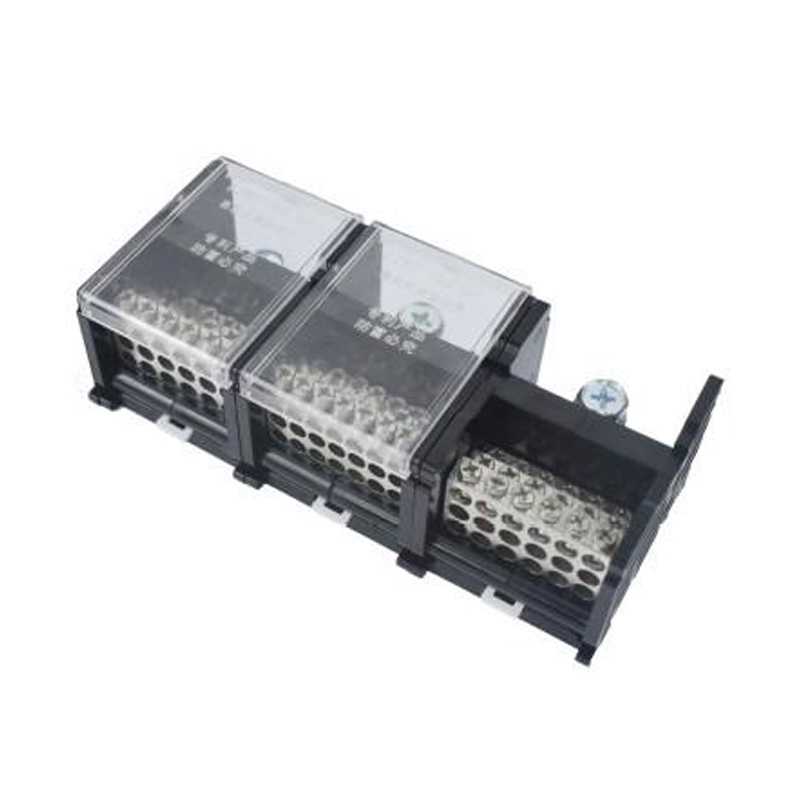

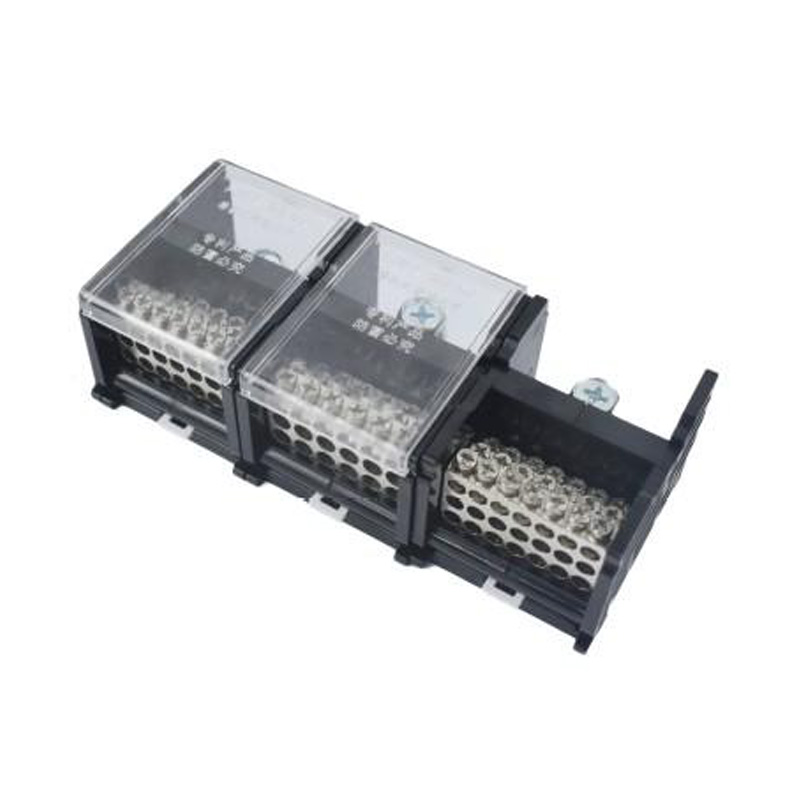

What Are the Key Specifications for Din Rail Terminal Blocks?

Din rail terminal blocks are ubiquitous components in electrical enclosures, serving as the organized backbone for wire connections in everything from industrial control panels to building automation systems. Their standardized design promotes safety, reliability, and ease of maintenance. When selecting these components for a specific application, engineers must consider several critical physical and operational specifications. Understanding the operating temperature range, installation process, and physical dimensions is fundamental to ensuring a correct and reliable installation that will perform as intended over its lifetime.

What Is The Operating Temperature Range Of Din Rail Terminal Blocks?

The operating temperature range of a Din rail terminal block defines the ambient temperatures within which it can safely and reliably function. This range is not a single value but is determined by the properties of the materials used in its construction. Typically, the temperature-sensitive component is the insulating housing, which is commonly made from engineered thermoplastics like polyamide (PA66) or polycarbonate. For standard terminal blocks, the operating temperature range generally falls between -40°C to +100°C or 105°C. The lower limit is constrained by the material becoming brittle and susceptible to cracking under impact or stress. The upper limit is determined by the point at which the plastic begins to soften, which could compromise its structural integrity and dielectric strength, potentially failure. It is crucial to note that the actual current-carrying capacity of the terminal is often derated as the ambient temperature increases above a certain point, usually +60°C, to prevent excessive heat generation from the current flow itself. Therefore, selecting a terminal block with a suitable temperature rating for its environment is essential for long-term performance and safety.

How is a Din Rail Wire Terminal installed?

The installation of a Din rail terminal block is a straightforward process designed for efficiency, typically involving two main steps: mounting the block and wiring it. The terminal block is mounted onto a standard Top Hat Din rail, which is usually already secured to the panel. This is achieved by positioning the block at a slight angle so that its lower lip hooks under the rail's edge. The block is then pivoted upright until it snaps into place; a spring-loaded clip on the back of the block automatically engages with the lower lip of the Din rail, locking it securely. Some designs feature a locking lever that must be opened before mounting and closed afterward to secure the block. For wiring, the chosen method depends on the terminal type. For a simple screw terminal, the screw is loosened, the stripped conductor is inserted fully into the terminal cavity, and the screw is then retightened to the manufacturer's specified torque to ensure a secure, low-resistance connection without damaging the conductor. Other types, like push-in or spring-clamp terminals, allow for even faster wiring by simply inserting a prepared solid-core wire directly into the designated opening.

What Are The Dimensions Of Mini Din Rail Terminals?

The dimensions of mini Din rail terminals are defined by their compact design, which allows for a higher density of connections within a limited space in a control panel. While specific measurements can vary slightly between manufacturers, they adhere to a general scale relative to standard blocks. The core dimensional metric for any terminal block is its module width, which is the space it occupies on the 35mm wide Top Hat Din rail. A standard single-level terminal block might have a module width of 5.2mm to 6.2mm per pole. In contrast, a mini terminal block is significantly narrower, typically ranging from 3.5mm to 5.0mm per pole. This reduction in width allows for up to twice as many connections in the same linear space on the rail. Their overall height is also correspondingly smaller, often around 40-45mm, compared to approximately 55-65mm for a standard block. Despite their reduced size, they are engineered to handle respectable current ratings, commonly up to 15-20 Amps, making them ideal for signal wiring, sensor connections, and low-power control circuits where saving panel space is a priority.
