READ MOREDin Rail Terminal Block
DIN Rail Terminal Blocks are a critical component in modern electrical and electronic systems, providing a reliable and efficient means of connecting wires and components. They are designed to adhere to the DIN (Deutsches Institut für Normung) standards, ensuring compatibility and interchangeability across a wide range of applications. These terminal blocks are particularly useful in industrial control panels, power distribution systems, and any environment where a high degree of flexibility and reliability is required.
1. Standardization and Compatibility:
DIN Rail Terminal Blocks are built to meet the DIN 46 228 standards, which ensures that they are compatible with a broad range of electrical components and systems. This standardization allows for easy integration with other devices and systems, reducing complexity and enhancing the overall efficiency of electrical installations.
2. High-Quality Construction:
These terminal blocks are typically made from high-quality materials such as brass or copper alloys for the contacts, and thermoplastic or metal for the housing. This ensures durability, resistance to corrosion, and long-lasting performance even under harsh conditions.
3. Versatile Connection Options:
DIN Rail Terminal Blocks offer a variety of connection options, including screw clamp, spring clamp, and cage clamp styles. This versatility allows for secure connections with different types of conductors, from solid wires to stranded wires, and even ribbon cables.
4. Ease of Installation:
One of the key selling points of DIN Rail Terminal Blocks is their ease of installation. They can be easily mounted onto DIN rails, which are standardized metal rails that provide a quick and secure mounting solution for electrical components in control panels. This modular design enables quick assembly and disassembly, simplifying maintenance and upgrades.
5. Safety Features:
Safety is a important concern in any electrical system, and DIN Rail Terminal Blocks are designed with multiple safety features. These include insulation displacement contacts (IDC) for quick and secure wire connections without the need for tools, as well as protective covers that prevent accidental contact with live parts.
6. Space-Efficiency:
These terminal blocks are compact and space-efficient, allowing for a high density of connections in a small area. This is particularly beneficial in control panels where space is at a outstanding.
7. Wide Range of Applications:
From simple home automation systems to complex industrial machinery, DIN Rail Terminal Blocks are versatile enough to be used in a wide range of applications. Their durability and reliability make them a popular choice across various industries.
8. Cost-Effectiveness:
While DIN Rail Terminal Blocks are designed for high-performance applications, they are also cost-effective. The standardized design and mass production mean that they are affordable without compromising on quality.
9. Maintenance and Troubleshooting:
DIN Rail Terminal Blocks are easy to inspect and maintain. Their clear labeling and organized layout make it simple to trace connections and identify potential issues, reducing downtime and maintenance costs.
DIN Rail Terminal Blocks are a cornerstone of modern electrical systems, offering a blend of reliability, flexibility, and safety. Their adherence to DIN standards ensures broad compatibility, while their high-quality construction and versatile connection options make them a popular choice for a wide range of applications. Whether it's for a small home project or a large-scale industrial installation, DIN Rail Terminal Blocks provide a robust solution for secure and efficient electrical connections.

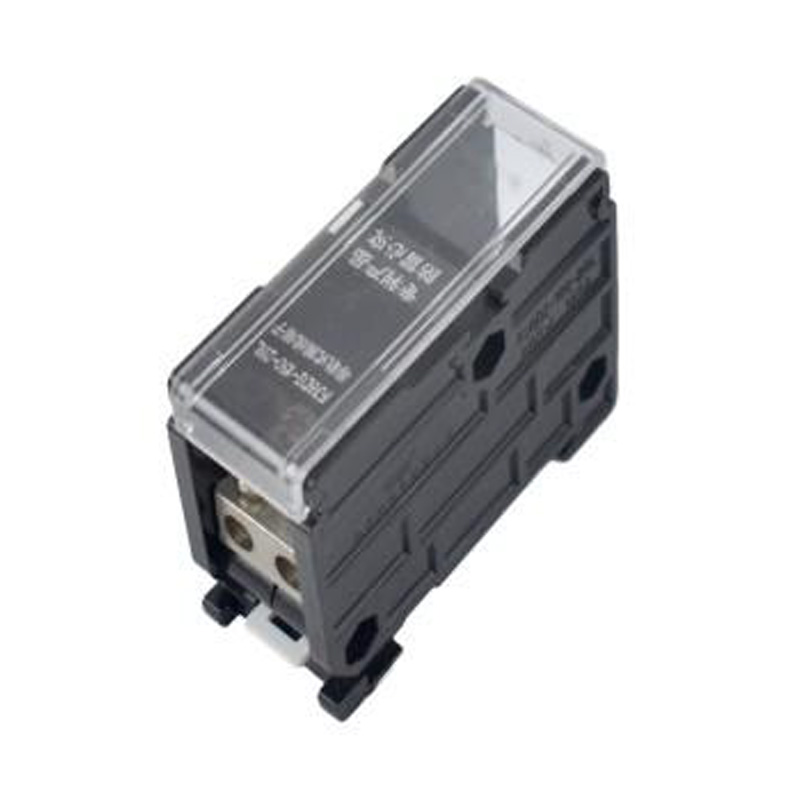

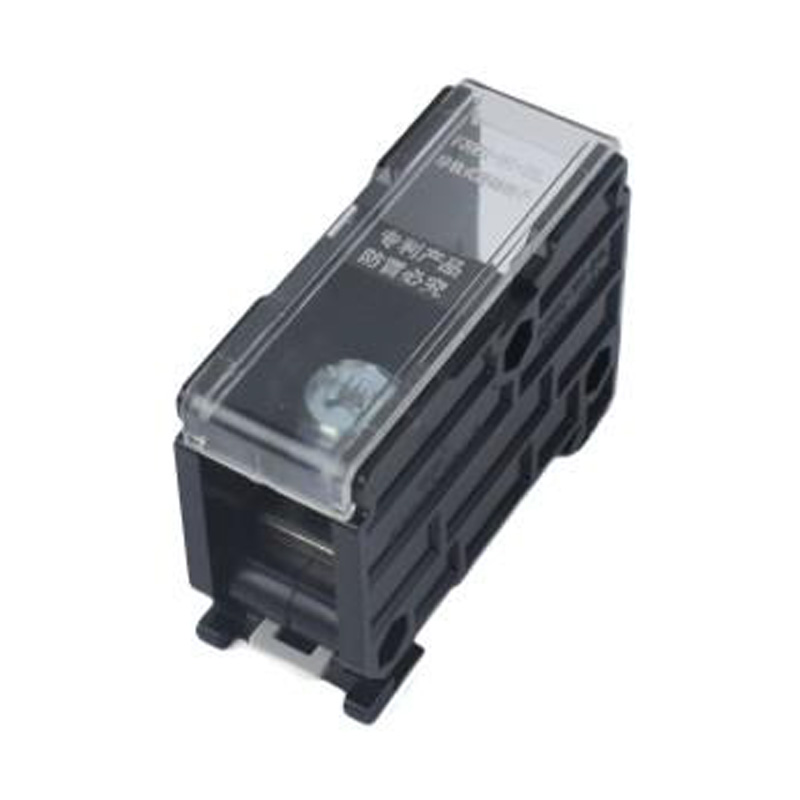

FJ6DI-150-01/1x50 28L Monopole Rail Combined Terminal
FJ6DI-150-01/1 x50(28L)
One-inlet, one-outlue
Inlet wire:10-50mm²,outlet wire:10-50mm²
Order number：152311

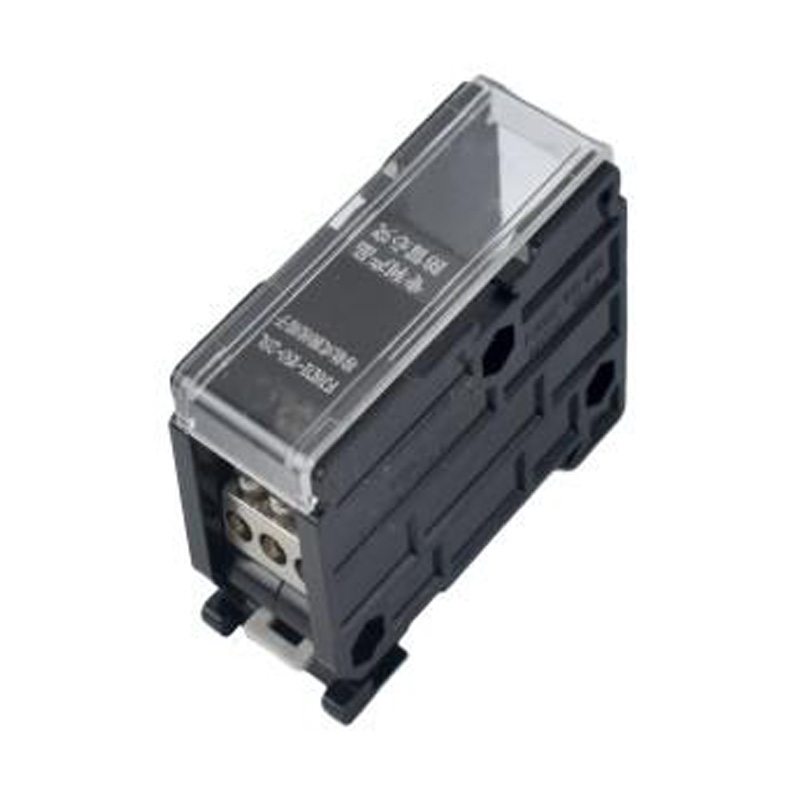

FJ6DI-150-01/2x16 28L Monopole Rail Combined Terminal
FJ6DI-150-01/2x16(28L)
One-inlet,two-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number：152312

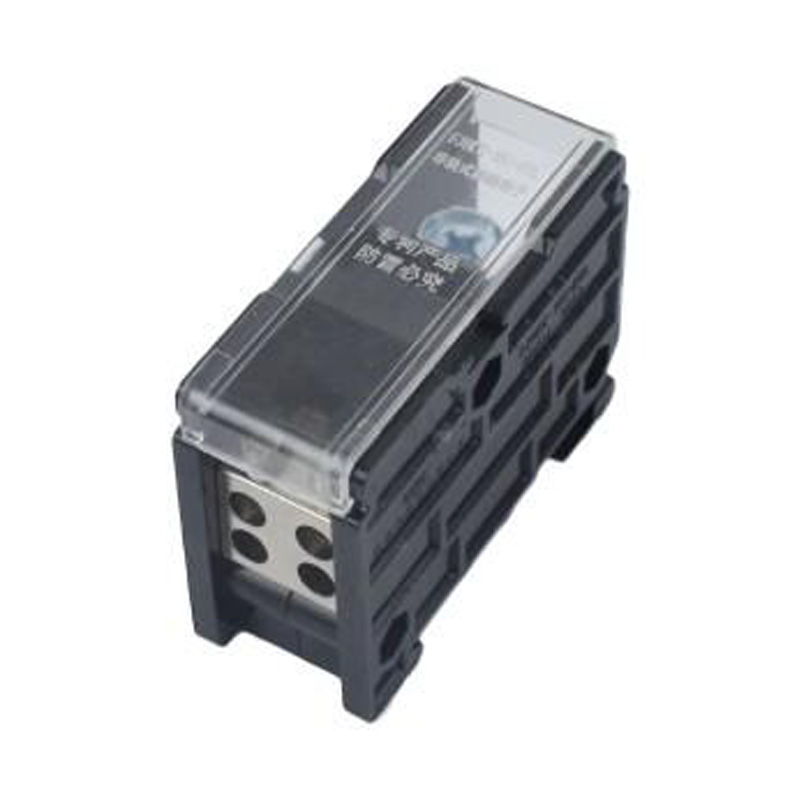

FJ6DI-150-01/3x16 28L Monopole Rail Combined Terminal
FJ6DI-150-01/3x16(28L)
One-inlet, three-outlue
Inlet wire:10-50mm², outlet wire:1.5-16mm²
Order number：152313
FJ6DI-150-01/4x 16 28L Monopole Rail Combined Terminal
FJ6DI-150-01/4 x 16(28L)
One-inlet,four-outlue
Inlet wire:10-50mm², outlet wire:1.5-16mm²
Order number：152314

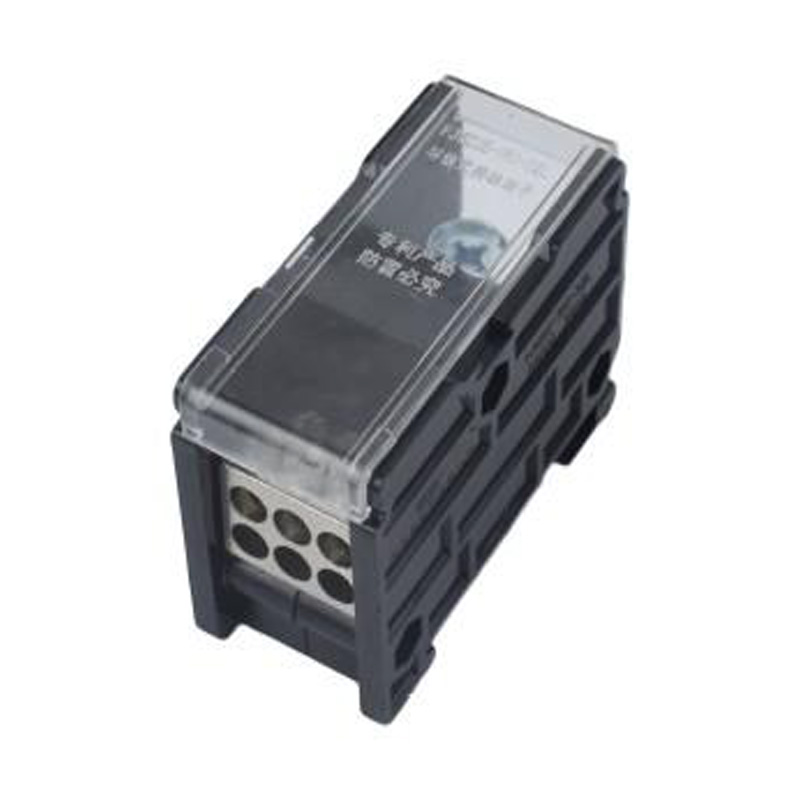

FJ6DI-150-01/6x10 28L Monopole Rail Combined Terminal
FJ6DI-150-01/6x10(28L)
One-inlet, six-outlue
Inlet wire:10-50mm², outlet wire:1.5-10mm²
Order number：152315
FJ6DI-150-01/2x16 24L Monopole Rail Combined Terminal
FJ6DI-150-01/2x16(24L)
One-inlet, two-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number：152316
FJ6DI-150-01/3x16 24L Monopole Rail Combined Terminal
FJ6DI-150-01/3x16(24L)
One-inlet, three-outlue
Inlet wire:10-50mm², outlet wire:1.5-16mm²
Order number；152317
FJ6DI-150-01/4x16 24L Monopole Rail Combined Terminal
FJ6DI-150-01/4x16(24L)
One-inlet, four-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number：152318

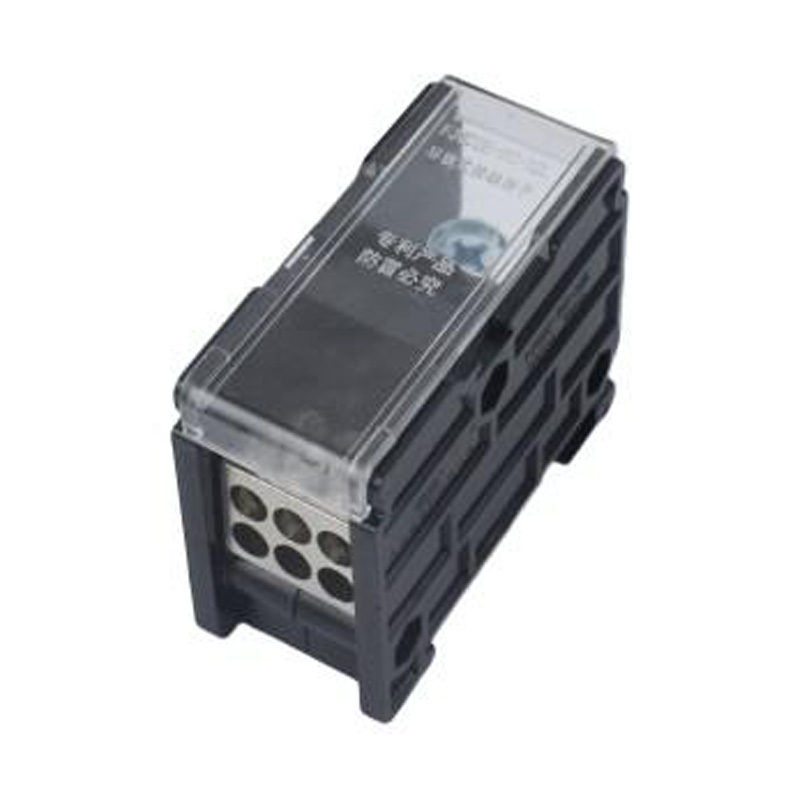

FJ6DI-150-01/6x16 32L Monopole Rail Combined Terminal
FJ6DI-150-01/6x16(32L)
One-inlet, six-outlue
Inlet wire:10-50mm², outlet wire:1.5-16mm²
Order number：152319

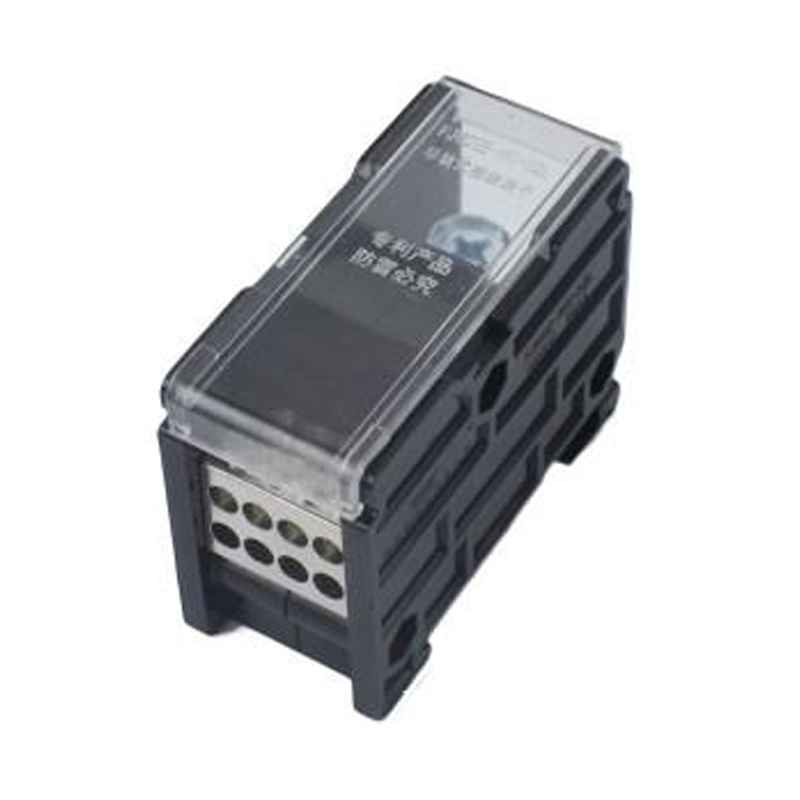

FJ6DI-150-01/8x10 32L Monopole Rail Combined Terminal
FJ6DI-150-01/8x10(32L)
One-inlet, eight-outlue
Inlet wire:10-50mm², outlet wire:1.5-10mm²
Order number；152320
FJ6DI-150-01/9x 16 32L Monopole Rail Combined Terminal
FJ6DI-150-01/9x16(32L)
One-inlet, nine-outlue
Inlet wire:10-50mm²,outlet wire:1.5-16mm²
Order number；152321

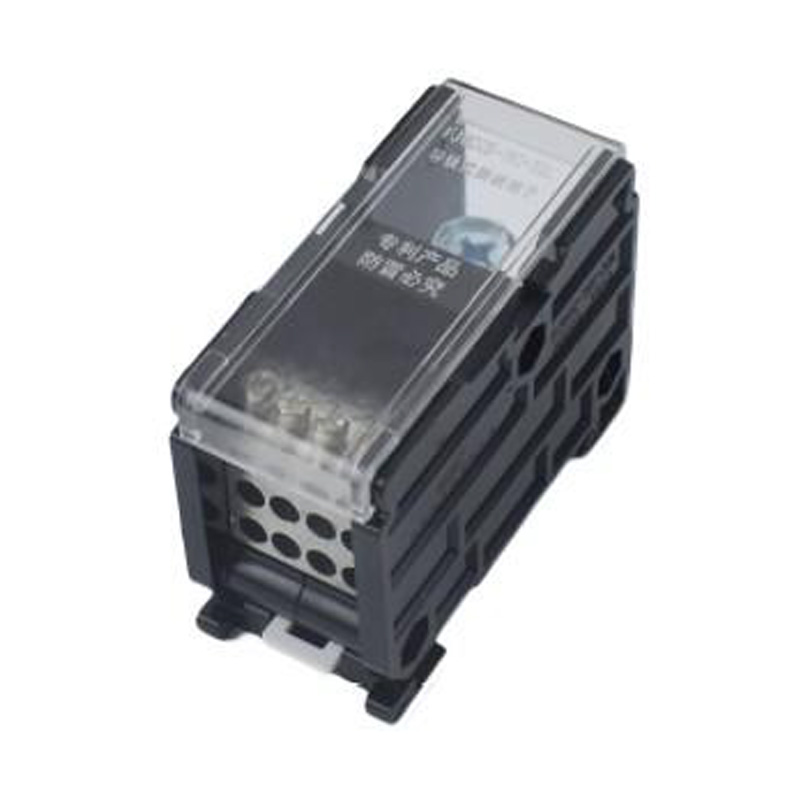

FJ6DI-150-01/12x10 32L Monopole Rail Combined Terminal
FJ6DI-150-01/12x10(32L)
One-inlet, twelve-outlue
Inlet wire:10-50mm²,outlet wire:1.5-10mm²
Order number；152322
